P0440-General EVAP System Failure: Notes

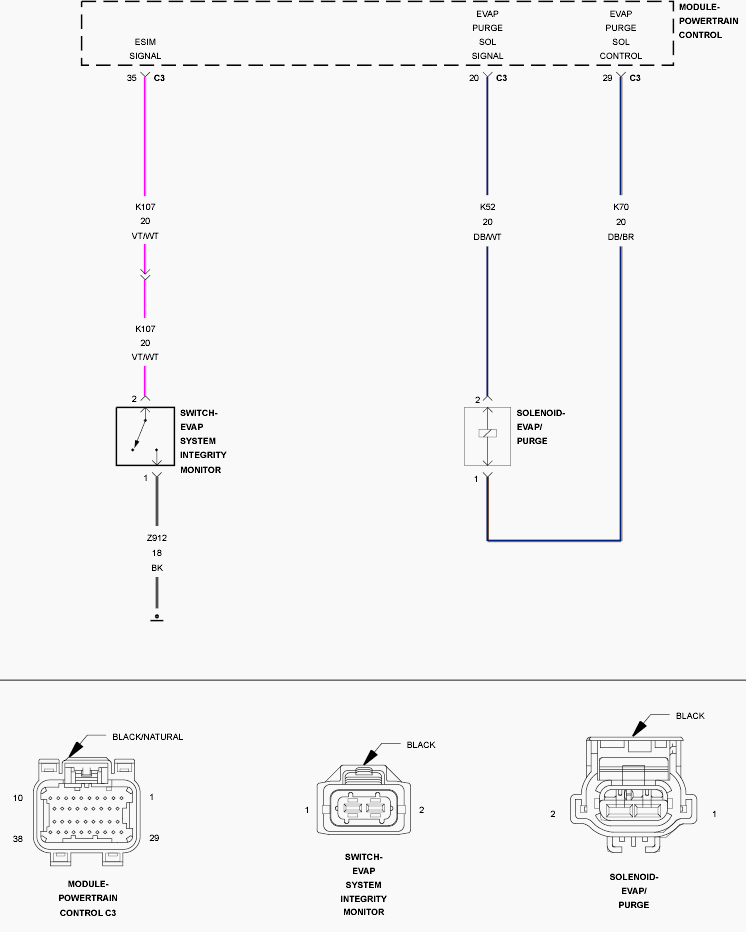

Fig 1: ESIM Switch & EVAP Purge Solenoid Wiring Diagram
GC0149069Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
