TANK, Fuel: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- If fuel tank is to be replaced, install fuel pump module into tank. Refer to MODULE, Fuel Pump, Installation .
- Position fuel tank to hydraulic jack.
- Raise tank until positioned near body.
- Connect fuel pump module electrical connector at top of tank.
- Connect fuel line quick-connect fitting to pump module.
- Continue raising tank until positioned snug to body.

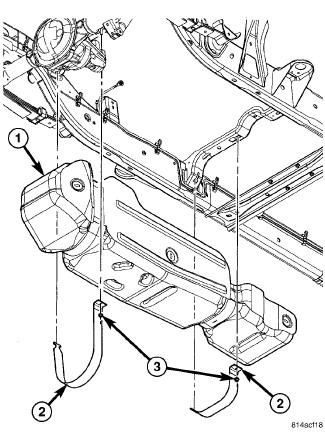

- Install and position both tank support straps (2). Install two fuel tank strap nuts (3) and tighten. Refer to Specifications .

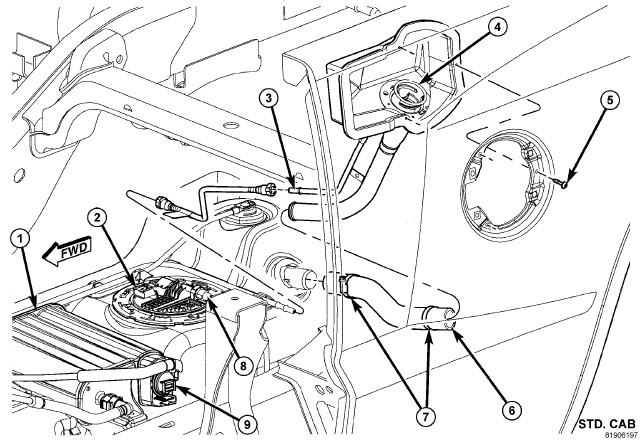

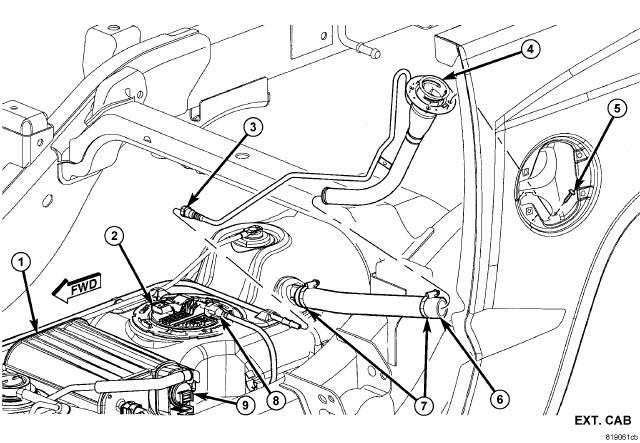

- Connect EVAP, ORVR and ESIM lines at front of tank.
- Connect electrical connector to ESIM switch (9).
- Connect vent line (3).
- Connect rubber fill hose (6) to fuel tank fitting and tighten hose clamps (7).
- The vapor/vacuum lines and hoses must be firmly connected. Also check the vapor/vacuum lines at the ESIM switch, filter and EVAP canister purge solenoid for damage or leaks. If a leak is present, a Diagnostic Trouble Code (DTC) may be set.
- If equipped, install fuel tank skid plate.
- Install plastic liner in front of left-rear tire/wheel.
- Install left-rear tire/wheel.
- Lower vehicle.
- Fill fuel tank with fuel.
- Start engine and check for fuel leaks near top of module.
