SENSOR, Air Temperature, Intake: Installation: 4.7L

WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of IAT Sensor Tab/O-ring - 3.7L/4.7L/5.7L

Courtesy of CHRYSLER LLC

1 - IAT SENSOR

2 - SENSOR O-RING

3 - RELEASE TAB

Check condition of sensor o-ring (2).
Clean sensor mounting hole.
Position sensor (1) into base and rotate clockwise until past release tab (3).

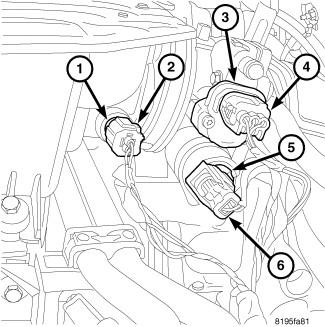

Fig 2: IAT Sensor - 4.7L
Courtesy of CHRYSLER LLC
Install electrical connector (2).
