PUMP, Water, Afterrun: Installation: Installation

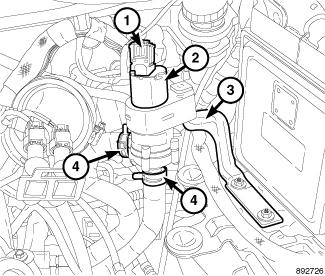

Fig 1: Water Pump Afterrun

Courtesy of CHRYSLER LLC

1. Position the after run pump (2) onto the mounting brcaket (3).
2. Connect the two coolant hoses (4) to the after run pump (2).
3. Connect the after run pump electrical connector (1).
4. Install the air cleaner housing. Refer to BODY, Air Cleaner, Installation or BODY, Air Cleaner, Installation .
5. Install the negative battery cable.
6. Fill the cooling system Refer to Standard Procedure .
