Left Side Knock Sensor

Fig 1: Identifying Right Knock Sensor & Bolt

Courtesy of CHRYSLER LLC

Install the left knock sensor (2). Tighten bolt (1) 20 N.m (177 in. lbs.).

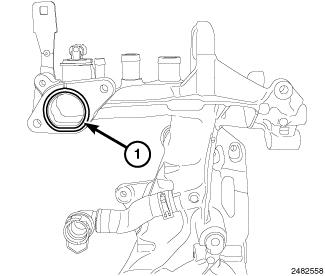

Fig 2: Identifying Gasket
Courtesy of CHRYSLER LLC
Clean the gasket surfaces and install a new gasket (1) and inspect the O-ring.
Position the coolant manifold to the engine and install bolts finger tight.

Fig 3: Identifying Coolant Hose
Courtesy of CHRYSLER LLC
Connect the coolant hose (1) to the oil cooler.

Fig 4: Identifying Bolts From Cooling Manifold
Courtesy of CHRYSLER LLC
Tighten the lower cooling manifold bolts (1) to 20 N.m (177 in. lbs.).

Fig 5: Identifying Thermostat Heater Connector & Upper Thermostat Housing Bolt
Courtesy of CHRYSLER LLC
Install the two bolt securing the thermostat housing to engine block and tighten bolts to 9 N.m (80 in. lbs.).
Connect the coolant temperature sensor harness connector (1).

Fig 6: Piston Cooling Oil Control Valve Harness Connector
Courtesy of CHRYSLER LLC
Connect the oil jet control valve harness connector.

Fig 7: Identifying Coolant Temp Sensor & Cooling Manifold Bolts
Courtesy of CHRYSLER LLC
Tighten the three upper bolts (2) to 9 N.m (80 in. lbs.).
Connect the coolant temp sensor (1) harness connector.

Fig 8: Wire Harness Support Bracket & Bolts
Courtesy of CHRYSLER LLC
Install the wire harness support bracket. Tighten bolt to 9 N.m (80 in. lbs.).

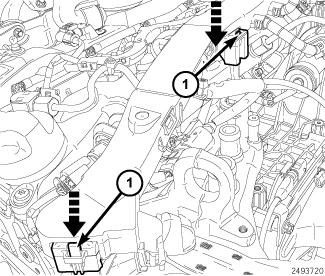

Fig 9: Positioning Wire Harness And Pushing Down To Lock Tabs
Courtesy of CHRYSLER LLC
Position the wire harness and push down to lock tabs.

Fig 10: Intake Manifold Support Bracket & Bolts
Courtesy of CHRYSLER LLC
Install the mixing chamber support bracket (2). Tighten bolts (1) to 9 N.m (80 in. lbs.).

Fig 11: Accessory Drive Belt Tensioner & Bolt
Courtesy of CHRYSLER LLC
Install the accessory drive belt tensioner.
- Tighten bolts (1) to 20 N.m (177 in. lbs.).
- Tighten bolt (3) to 45 N.m (33 ft. lbs.).
Install the serpentine belt.
Install the mixing chamber. Refer to MANIFOLD, Intake, Installation or MANIFOLD, Intake, Installation .
