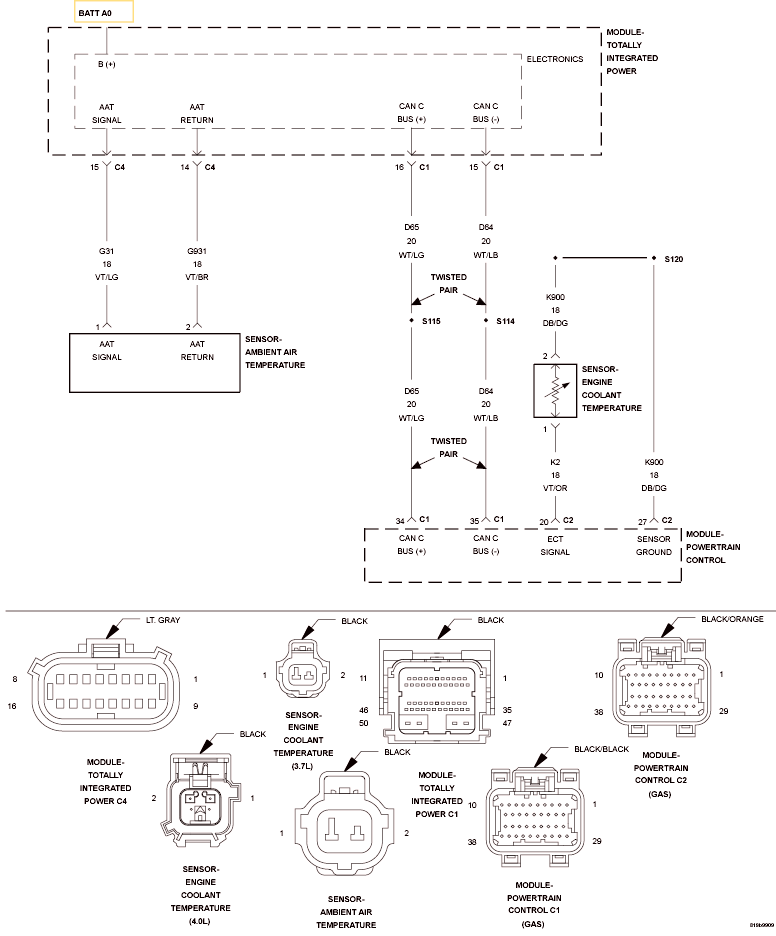

Home >> Dodge and Ram >> 2010 >> Nitro SE, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0016 To P0129 >> P0116-Engine Coolant Temperature Sensor Circuit Performance >> Circuit Schematic
