PUMP, Air: Installation: Installation

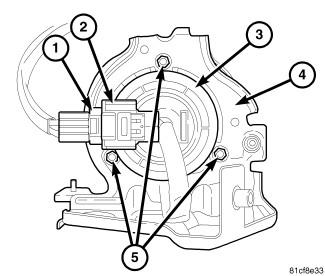

Fig 1: Air Pump Electrical Connector

Courtesy of CHRYSLER LLC

Install air pump (3) to bracket (4).
Install air pump mounting nuts (5) to bracket (4). Tighten the nuts to 8 N.m (71 in. lbs.).
Position air pump and bracket assembly in vehicle.
Connect electrical harness connector (1) to the air pump electrical connector (2).

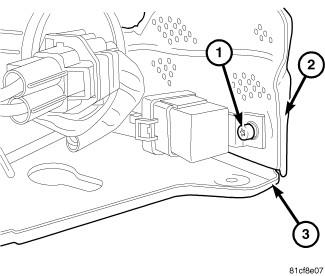

Fig 2: HEAT SHIELD
Courtesy of CHRYSLER LLC
Install heat shield (3) and bolt (1) to air pump bracket (2). Tighten the bolt to 8 N.m (71 in. lbs.).

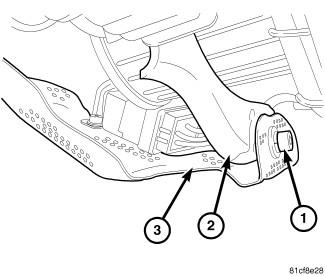

Fig 3: Heat Shield And Air Pump Bracket
Courtesy of CHRYSLER LLC
Install relay, heat shield (2) and bolt (1) to air pump bracket (3). Tighten the bolt to 8 N.m (71 in. lbs.).

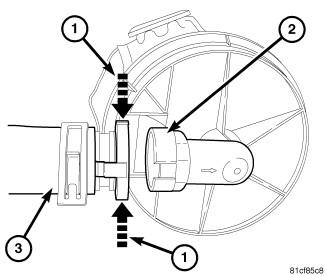

Fig 4: Air Inlet Tube At Air Pump
Courtesy of CHRYSLER LLC

NOTE: The quick connect fitting on the air inlet tube is slotted to fit the air pump housing fitting. Line the slot up when making the connection.
Install air inlet tube (3) to air pump housing connection (2). A click noise will indicate a good connection.
Install air outlet tube to air pump housing. A click noise will indicate a good connection.
Connect the negative battery cable, tighten the nut to 5 N.m (45 in. lbs.).
Install engine cover.
