Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

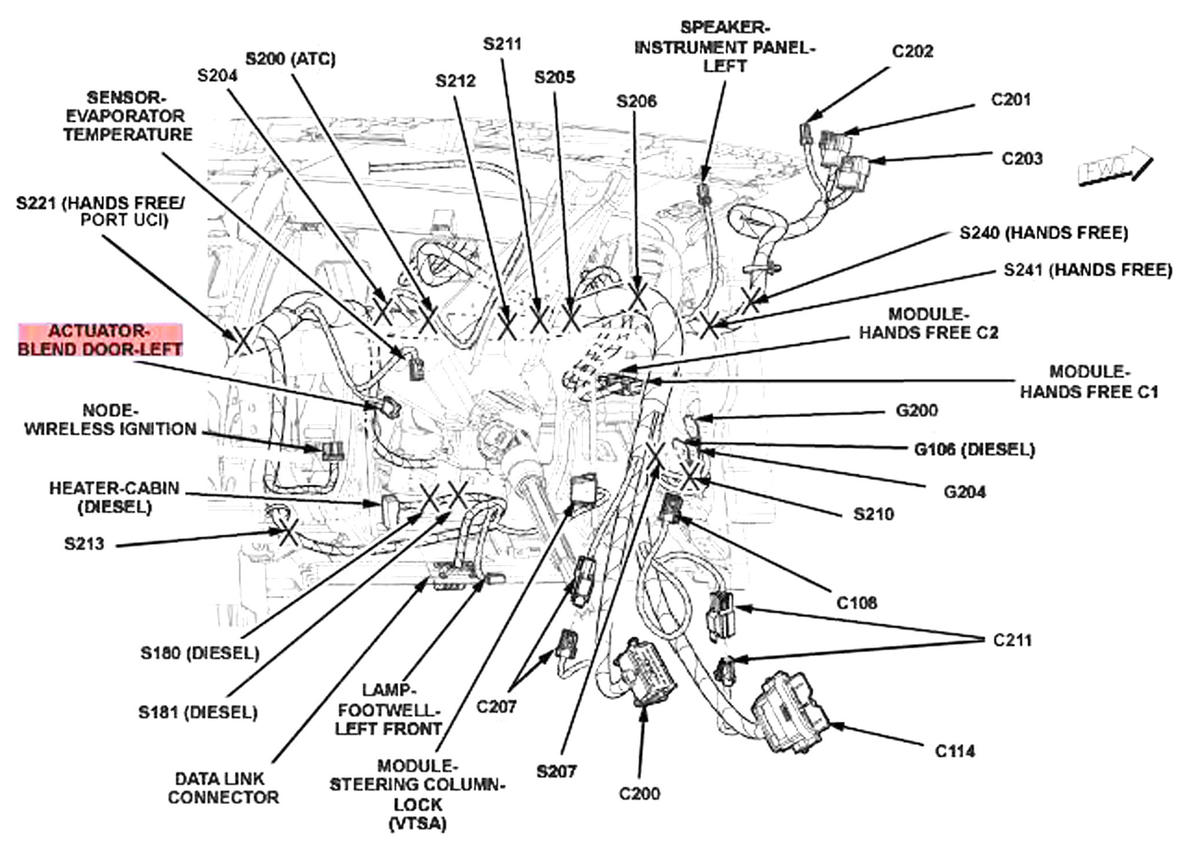

Fig 1: Left Side Of Dash

G00467448

Courtesy of CHRYSLER LLC

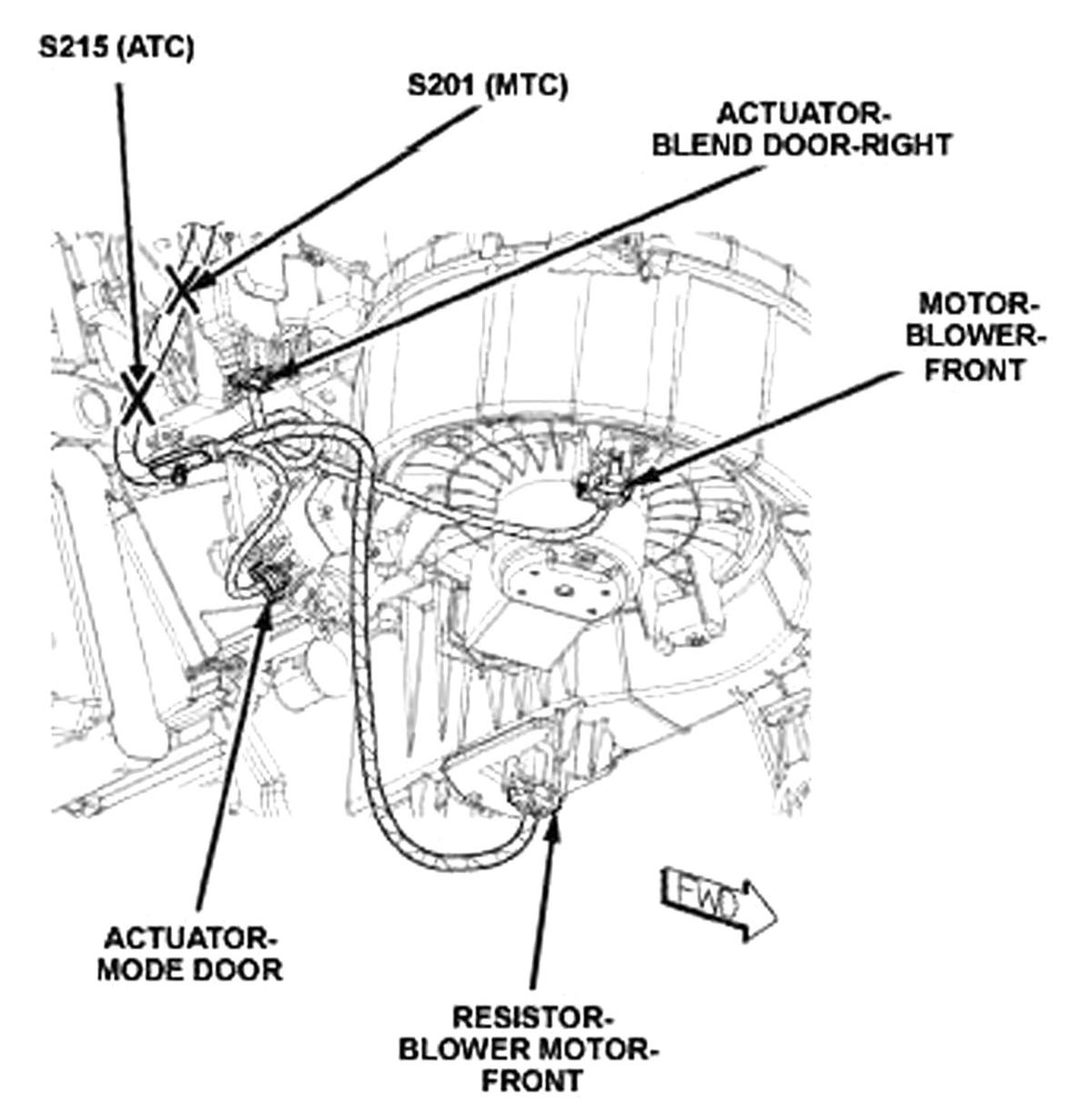

Fig 2: Right Side Of Dash

G00467449

Courtesy of CHRYSLER LLC

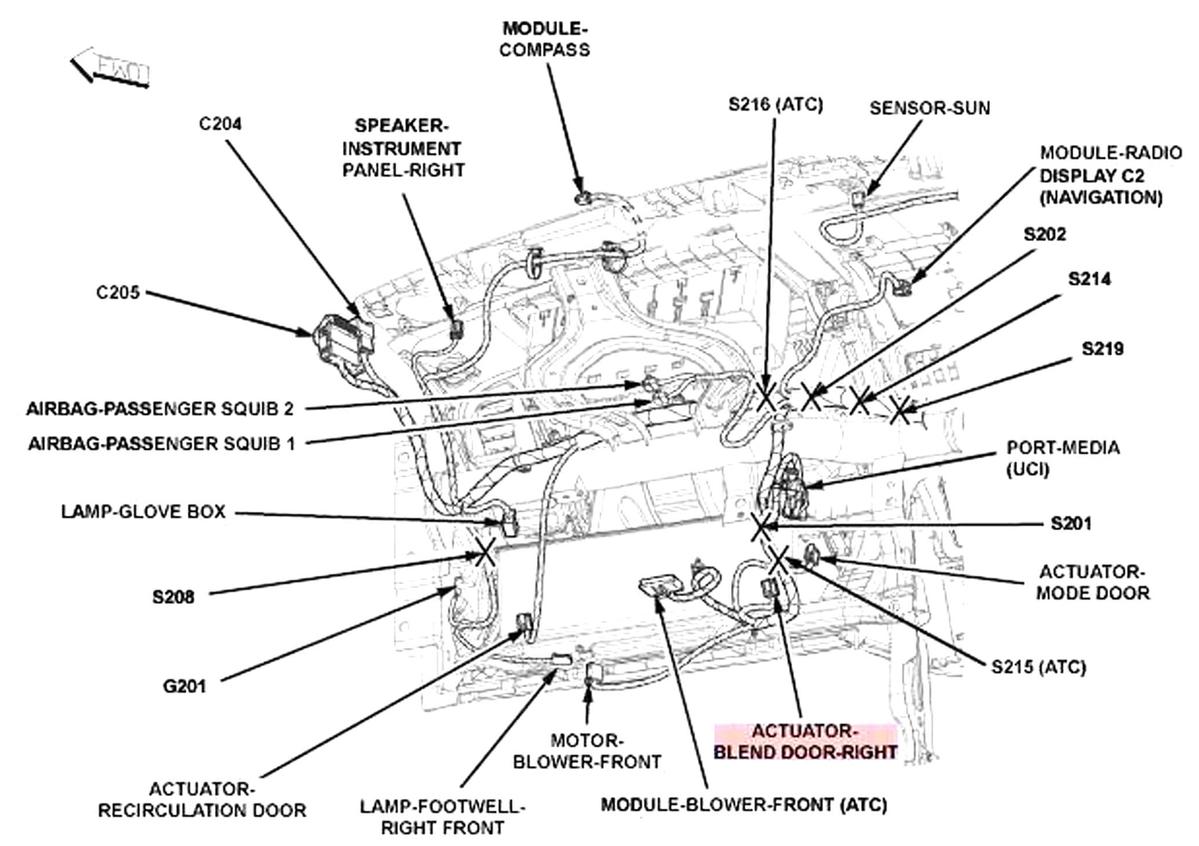

Fig 3: Right Side Of Dash

G00467450

Courtesy of CHRYSLER LLC

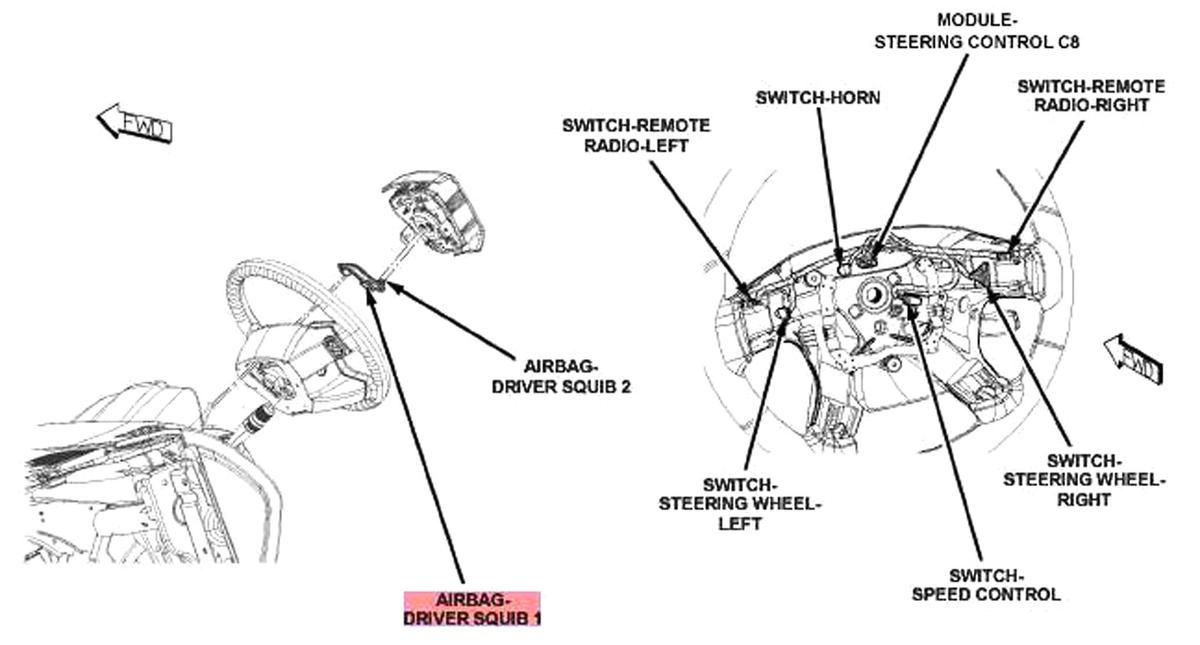

Fig 4: Steering Wheel

G00467451

Courtesy of CHRYSLER LLC

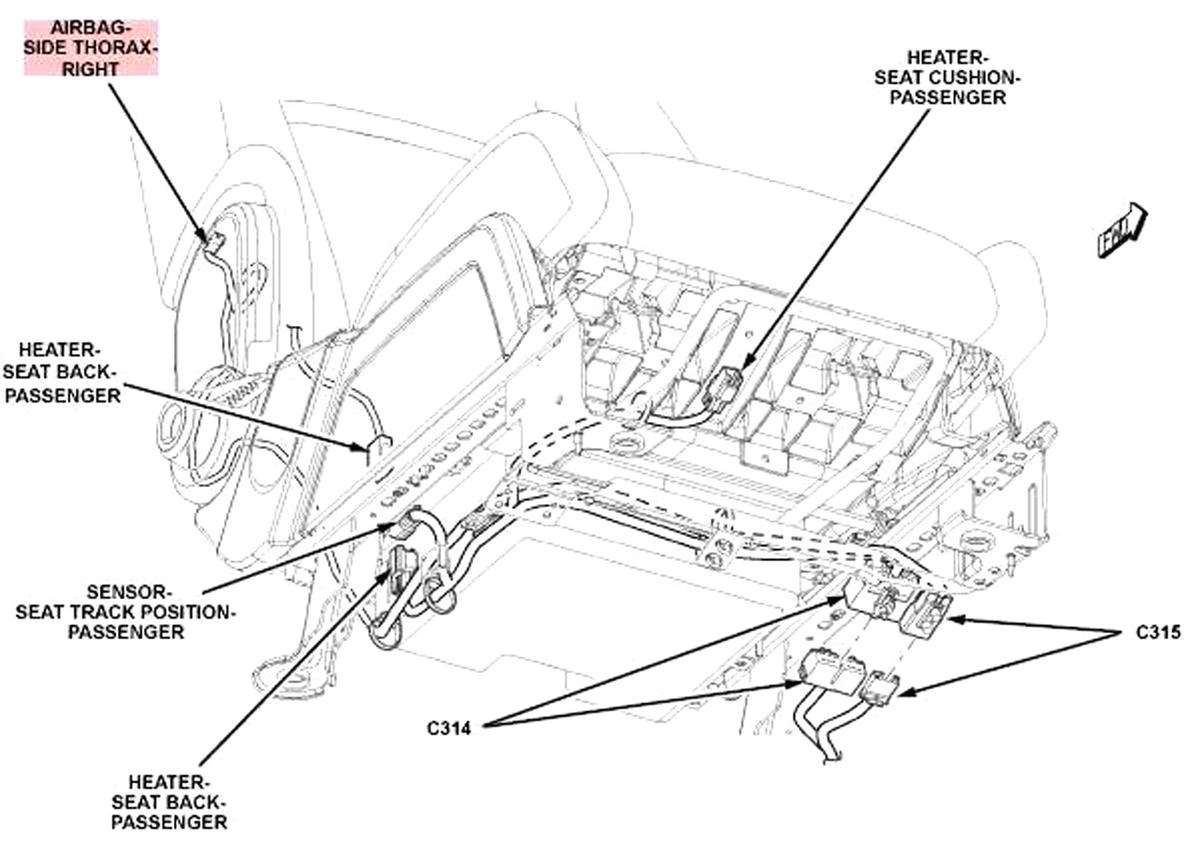

Fig 5: Front Passenger's Seat

G00467455

Courtesy of CHRYSLER LLC

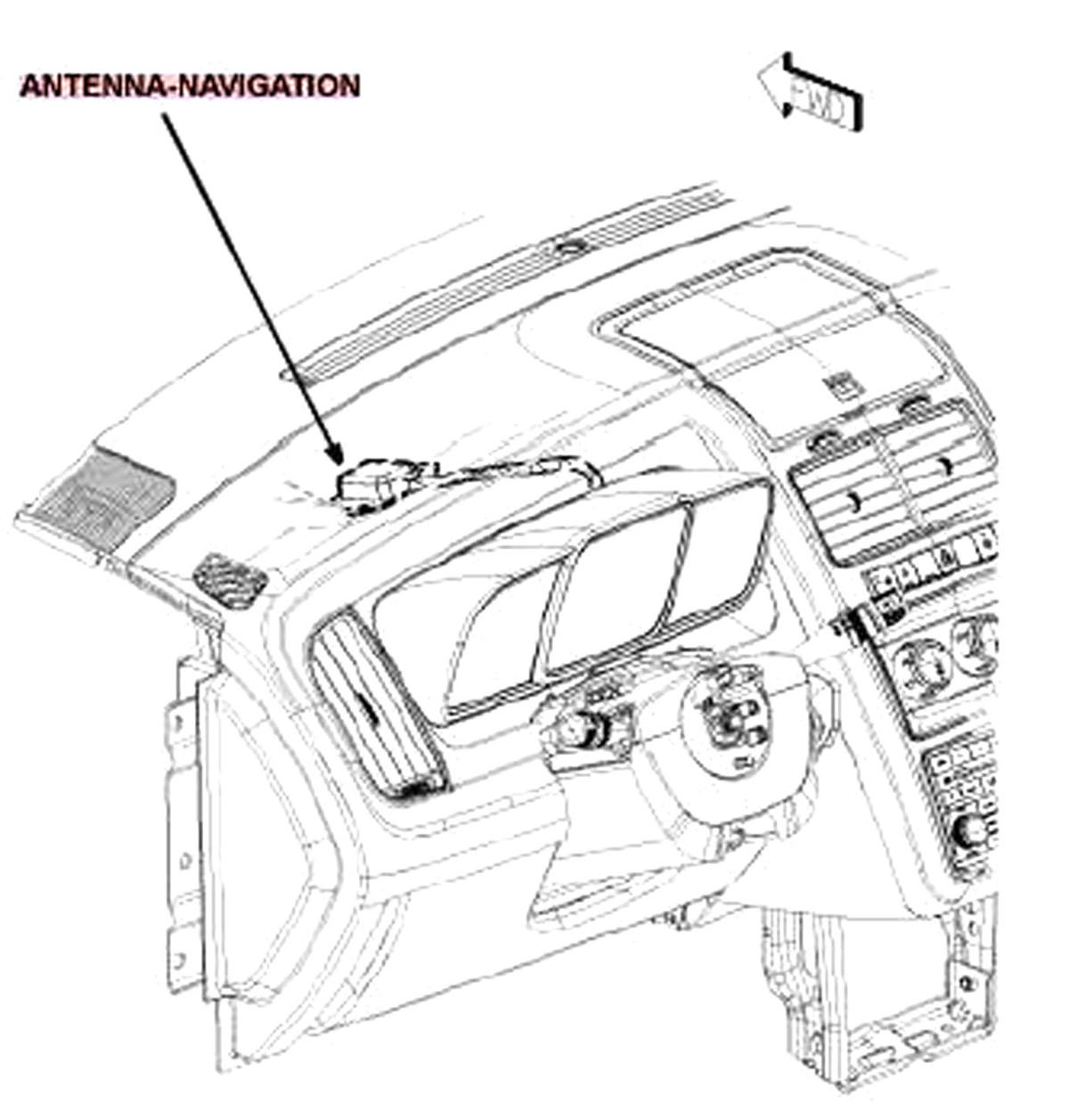

Fig 6: Left Side Of Dash

G00467457

Courtesy of CHRYSLER LLC

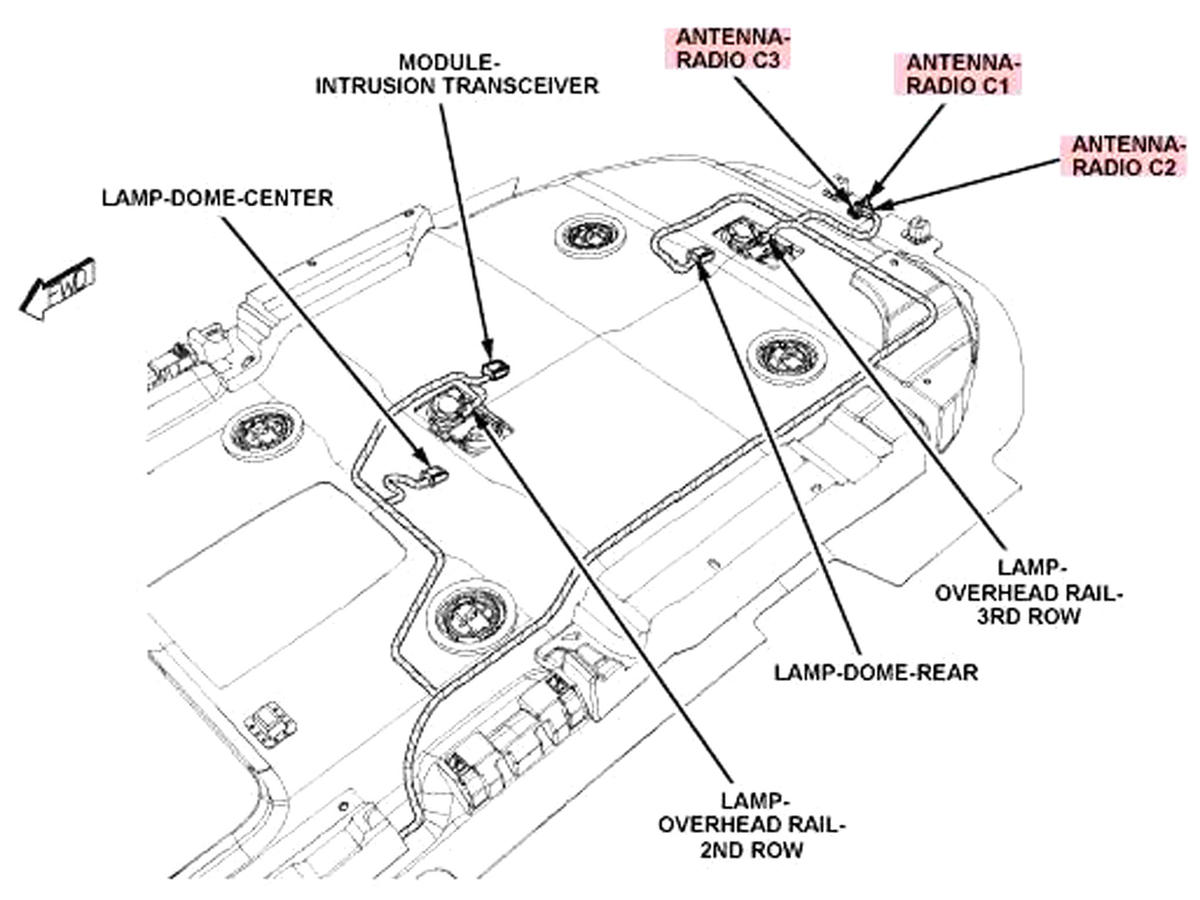

Fig 7: Overhead Rail

G00467458

Courtesy of CHRYSLER LLC

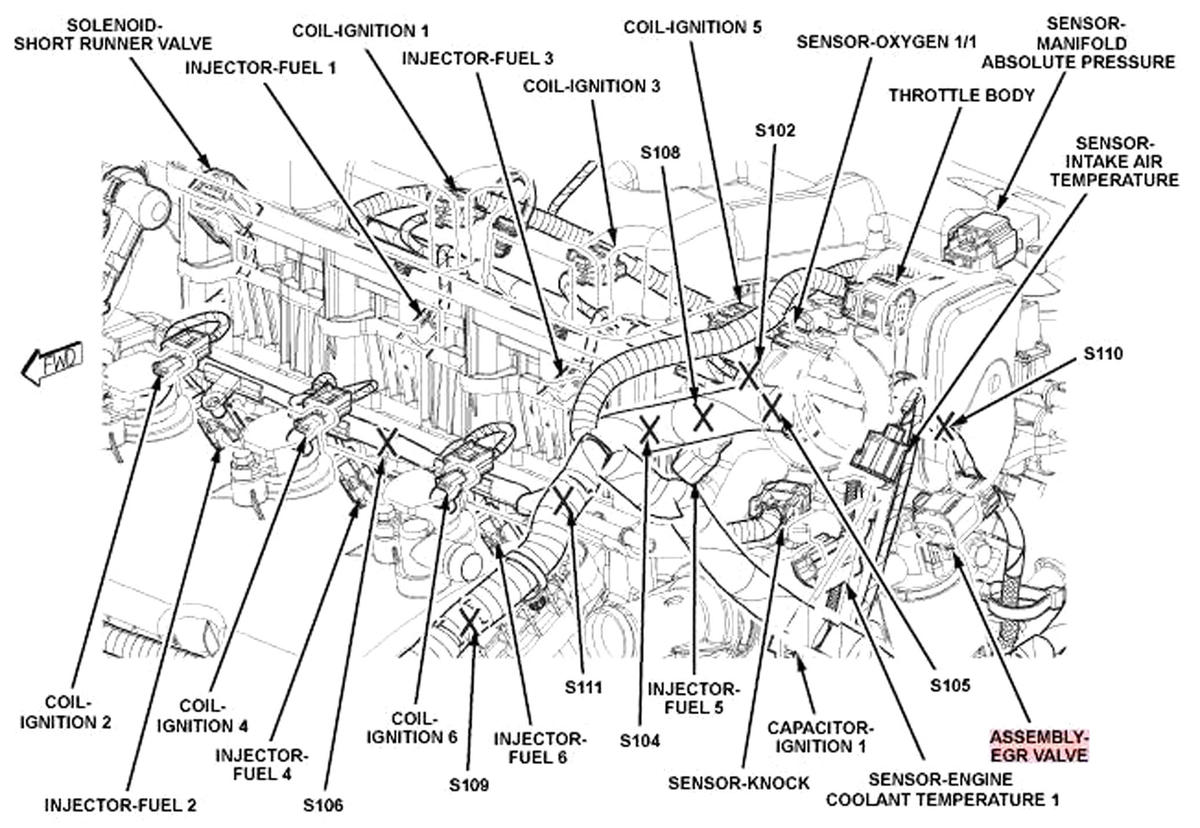

Fig 8: Top Of Engine (3.5L)

G00467459

Courtesy of CHRYSLER LLC

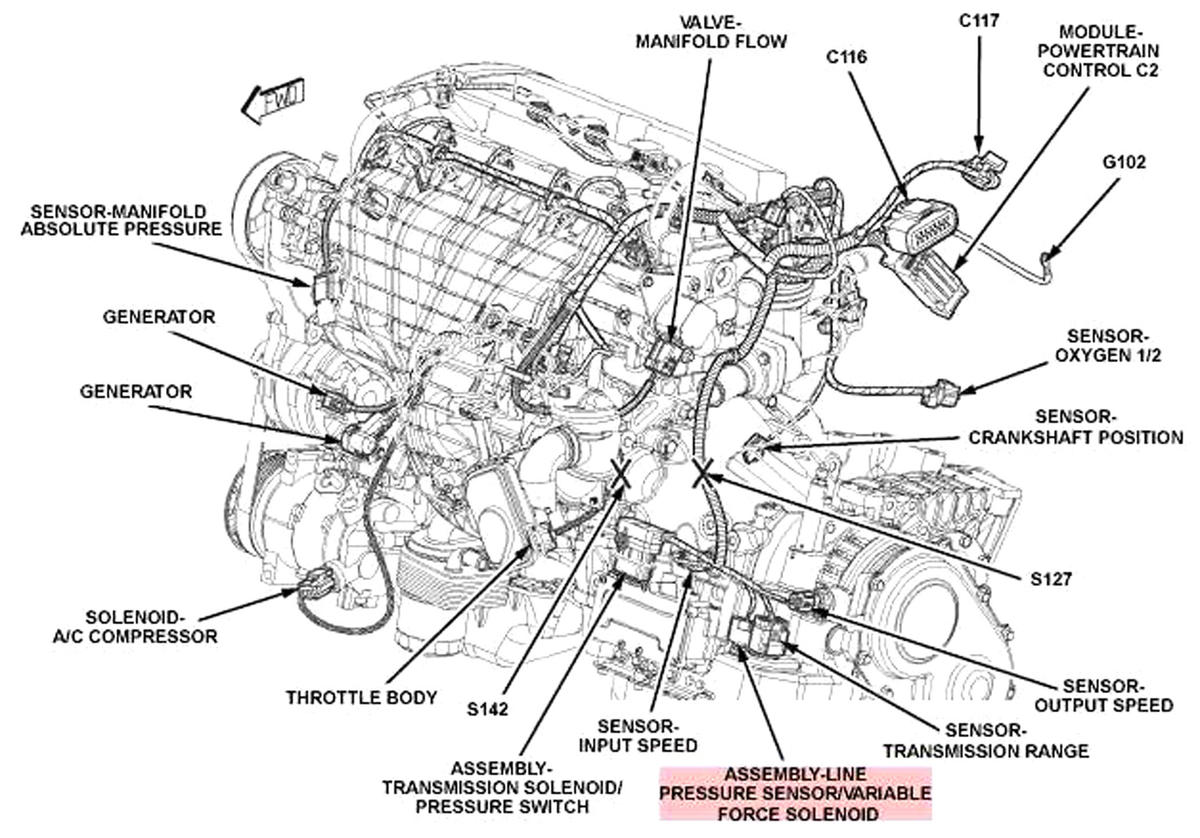

Fig 9: Left Side & Rear Of Engine (2.4L)

G00467463

Courtesy of CHRYSLER LLC

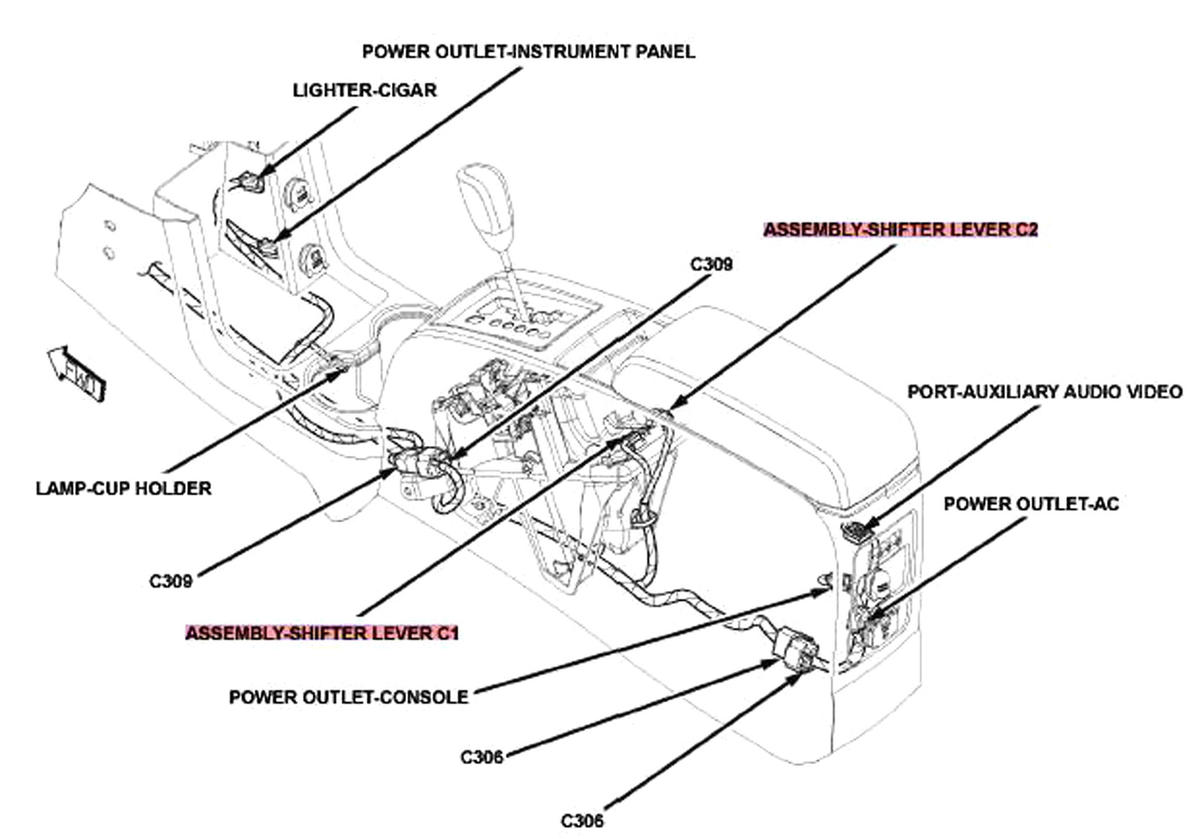

Fig 10: Center Console

G00467464

Courtesy of CHRYSLER LLC

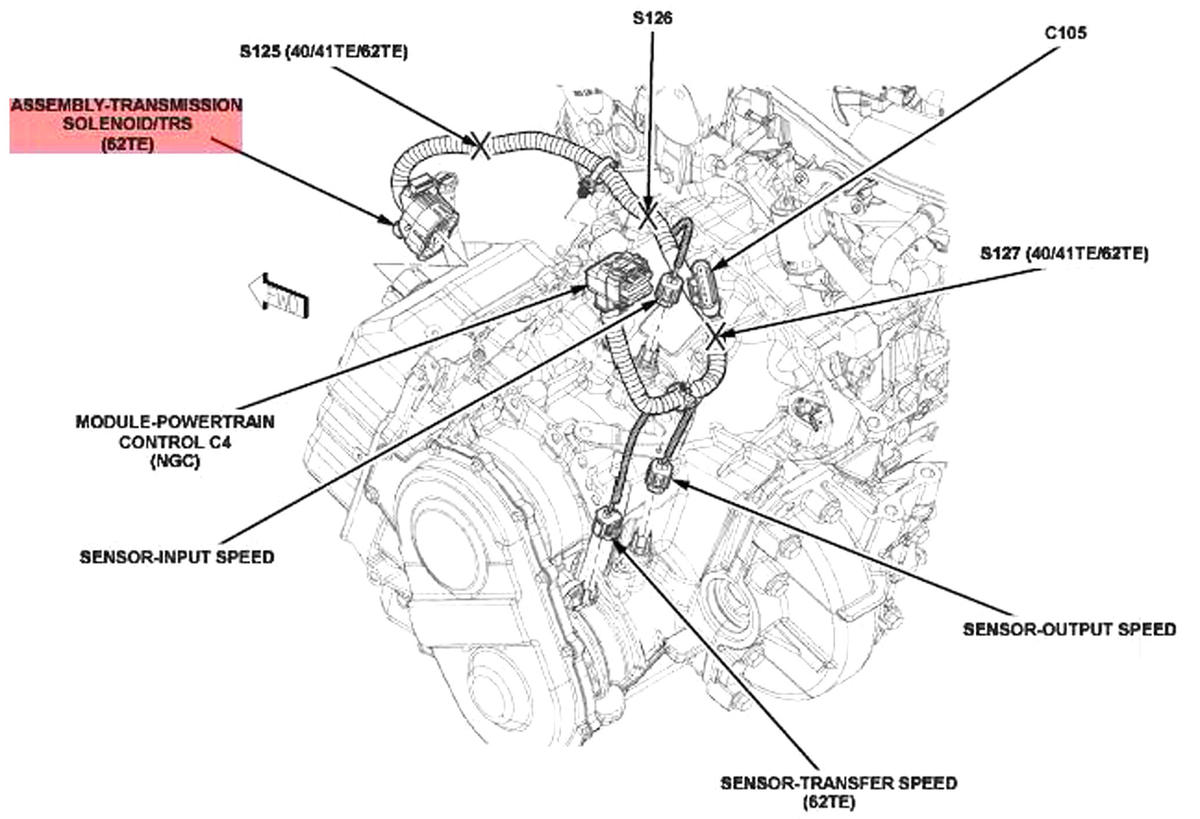

Fig 11: Transmission (3.5L)

G00467466

Courtesy of CHRYSLER LLC

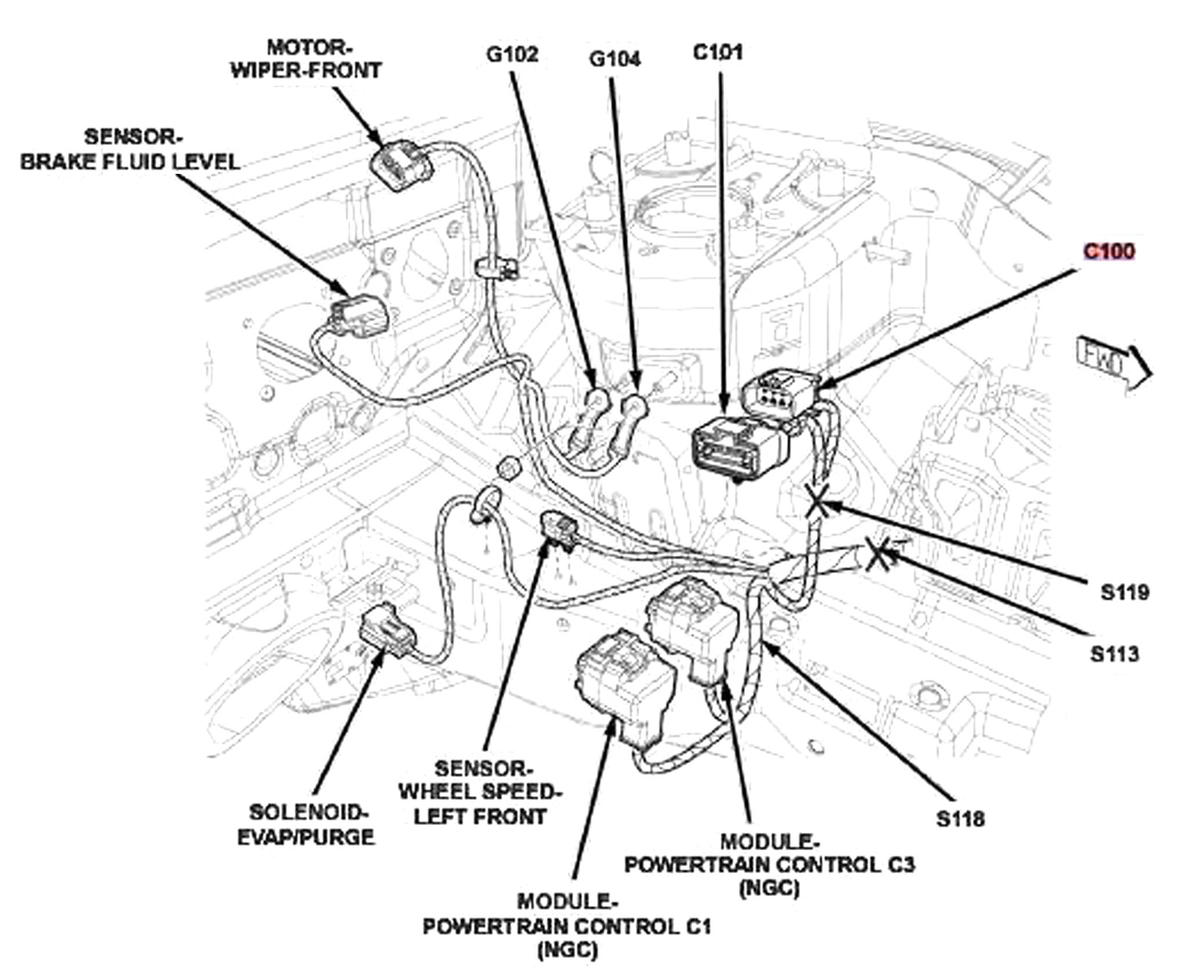

Fig 12: Left Rear Of Engine Compartment

G00467468

Courtesy of CHRYSLER LLC

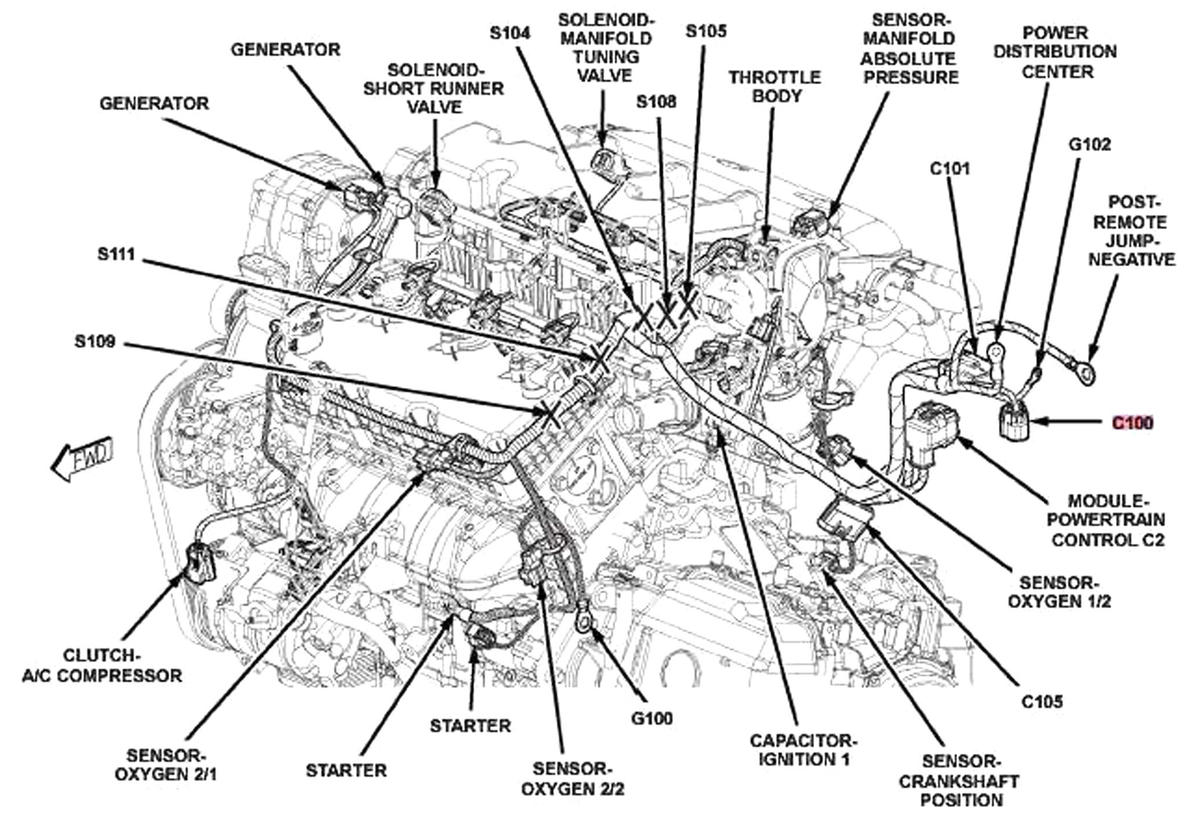

Fig 13: Left Side & Rear Of Engine (3.5L)

G00467469

Courtesy of CHRYSLER LLC

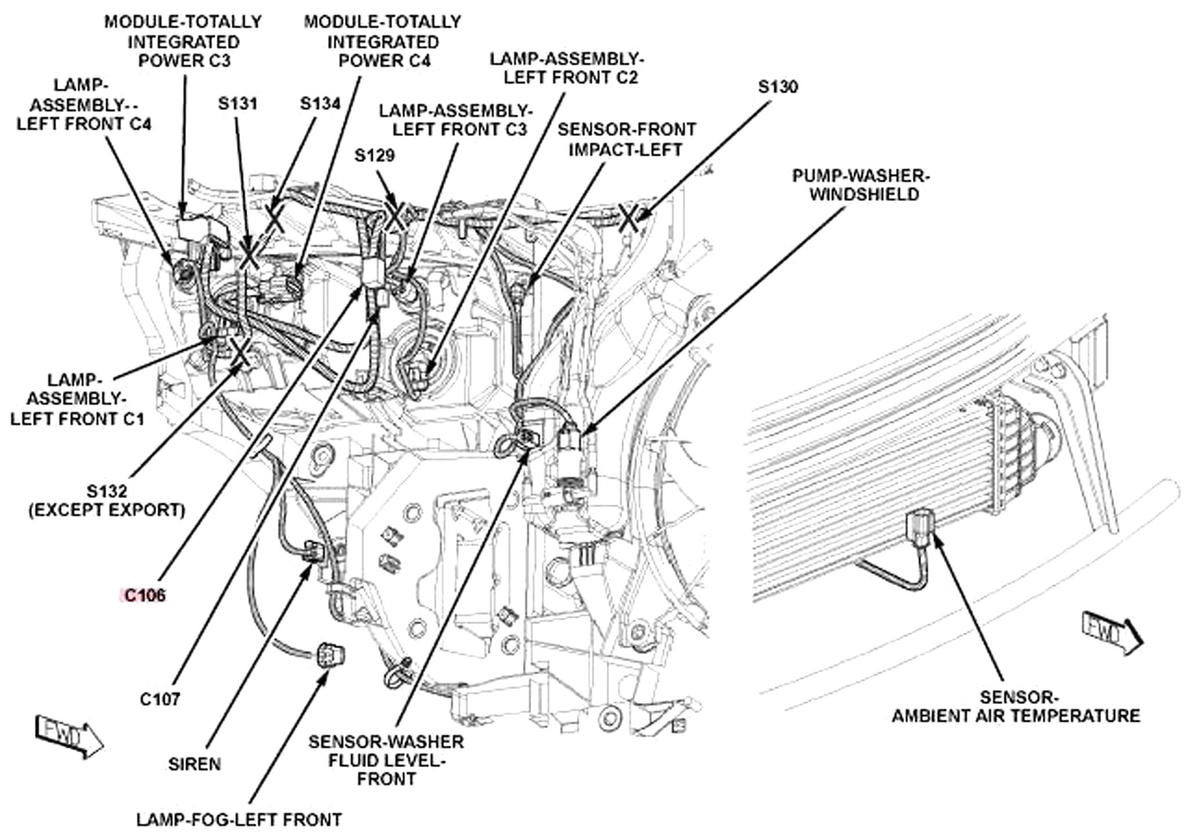

Fig 14: Left Front Of Engine Compartment

G00467470

Courtesy of CHRYSLER LLC

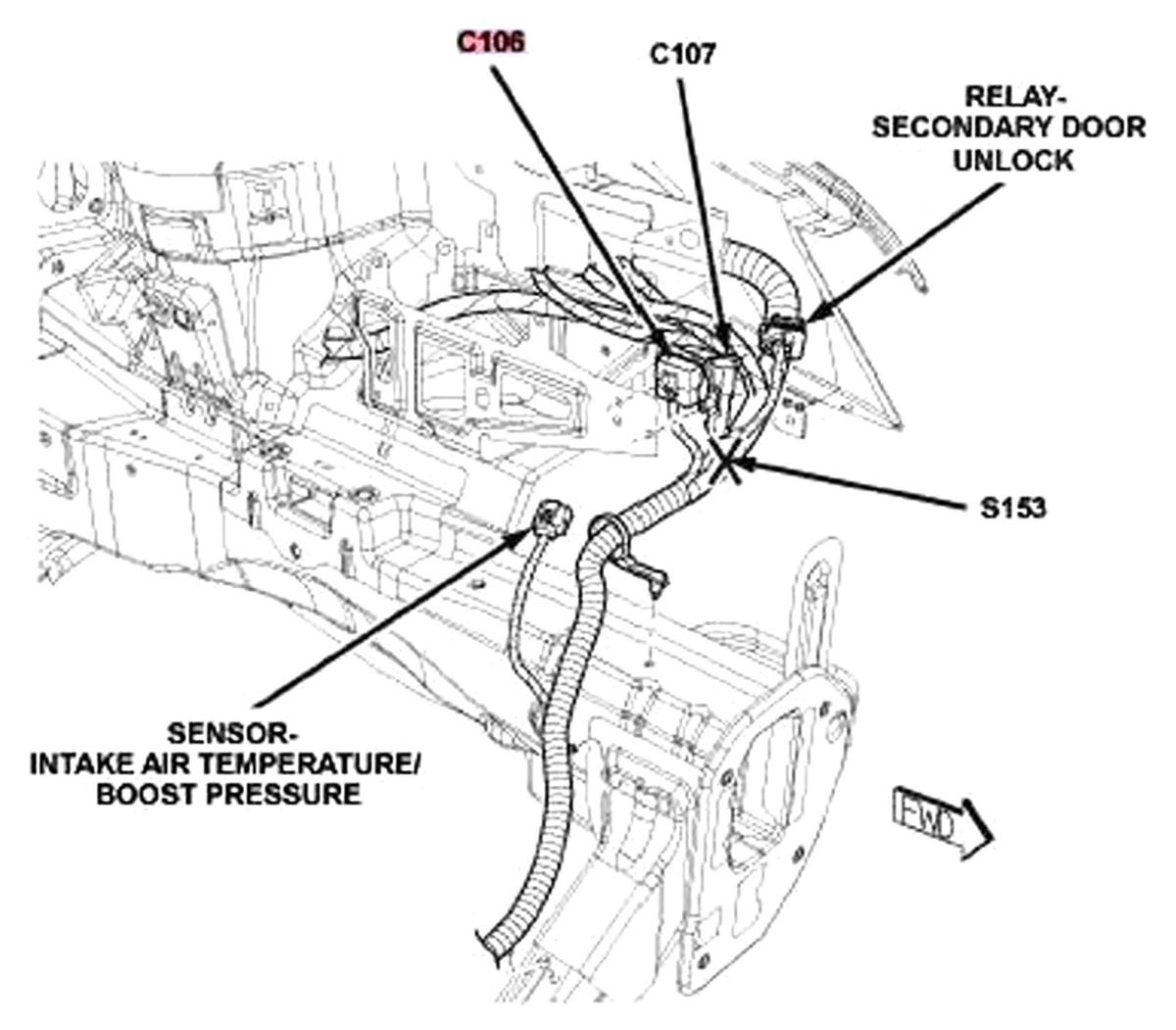

Fig 15: Left Side Of Engine Compartment

G00467471

Courtesy of CHRYSLER LLC

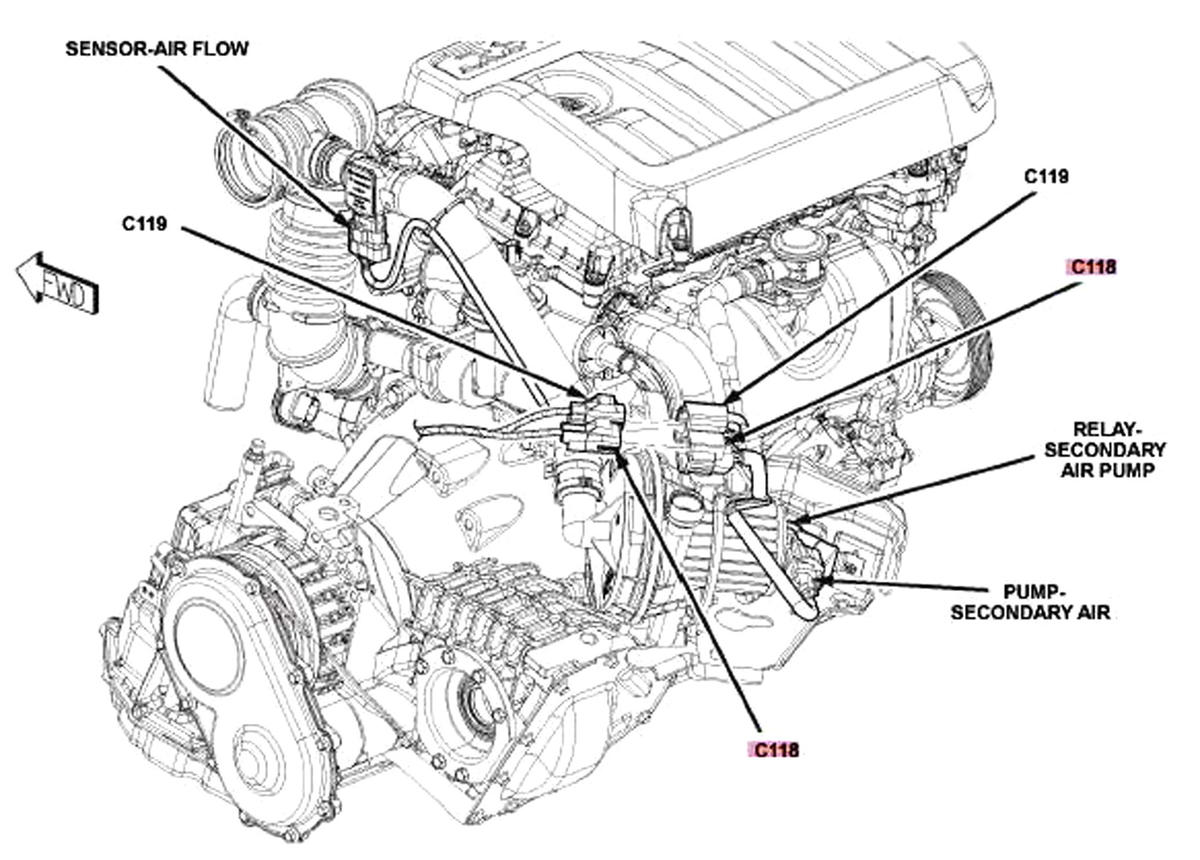

Fig 16: Right Side Of Engine (2.4L)

G00467473

Courtesy of CHRYSLER LLC

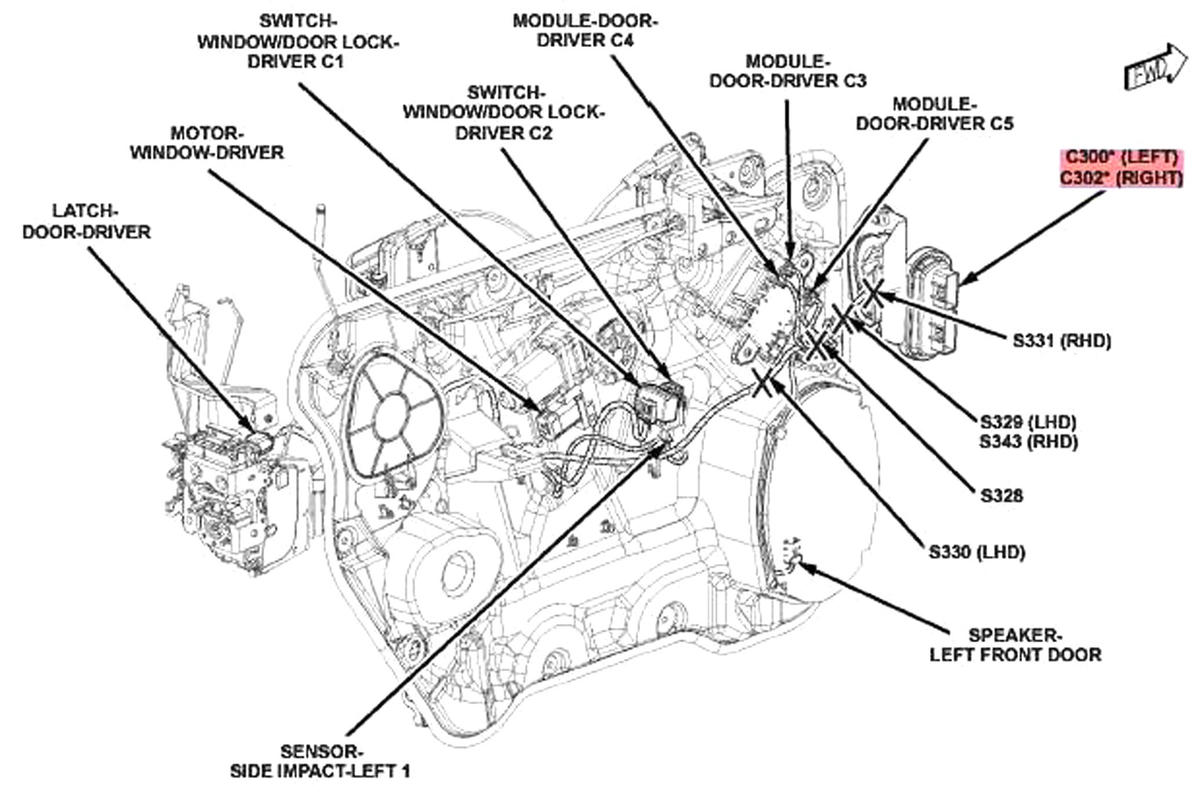

Fig 17: Driver's Door (Front Passenger's Similar)

G00467478

Courtesy of CHRYSLER LLC

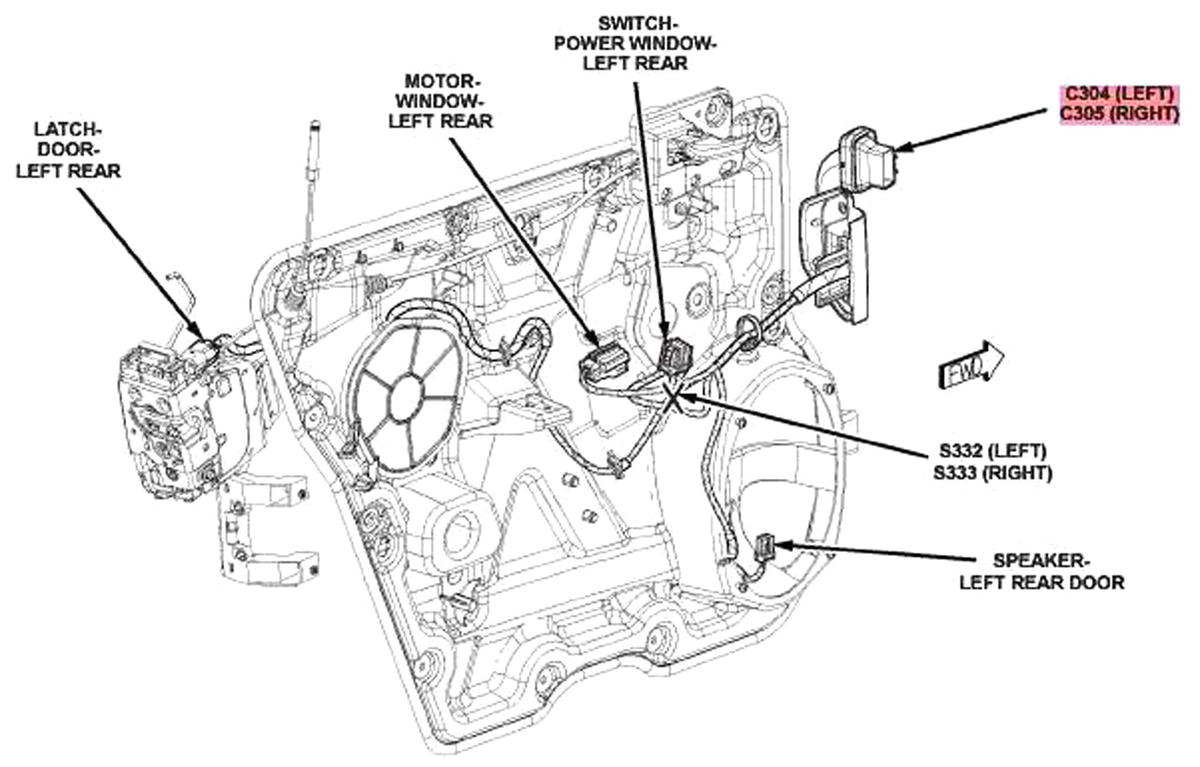

Fig 18: Left Rear Door (Right Rear Similar)

G00467479

Courtesy of CHRYSLER LLC

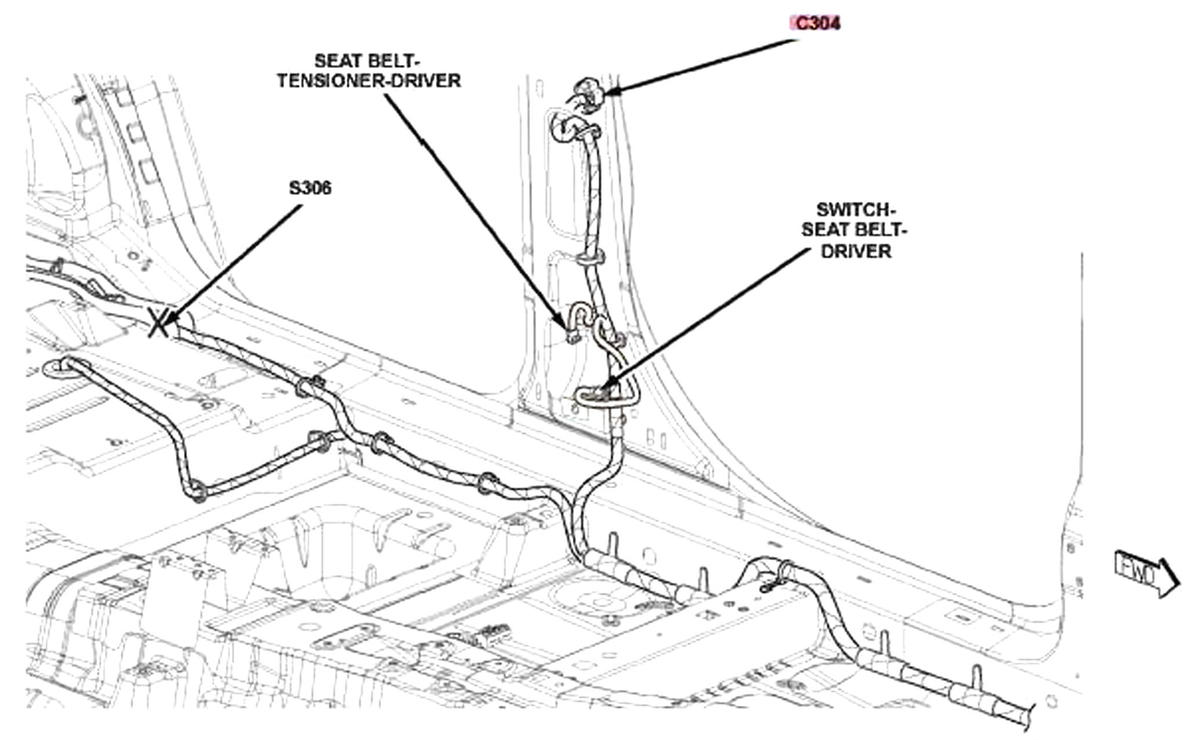

Fig 19: Left "B" & "C" Pillars

G00467480

Courtesy of CHRYSLER LLC

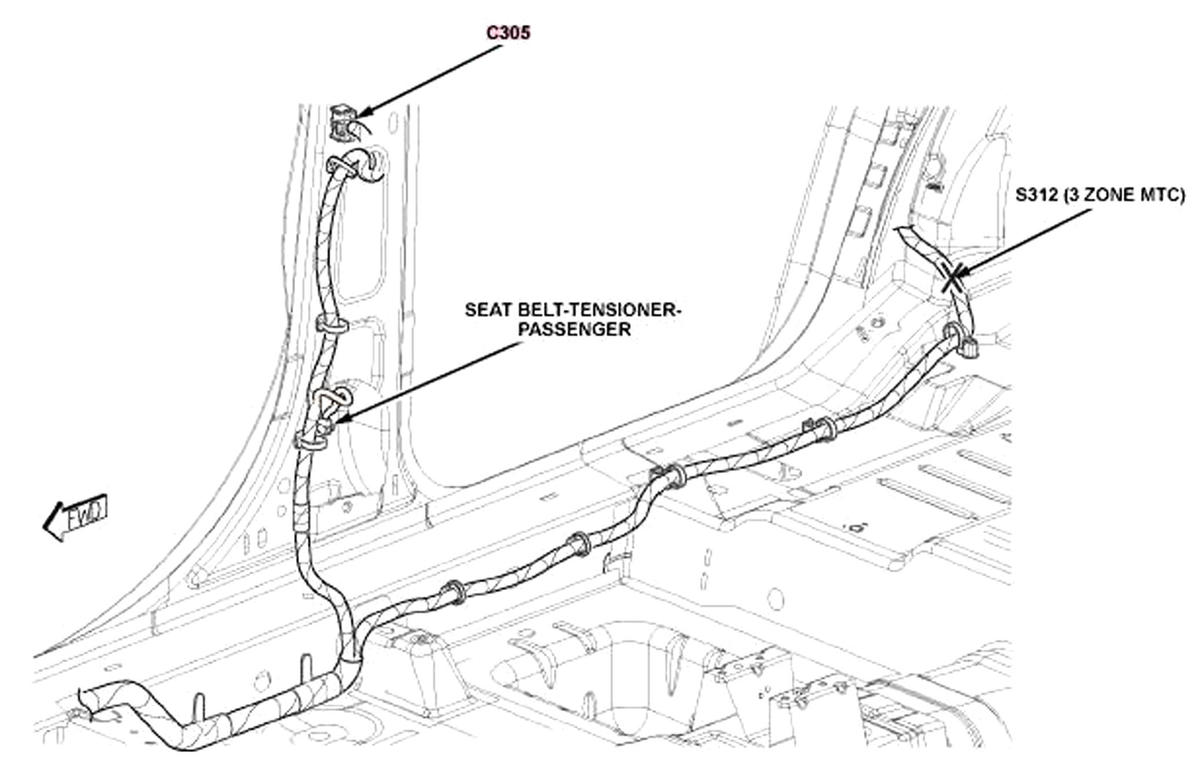

Fig 20: Right "B" & "C" Pillars

G00467481

Courtesy of CHRYSLER LLC

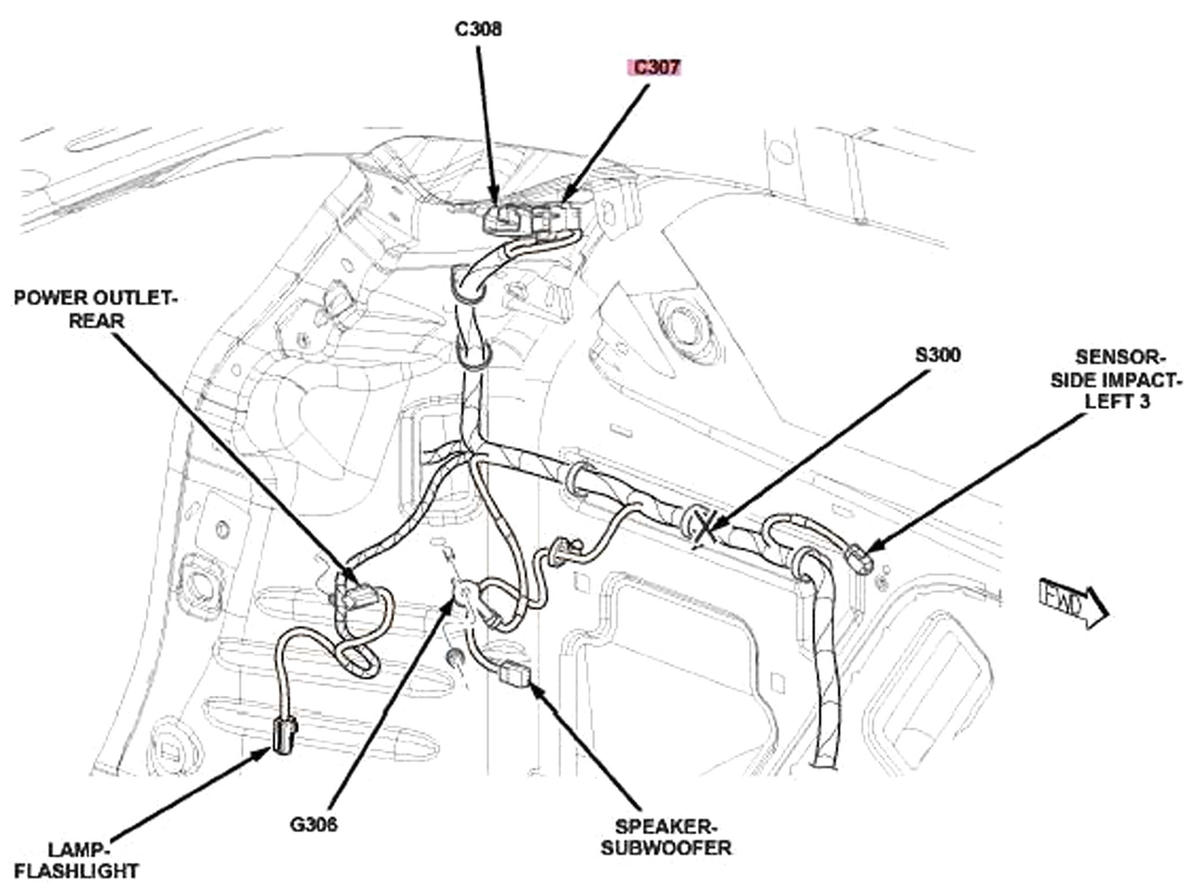

Fig 21: Left Quarterpanel

G00467482

Courtesy of CHRYSLER LLC

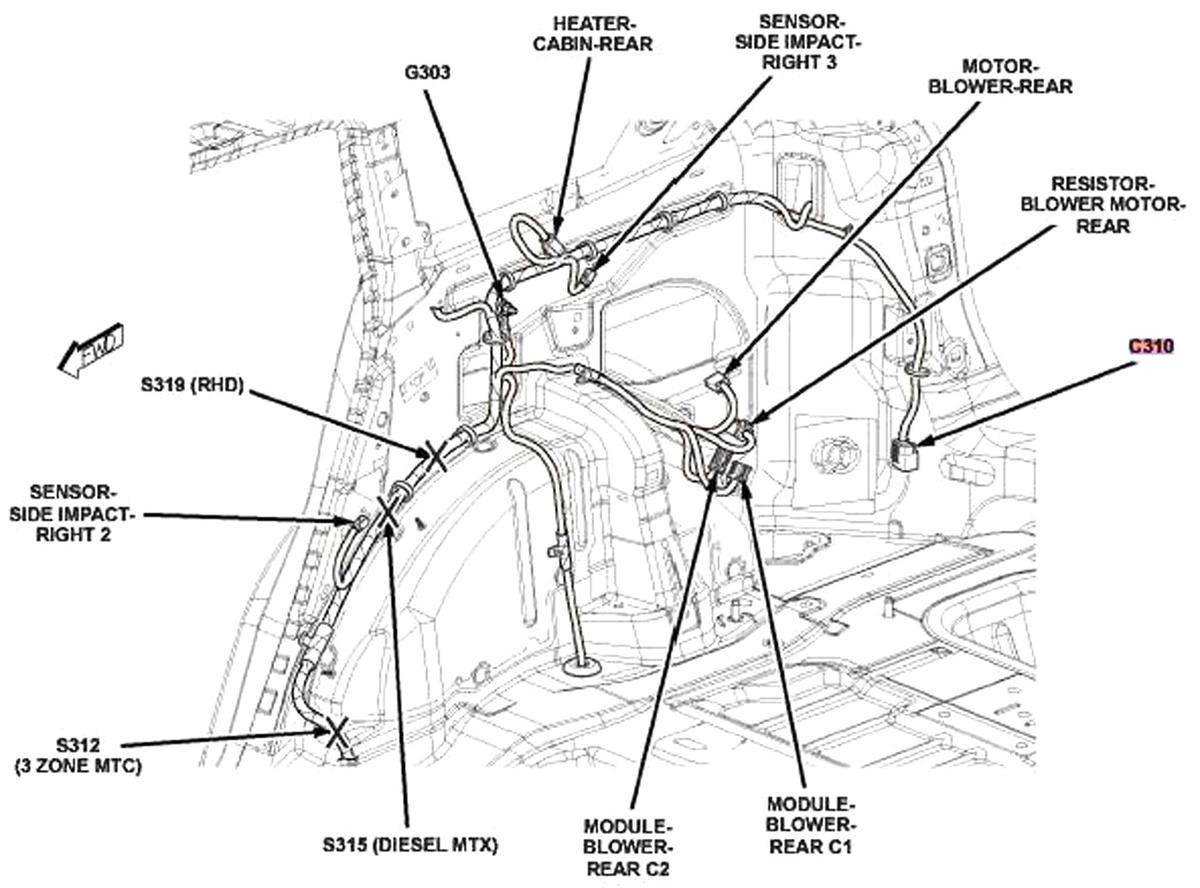

Fig 22: Right Quarterpanel

G00467484

Courtesy of CHRYSLER LLC

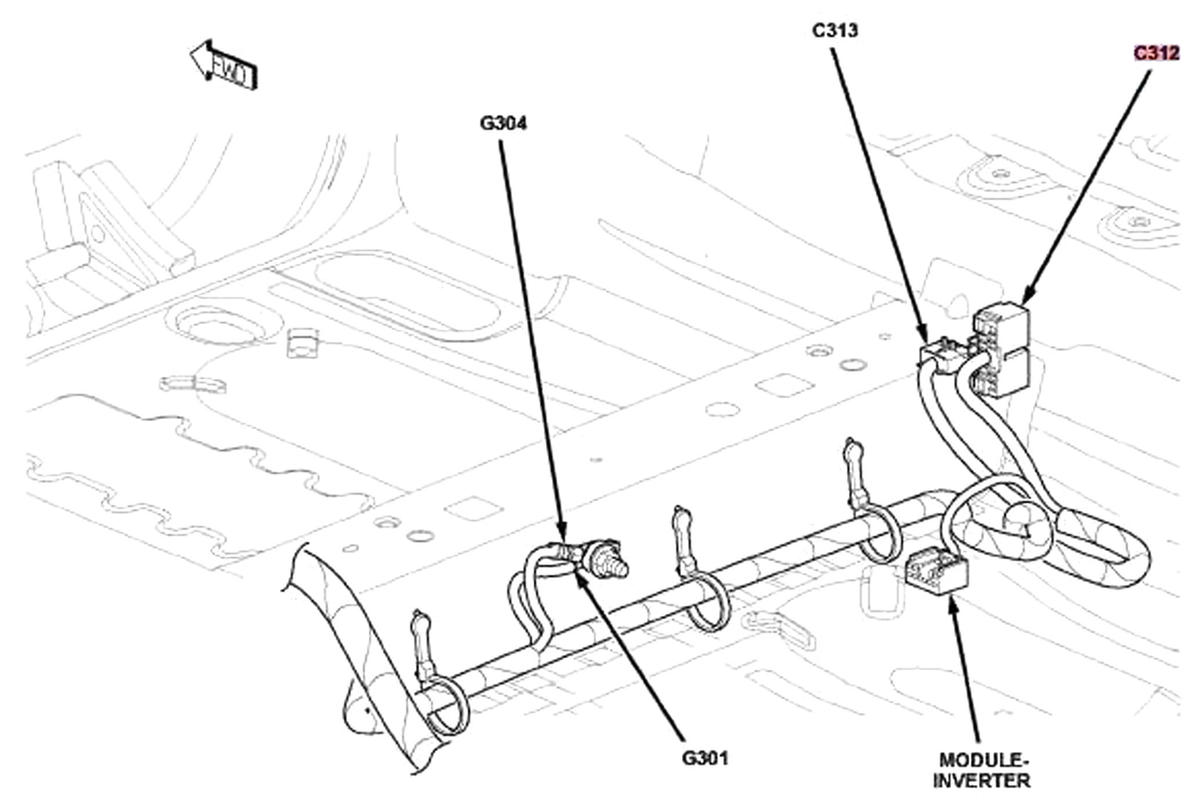

Fig 23: Floor Under Driver's Seat

G00467487

Courtesy of CHRYSLER LLC

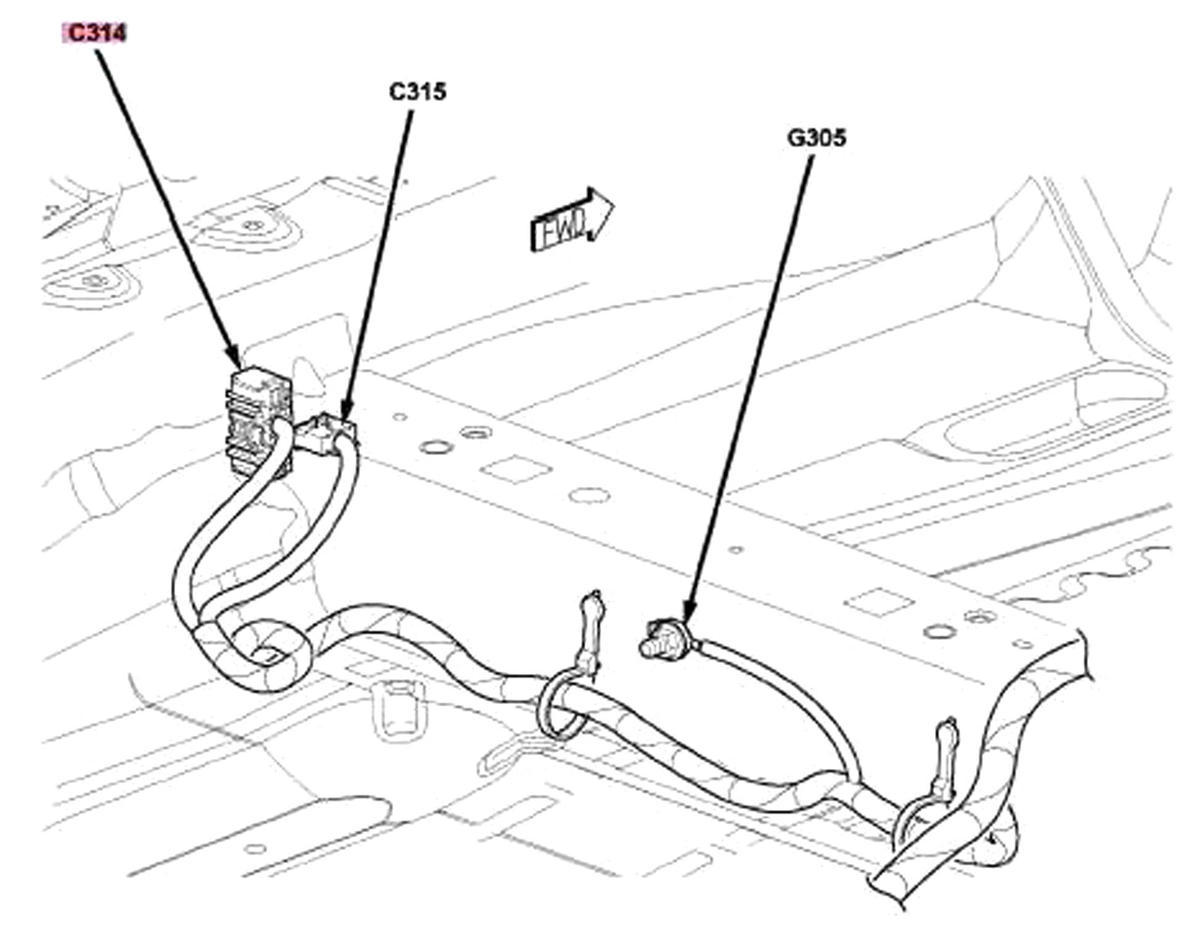

Fig 24: Floor Under Front Passenger's Seat

G00467488

Courtesy of CHRYSLER LLC

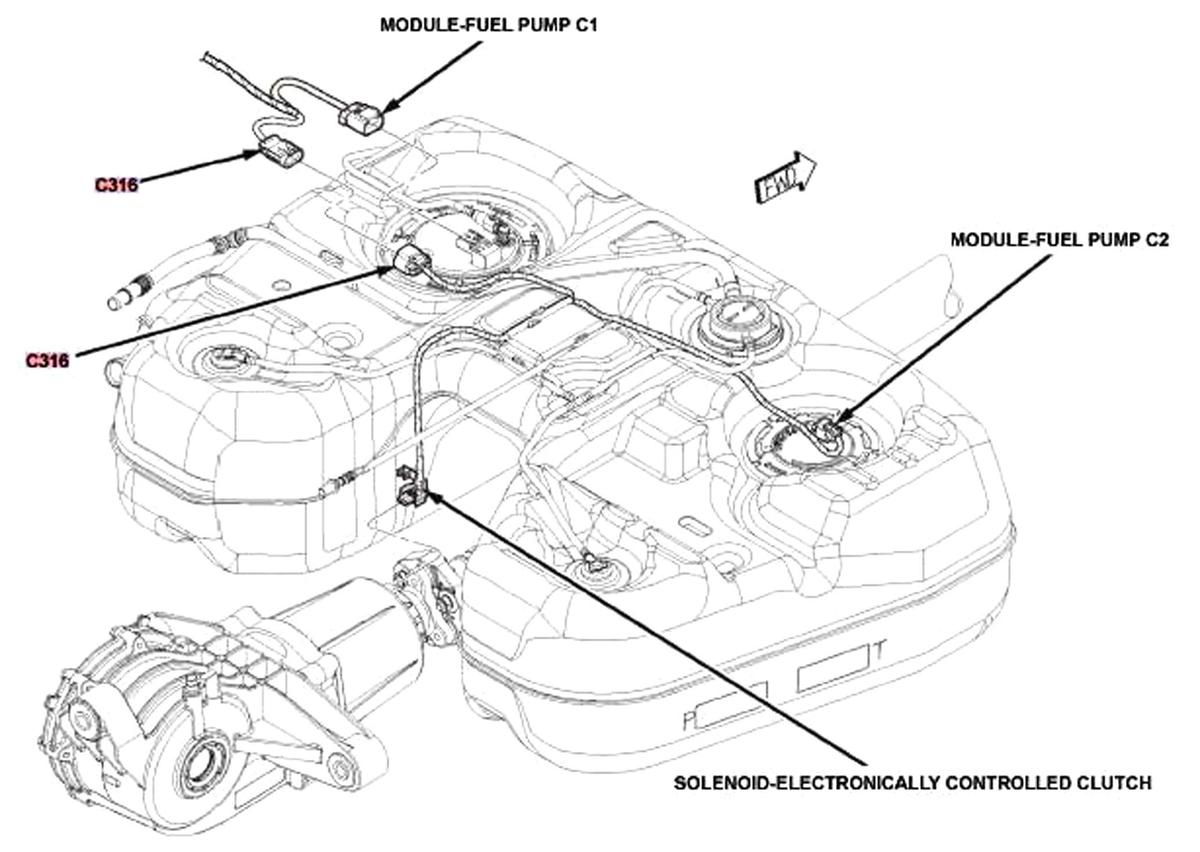

Fig 25: Top Of Fuel Tank (AWD)

G00467489

Courtesy of CHRYSLER LLC

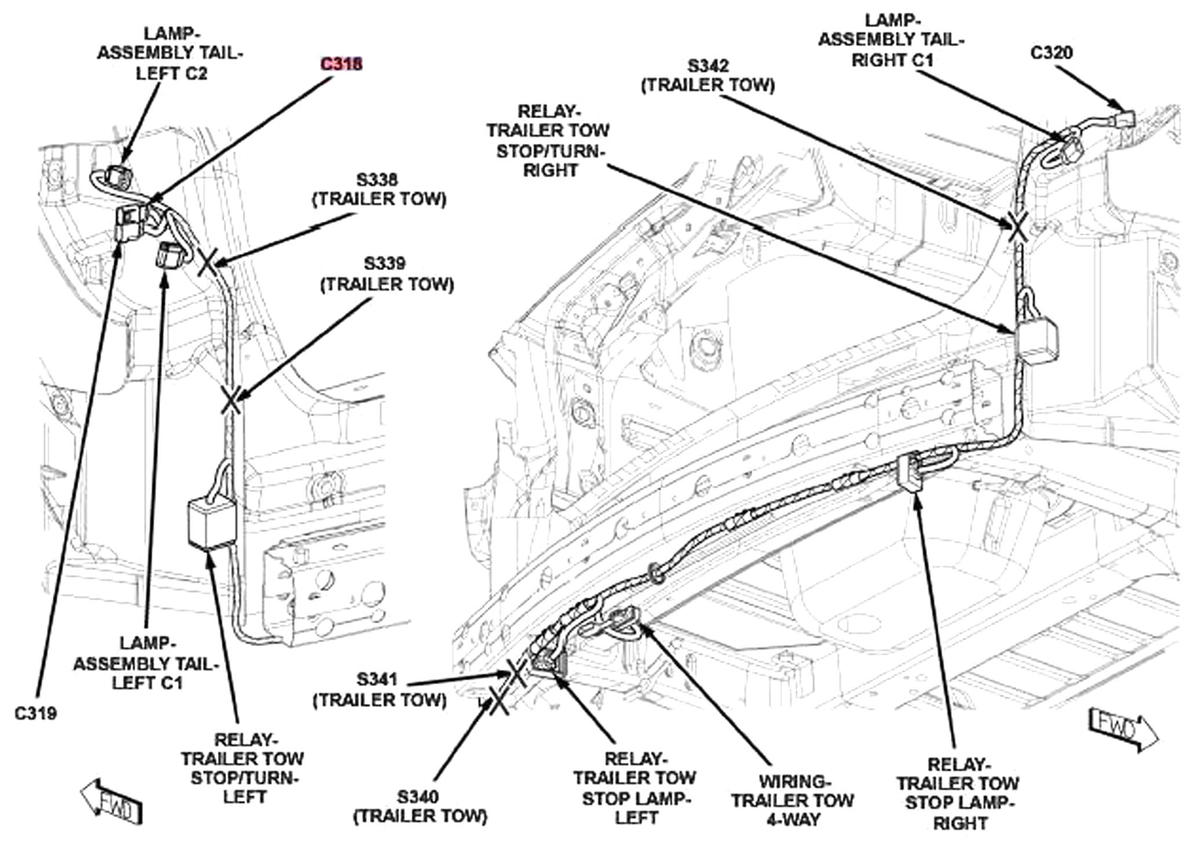

Fig 26: Rear Of Vehicle

G00467731

Courtesy of CHRYSLER LLC

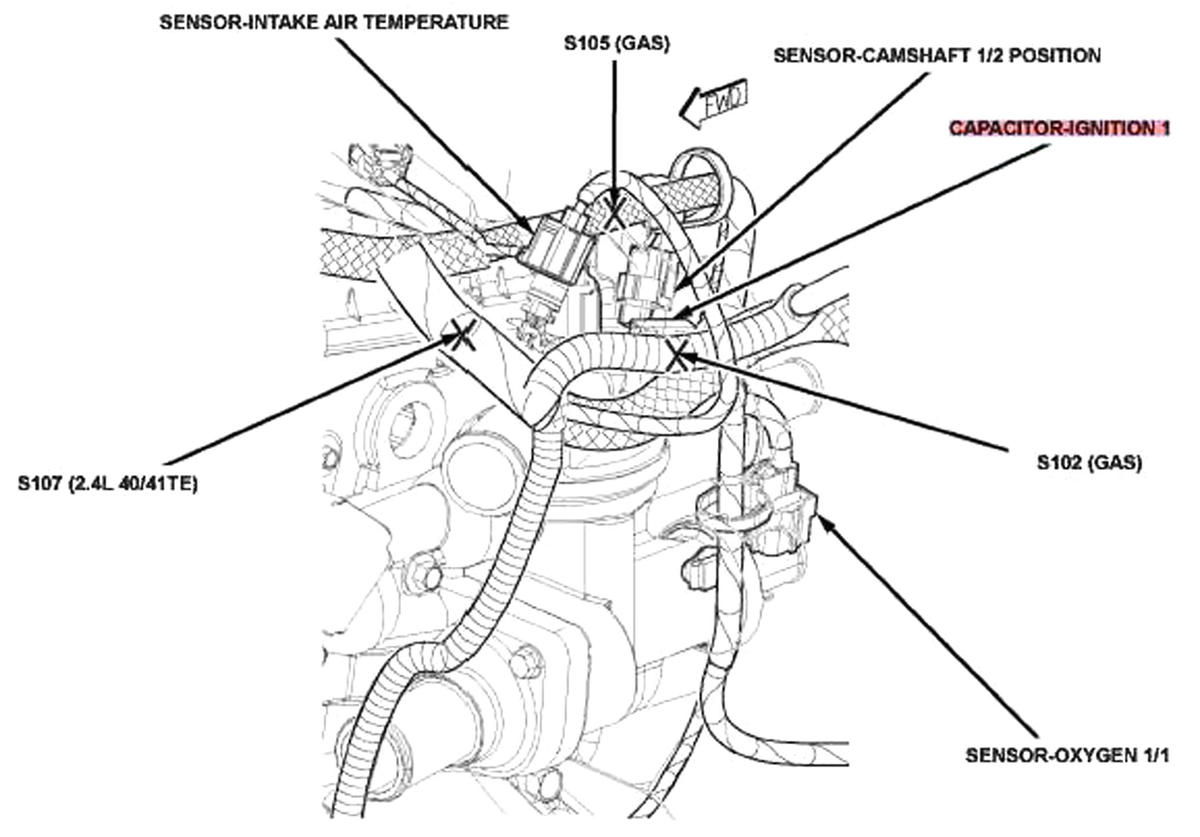

Fig 27: Left Side Of Engine (2.4L)

G00467732

Courtesy of CHRYSLER LLC

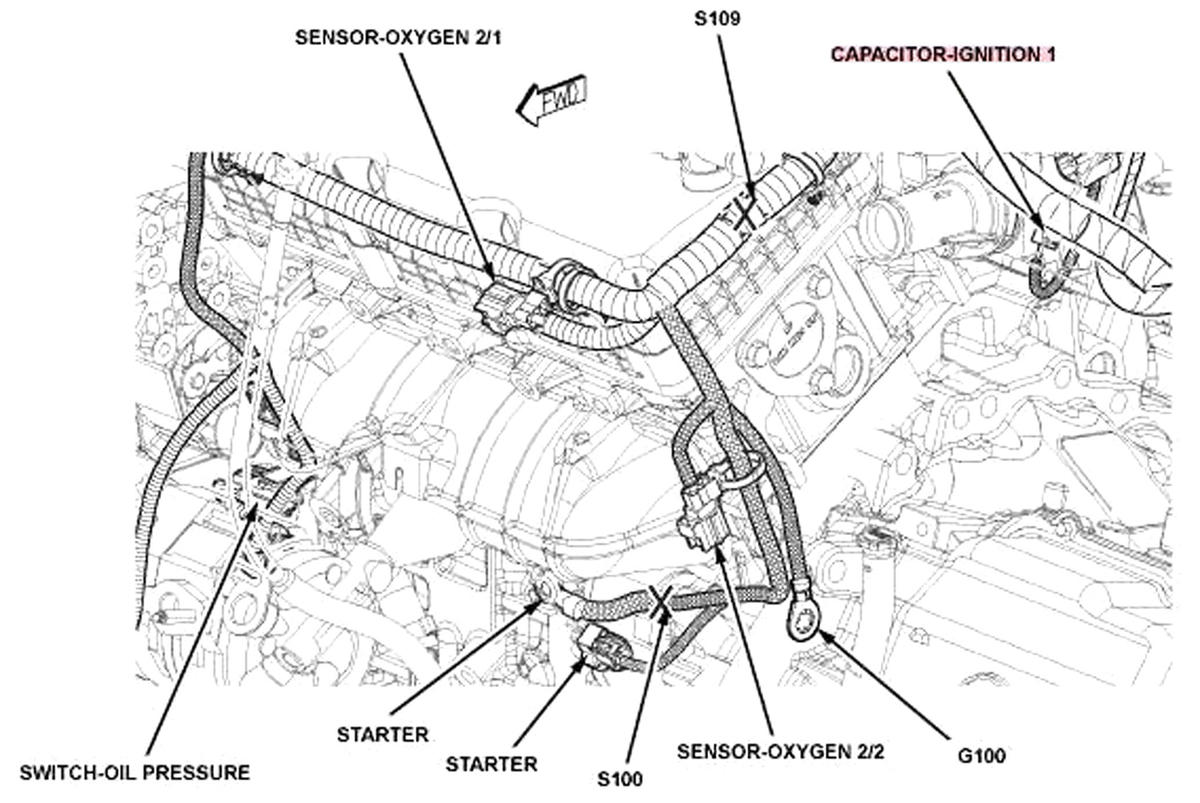

Fig 28: Left Rear Of Engine (3.5L)

G00467733

Courtesy of CHRYSLER LLC

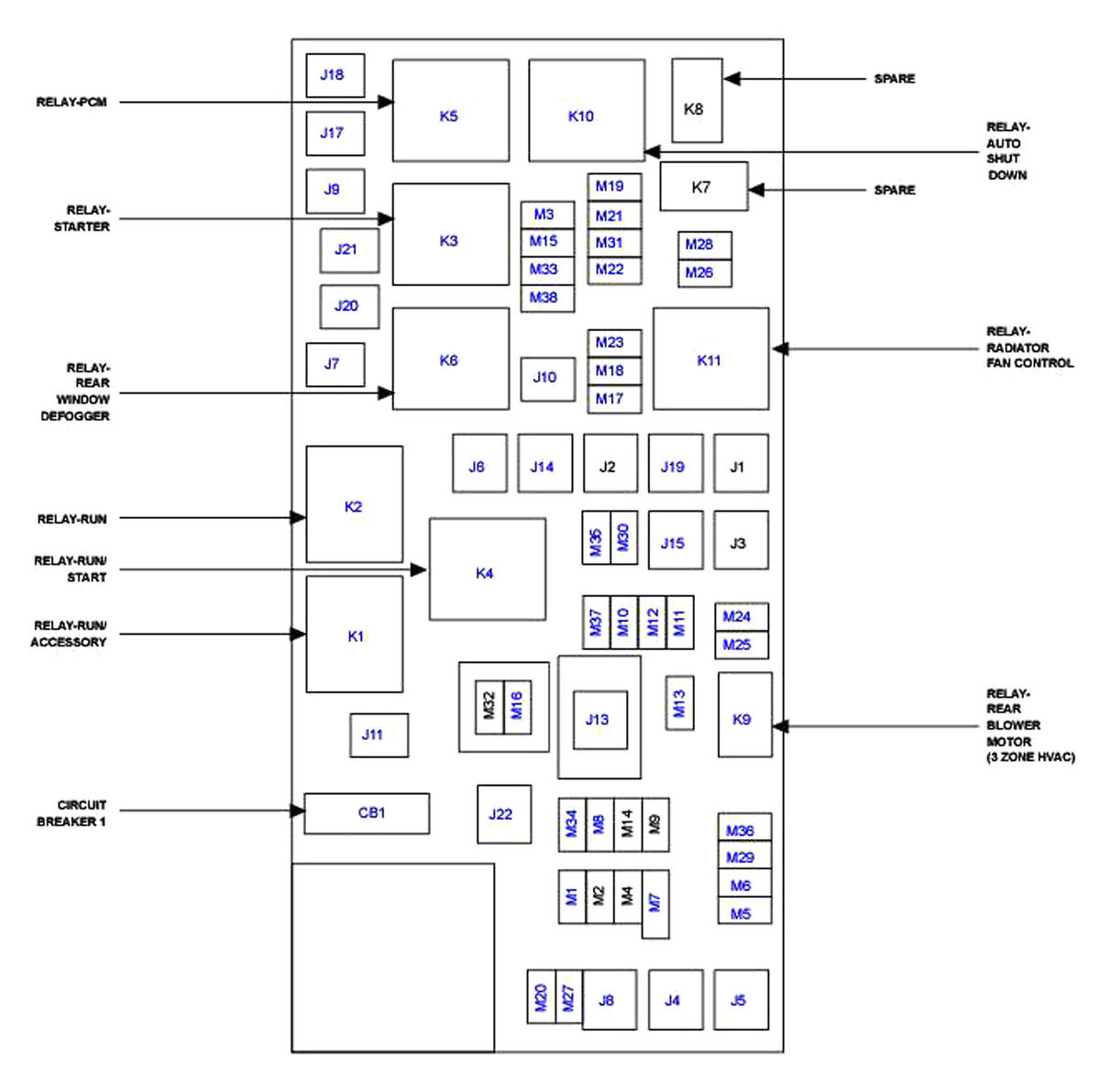

Fig 29: Totally Integrated Power Module

G00467734

Courtesy of CHRYSLER LLC

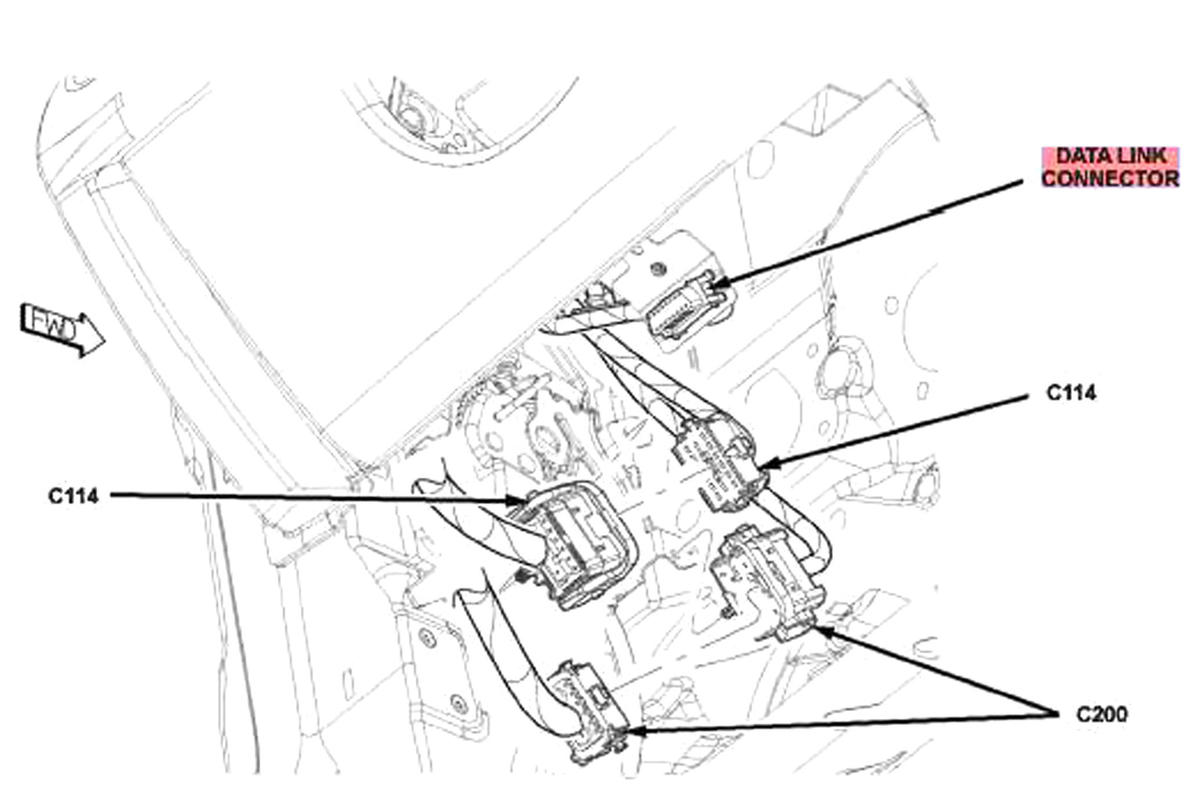

Fig 30: Lower Left Side Of Dash

G00467739

Courtesy of CHRYSLER LLC

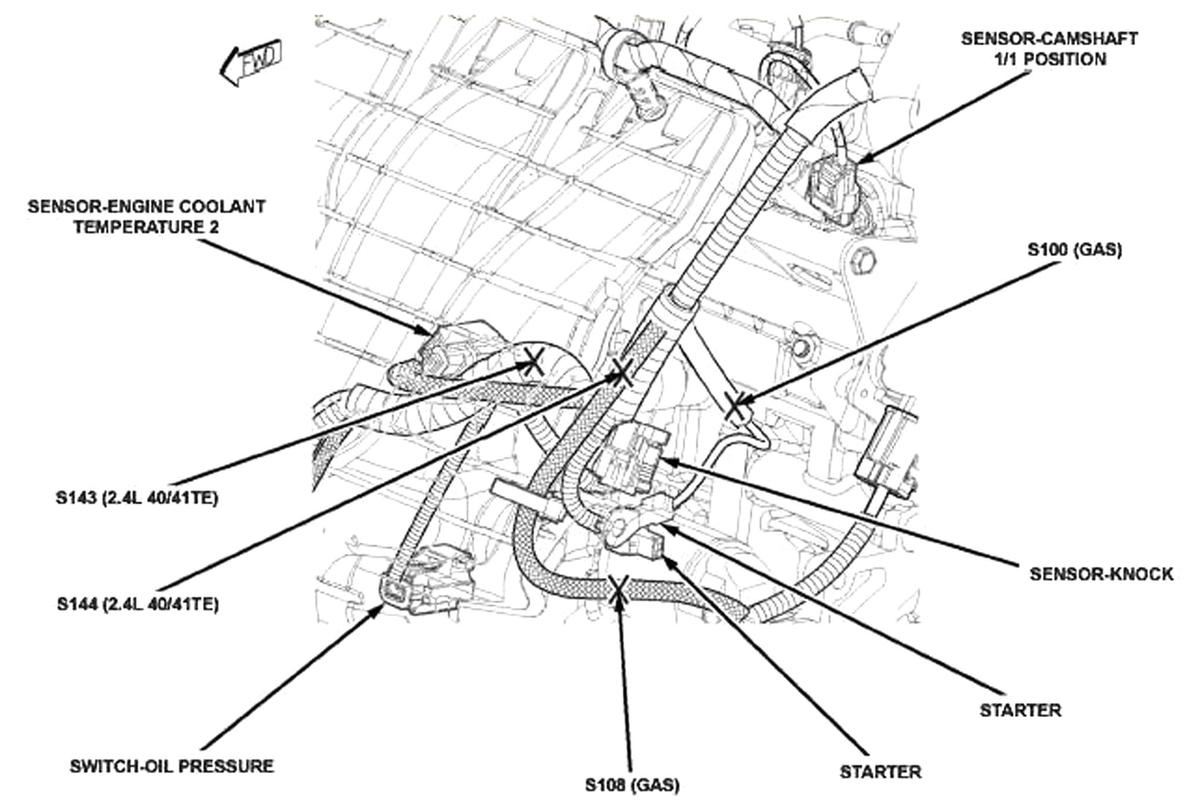

Fig 31: Left Rear Of Engine (2.4L & 3.5L)

G00467741

Courtesy of CHRYSLER LLC

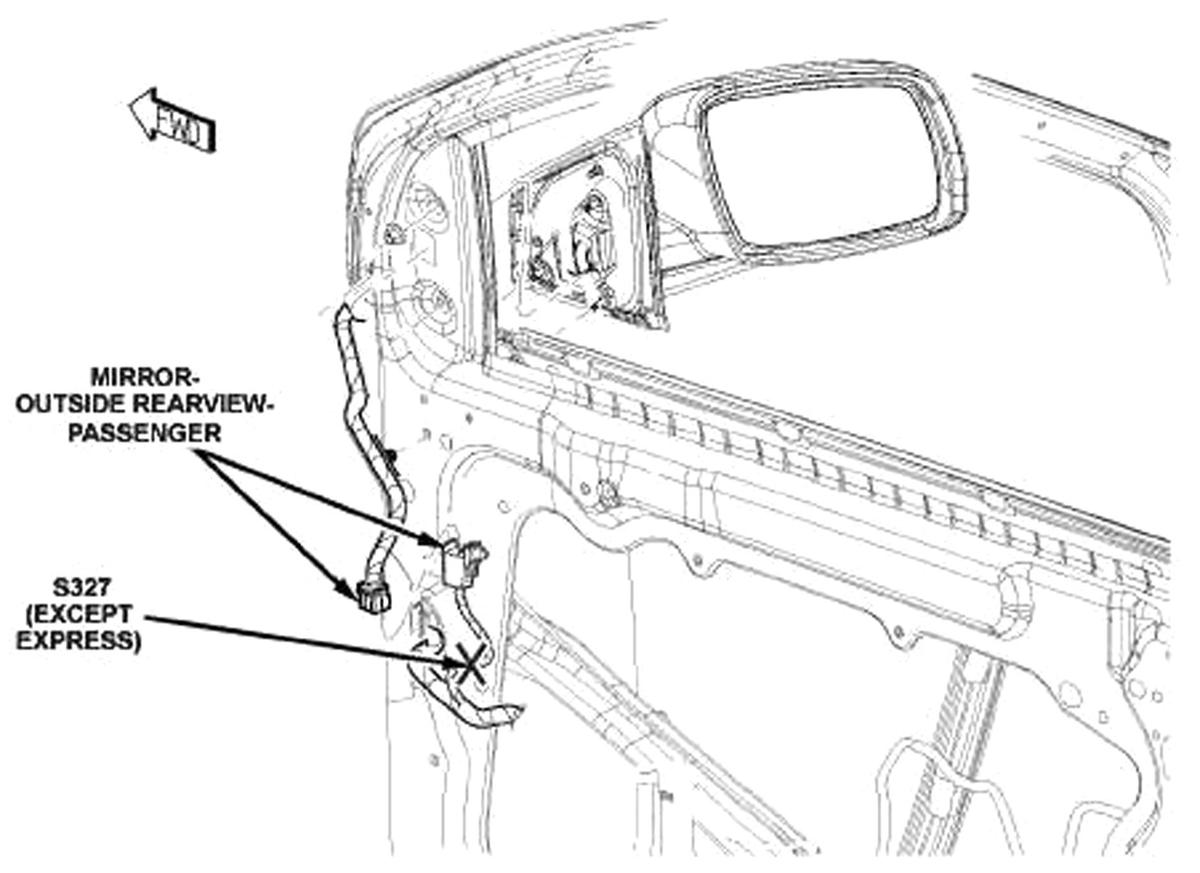

Fig 32: Front Passenger's Door (Driver's Similar)

G00467742

Courtesy of CHRYSLER LLC

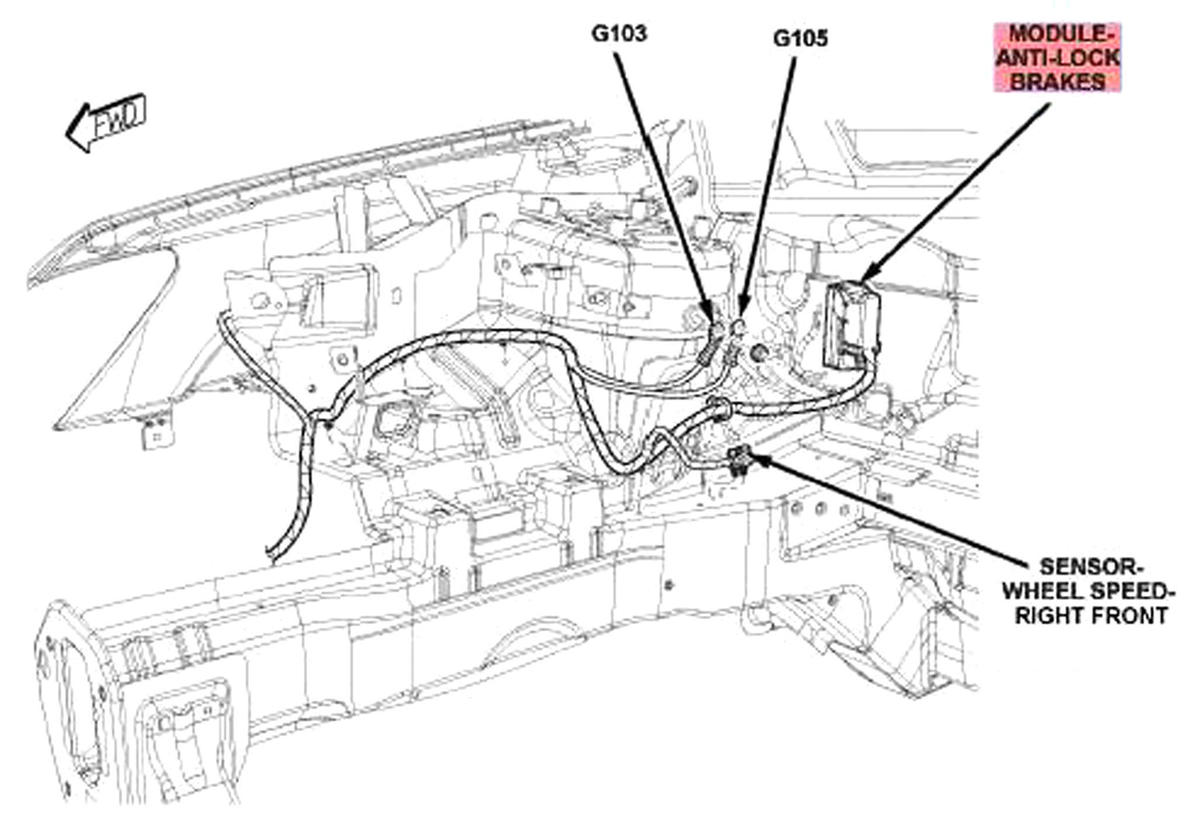

Fig 33: Right Rear Of Engine Compartment

G00467743

Courtesy of CHRYSLER LLC

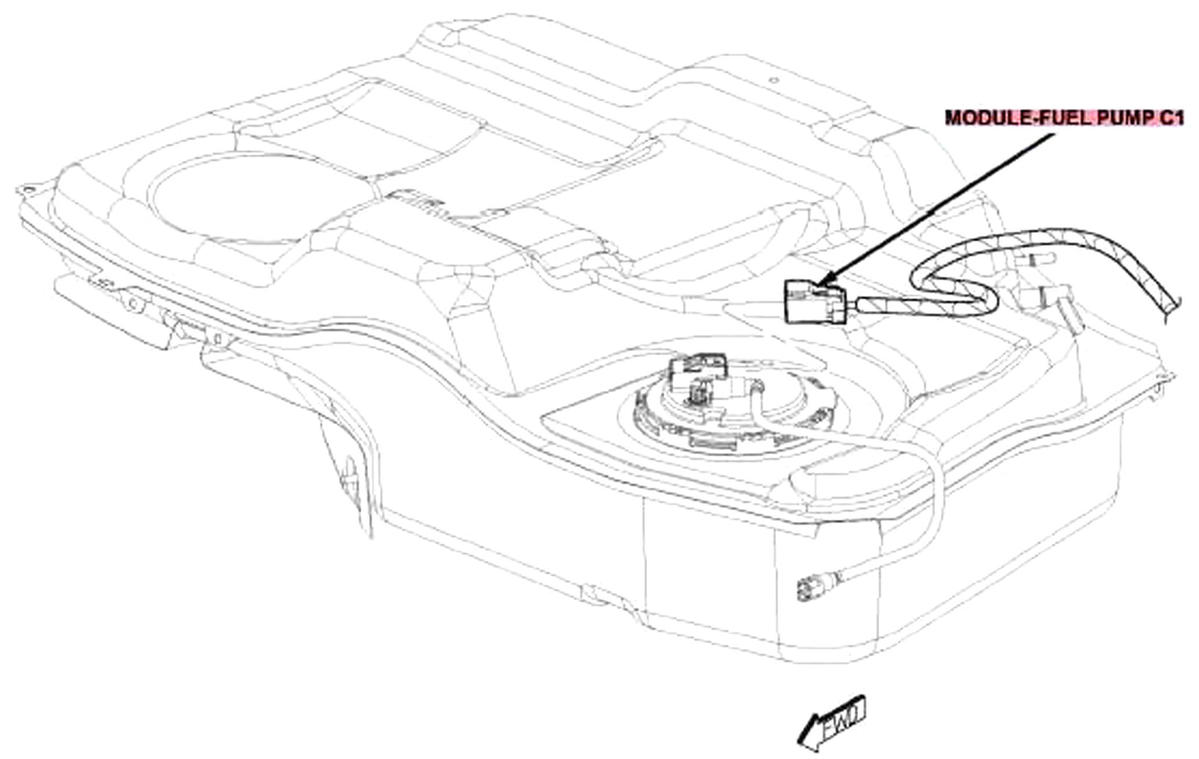

Fig 34: Top Of Fuel Tank (Except AWD)

G00467744

Courtesy of CHRYSLER LLC

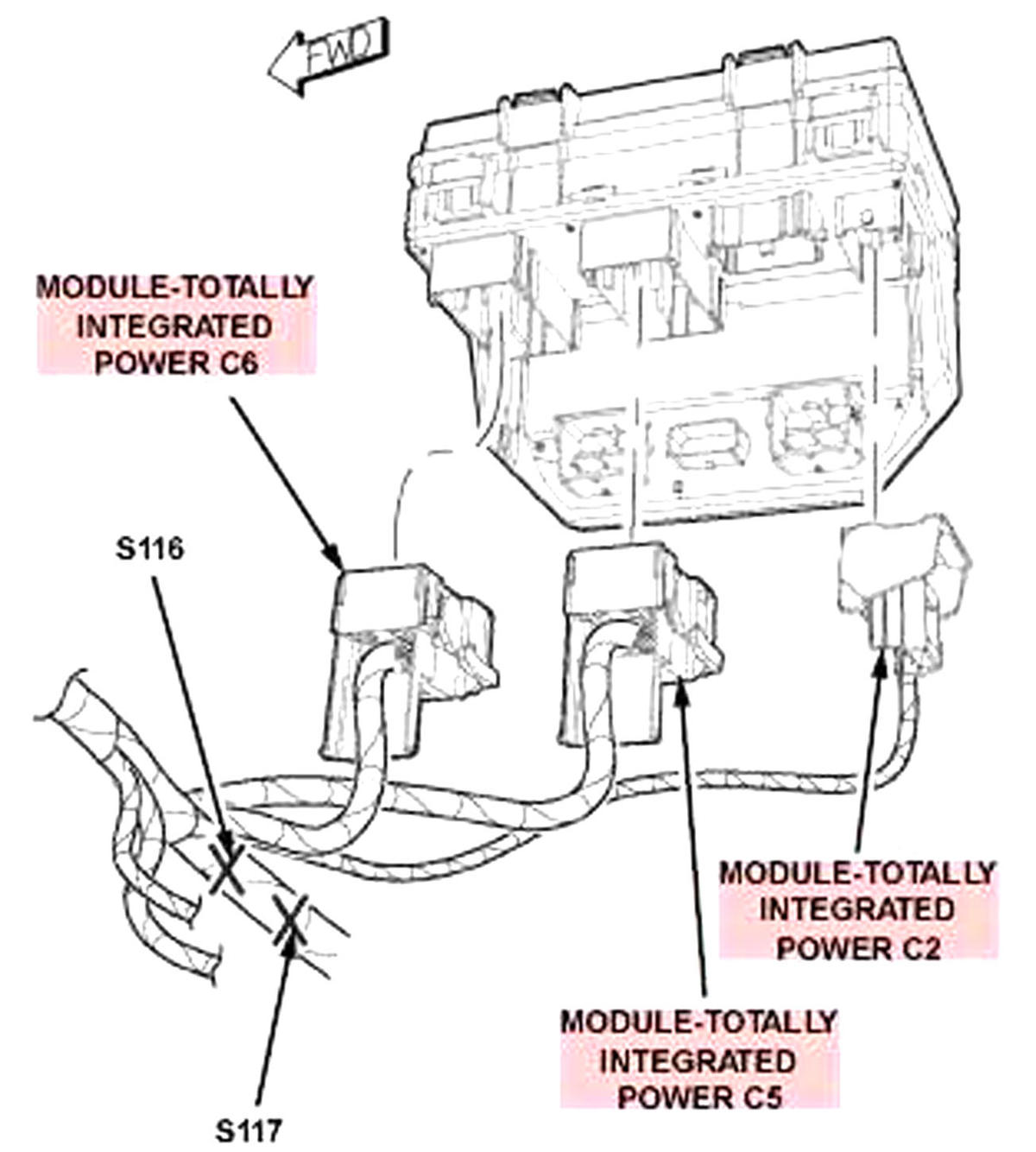

Fig 35: Totally Integrated Power Module

G00467745

Courtesy of CHRYSLER LLC

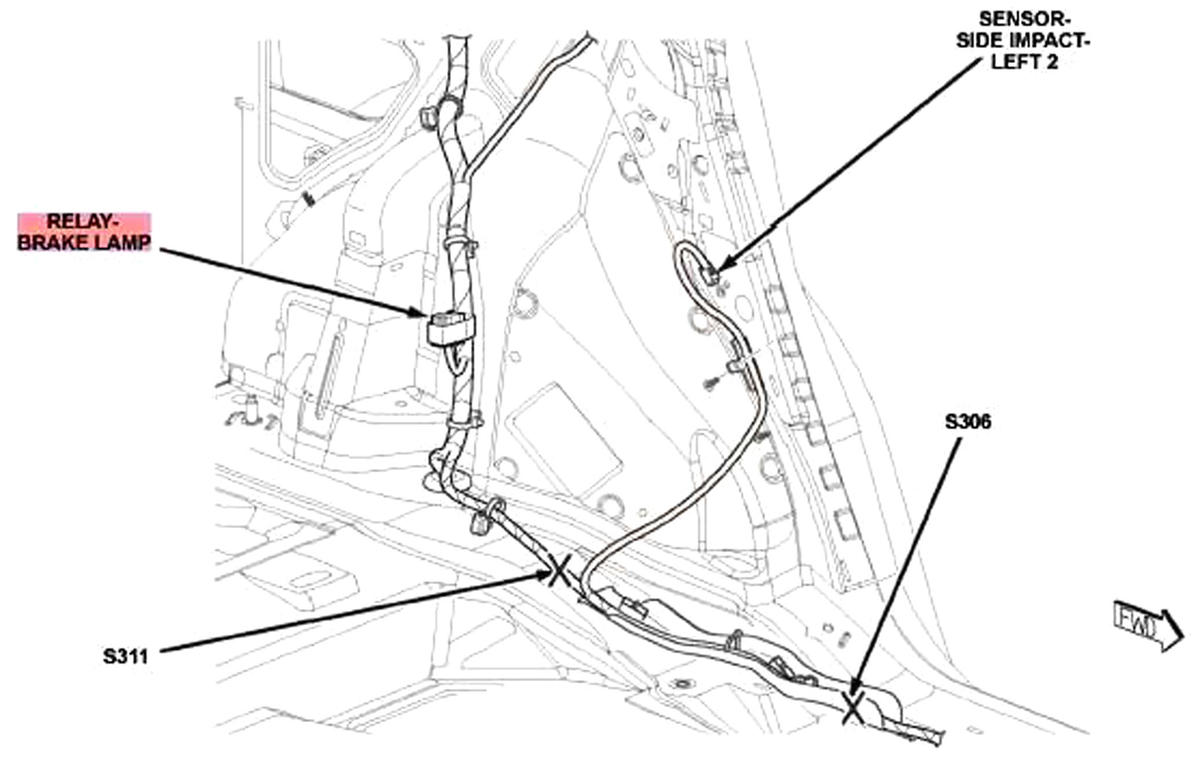

Fig 36: Left "C" Pillar

G00467747

Courtesy of CHRYSLER LLC

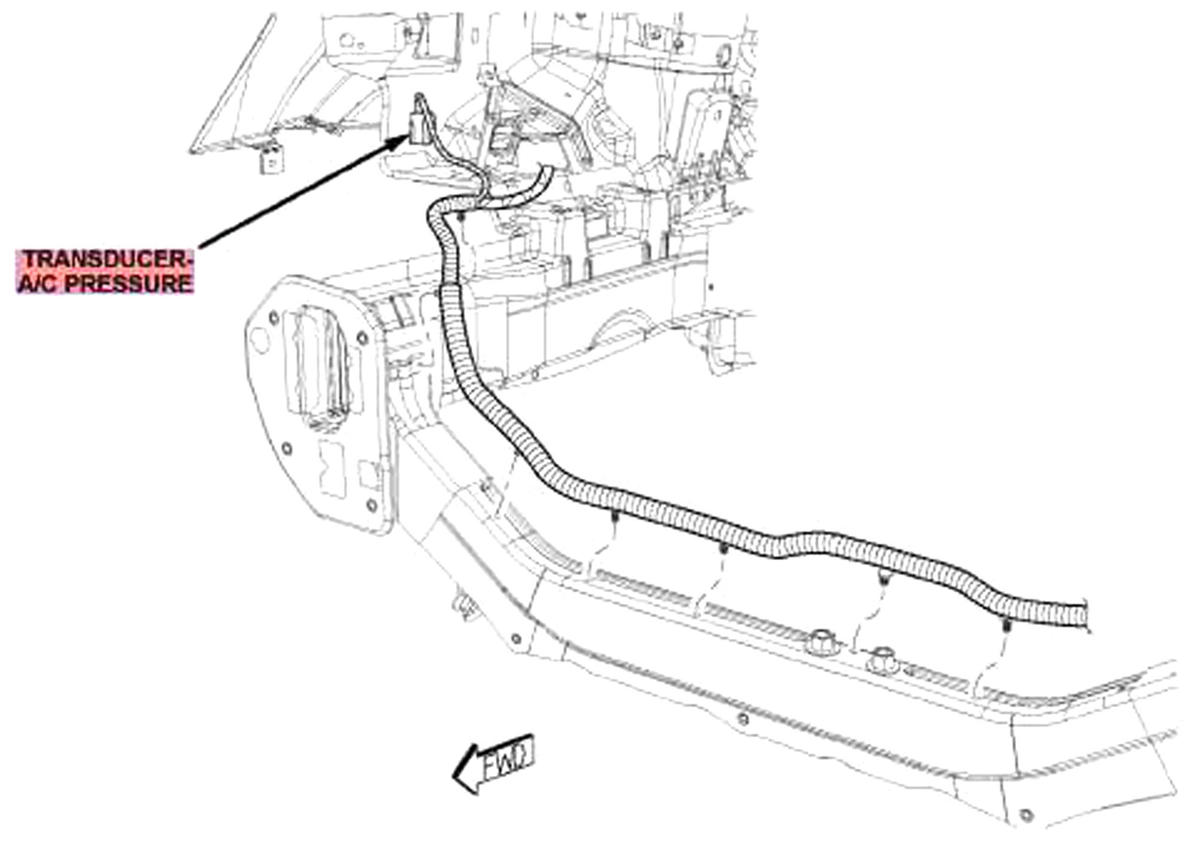

Fig 37: Right Front Of Engine Compartment

G00467749

Courtesy of CHRYSLER LLC

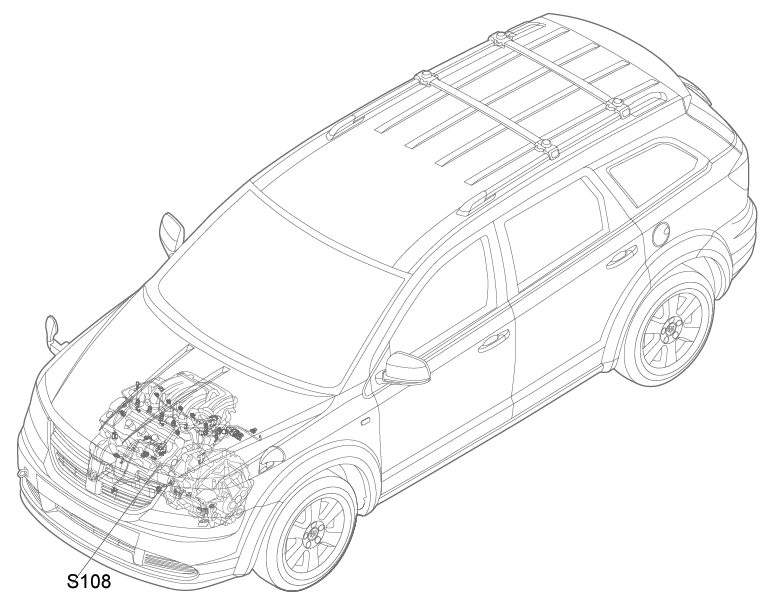

Fig 38: Left Rear Of Engine (2.4L)

G00508214

Courtesy of CHRYSLER LLC

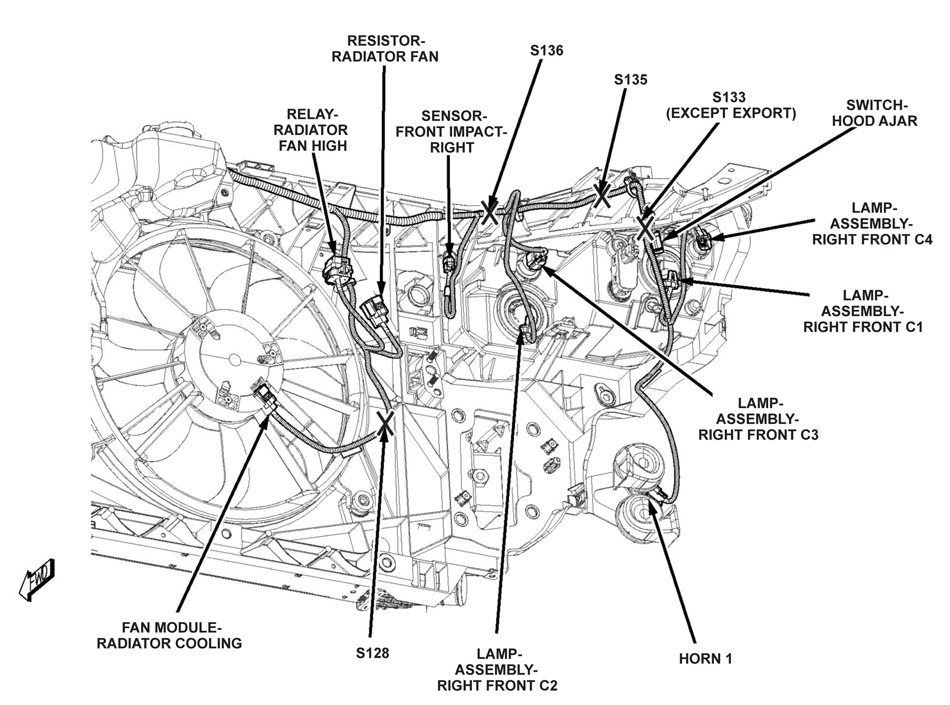

Fig 39: Right Front Of Engine Compartment

G00508215

Courtesy of CHRYSLER LLC

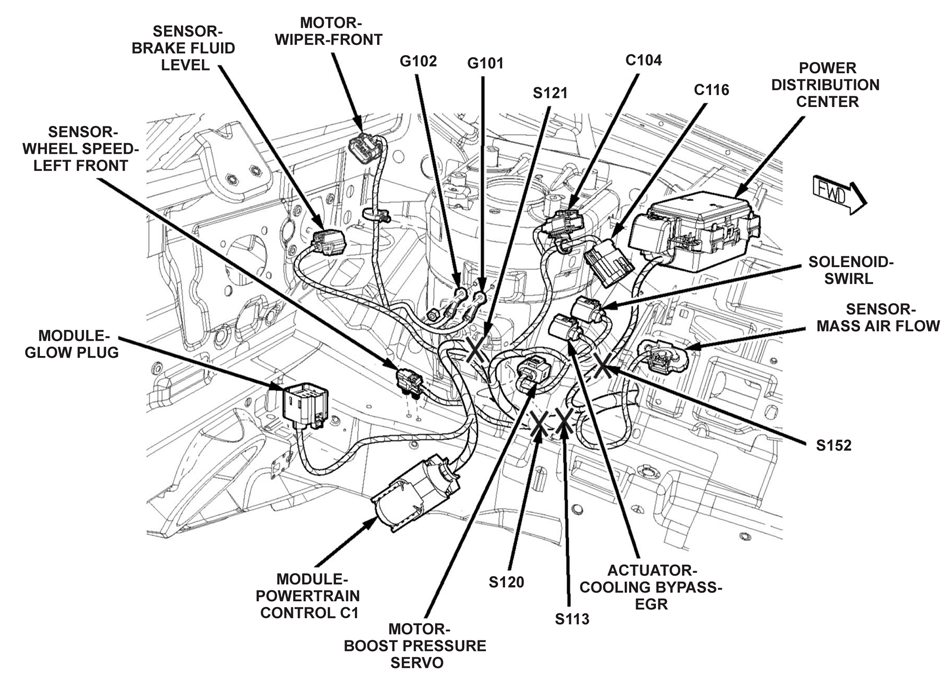

Fig 40: Left Rear Of Engine Compartment

G00508216

Courtesy of CHRYSLER LLC

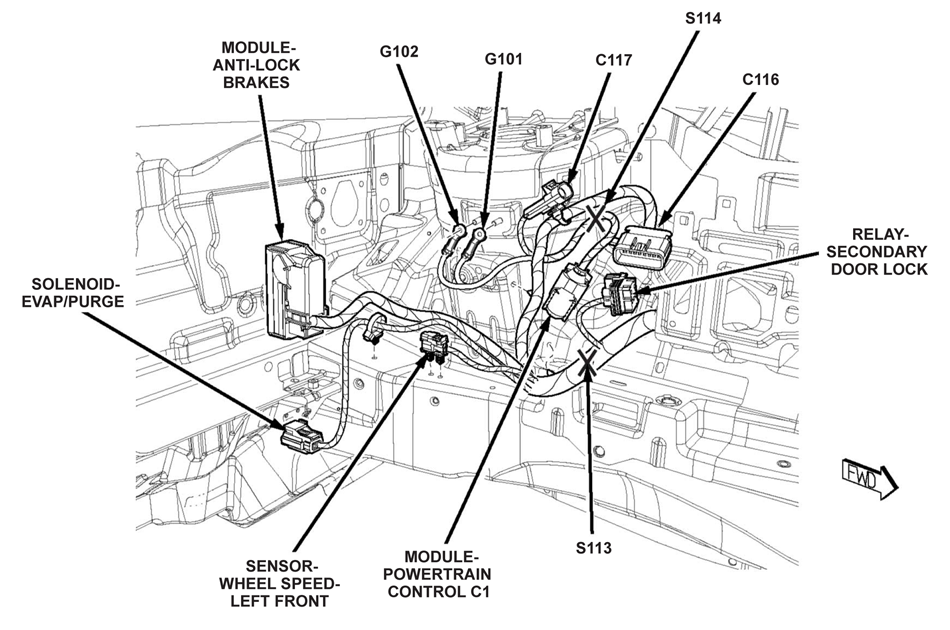

Fig 41: Left Rear Of Engine Compartment

G00508217

Courtesy of CHRYSLER LLC

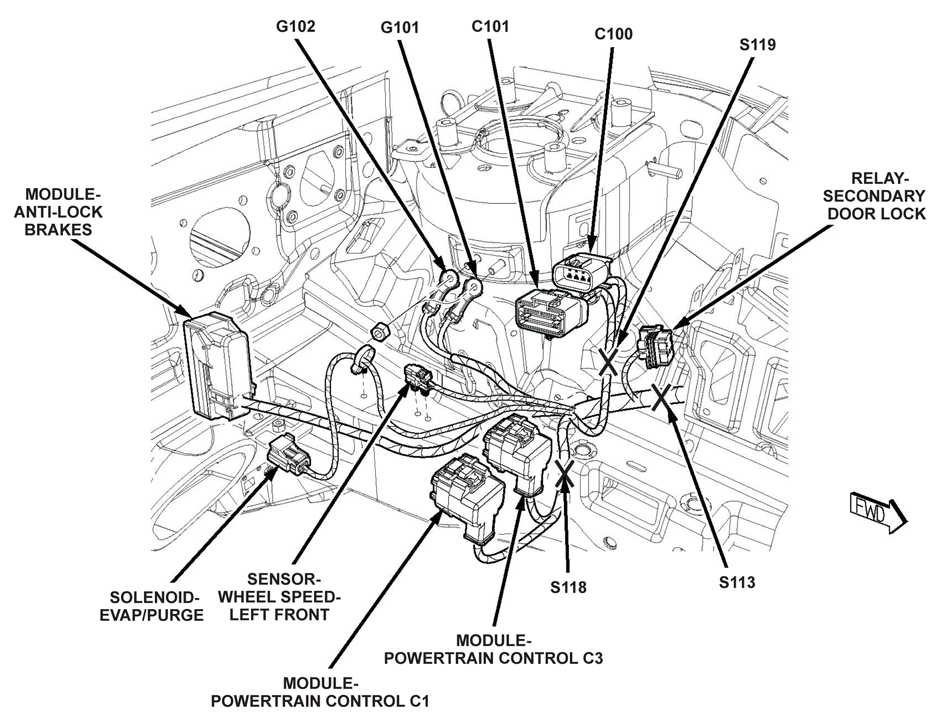

Fig 42: Left Rear Of Engine Compartment

G00508218

Courtesy of CHRYSLER LLC

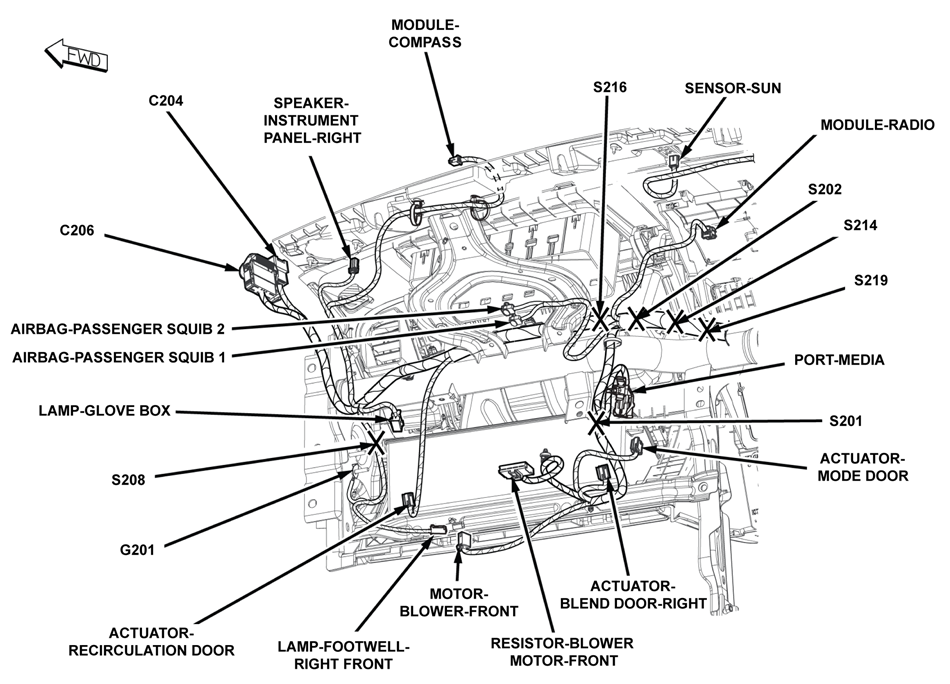

Fig 43: Right Side Of Dash

G00508219

Courtesy of CHRYSLER LLC

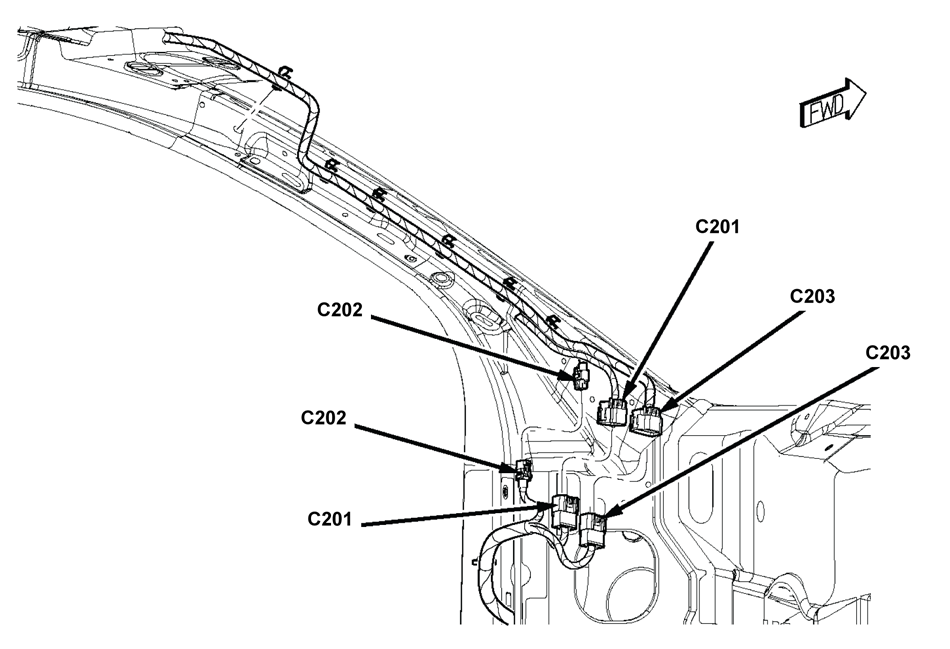

Fig 44: Left "A" Pillar

G00508220

Courtesy of CHRYSLER LLC

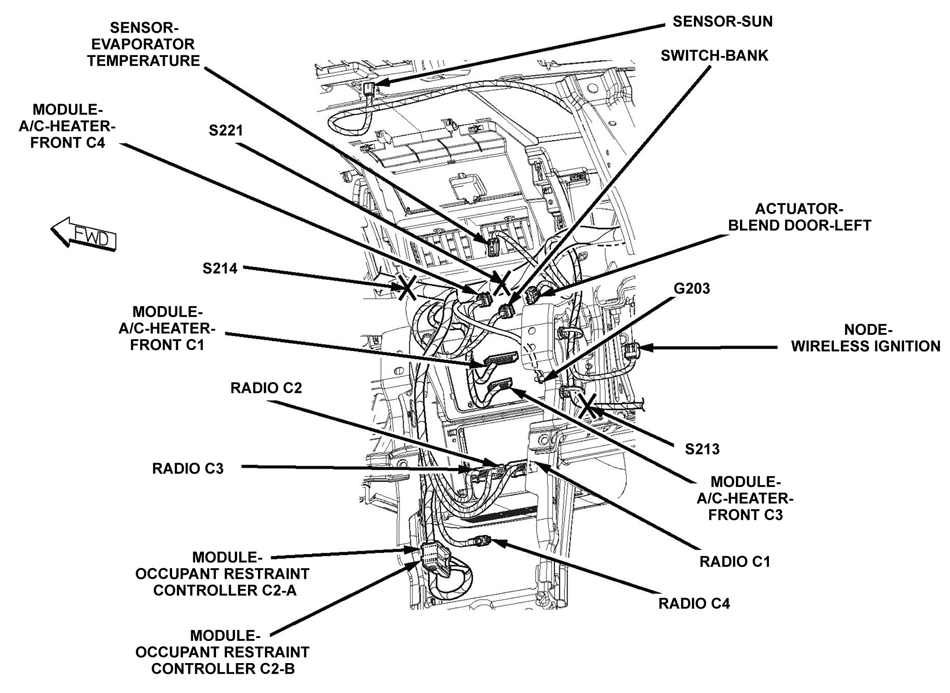

Fig 45: Center Of Dash

G00508221

Courtesy of CHRYSLER LLC

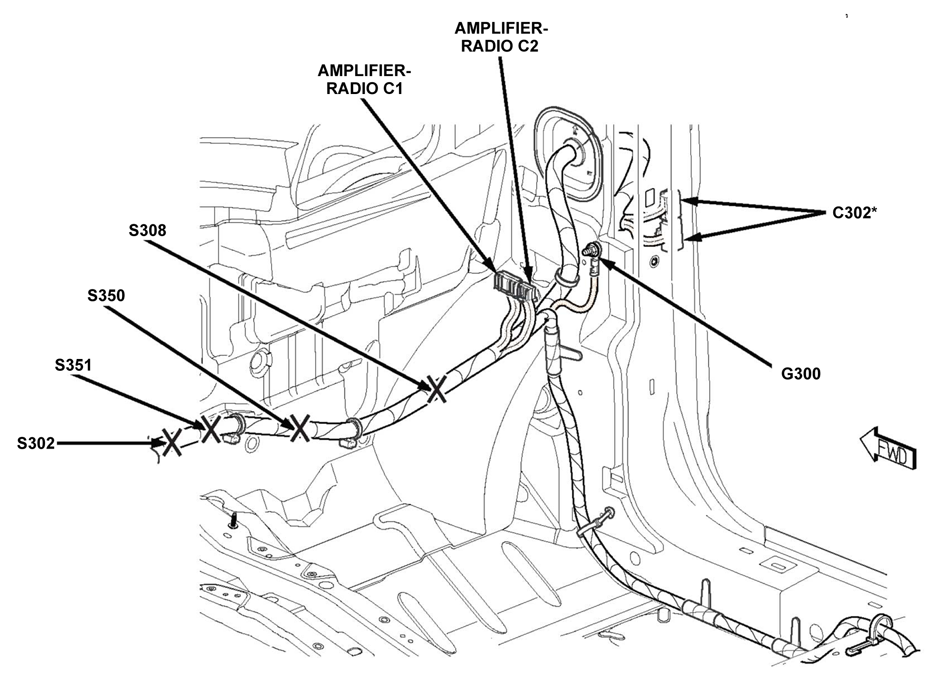

Fig 46: Right Kick Panel

G00508222

Courtesy of CHRYSLER LLC

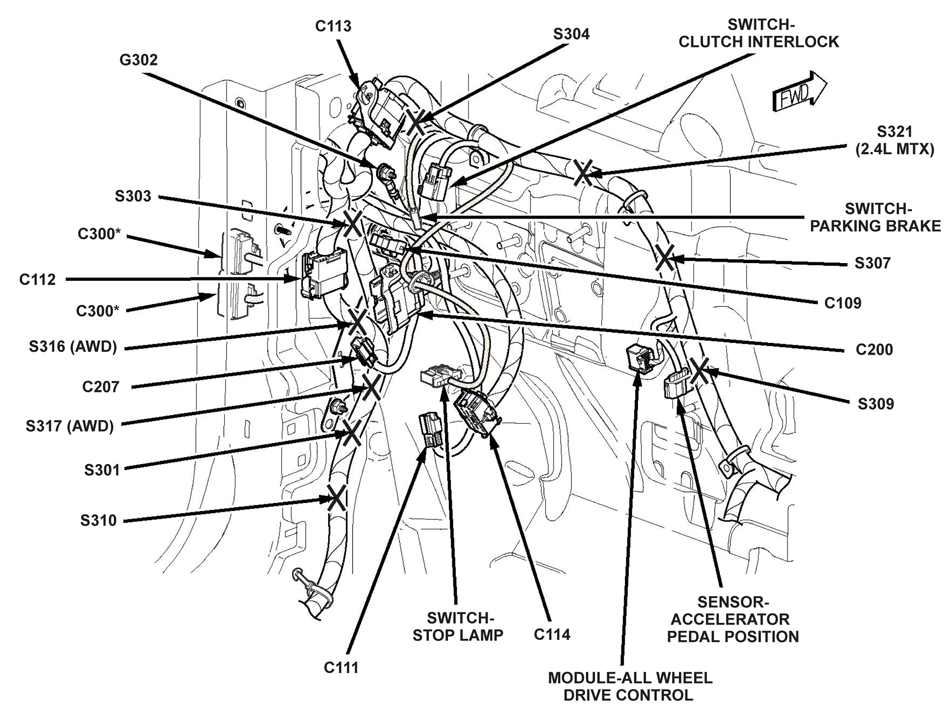

Fig 47: Left Side Of Dash & Kick Panel

G00508223

Courtesy of CHRYSLER LLC

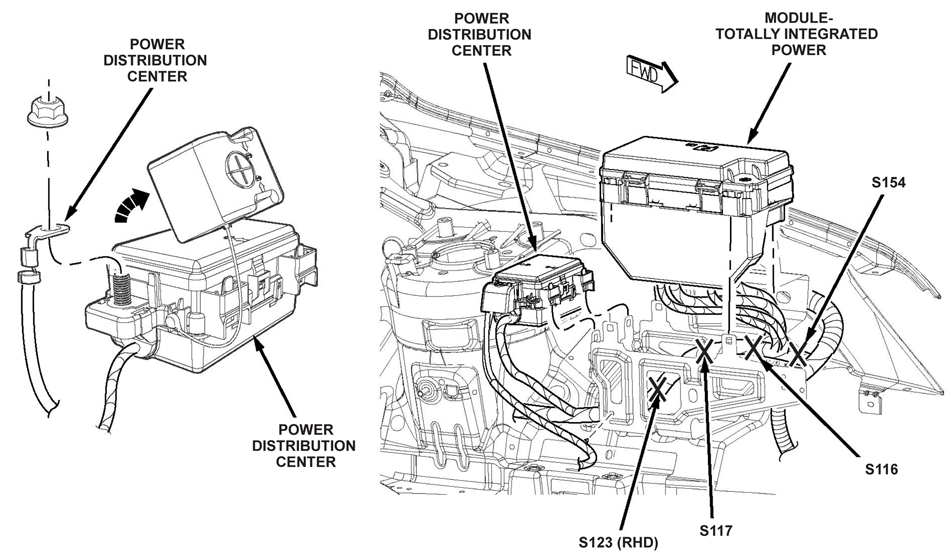

Fig 48: Totally Integrated Power Module

G00508224

Courtesy of CHRYSLER LLC

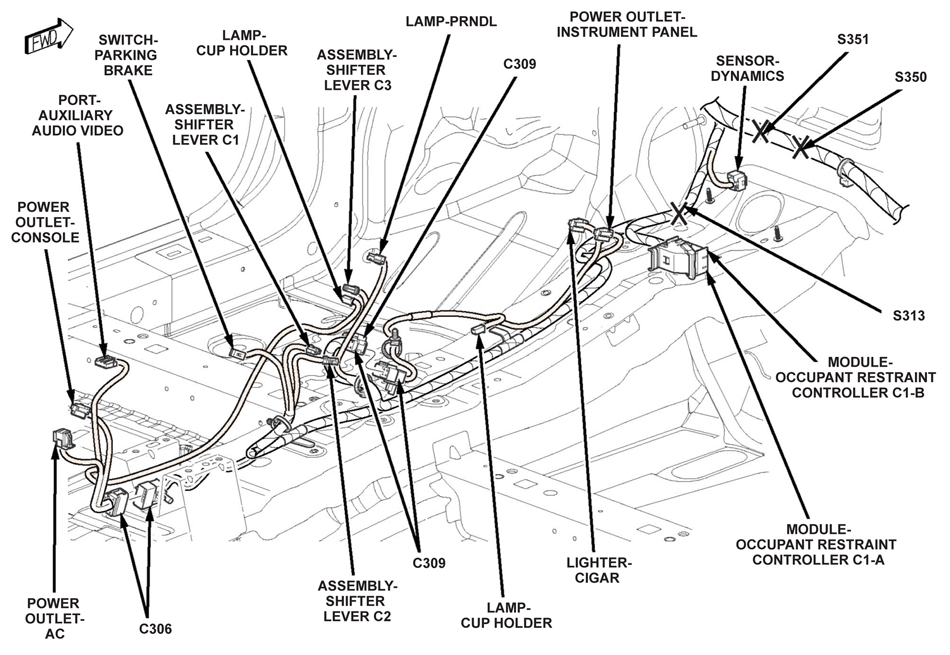

Fig 49: Left Front Floor

G00508225

Courtesy of CHRYSLER LLC

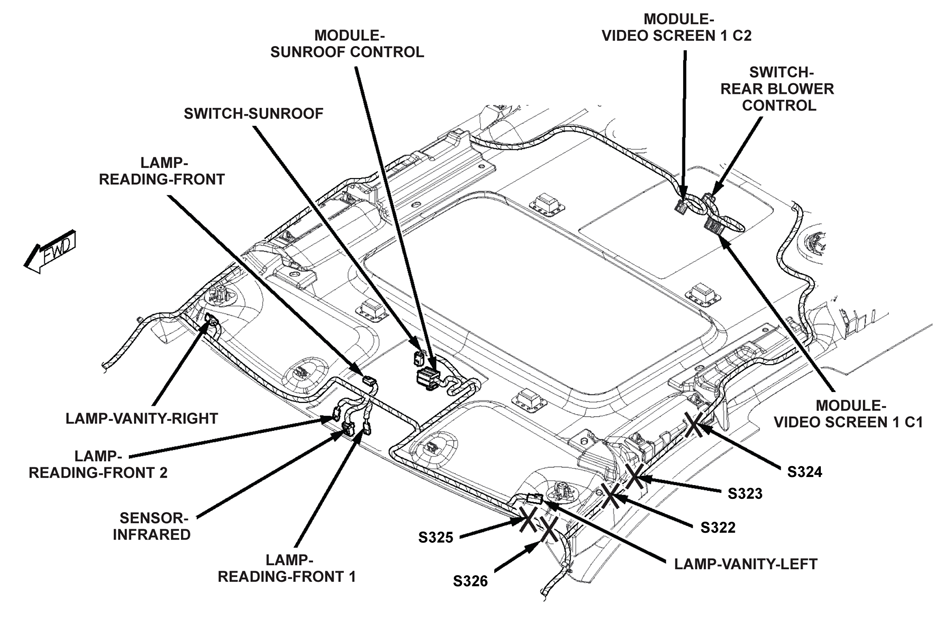

Fig 50: Roof

G00508226

Courtesy of CHRYSLER LLC

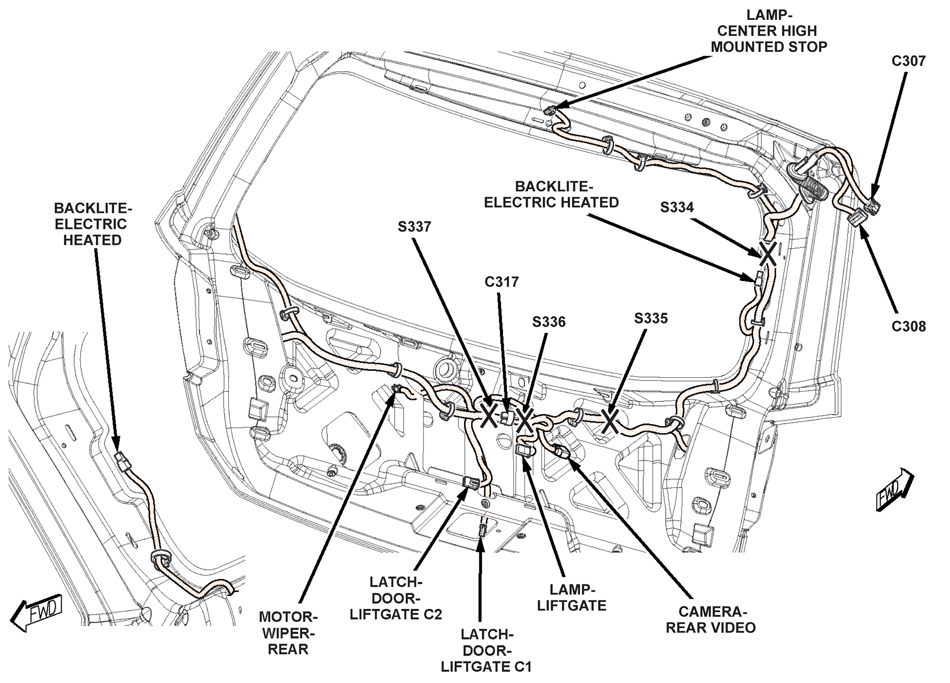

Fig 51: Liftgate

G00508227

Courtesy of CHRYSLER LLC

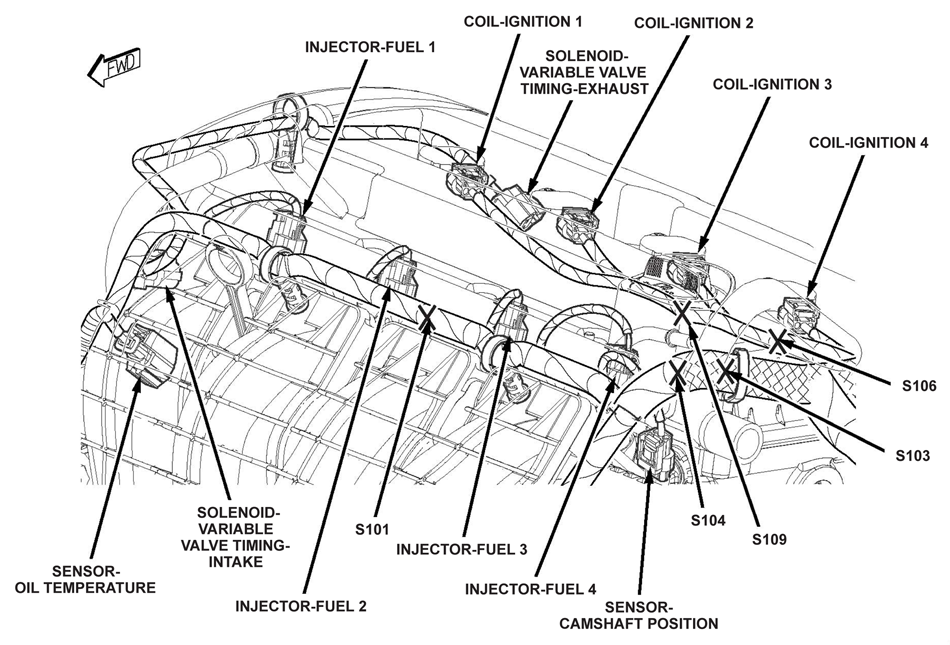

Fig 52: Top Of Engine (2.4L)

G00508228

Courtesy of CHRYSLER LLC

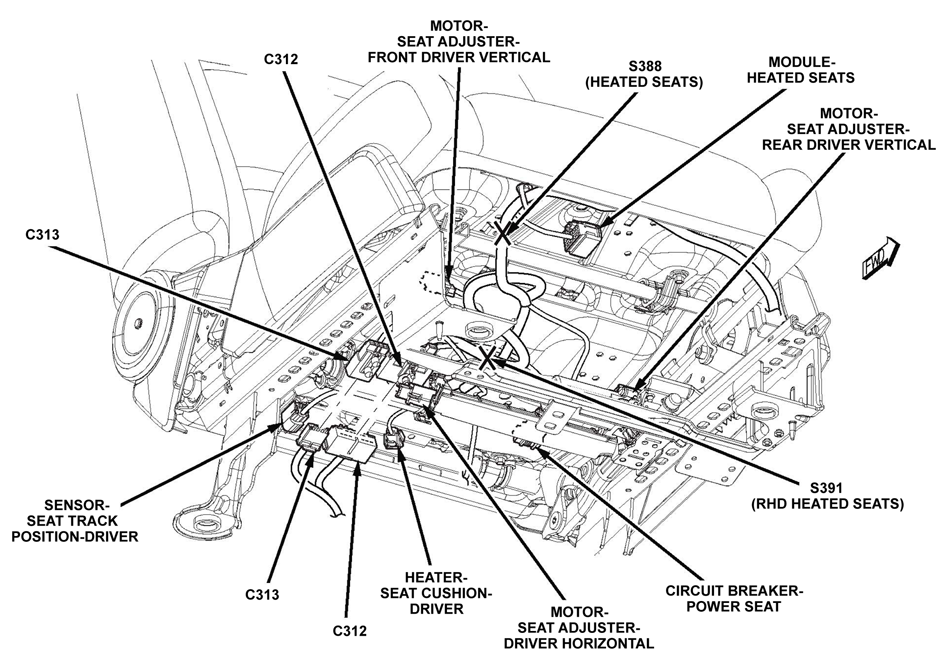

Fig 53: Under Driver's Seat

G00508229

Courtesy of CHRYSLER LLC

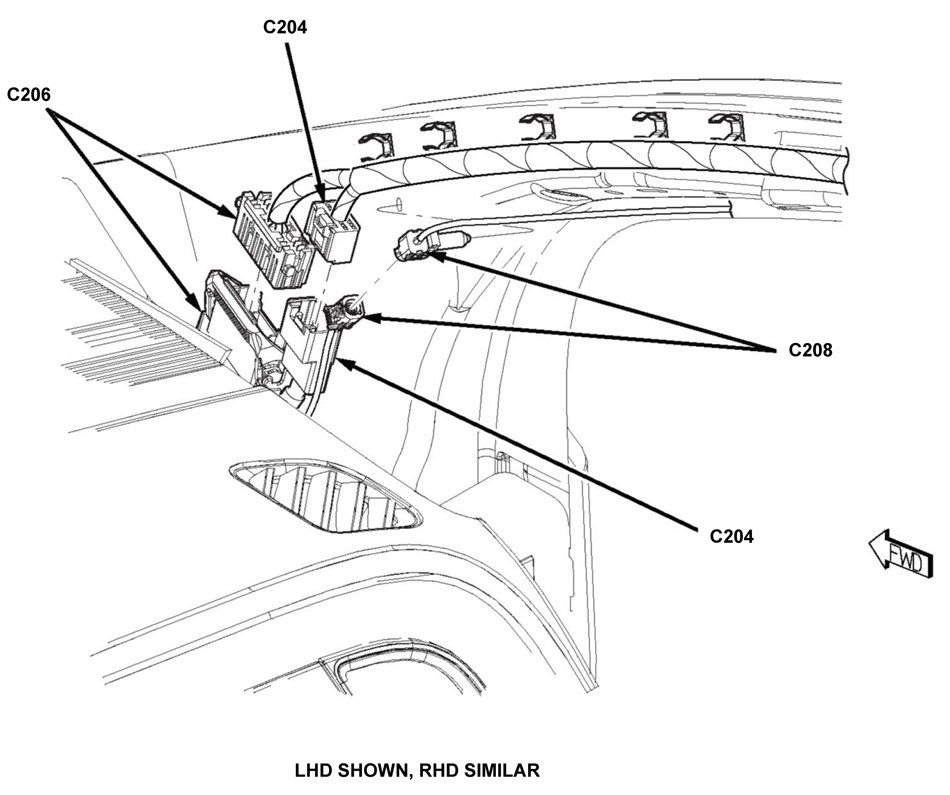

Fig 54: Right "A" Pillar

G00508230

Courtesy of CHRYSLER LLC

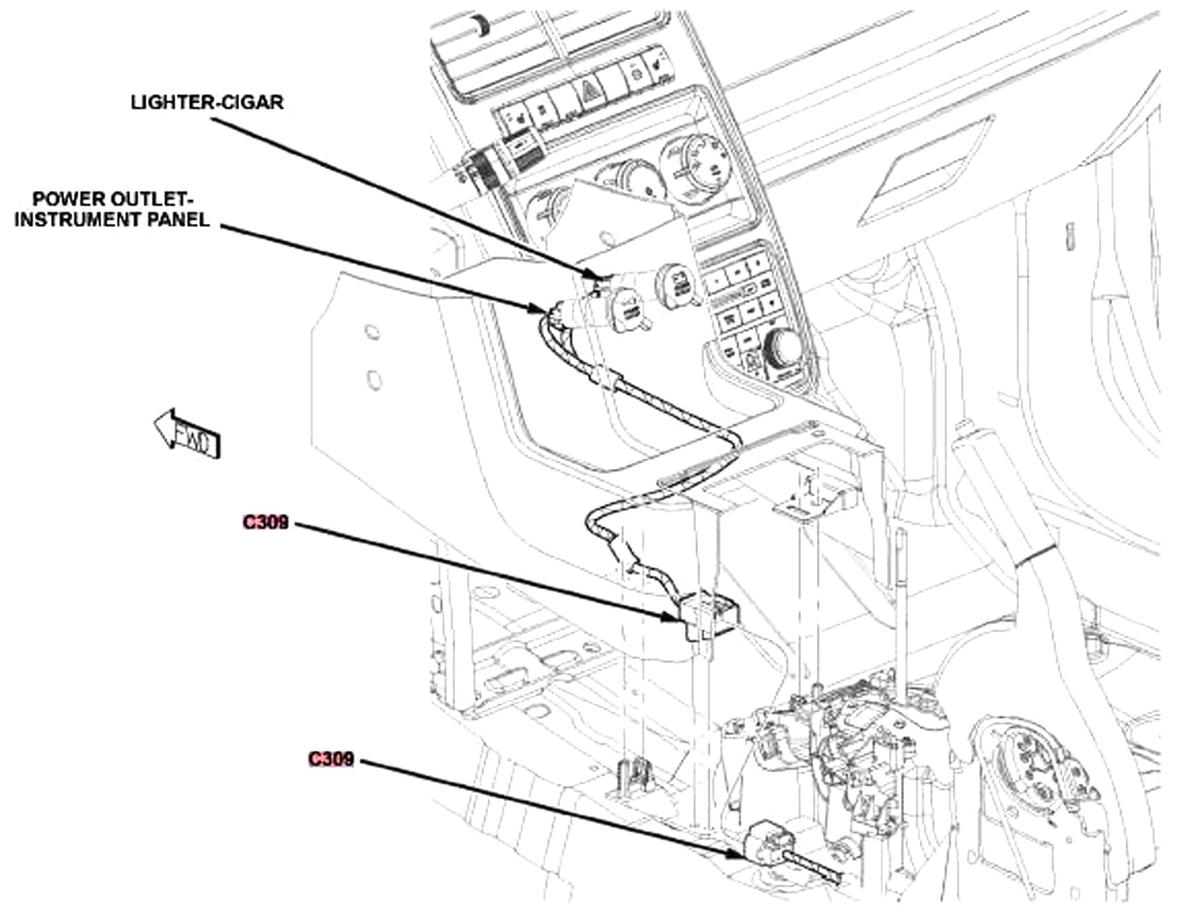

Fig 55: Center Of Dash

G00467483

Courtesy of CHRYSLER LLC

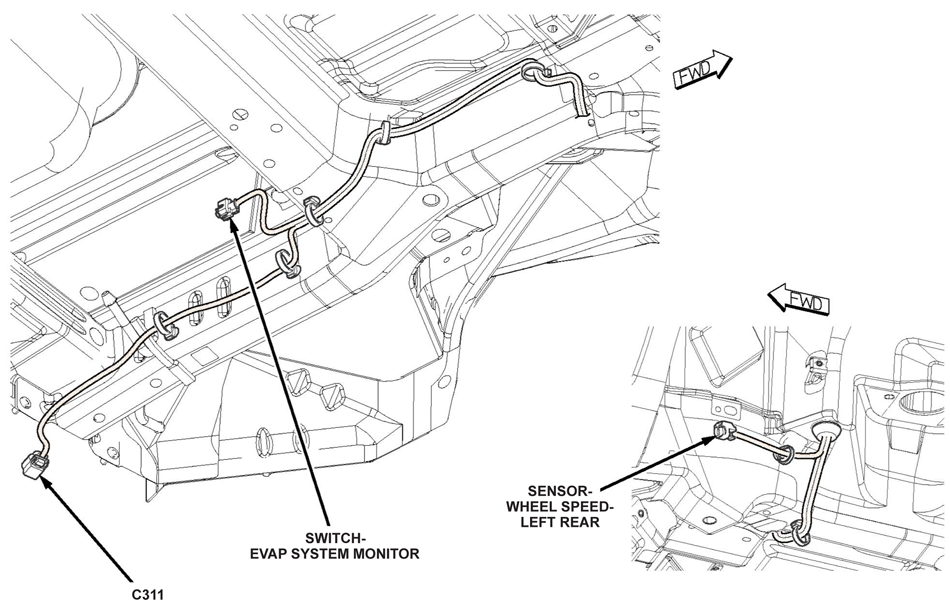

Fig 56: Rear Of Body

G00508231

Courtesy of CHRYSLER LLC

Fig 57: Left Side Of Dash

G00508232

Courtesy of CHRYSLER LLC

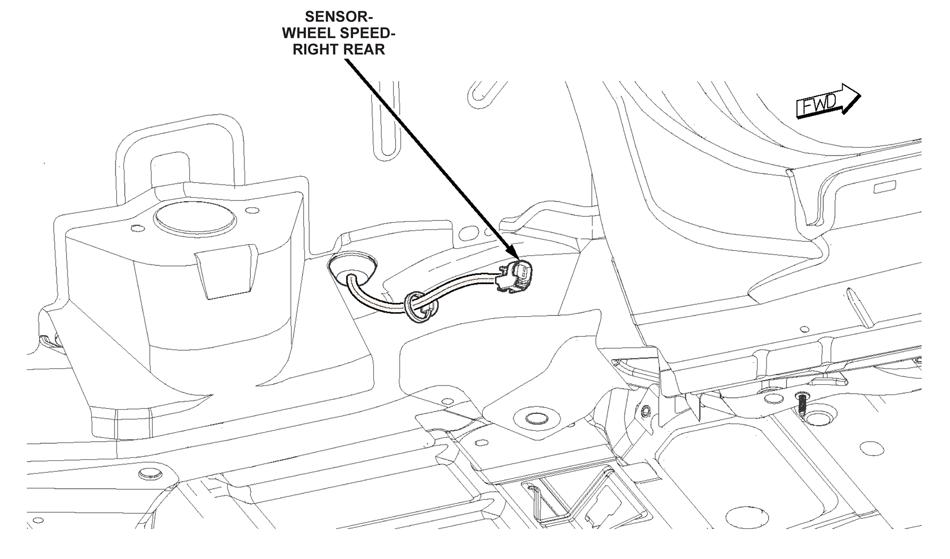

Fig 58: Right Rear Of Body

G00508233

Courtesy of CHRYSLER LLC

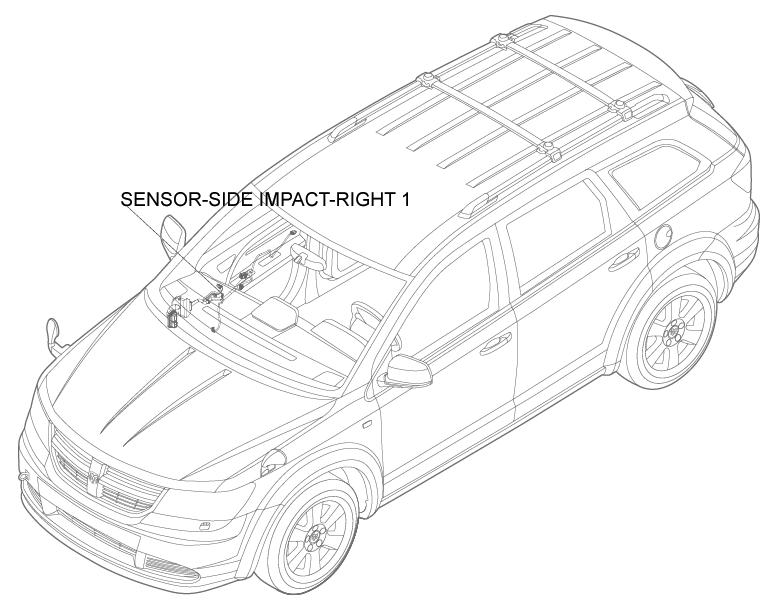

Fig 59: Front Passenger's Door

G00508234

Courtesy of CHRYSLER LLC

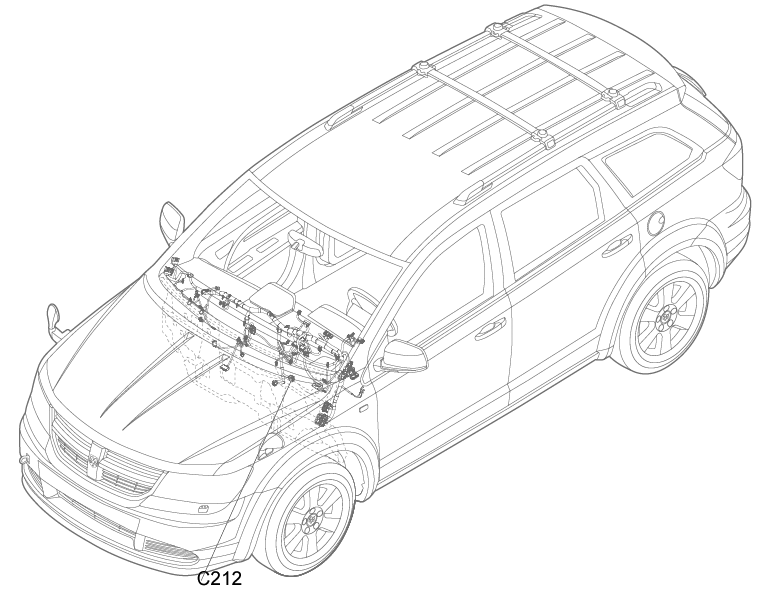

Fig 60: Left Side Of Dash

G00508235

Courtesy of CHRYSLER LLC
