VALVE, One Way Check: Description: Description

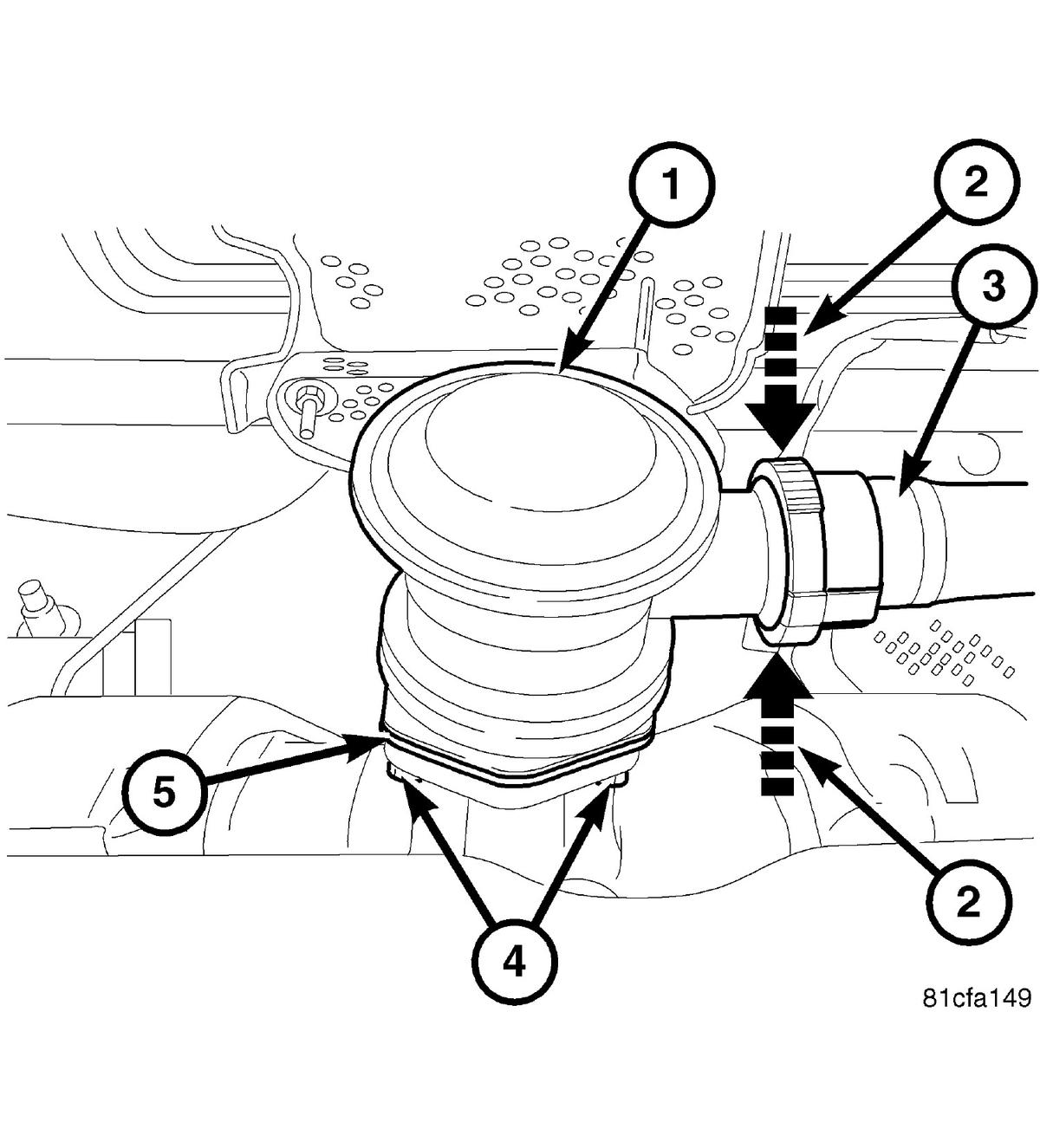

Fig 1: AIR INJECTION CHECK VALVE

Courtesy of CHRYSLER LLC

The air injection check valve (1) is a one-valve check valve that allows air to flow in one direction only. The valve is located at exhaust side of the engine at the top of the exhaust manifold.
