Right Hand Drive

WARNING: This page is about a different car, the 2010 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.

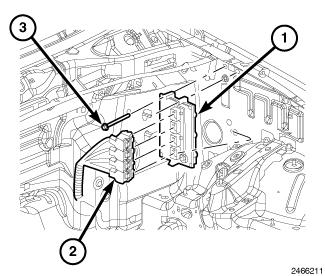

Fig 1: PCM, Mounting Screws & Electrical Connectors
GC0138955Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the PCM electrical connectors (2).
  3. Remove the PCM mounting screws (3).
  4. Remove the PCM (1) from vehicle.
