9010-Driver Seat Belt Switch Short To Battery: Notes

Courtesy of CHRYSLER LLC

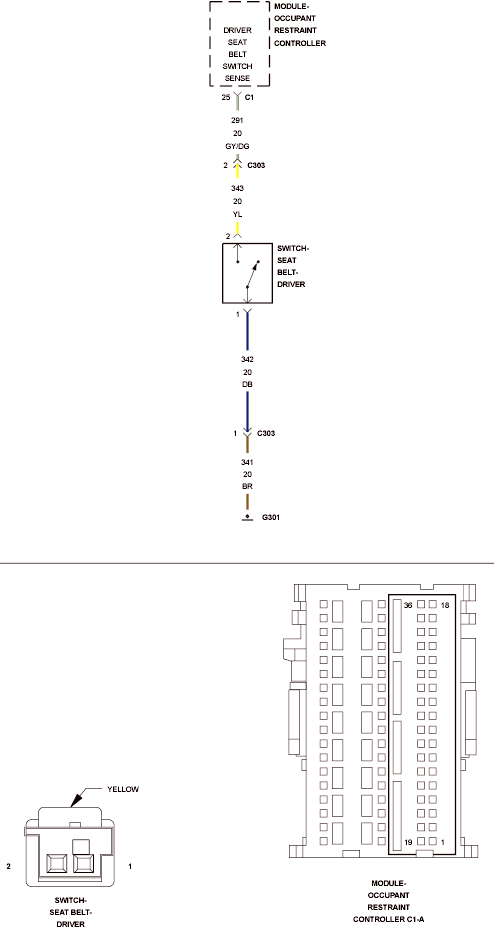

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  With the ignition on and the Occupant Classification Module (ORC) configured for a Driver Seat Belt Switch. The ORC monitors the switch input current ranges.

• Set Condition:

  If the ORC detects a short to voltage on the Driver Seat Belt Buckle Switch circuits the DTC will be set active.

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. See  DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure
