3.0L Diesel

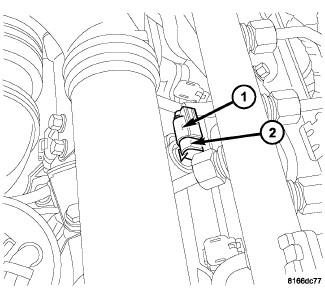

Fig 1: REMOVING/INSTALLING ECT SENSOR - 3.0L DIESEL
GC0081532Courtesy of CHRYSLER LLC
  1. Install coolant temperature sensor (2).
  2. Install retaining clip.
  3. Connect electrical connector (1).
  4. Fill cooling system. See Standard Procedure  .
  5. Install engine cover.
