PLUG, Glow: Removal: Removal

NOTE: NOTE: Only remove the glow plugs with the engine at operating temperature.

Disconnect the negative battery cable.
Remove the engine cover.

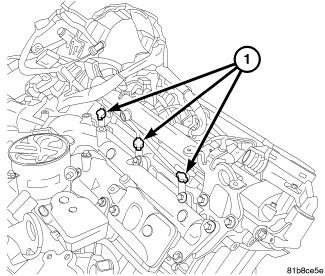

Fig 1: Glow Plug Wiring Harness Connector(s)
Courtesy of CHRYSLER LLC
Use the Glow Plug Pliers 9286 to unplug the glow plug wiring harness connector(s) (1) at the glow plug.

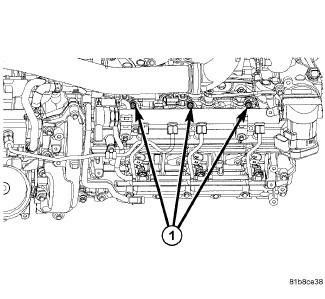

Fig 2: Glow Plug(s) Location
Courtesy of CHRYSLER LLC
Remove the glow plug(s) (1).
