3.0L Diesel

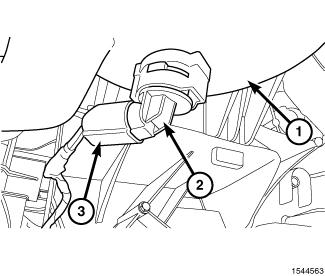

Fig 1: COOLANT LEVEL SENSOR
GC0133865Courtesy of CHRYSLER LLC
  1. Position coolant level sensor (2) under the coolant recovery container (1), turn counterclockwise 90 degrees to seat cooler level sensor (2).
  2. Connect coolant level sensor electrical connector (3).
  3. Refill cooling system to proper level. See Standard Procedure
  4. Inspect for leaks.
