RADIATOR, Engine Cooling: Removal: Radiator

WARNING: RISK OF INJURY TO SKIN AND EYES FROM SCALDING WITH HOT COOLANT. RISK OF POISONING FROM SWALLOWING COOLANT. DO NOT OPEN COOLING SYSTEM UNLESS COOLANT TEMPERATURE IS BELOW 90°C (194°F). OPEN CAP SLOWLY TO RELEASE PRESSURE. STORE COOLANT IN SUITABLE AND APPROPRIATELY MARKED CONTAINER. WEAR PROTECTIVE GLOVES, CLOTHES, AND EYE WEAR.

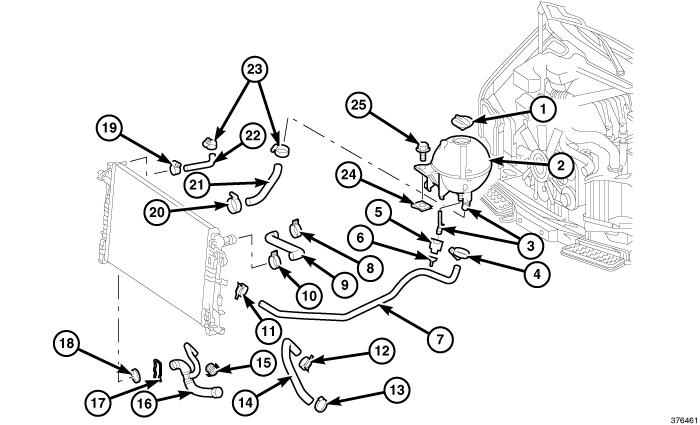

Fig 1: RADIATOR ASSEMBLY

Courtesy of CHRYSLER LLC

NOTE: Capture all residual fluid spillage and store in suitably marked containers. Inspect condition of all clamps and hoses, replace as necessary.

Disconnect the auxiliary battery negative cable.
Drain coolant. See Standard Procedure
Remove grille. Refer to Body/Exterior/GRILLE - Removal
Detach radiator hose (16) at bottom right of radiator and position aside.
Disconnect transmission cooler lines (22) at radiator and position aside.
CAUTION: DO NOT crimp or bend lines.
Remove front bumper. Refer to Frame and Bumpers/Bumpers/BUMPER, Front - Removal
Remove Intake Air Housing. Refer to Engine/Air Intake System/AIR CLEANER - Removal
Remove Condenser Fan. Refer to Heating and Air Conditioning/Plumbing/FAN, A/C Condenser - Removal
Detach both coolant recovery hoses (21) at radiator and position aside.
Disconnect wiring connector at coolant level sensor.
Remove upper radiator hose (9) and position aside.

Fig 2: RADIATOR AND FAN SHROUD ASSEMBLY
Courtesy of CHRYSLER LLC
Remove radiator fan. See Removal .
Remove radiator fan shroud (2).
Separate A/C condenser from radiator by disengaging the retaining tabs that secure to the top of the radiator support, angle upward on the A/C condenser starting first on the right hand side and working towards the left hand side. Once separated, secure A/C condenser to upper radiator support with a strap or bungee cord.

Fig 3: CHARGE AIR / INTERCOOLER ASSEMBLY
Courtesy of CHRYSLER LLC
Disconnect charge air hoses (2) and (10) at intercooler (if equipped) and position aside.
Remove bolts securing intercooler (if equipped) to radiator (7).
Remove intercooler (if equipped) (5).
Lift the radiator assembly up and out of the rubber grommets angle upward on the A/C condenser starting first on the right hand side and working towards the left hand side.
