3.0L Diesel Engine
NOTE:
Clean all mating surfaces.

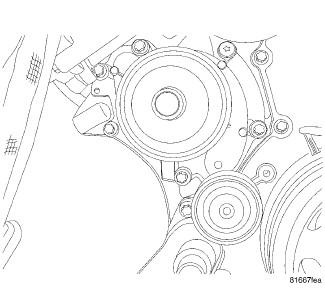

- Properly position water pump with new gasket to the engine and tighten bolts to 14 N.m (10 ft. lbs.).
- Install the EGR airflow valve assembly. Refer to Emissions Control/Exhaust Gas Recirculation/VALVE, Exhaust Gas Recirculation (EGR) Airflow Control - Installation
- Install the oil dipstick retaining bolt.
- Install the lower charge air cooler hose.

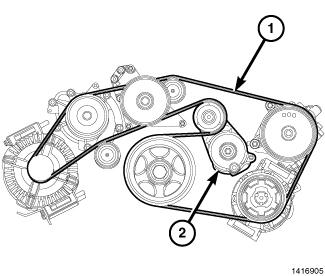

1 - ACCESSORY DRIVE BELT 2 - ACCESSORY DRIVE BELT TENSIONER - Install the generator. Refer to Electrical - Engine Systems/Charging/GENERATOR - Installation
- Install the serpentine belt (1). See Installation

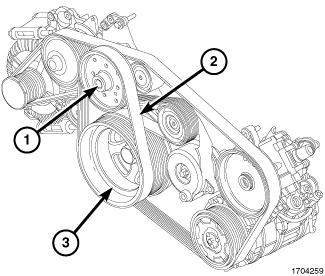

1 -FAN PULLEY 2 - DRIVE BELT 3 - CRANKSHAFT PULLEY - Install the fan drive belt (2). See Installation
- Install the fan and shroud. See Installation
- Install the engine cover. Refer to Engine - Installation
- Install the air box assembly. Refer to Engine/Air Intake System/BODY, Air Cleaner - Removal
- Connect the AGM starter negative battery cable located inside the vehicle under the instrument panel near the accelerator pedal. Refer to Electrical - Engine Systems/Battery System/BATTERY - Description
- Connect the negative battery cable.
- Evacuate air and refill the cooling system. See Standard Procedure
- Check cooling system for leaks. See Diagnosis and Testing
NOTE:
The radiator fan assembly is attached (threaded) to the fan pulley (1). Install the fan blade/viscous fan drive assembly to the fan pulley by turning the mounting nut counter-clockwise as viewed from the front. Threads on the radiator cooling fan are REVERSE THREADED (LEFT-HAND THREAD).
