BOTTLE, Coolant Recovery: Installation: Installation

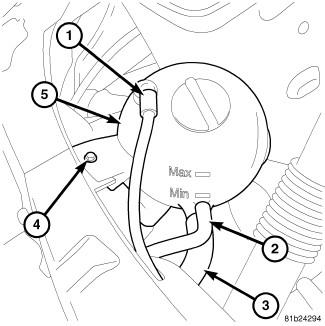

Fig 1: COOLANT RECOVERY CONTAINER

Courtesy of CHRYSLER LLC

1 - HOSE

2 - HOSE

3 - HOSE

4 - MOUNTING BOLT

5 - COOLANT RECOVERY CONTAINER

1. Position coolant recovery container (5).
2. Install mounting bolt (4). Tighten bolt to 10 N.m (98 in. lbs.).
3. Connect electrical connector.
4. Connect hoses (1, 2 and 3).
5. Fill cooling system. See Standard Procedure  .
