Home >> Dodge and Ram >> 2009 >> Sprinter 2500, Van Cargo >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> DTCS 9084 To 90B3 >> 9087-Left Side Impact Sensor 1 Performance >> Notes

9087-Left Side Impact Sensor 1 Performance: Notes

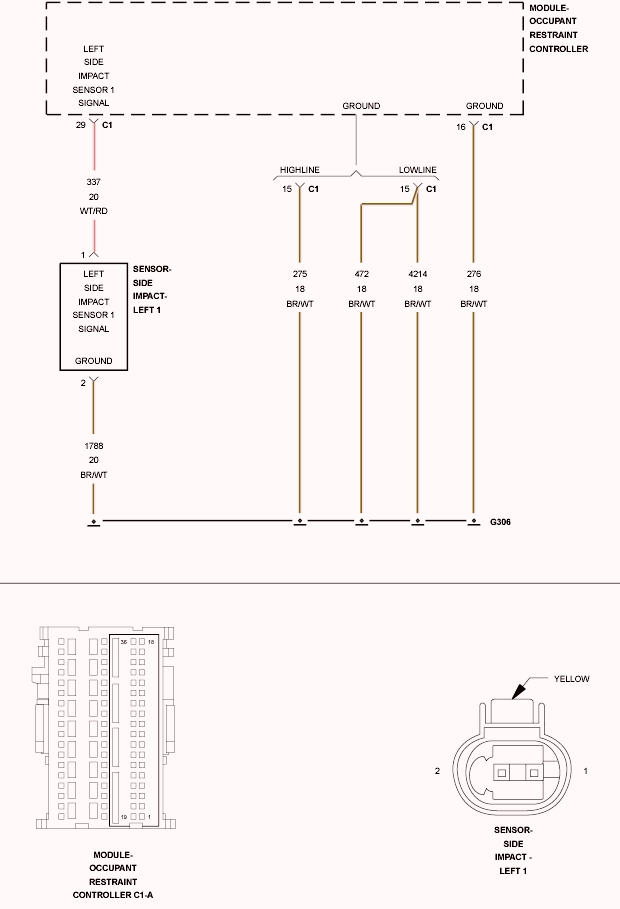

GC0134576

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
