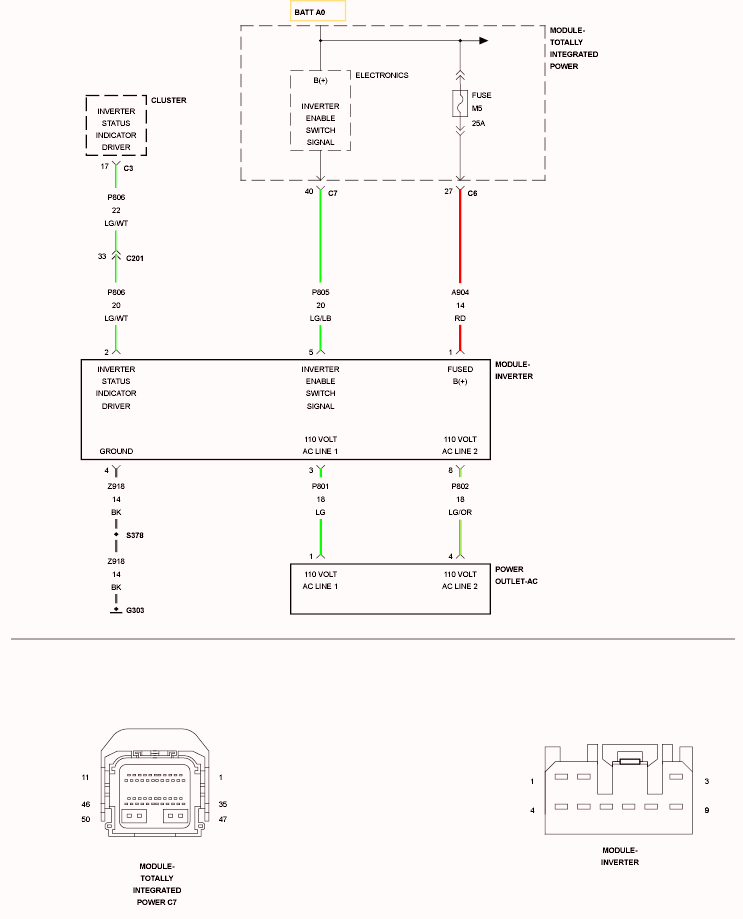

Home >> Dodge and Ram >> 2009 >> Nitro SE, 4WD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> (Totally Integrated Power Module (TIPM) - Electrical Diagnostics) >> DTC Troubleshooting >> P129E-Inverter Control Circuit OVERCURRENT >> Circuit Schematic
