Power Transfer Unit: Installation: Installation

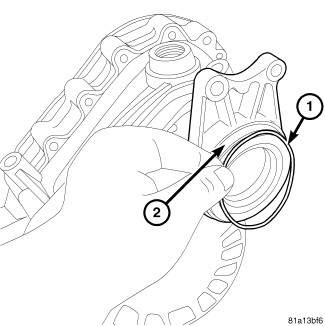

Fig 1: Installing New O-Ring Onto PTU

Courtesy of CHRYSLER LLC

1. Install new O-ring onto PTU.
2. Apply RTV, 05010884AA, to the PTU O-ring.

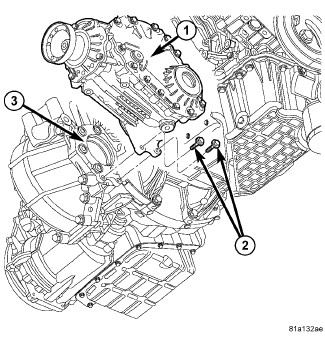

   Fig 2: Removing/Installing PTU

   Courtesy of CHRYSLER LLC
   NOTE: The sequence below should always be followed when installing the PTU
3. Install PTU into position.
4. Install PTU-to-transmission adaptor bolts (2) and tighten to 22 N.m (30 ft. lbs.).
5. Check and adjust PTU Fluid level. The PTU holds .8L (1.7 Pints.) of Mopar® 75W-90 Gear and Axle Lubricant.

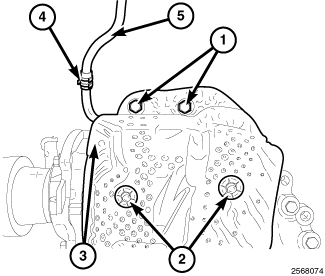

   Fig 3: Breather Hose Clamp & Breather Hose

   Courtesy of CHRYSLER LLC
6. Install the PTU Heat shield (3).
7. Install new heat shield mounting clips (2).
8. Install PTU-to-transaxle mount bracket upper bolts (1) and tighten to 54 N.m (40 ft. lbs.).
9. If equipped install the breather hose (5) and the breather hose clamp (4).

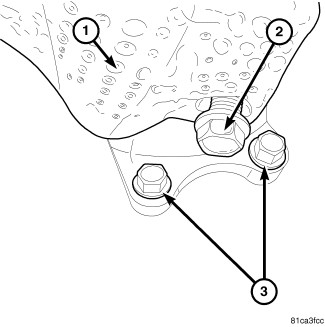

   Fig 4: Lower Heat Shield Bolt

   Courtesy of CHRYSLER LLC
10. Install the lower heat shield bolt (2) and tighten to 22 N.m (30 ft. lbs.).

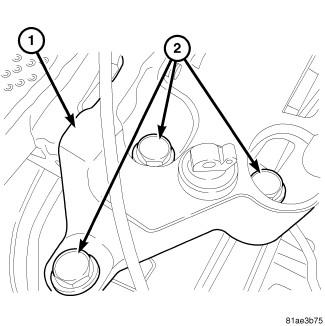

    Fig 5: Rear Transmission Bracket

    Courtesy of CHRYSLER LLC
11. Install transmission rear mount (1) and bolts (2) and tighten to 54 N.m (40 ft. lbs.).
12. Install propeller shaft assembly. Refer to Differential and Driveline/Propeller Shaft - Installation .
13. Install exhaust to engine. Refer to Exhaust System/CONVERTER, Catalytic - Installation .
14. Install the crossmember. Refer to Frame and Bumpers/Frame/CROSSMEMBER - Installation .
15. Install right halfshaft assembly. Refer to Differential and Driveline/Half Shaft - Installation .
