Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| S100 (2.4L) | Left rear of engine. See Figure. |
| S100 (3.5L) | Left rear of engine. See Figure. |

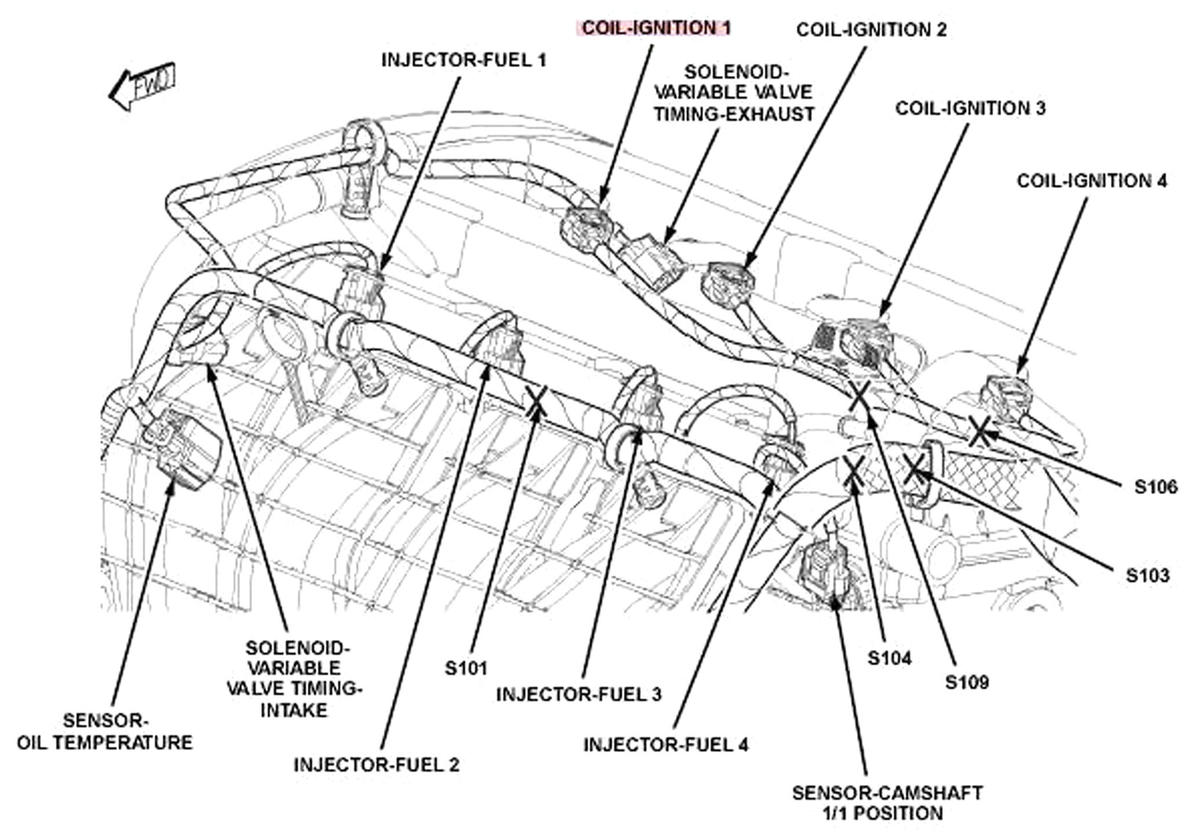

| S101 | Top left side of engine. See Figure. |
| S102 (2.4L) | Left rear of engine. See Figure. |
| S102 (3.5L) | Rear of engine. See Figure. |
| S103 | Rear of engine. See Figure. |
| S104 (2.4L) | Rear of engine. See Figure. |
| S104 (3.5L) | Rear of engine. See Figure. |
| S105 (2.4L) | Left rear of engine. See Figure. |
| S105 (3.5L) | Rear of engine. See Figure. |
| S106 (2.4L) | Rear of engine. See Figure. |
| S106 (3.5L) | Left side of engine. See Figure. |
| S107 | Left rear of engine. See Figure. |
| S108 (2.4L) | Left rear of engine. See Figure. |
| S108 (3.5L) | Rear of engine. See Figure. |
| S109 (2.4L) | Rear of engine. See Figure. |
| S109 (3.5L) | Left rear of engine. See Figure. |
| S110 | Right rear of engine. See Figure. |
| S111 | Left rear of engine. See Figure. |

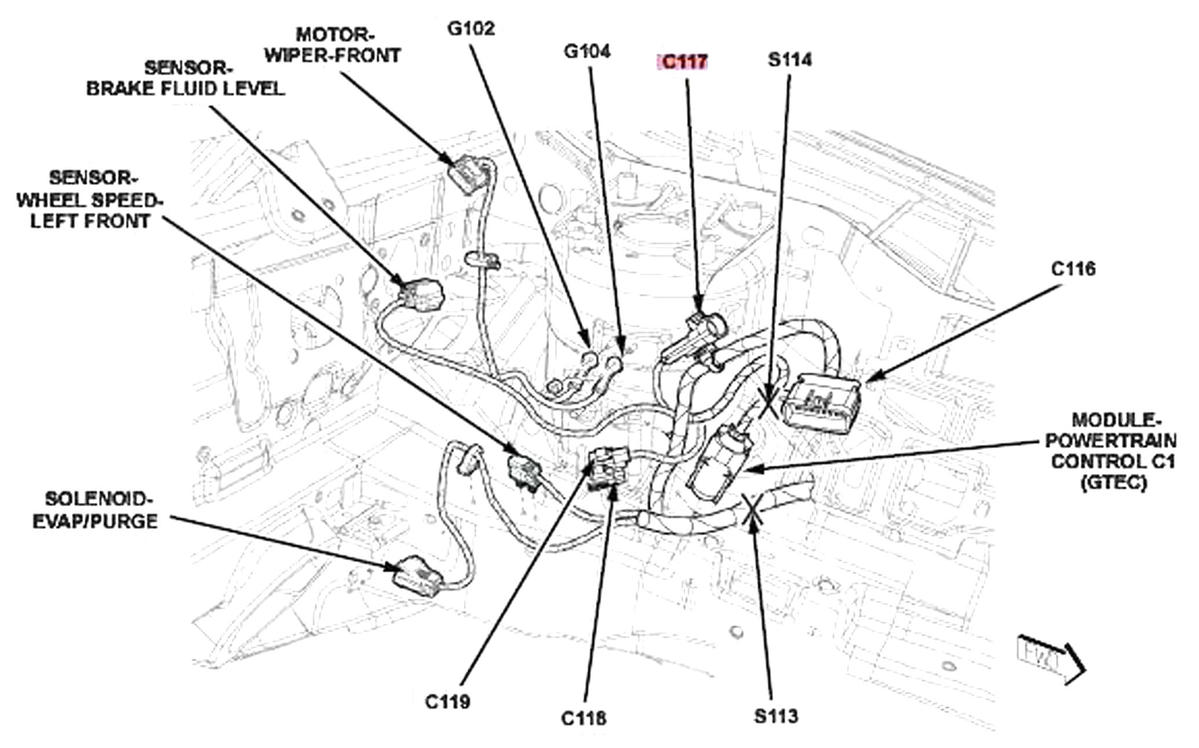

| S113 | Left side of engine compartment. See Figure. |
| S114 | Left side of engine compartment. See Figure. |
| S116 | Under TIPM. See Figure. |
| S117 | Under TIPM. See Figure. |
| S118 | Left side of engine compartment. See Figure. |
| S119 | Left side of engine compartment. See Figure. |
| S125 | Above transmission. See Figure. |
| S126 | Above transmission. See Figure. |
| S127 (2.4L) | Above transmission. See Figure. |
| S127 (3.5L) | Above transmission. See Figure. |

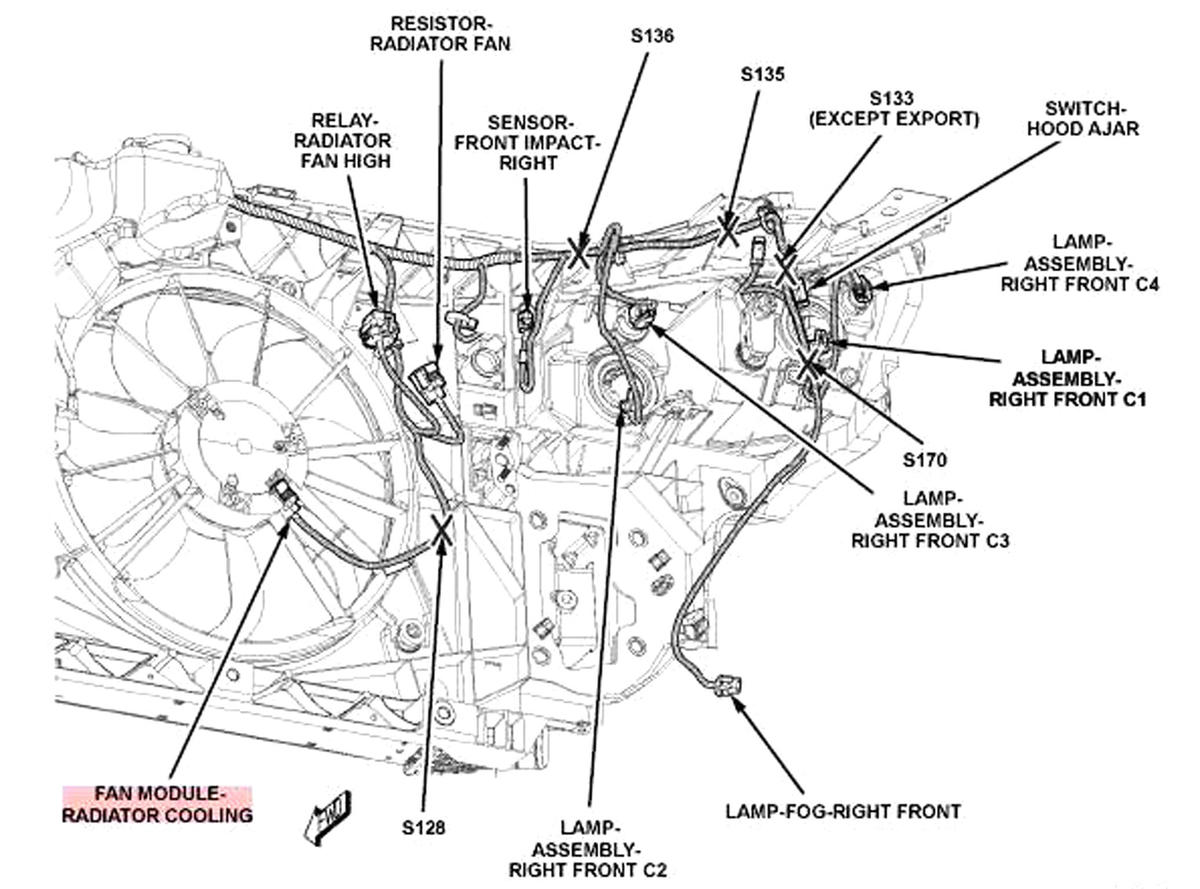

| S128 | Near radiator fan relay. See Figure. |
| S129 | Above left headlight assembly. See Figure. |
| S130 | Left front of engine compartment. See Figure. |
| S131 | Left side headlight harness. See Figure. |
| S132 | Left side headlight harness. See Figure. |
| S133 | Above right headlight assembly. See Figure. |
| S134 | Left side headlight harness. See Figure. |
| S135 | Above right headlight assembly. See Figure. |
| S136 | Right front of engine compartment. See Figure. |
| S142 | Left of transmission. See Figure. |
| S143 | Left rear of engine. See Figure. |
| S144 | Left rear of engine. See Figure. |
| S153 | Left front of engine compartment. See Figure. |
| S154 | Headlight & dash harness. |
| S160 | Air pump assembly. |
| S170 | Near right headlight assembly. See Figure. |
| S171 | Front end lighting harness. |
| S172 | Front end lighting harness. |
| S200 | Left side of dash. See Figure. |
| S201 | Right side of dash. See Figure. |
| S202 | Right side of dash. See Figure. |
| S203 | Instrument cluster. |
| S204 | Left side of dash. See Figure. |
| S205 | Left side of dash. See Figure. |
| S206 | Left side of dash. See Figure. |
| S207 | Left side of dash. See Figure. |
| S208 | Right side of dash. See Figure. |
| S210 | Left side of dash. See Figure. |
| S211 | Left side of dash. See Figure. |
| S212 | Left side of dash. See Figure. |
| S213 | Center of dash. See Figure. |
| S214 | Center of dash. See Figure. |
| S215 | Right side of dash. See Figure. |
| S216 | Right side of dash. See Figure. |
| S219 | Right side of dash. See Figure. |
| S221 | Center of dash. See Figure. |
| S230 | Steering wheel jumper. |
| S231 | Steering wheel jumper. |
| S232 | Steering wheel jumper. |
| S233 | Steering wheel jumper. |
| S240 | Left side of dash. See Figure. |
| S241 | Left side of dash. See Figure. |
| S300 | Left quarterpanel. See Figure. |
| S301 | Left kick panel. See Figure. |
| S302 | Right footwell. See Figure. |
| S303 | Left kick panel. See Figure. |
| S304 | Left kick panel. See Figure. |
| S305 | Body harness. |
| S306 | Base of left "C" pillar. See Figure. |
| S307 | Left kick panel. See Figure. |

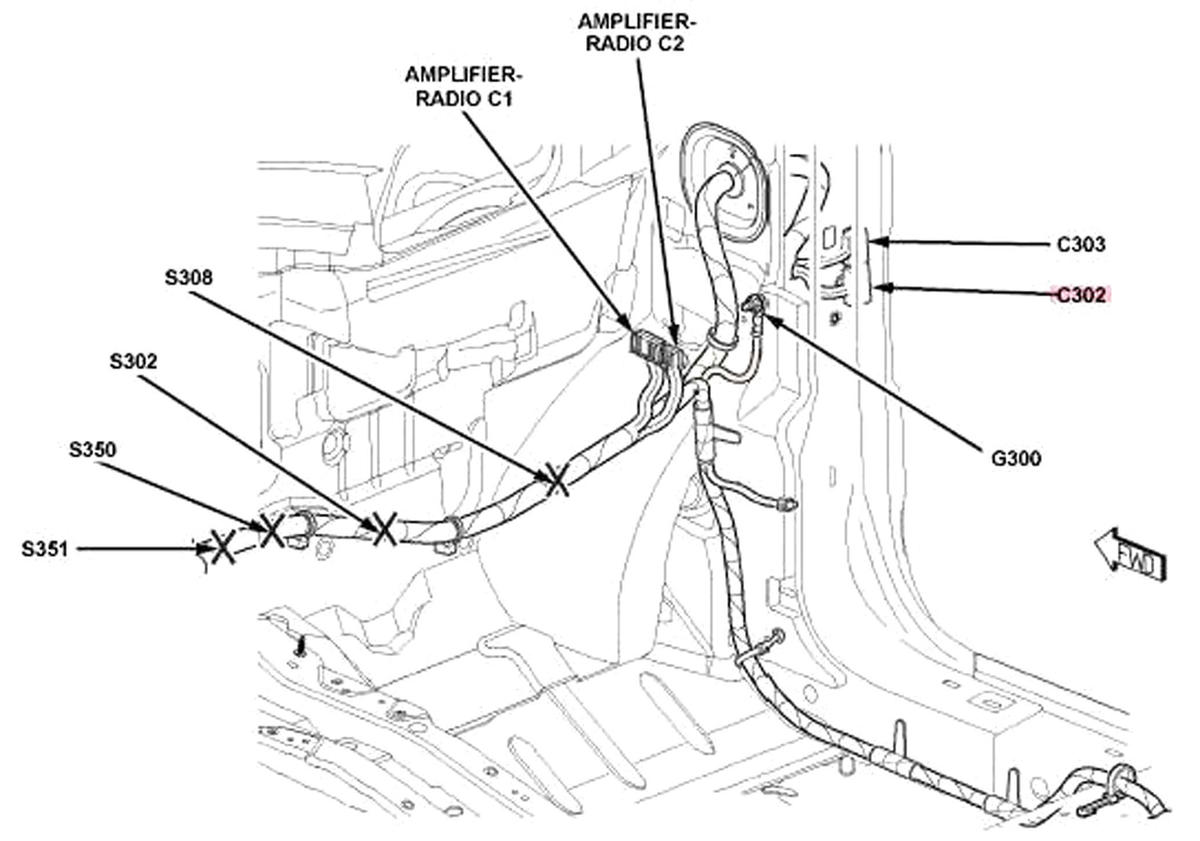

| S308 | Right footwell. See Figure. |
| S309 | Left kick panel. See Figure. |
| S310 | Left kick panel. See Figure. |
| S311 | Left quarterpanel. See Figure. |
| S312 | Base of right "C" pillar. See Figure. |

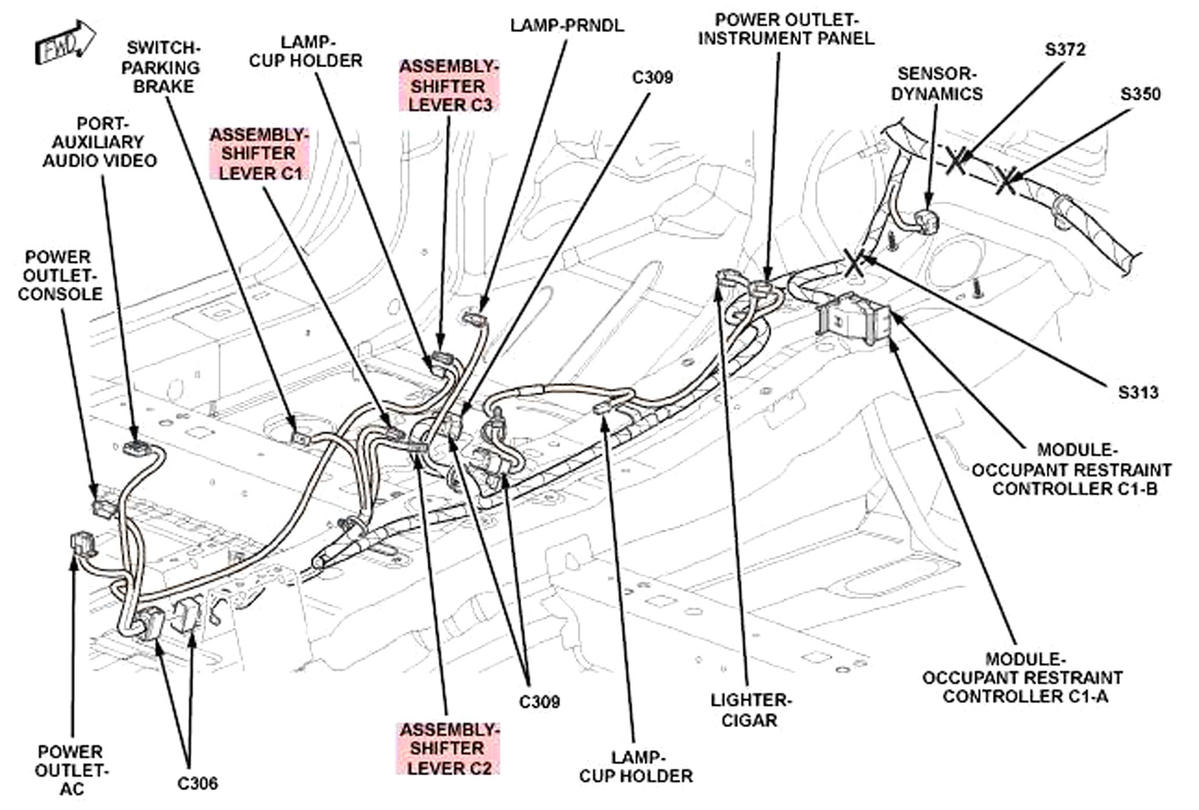

| S313 | Under front of center console. See Figure. |
| S316 | Left kick panel. See Figure. |
| S317 | Left kick panel. See Figure. |
| S320 | Body harness. |
| S322 | Left front of headliner. See Figure. |
| S323 | Left front of headliner. See Figure. |
| S324 | Left side of headliner. See Figure. |
| S327 | Front passenger's door. See Figure. |
| S328 | Driver's door. See Figure. |
| S329 | Driver's door. See Figure. |
| S330 | Driver's door. See Figure. |
| S332 | Left rear door. See Figure. |
| S333 | Right rear door. See Figure. |
| S338 | Left "D" pillar. See Figure. |
| S339 | Left "D" pillar. See Figure. |
| S340 | Under left rear of vehicle. See Figure. |
| S341 | Under left rear of vehicle. See Figure. |
| S342 | Right rear of vehicle. See Figure. |
| S350 | Right footwell. See Figure. |
| S351 | Right footwell. See Figure. |
| S380 | Rear HVAC jumper. |
| S388 | Seat jumper. |
| S389 | Seat jumper. |
| S390 | Seat jumper. |
| S391 | Seat jumper. |
| S392 | Driver's seat. |
| S393 | Driver's seat. |
| S394 | Driver's seat. |
