Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| C100 (Black, 8 Pin) | Left side of engine compartment. See Figure. |
| C101 (Black, 14 Pin) | Left side of engine compartment. See Figure. |
| C105 (6 Pin) | Above transmission. See Figure. |
| C106 (12 Pin) | Above left headlight assembly. See Figure. |
| C107 (Black, 1 Pin) | Above left headlight assembly. See Figure. |
| C112 (Gray, 40 Pin) | Left kick panel. See Figure. |
| C113 (Natural, 57 Pin) | Left end of dash. See Figure. |
| C114 (Natural, 57 Pin) | Left kick panel. See Figure. |
| C116 (16 Pin) | Left side of engine compartment. See Figure. |
| C117 (Black, 2 Pin) | Left side of engine compartment. See Figure. |
| C118 (Dark Gray, 4 Pin) | Left side of engine compartment. See Figure. |
| C119 (Dark Gray, 2 Pin) | Left side of engine compartment. See Figure. |
| C200 (Natural, 57 Pin) | Left kick panel. See Figure. |

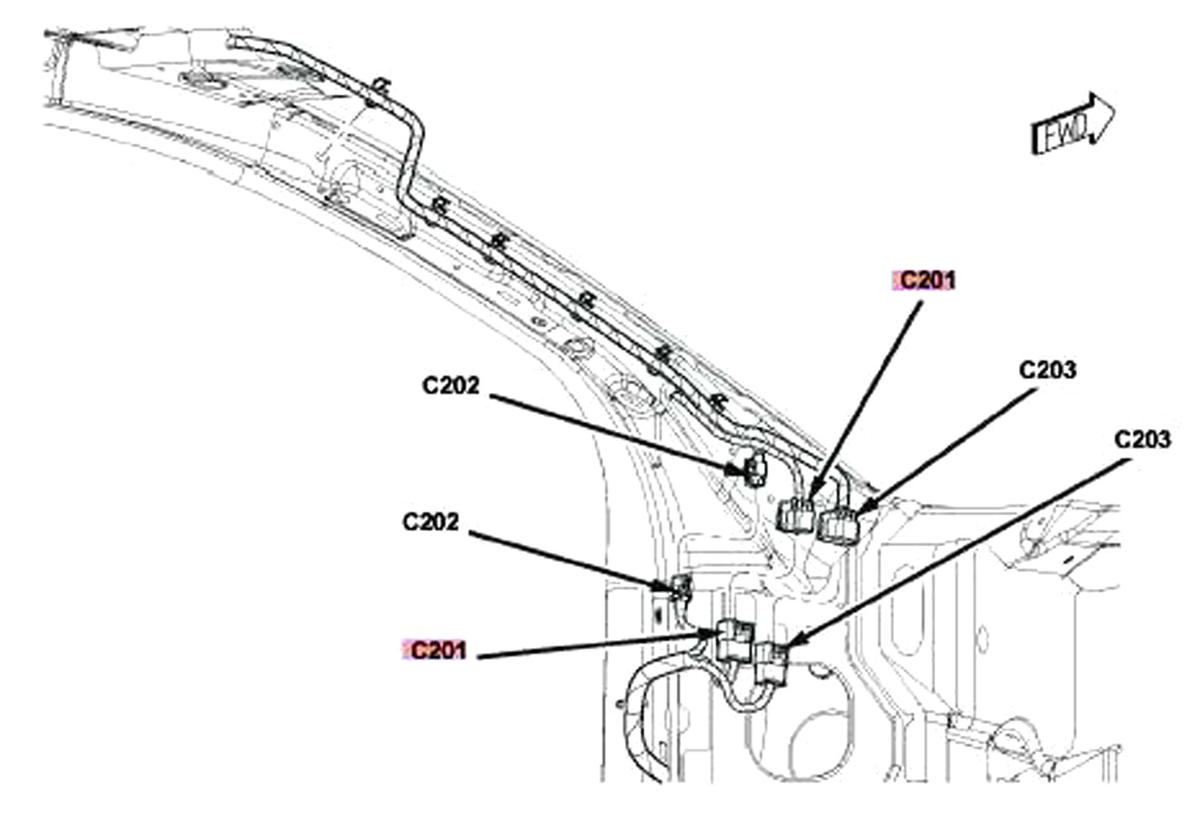

| C201 (8 Pin) | Base of left "A" pillar. See Figure. |
| C202 (White, 2 Pin) | Base of left "A" pillar. See Figure. |
| C203 (12 Pin) | Base of left "A" pillar. See Figure. |

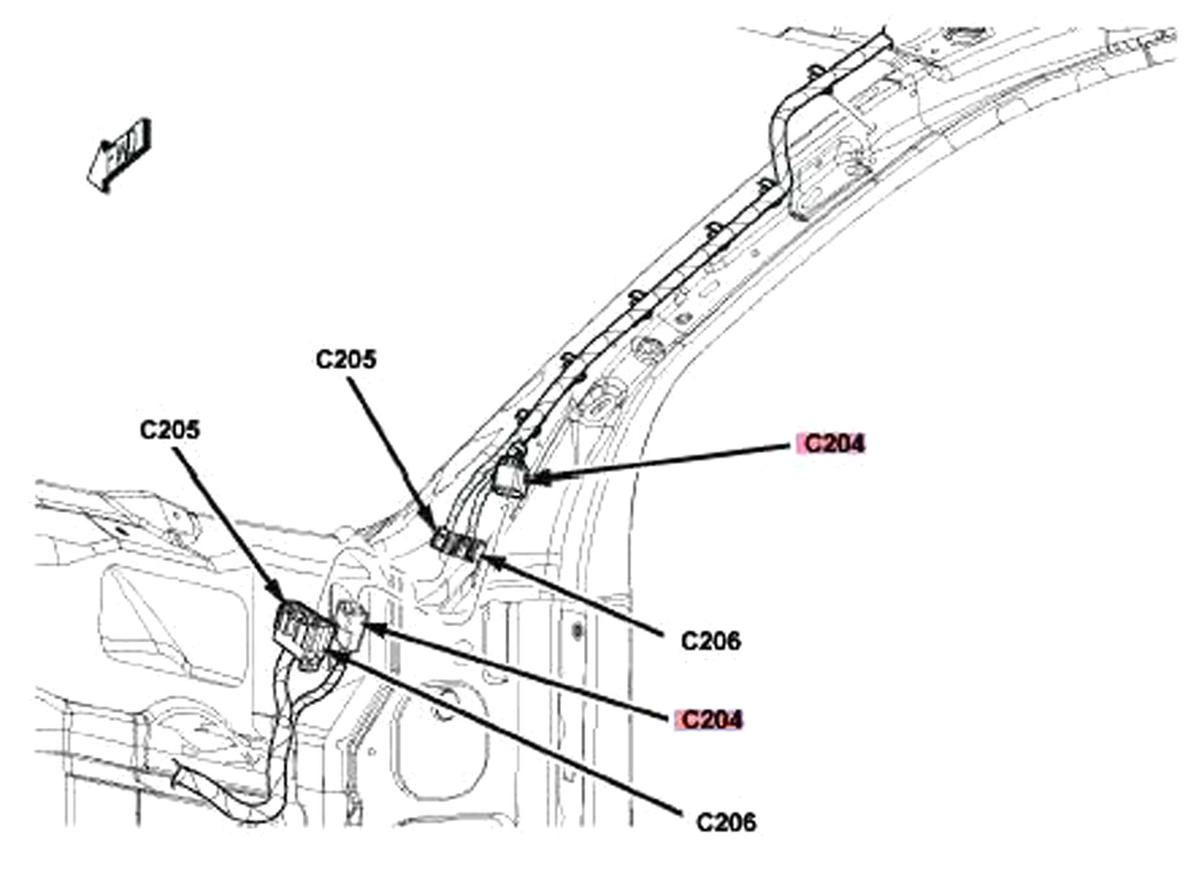

| C204 (Early) (8 Pin) | Base of right "A" pillar. See Figure. |
| C204 (Late) (12 Pin) | Base of right "A" pillar. See Figure. |
| C205 (Black, 16 Pin) | Base of right "A" pillar. See Figure. |
| C206 (14 Pin) | Base of right "A" pillar. See Figure. |
| C207 (Natural, 2 Pin) | Left kick panel. See Figure. |

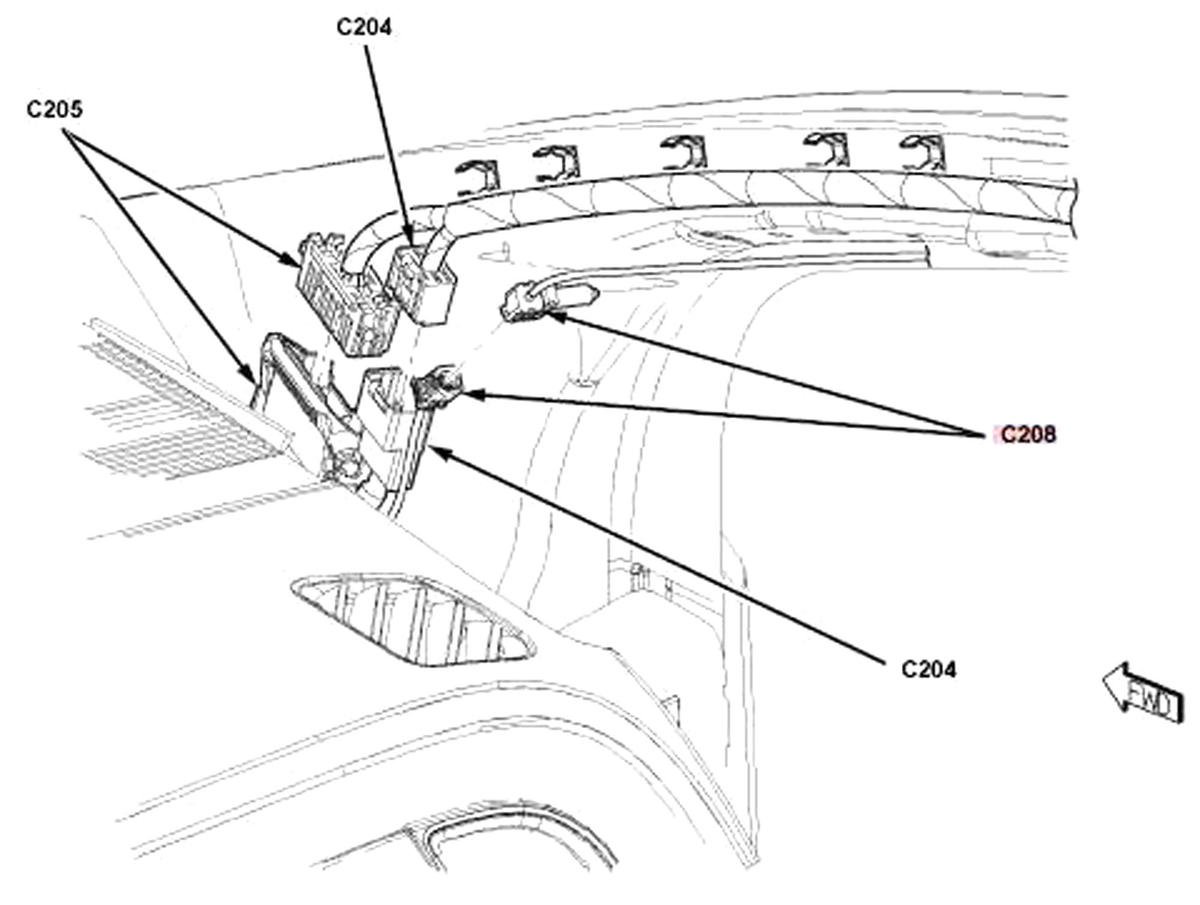

| C208 (Yellow, 2 Pin) | Base of right "A" pillar. See Figure. |
| C211 (Light Gray, 2 Pin) | Left kick panel. See Figure. |
| C300 (Black, 18 Pin) | Left kick panel. See Figure. |
| C301 (Black, 12 Pin) | Left kick panel. See Figure. |
| C302 (Black, 18 Pin) | Right kick panel. See Figure. |
| C303 (Black, 12 Pin) | Right kick panel. See Figure. |
| C304 (12 Pin) | Left "B" pillar. See Figure. |
| C305 (14 Pin) | Right "B" pillar. See Figure. |
| C306 (Black, 12 Pin) | Under center console. See Figure. |
| C307 (Black, 6 Pin) | Left "D" pillar. See Figure. |
| C308 (Natural, 12 Pin) | Left "D" pillar. See Figure. |
| C309 (Black, 8 Pin) | Under front of center console. See Figure. |
| C310 (Black, 10 Pin) | Right "D" pillar. See Figure. |
| C312 (Light Gray, 12 Pin) | Under driver's seat. See Figure. |
| C313 (Yellow, 4 Pin) | Under driver's seat. See Figure. |
| C314 (Light Gray, 13 Pin) | Under front passenger's seat. See Figure. |
| C315 (Yellow, 4 Pin) | Under front passenger's seat. See Figure. |
| C316 (Gray, 4 Pin) | Top left of fuel tank. See Figure. |

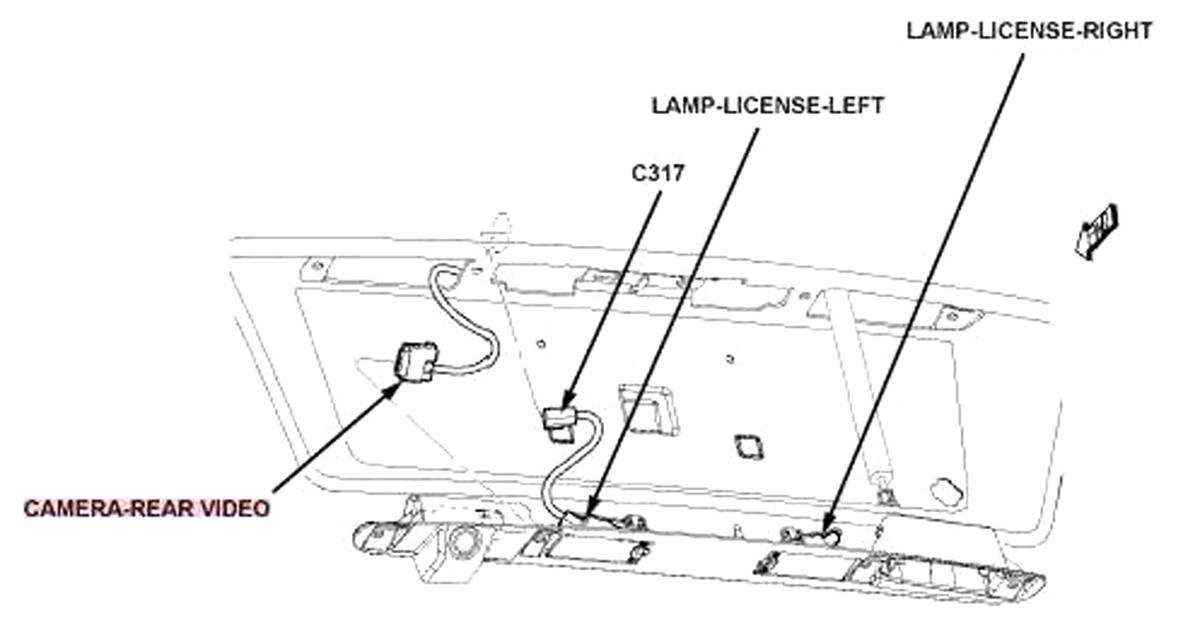

| C317 (Black, 2 Pin) | Left center of liftgate. See Figure. |
| C318 (Black, 3 Pin) | Base of left "D" pillar. See Figure. |
| C319 (Green, 3 Pin) | Base of left "D" pillar. See Figure. |
| C320 (Green, 3 Pin) | Base of right "D" pillar. See Figure. |
