Battery System: Battery: Installation: Installation

WARNING:

To protect the hands from battery acid, a suitable pair of heavy duty rubber gloves should be worn when removing or servicing a battery. Safety glasses also should be worn.

WARNING: Remove metallic jewelry to avoid injury by accidental arcing of battery current.

CAUTION: The negative battery cable remote terminal (2) must be disconnected and isolated from the remote battery post (1) prior to service of the vehicle electrical systems. The negative battery cable remote terminal can be isolated by using the supplied isolation hole (3) in the terminal casing.

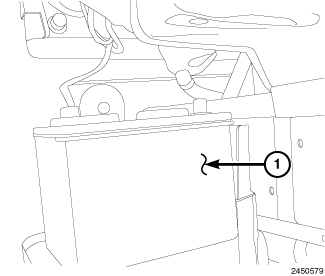

Fig 1: Battery

Courtesy of CHRYSLER LLC

Install the battery (1) into the battery tray (2).

Fig 2: Battery And Pinch Clamp Bolts
Courtesy of CHRYSLER LLC
Install the battery terminal pinch clamps (1, 2) onto the battery posts.
Tighten the pinch clamp nut to 17.5 N.m (13 in. lbs.)

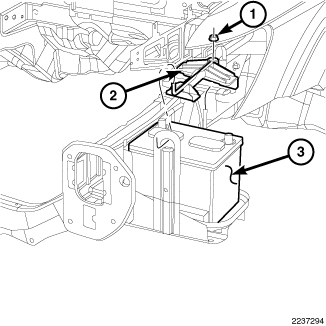

Fig 3: Battery, Bracket & Nut
Courtesy of CHRYSLER LLC
Position back the battery hold down bracket (3) and install the bracket nut (1).
Tighten the pinch clamp nut to 55 N.m (40 ft. lbs.)

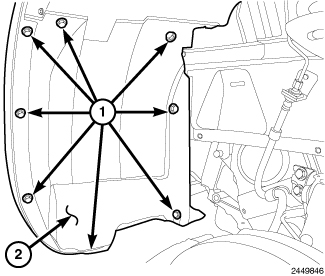

Fig 4: Push-Puns & Splash Shield
Courtesy of CHRYSLER LLC
Install the left front wheelhouse splash shield (2) and push pins (1). Refer to Body/Exterior/SHIELD, Splash - Installation .

Fig 5: TIRE AND WHEEL MOUNTING
Courtesy of CHRYSLER LLC
Install the left front wheel and tire assembly. Refer to Tires and Wheels - Removal .

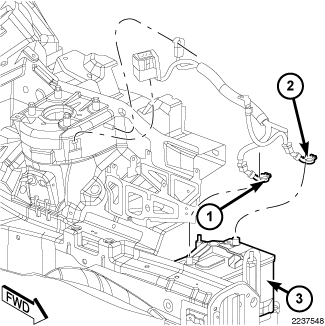

Fig 6: Identifying Battery Cables & Terminals
Courtesy of CHRYSLER LLC
Install the negative battery cable remote terminal onto the remote battery post.
Tighten the nut to 28 N.m (9.5 in. lbs.)
