Steering System: Gear: Installation: Installation

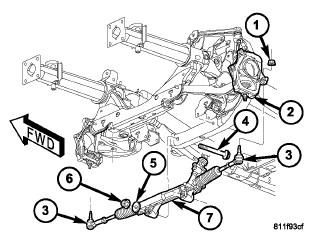

Fig 1: Steering Gear

Courtesy of CHRYSLER LLC

NOTE: Before installing gear inspect the bushings and replace if worn or damaged, also use new gear mounting bolts and nuts.

1. With the steering gear in the full right position (as in removal), install steering gear (7) to the vehicle and tighten the mounting nuts and bolts (4, 6) to 258 N.m (190 ft. lbs.). After tightening the fasteners, re-center the steering gear.
2. Install power steering lines to steering gear and tighten the pressure hose to 37 N.m (27 ft. lbs.) and tighten the return hose to 65 N.m (48 ft. lbs.). See Steering/Pump/HOSE, Power Steering - Installation .
   Fig 2: Upper Coupler & Pinch Bolt

   Courtesy of CHRYSLER LLC
   CAUTION: The steering gear must be centered prior to installing the coupler to prevent clockspring damage.
3. Slide the shaft coupler (1) onto gear (3). Install a new  lower pinch bolt (2) and tighten to 57 N.m (42 ft. lbs.).
   Fig 3: Tie Rod Components

   Courtesy of CHRYSLER LLC
4. Clean tie rod end studs and knuckle tapers (5).
5. Install tie rod ends (2) into the steering knuckles (5) and tighten the nuts (1) to 75 N.m (55 ft. lbs.). See Steering/Linkage/END, Tie Rod - Installation .

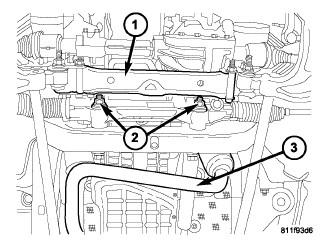

   Fig 4: Crossmember & Exhaust Y-Pipes

   Courtesy of CHRYSLER LLC
6. Install the Y-pipe (3) 3.7L and 4.7L engines only  .

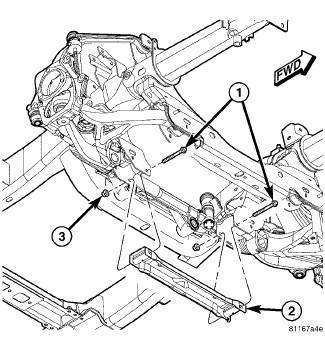

   Fig 5: Identifying Front Crossmember

   Courtesy of CHRYSLER LLC
7. Install the front crossmember (2). Refer to Frame and Bumpers/Frame/CROSSMEMBER - Installation .
8. Install the front tires.
9. Remove the support and lower the vehicle.
10. Unlock the steering wheel.
11. Fill system with fluid. See Steering - Standard Procedure .
12. Adjust the toe position. Refer to Front Suspension/Wheel Alignment - Standard Procedure .
