MODULE, Integrated Power (IPM): Installation: Installation

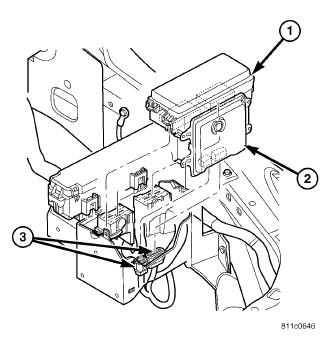

Fig 1: Locating Integrated Power Module (IPM)

Courtesy of CHRYSLER LLC

1. Install the Front Control Module (FCM) (2) to the Integrated Power Module (IPM).
2. Connect the electrical connectors to the IPM (1).
3. Install the IPM to the retaining bracket.
4. Install the B+ cable and nut on the IPM B+ terminal. Snap the cover in place.
5. Connect the negative and positive battery cables.
