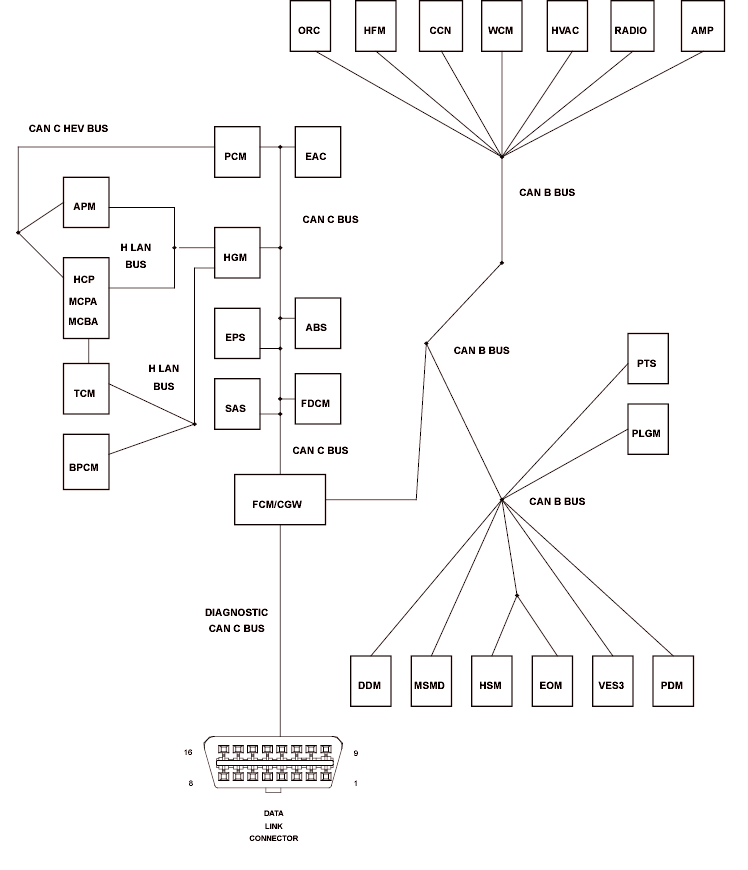

Home >> Dodge and Ram >> 2009 >> Durango Base, 4.7 P, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P3442 To U1417 >> U0293-Lost Communication With Hybrid Control Module - HEV >> Circuit Schematic
