SWITCH, Power Window: Removal: Removal

The driver and front passenger side power window switch is included in the window/lock switch.   . Refer to Electrical - Power Systems/Power Locks/SWITCH, Lock - Removal for the service procedures.

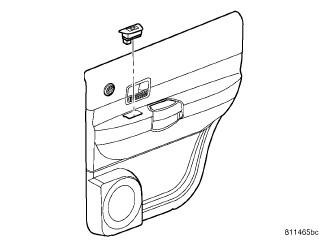

Fig 1: Identifying Power Window Switch

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Remove the door trim panel. Refer to Body/Doors - Rear/PANEL, Rear Door Trim - Removal .
3. Remove switch from door trim panel.
