Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

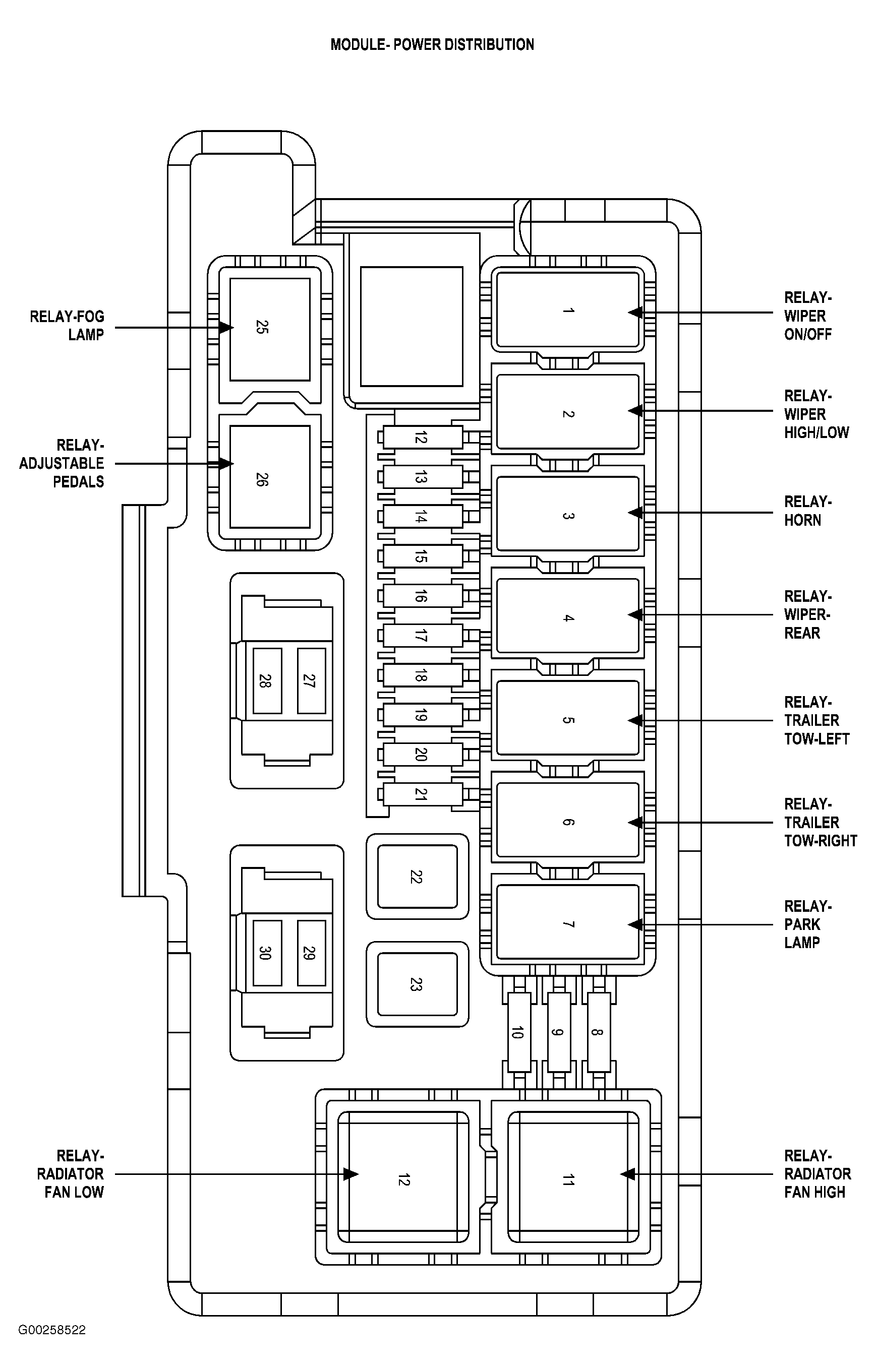

Fig 1: Integrated Power Module

G00258522

Courtesy of CHRYSLER LLC

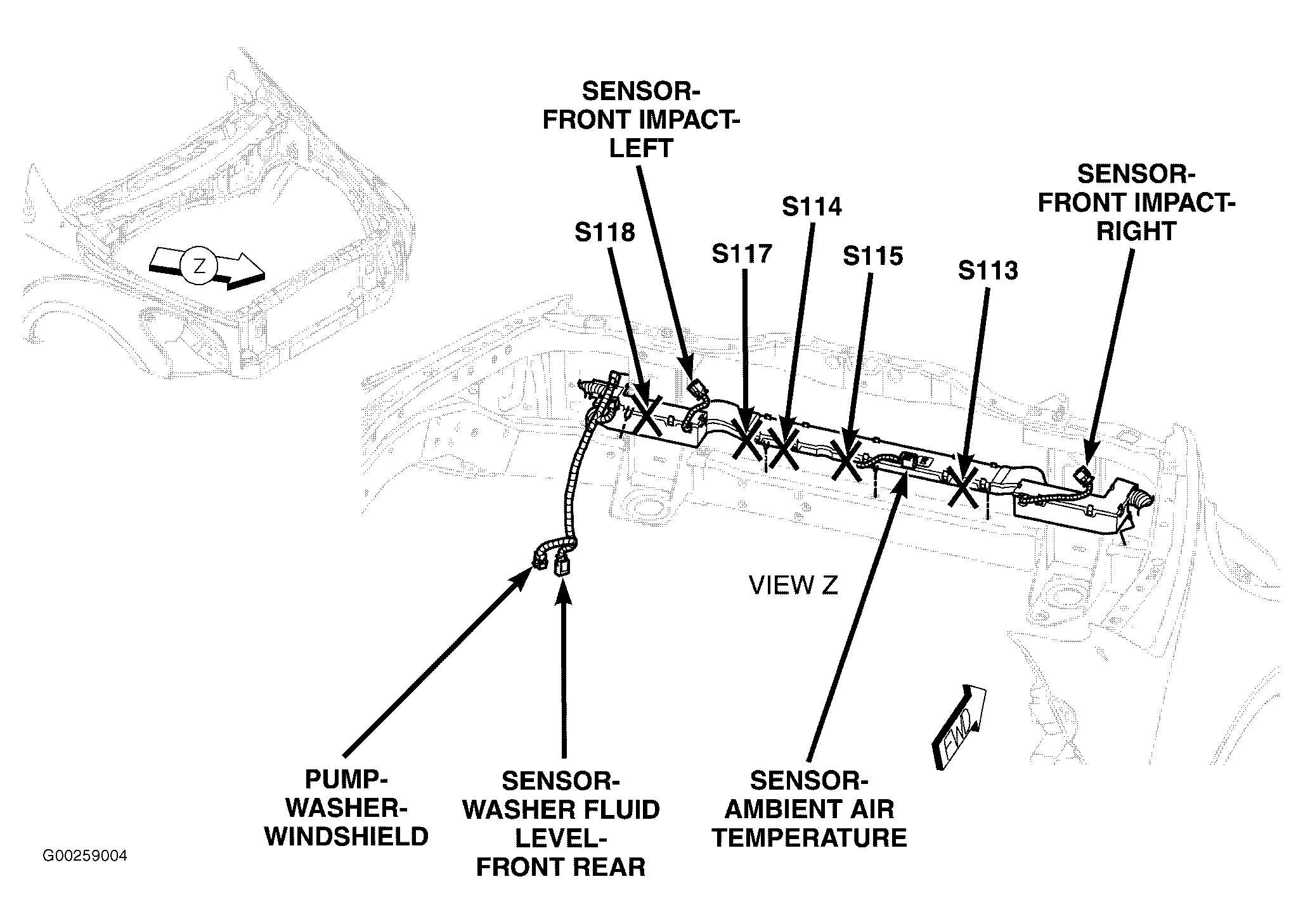

Fig 2: Front Of Engine Compartment

G00259004

Courtesy of CHRYSLER LLC

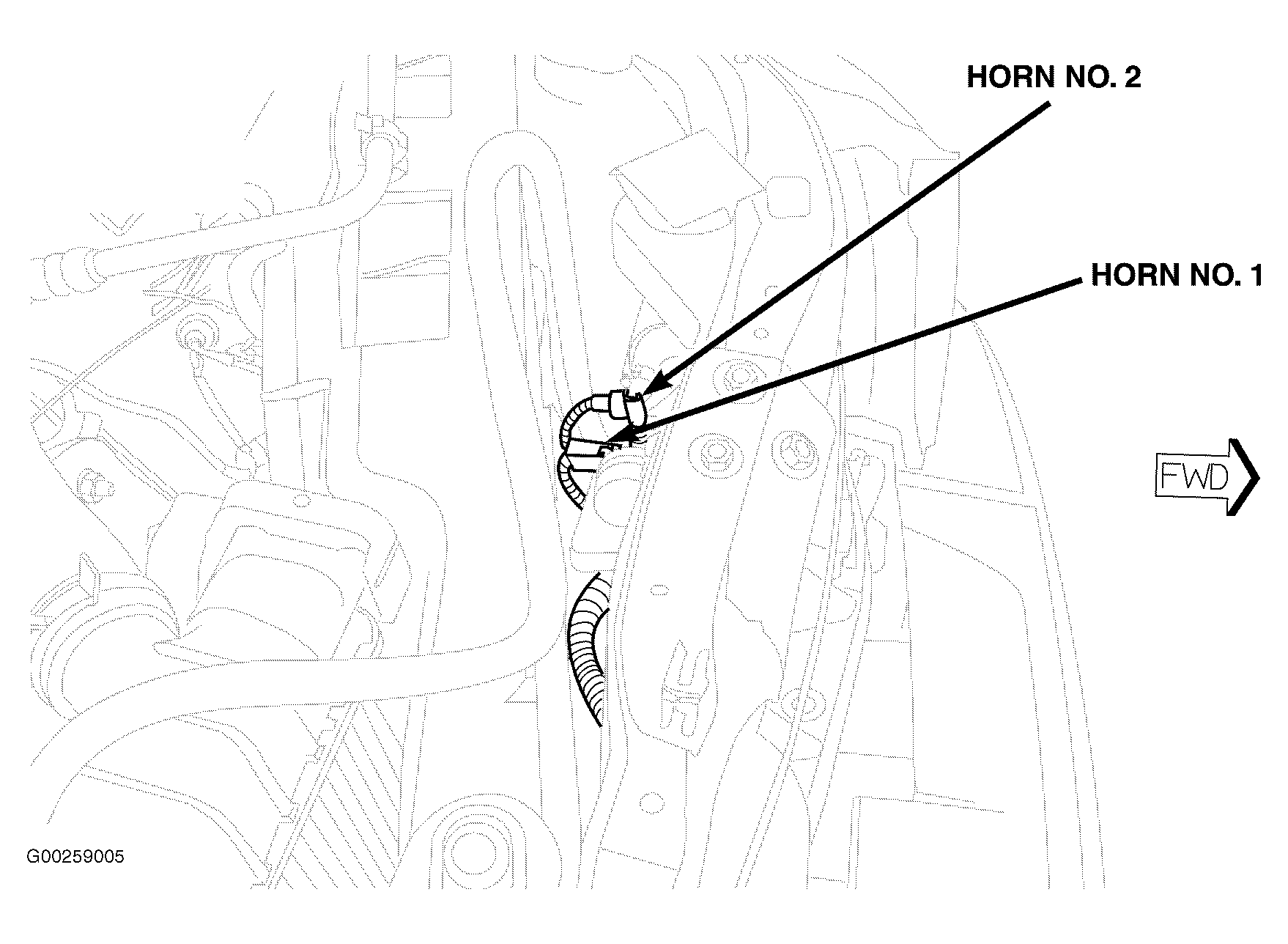

Fig 3: Front Of Engine Compartment

G00259005

Courtesy of CHRYSLER LLC

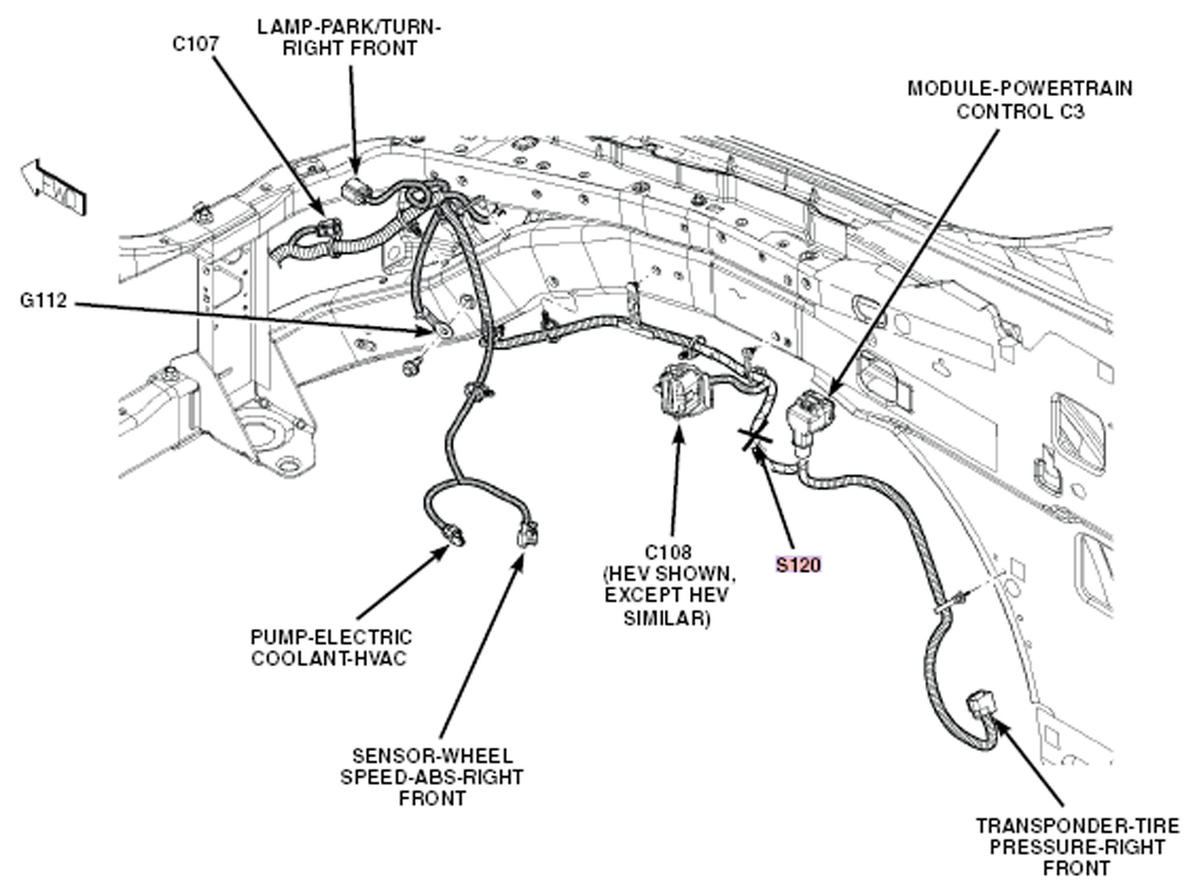

Fig 4: Right Side Of Engine Compartment

G00466862

Courtesy of CHRYSLER LLC

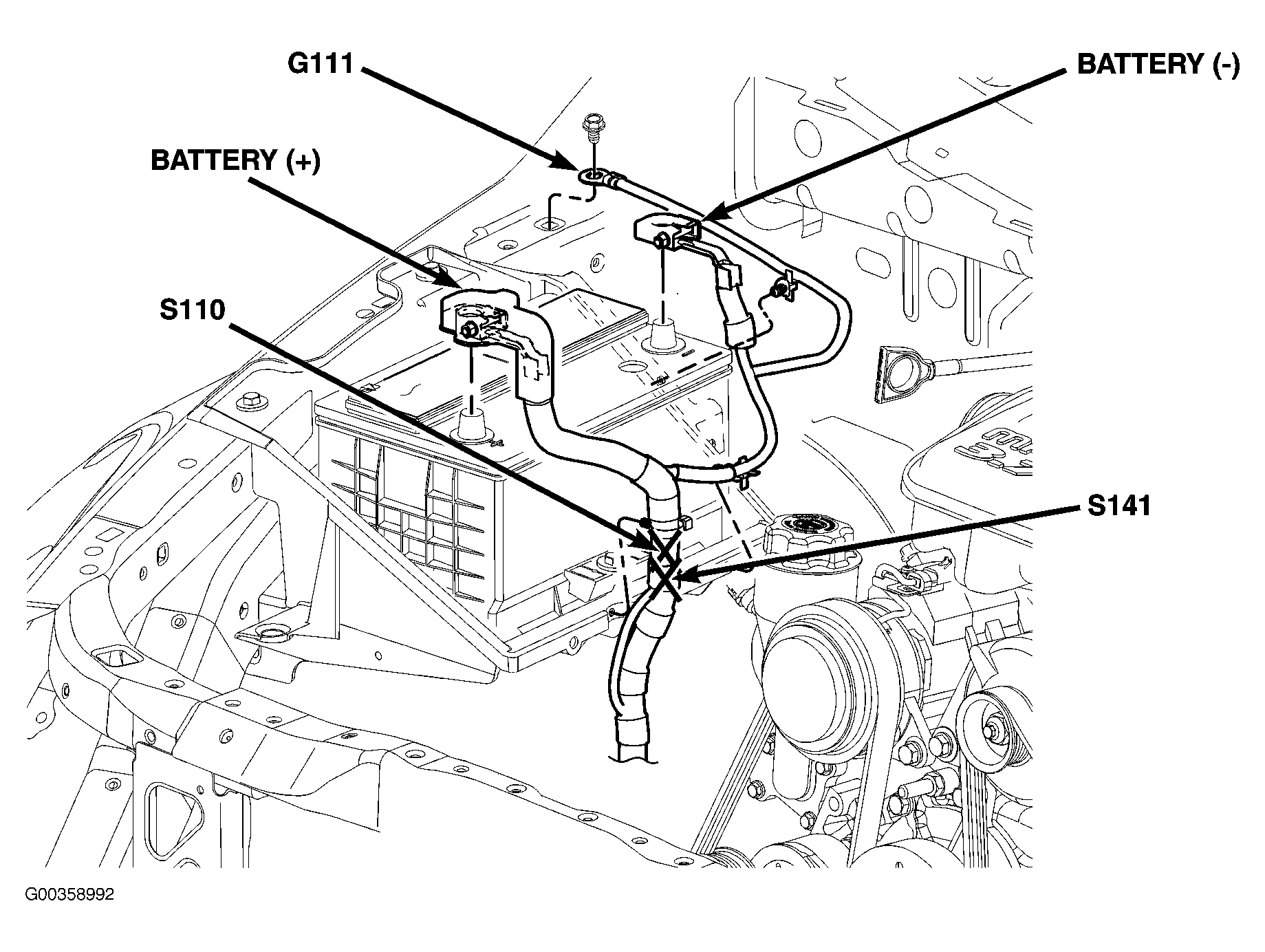

Fig 5: Right Front Corner Of Engine Compartment

G00358992

Courtesy of CHRYSLER LLC

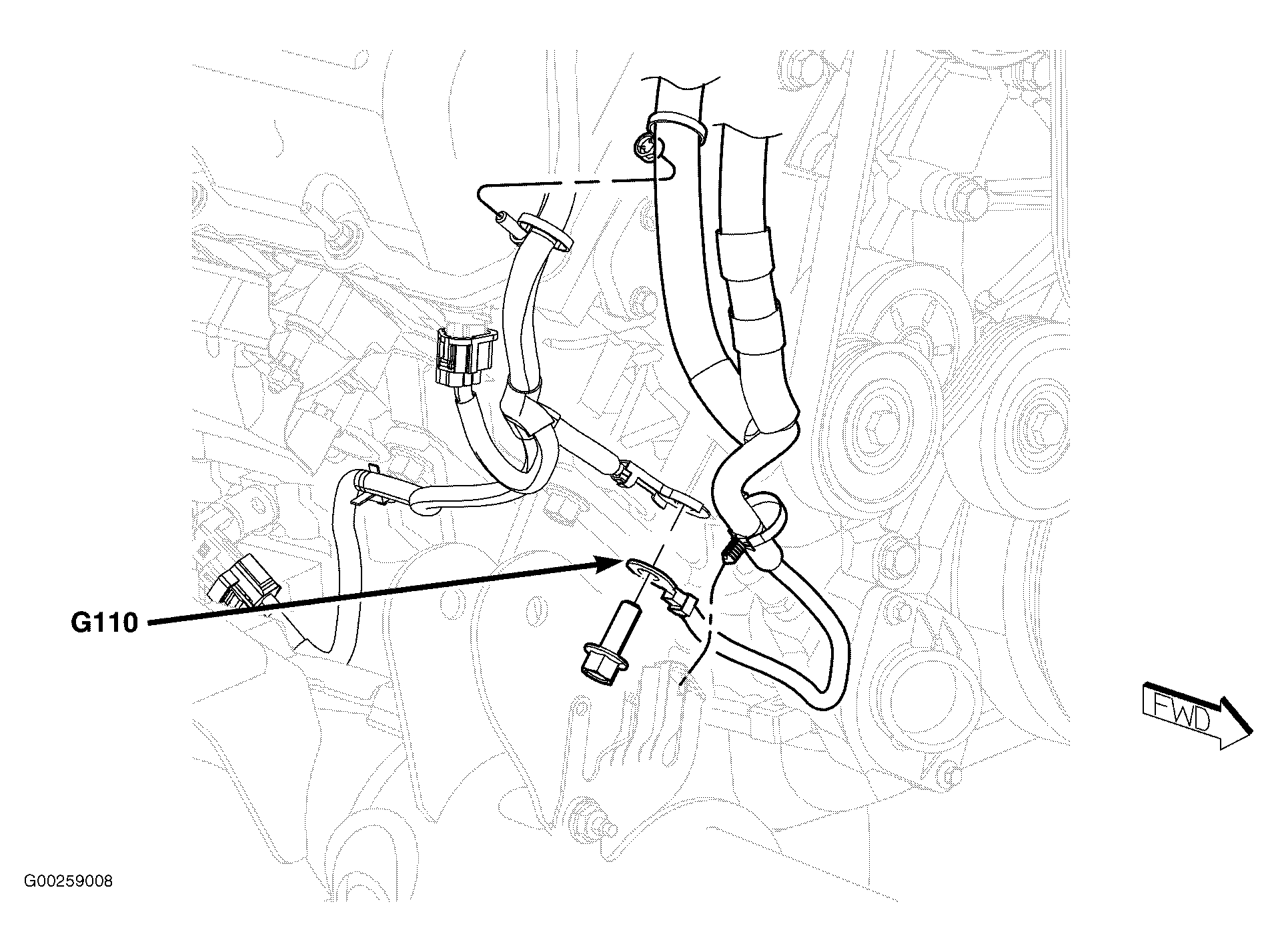

Fig 6: Right Front Of Engine (3.7L & 4.7L)

G00259008

Courtesy of CHRYSLER LLC

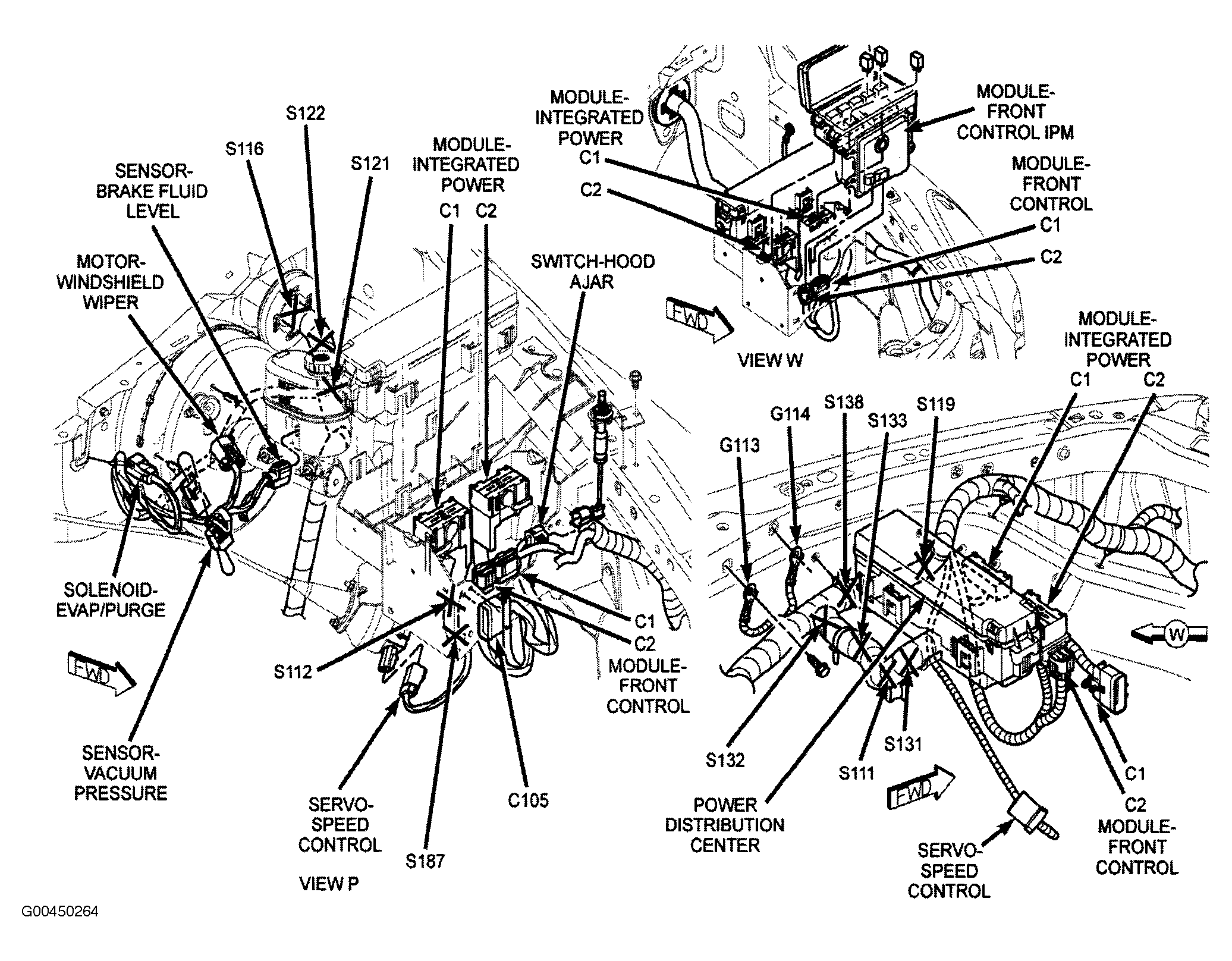

Fig 7: Left Side Of Engine Compartment

G00450264

Courtesy of CHRYSLER LLC

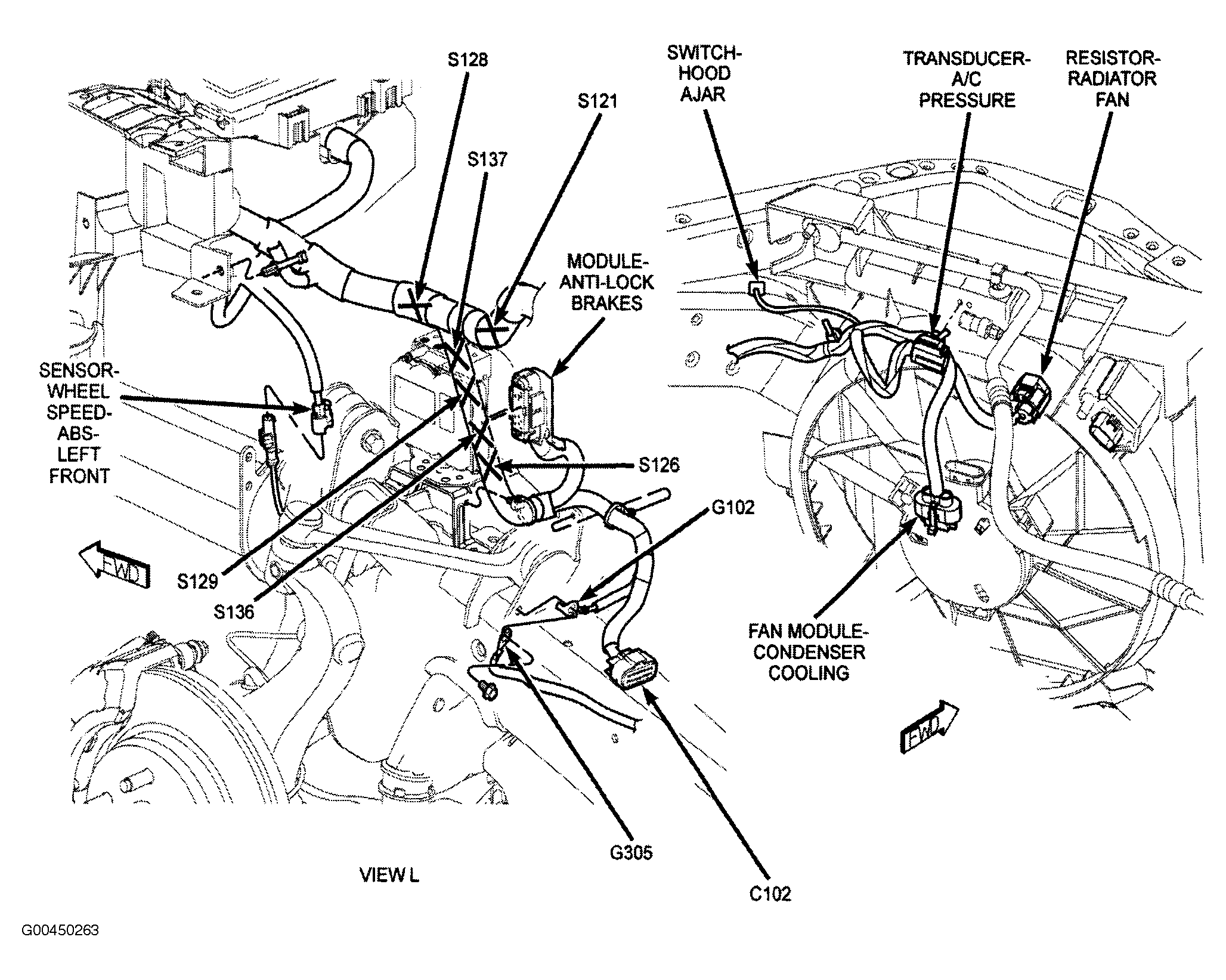

Fig 8: Left Front Of Engine Compartment

G00450263

Courtesy of CHRYSLER LLC

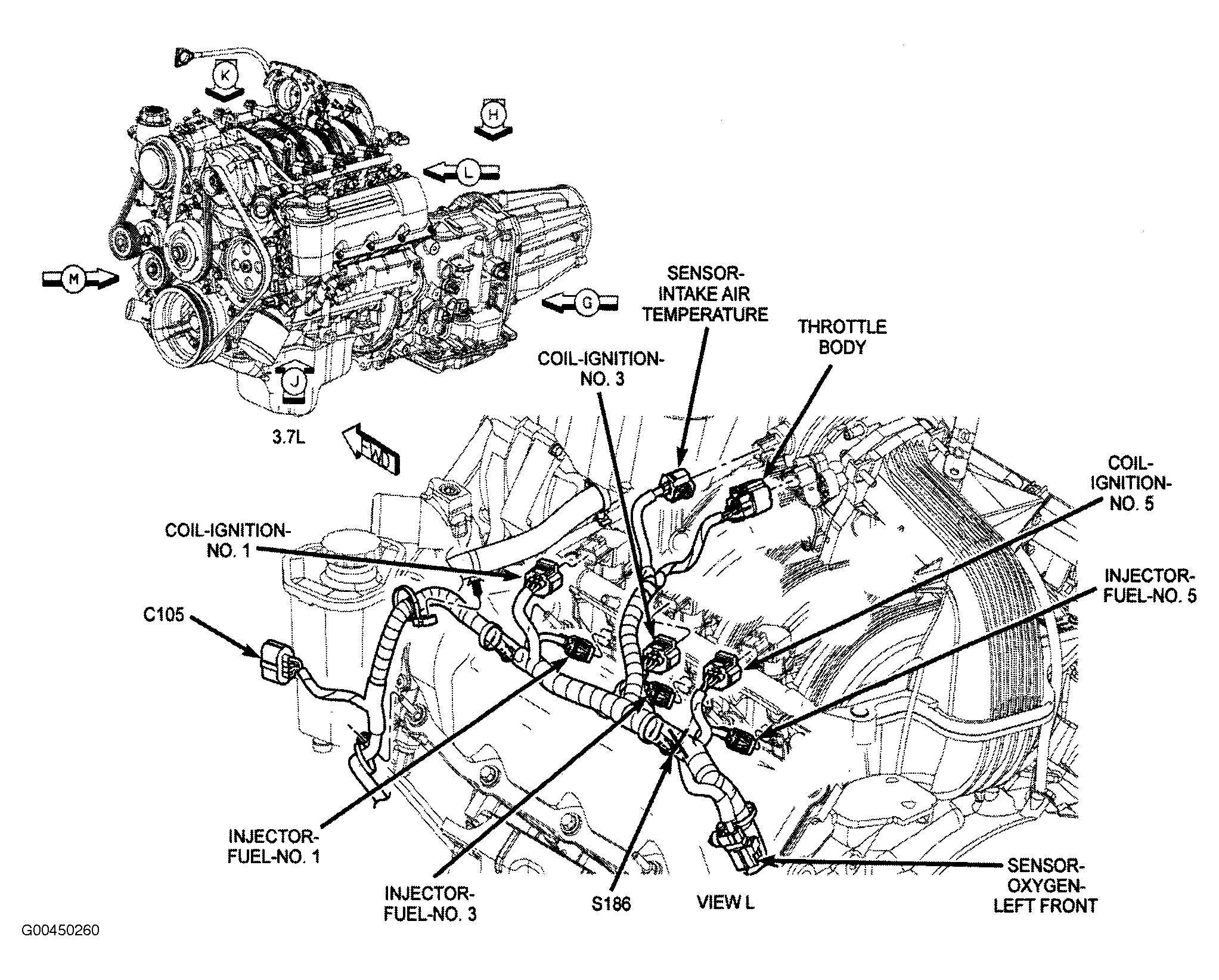

Fig 9: Left Side Of Engine (3.7L)

G00450260

Courtesy of CHRYSLER LLC

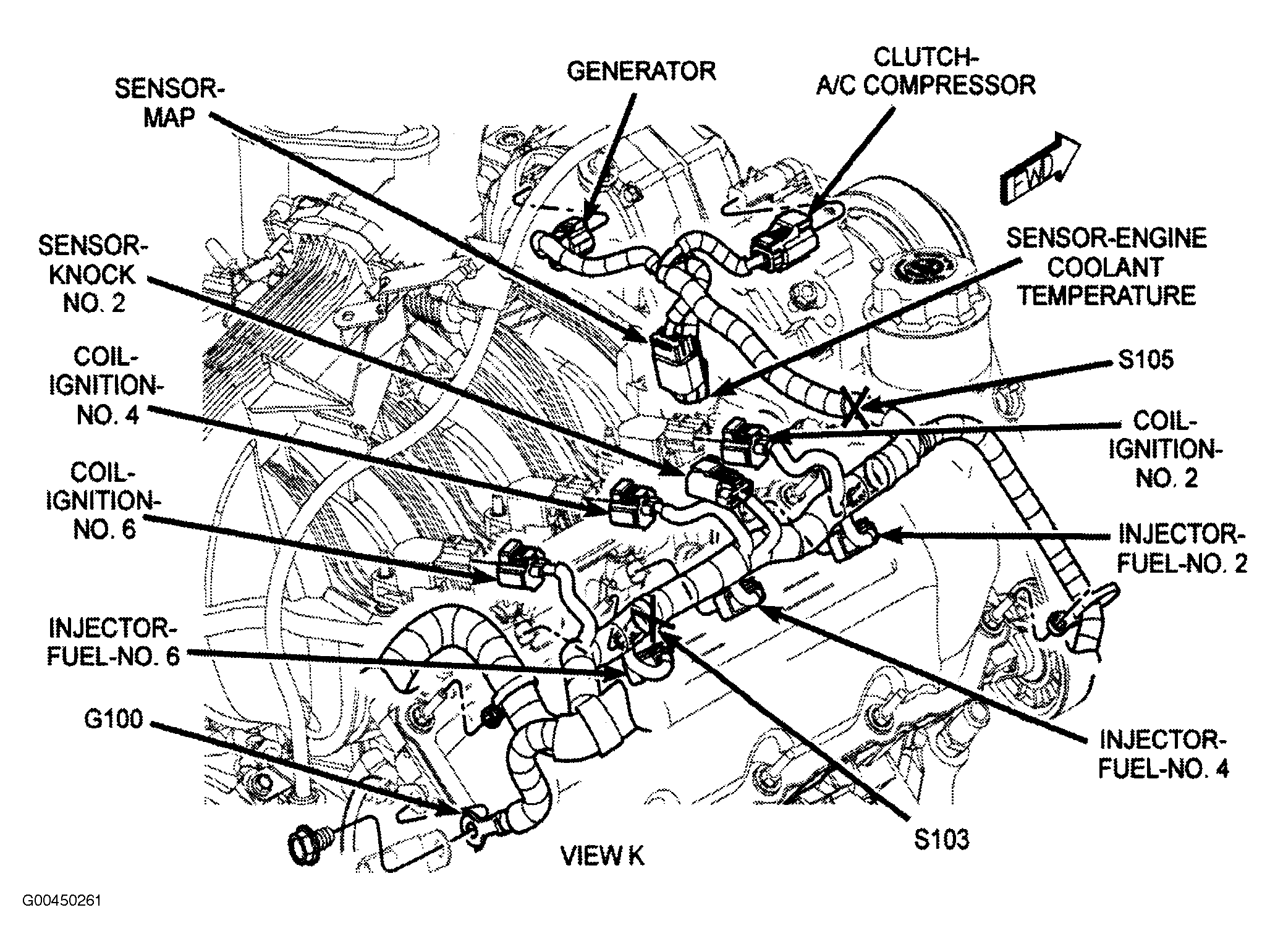

Fig 10: Top Right Side Of Engine (3.7L)

G00450261

Courtesy of CHRYSLER LLC

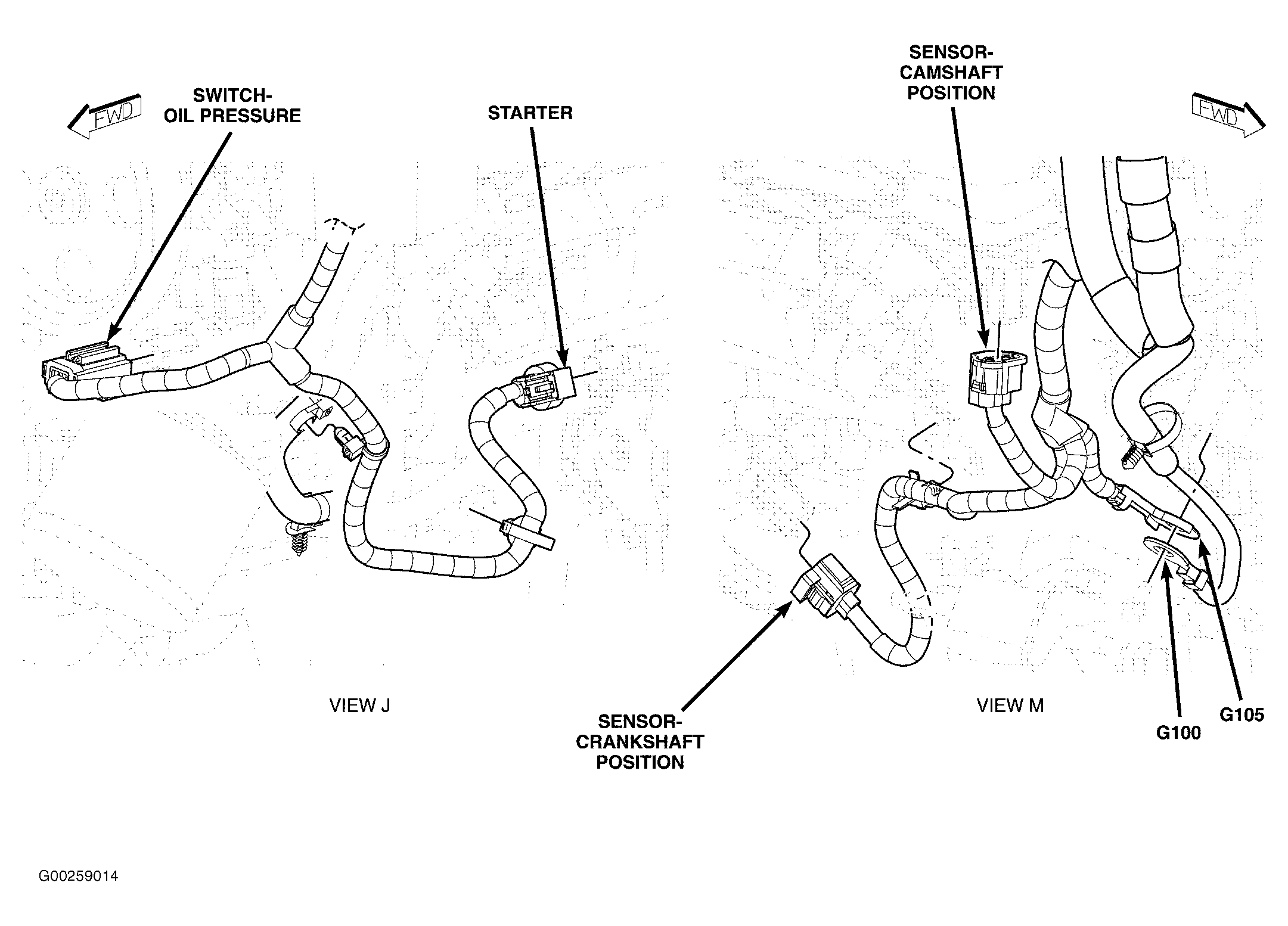

Fig 11: Front Of Engine (3.7L)

G00259014

Courtesy of CHRYSLER LLC

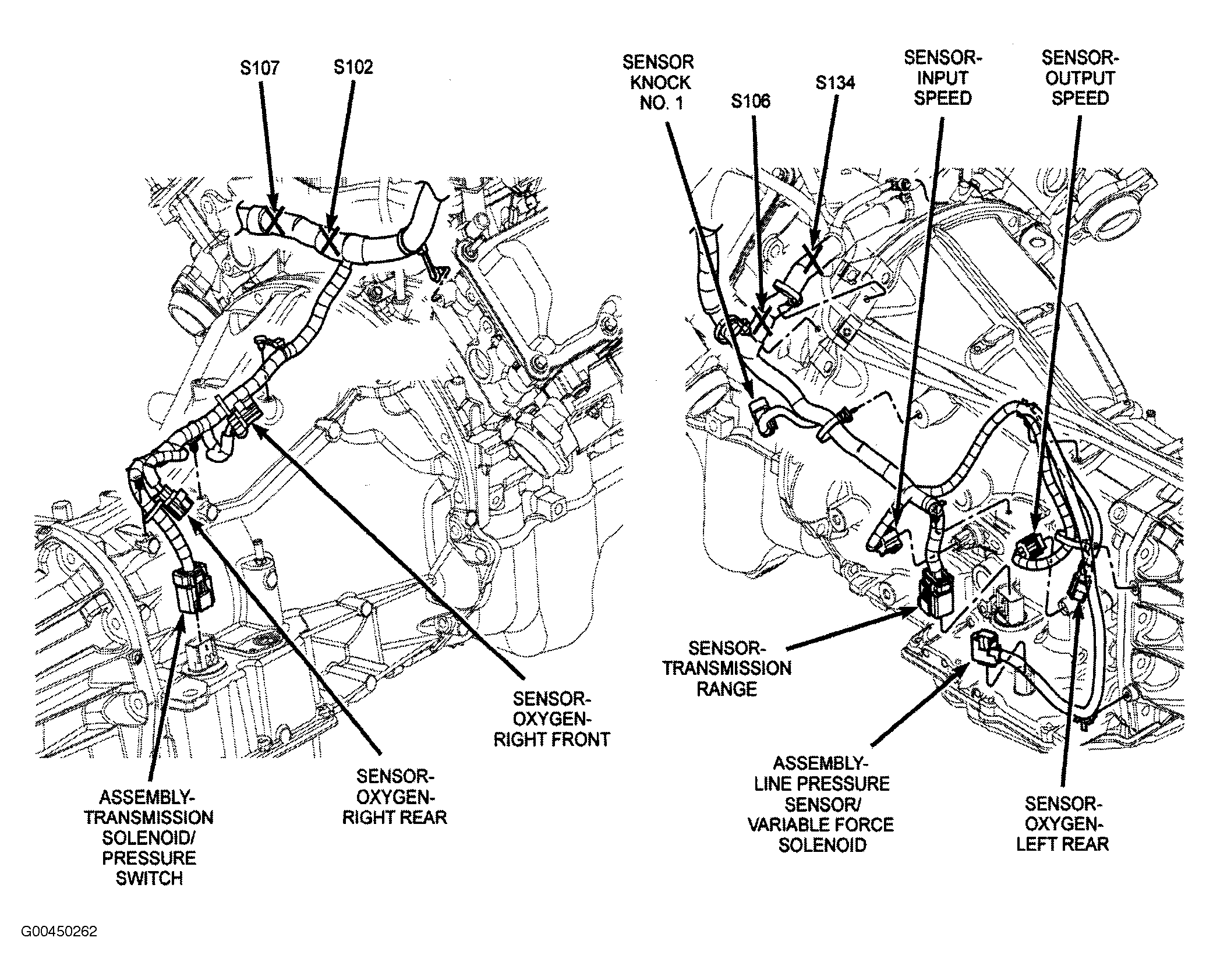

Fig 12: Transmission (3.7L)

G00450262

Courtesy of CHRYSLER LLC

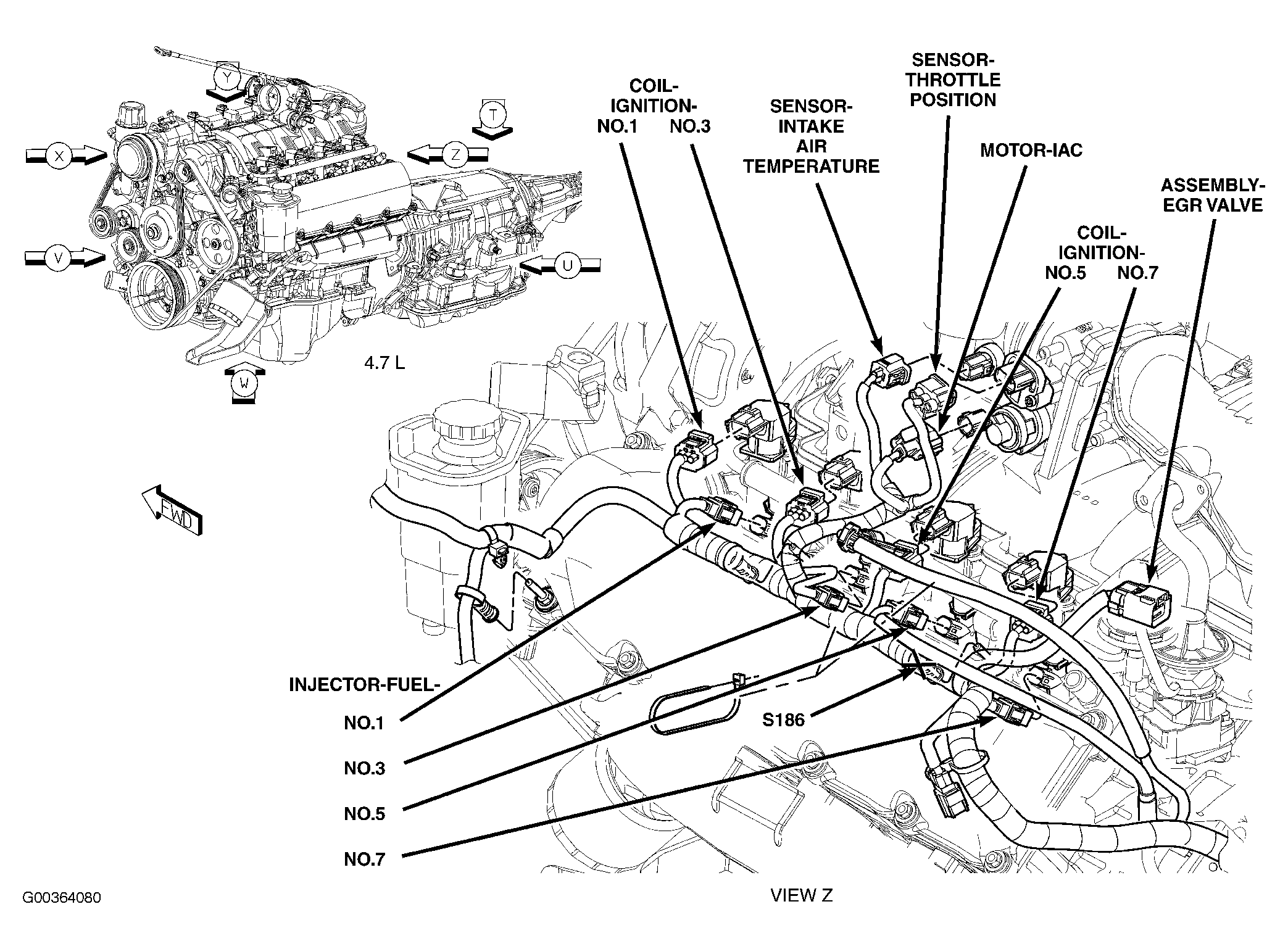

Fig 13: Top Left Of Engine (4.7L)

G00364080

Courtesy of CHRYSLER LLC

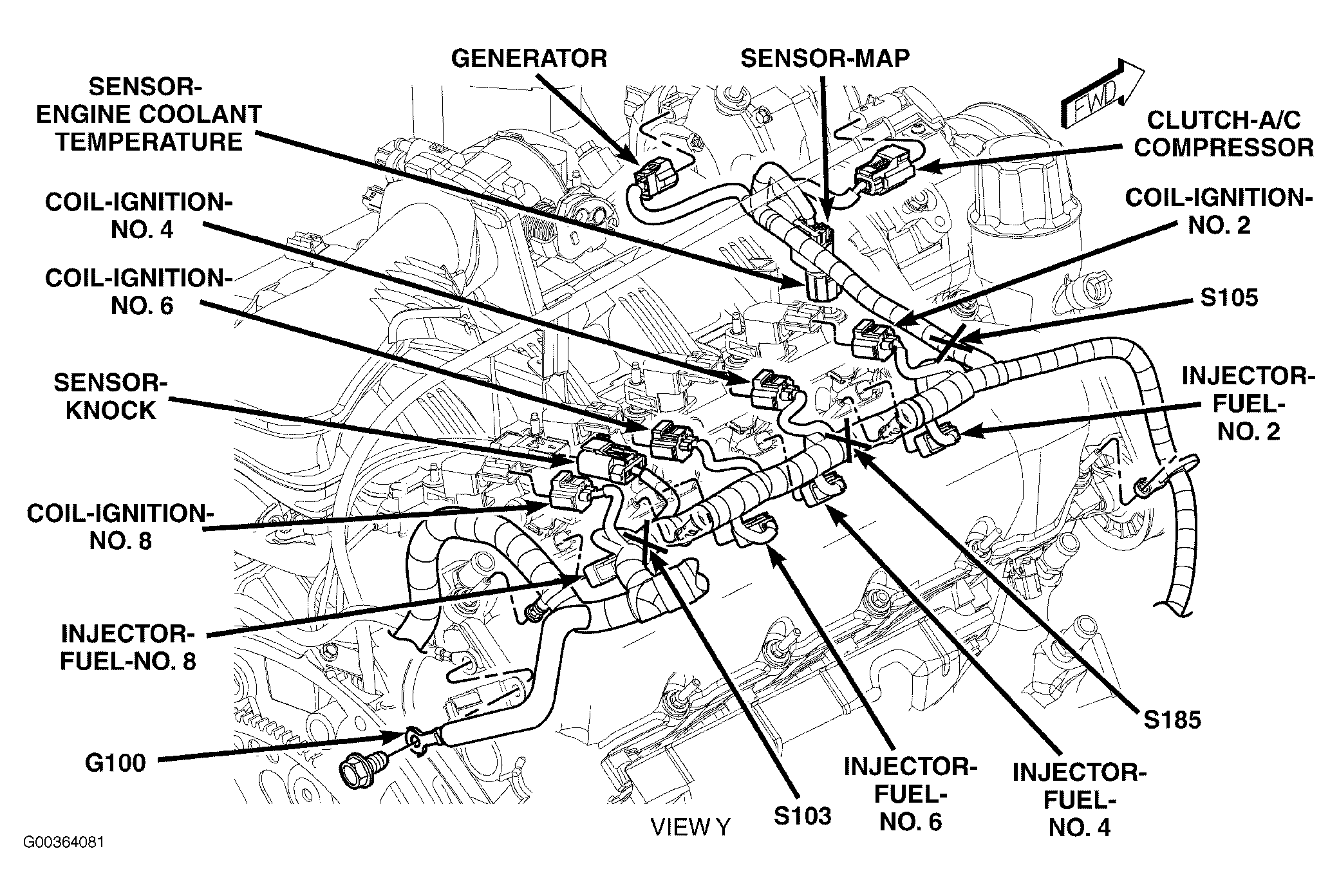

Fig 14: Top Right Of Engine (4.7L)

G00364081

Courtesy of CHRYSLER LLC

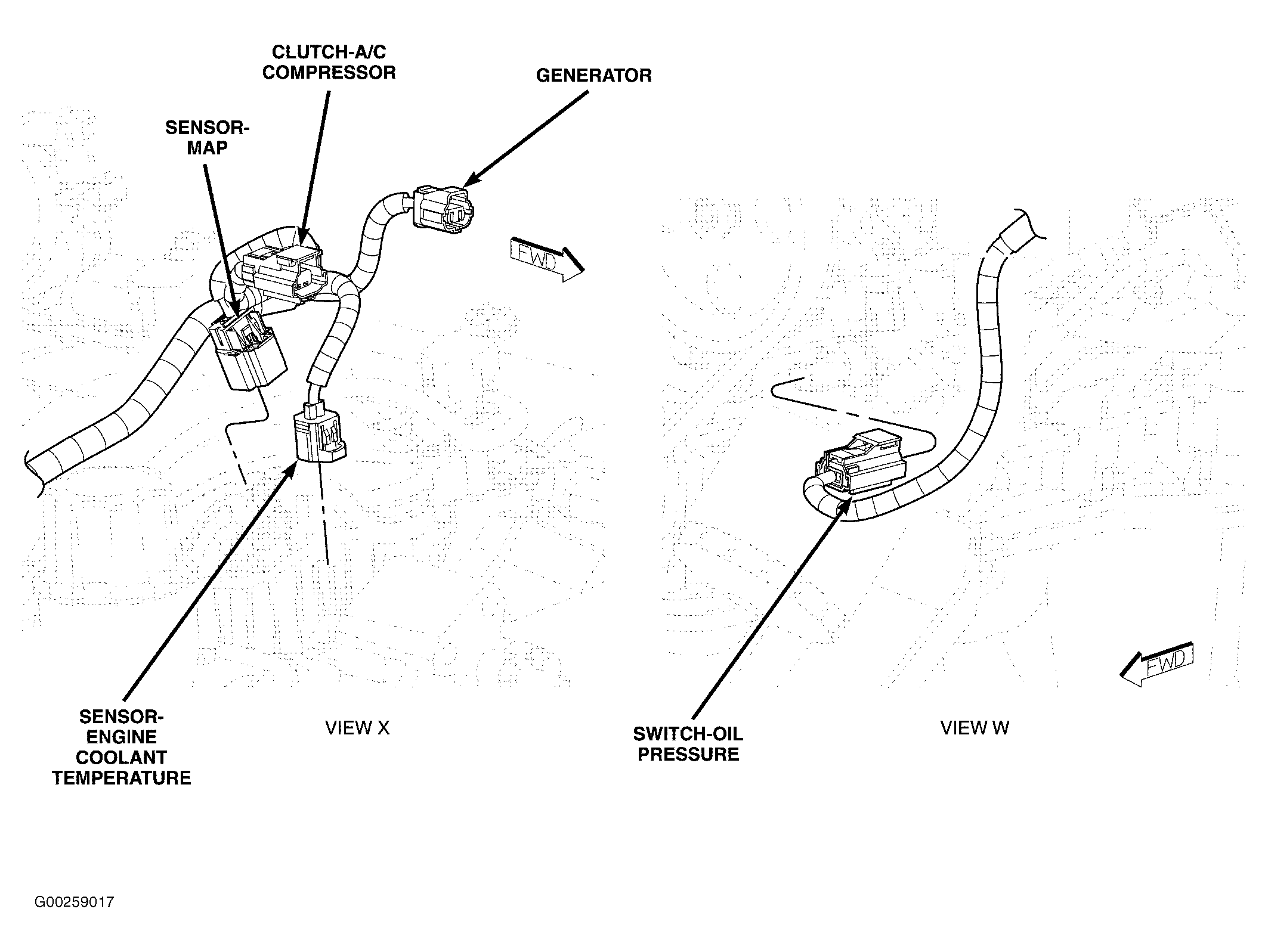

Fig 15: Front Of Engine (4.7L)

G00259017

Courtesy of CHRYSLER LLC

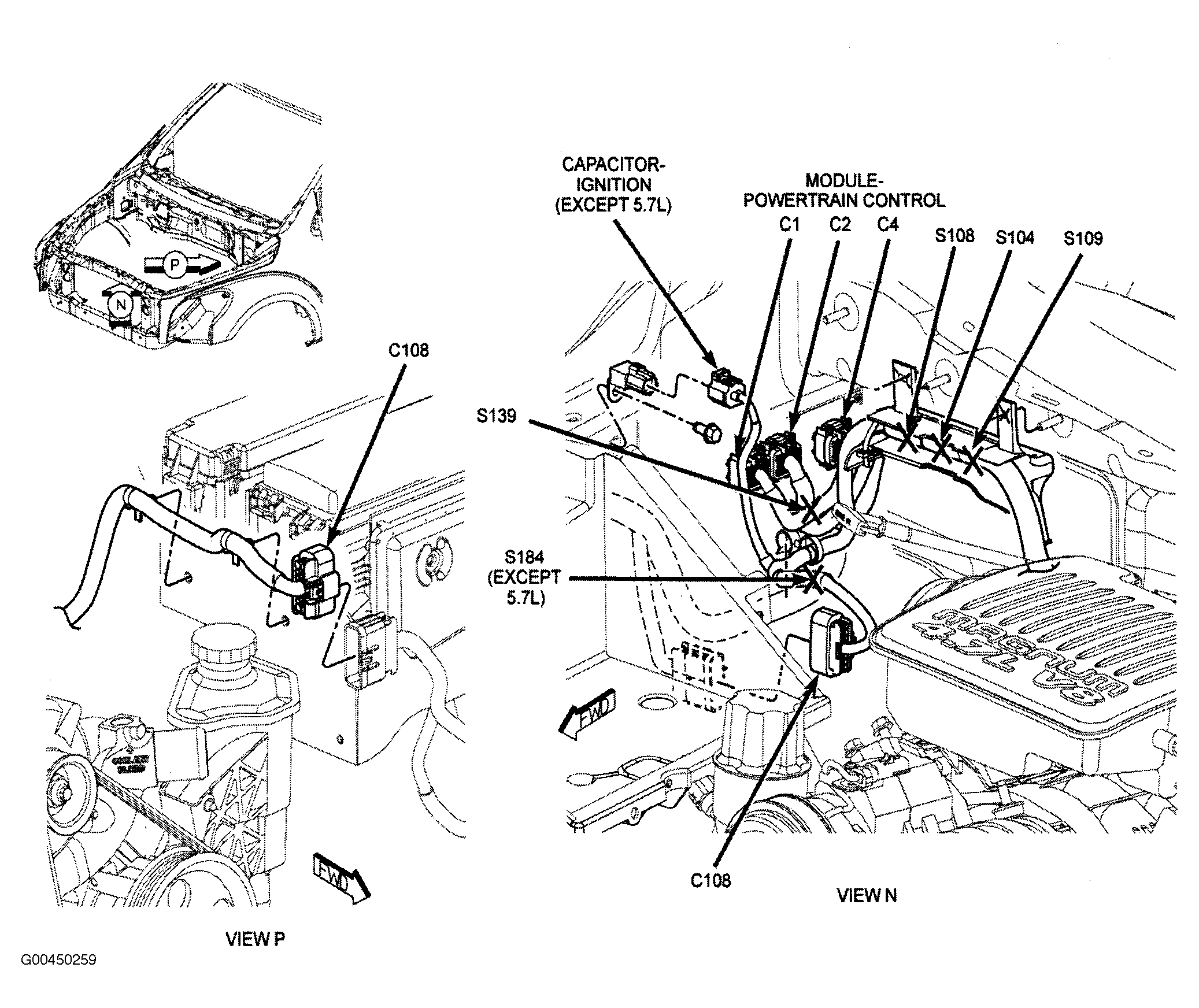

Fig 16: Right Side Of Engine Compartment

G00450259

Courtesy of CHRYSLER LLC

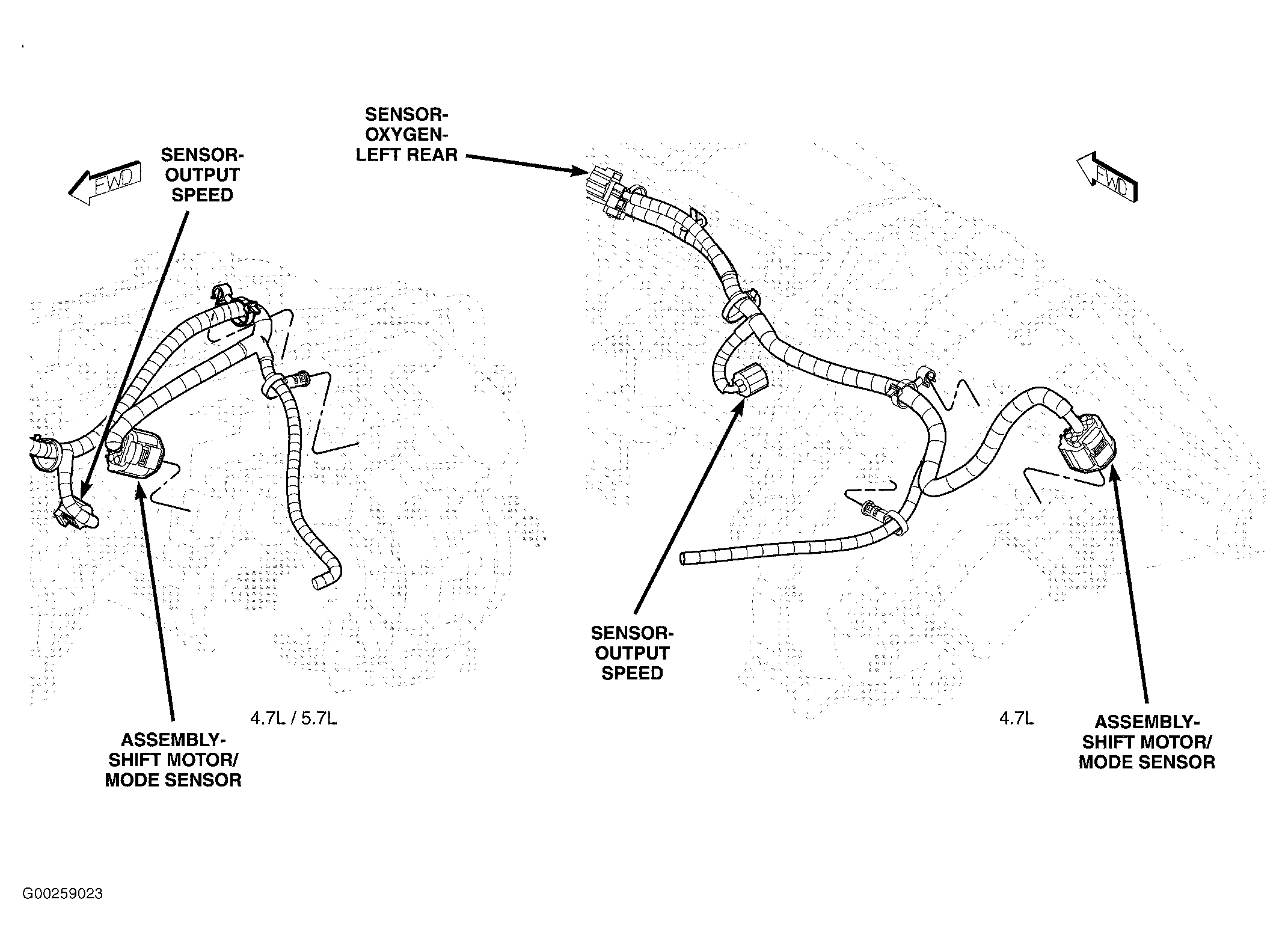

Fig 17: Left Side Of Transmission (4.7L & 5.7L)

G00259023

Courtesy of CHRYSLER LLC

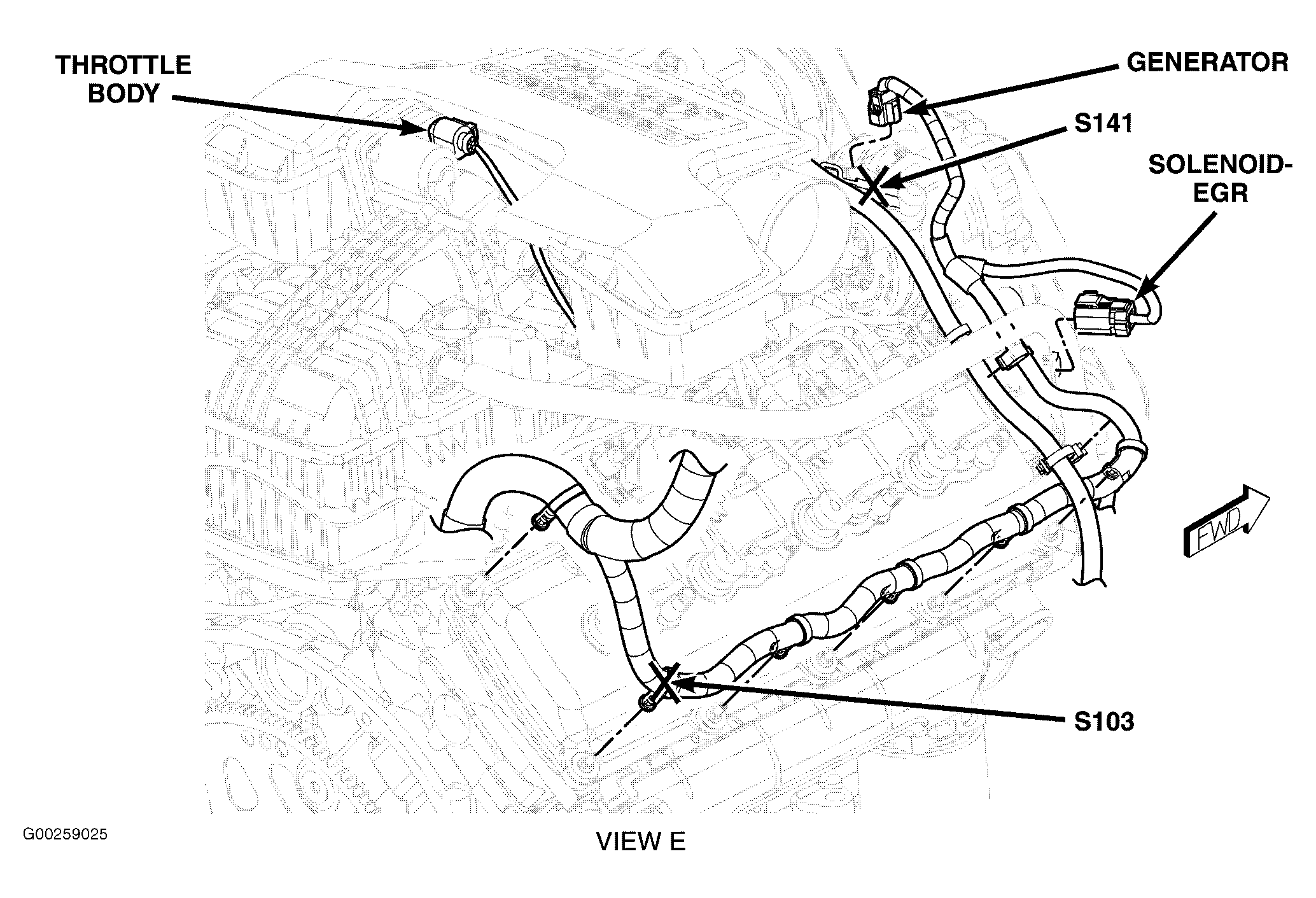

Fig 18: Right Side Of Engine (5.7L)

G00259025

Courtesy of CHRYSLER LLC

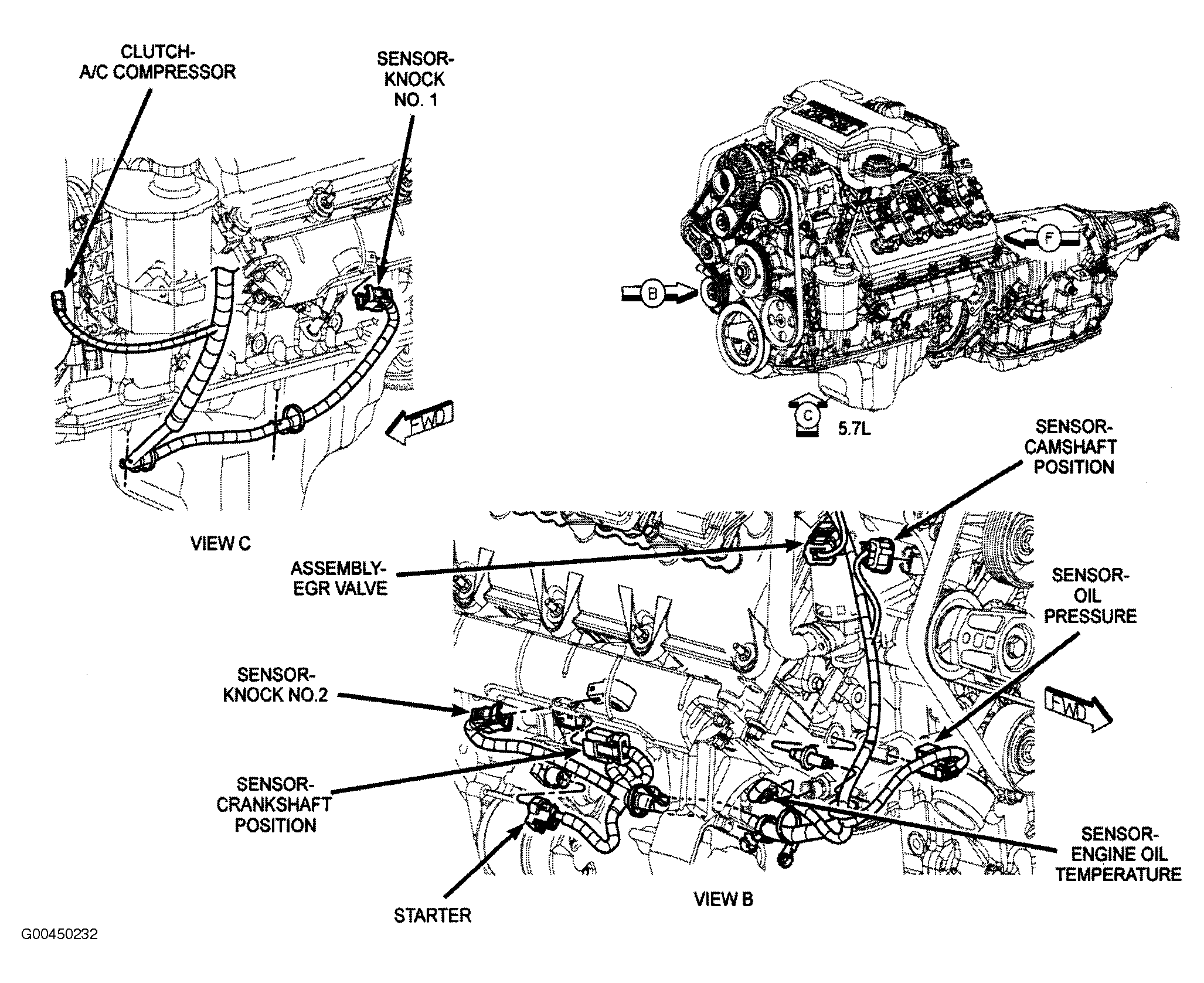

Fig 19: Engine (5.7L)

G00450232

Courtesy of CHRYSLER LLC

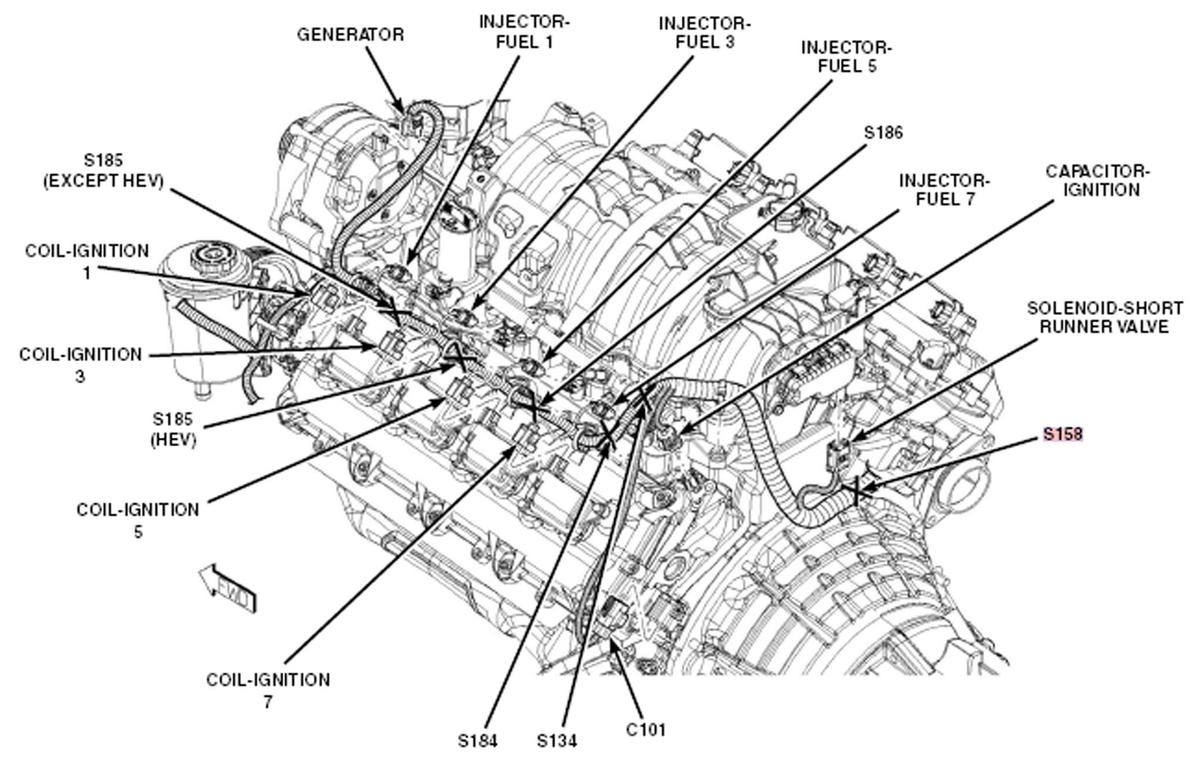

Fig 20: Top Left Of Engine (5.7L)

G00466874

Courtesy of CHRYSLER LLC

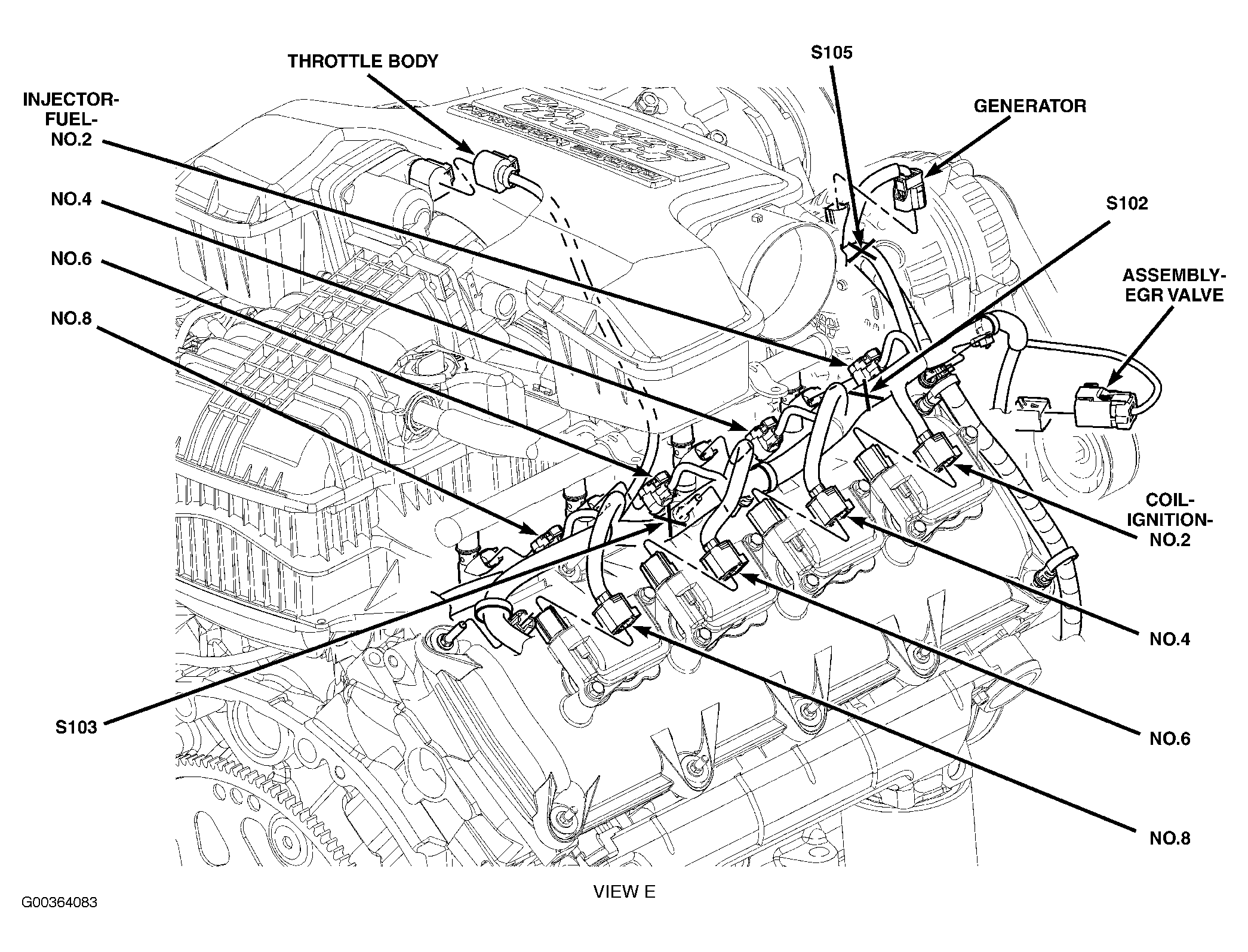

Fig 21: Top Right Of Engine (5.7L)

G00364083

Courtesy of CHRYSLER LLC

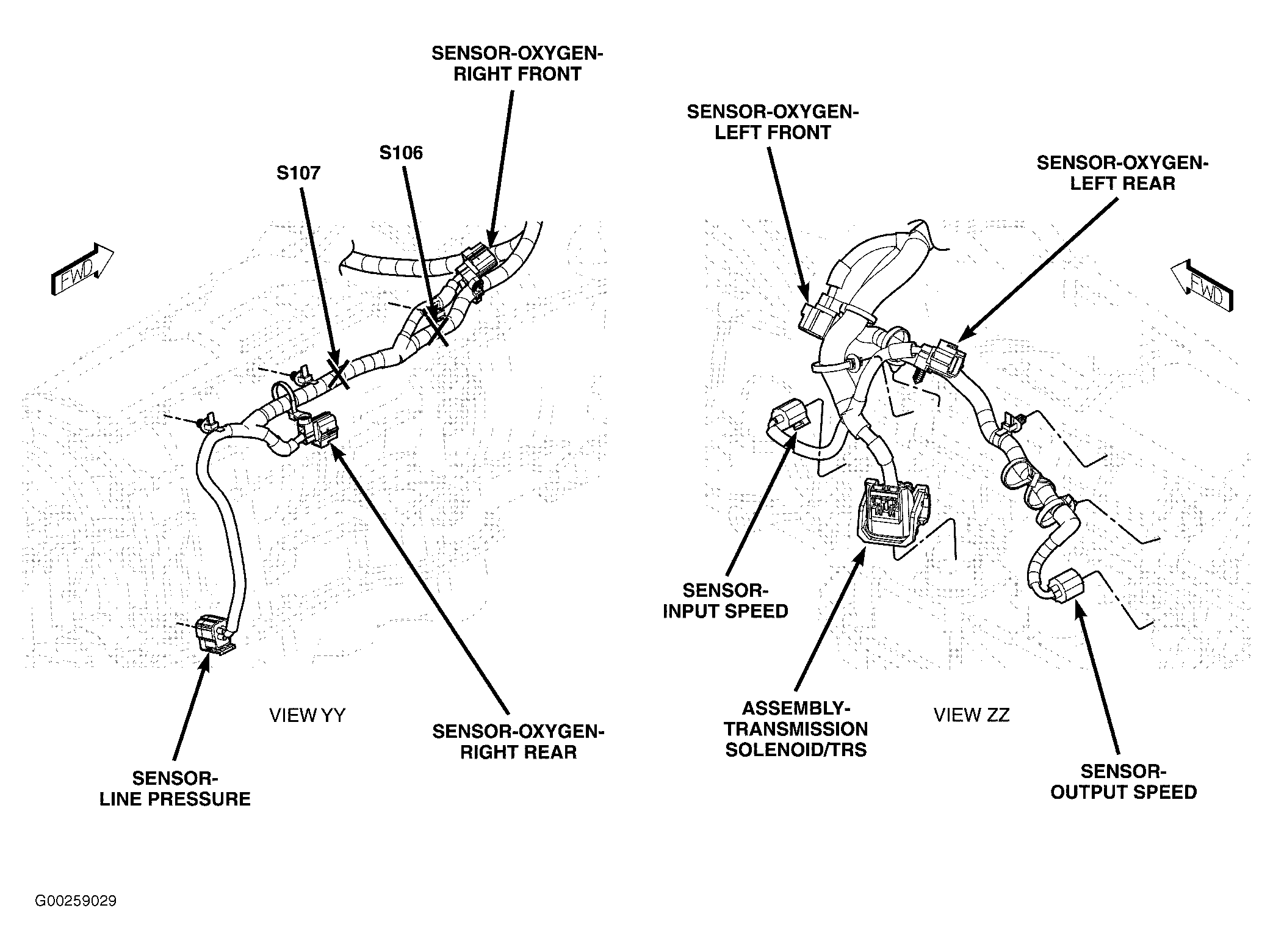

Fig 22: Transmission (5.7L)

G00259029

Courtesy of CHRYSLER LLC

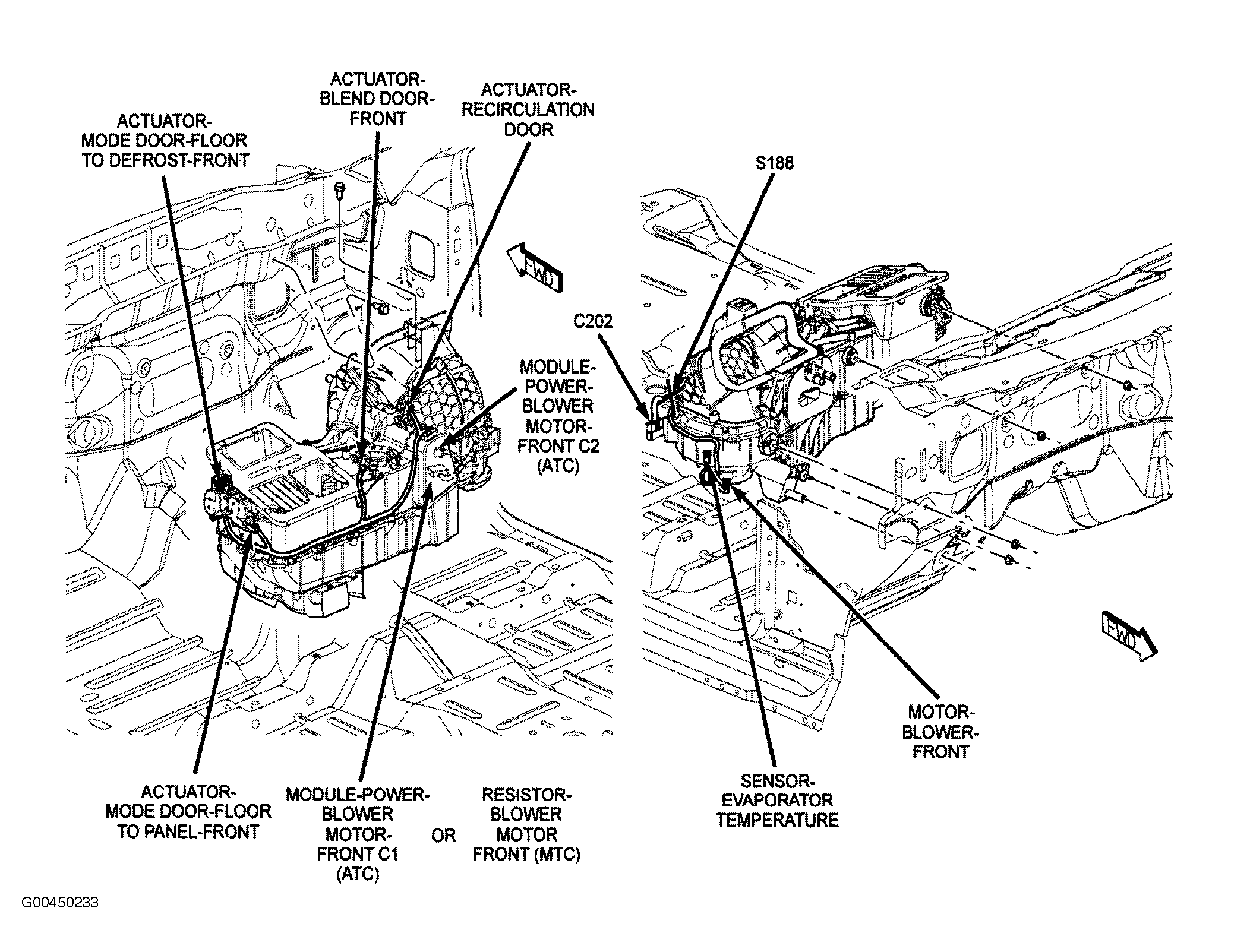

Fig 23: Front HVAC

G00450233

Courtesy of CHRYSLER LLC

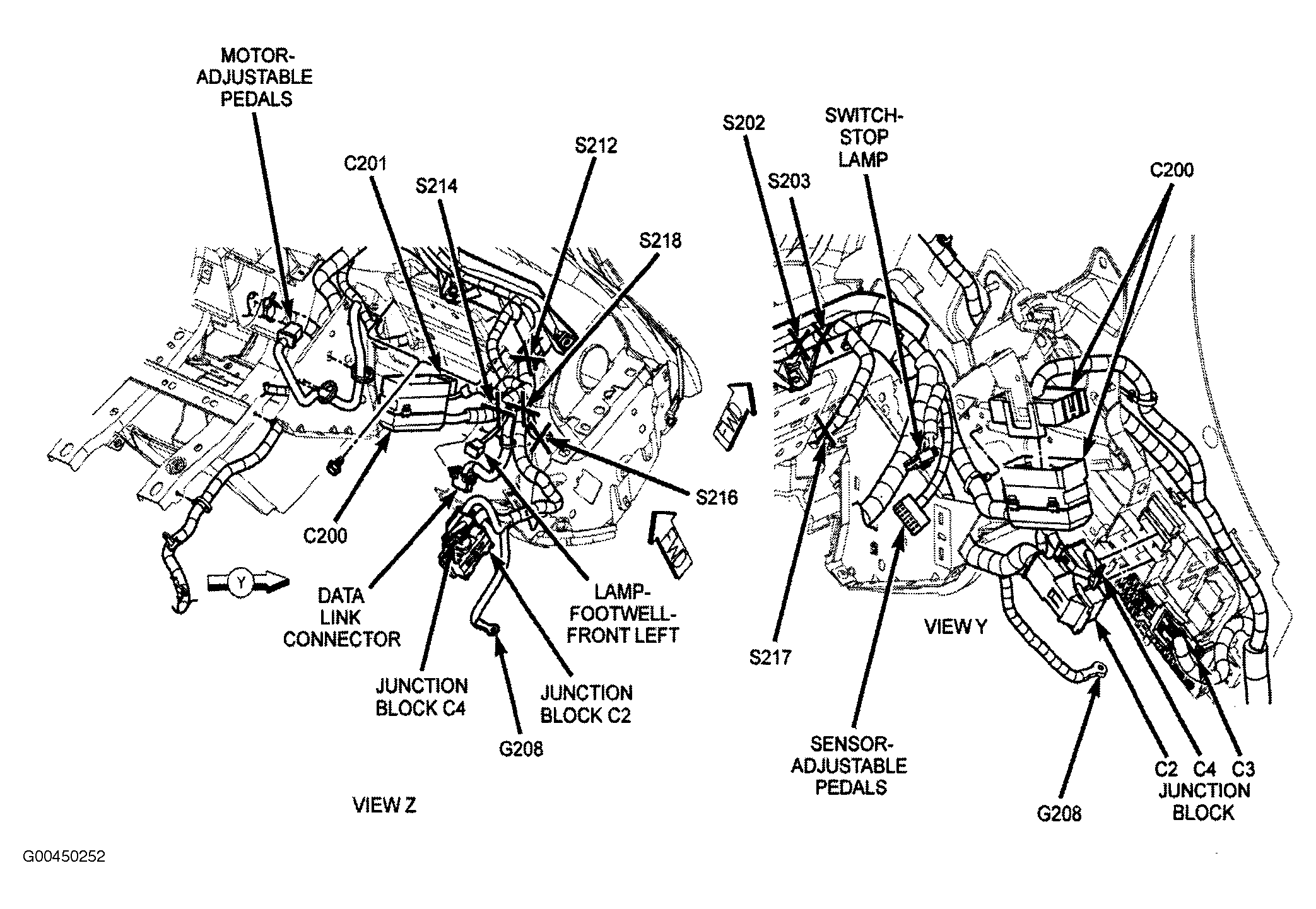

Fig 24: Left Side Of Dash

G00450252

Courtesy of CHRYSLER LLC

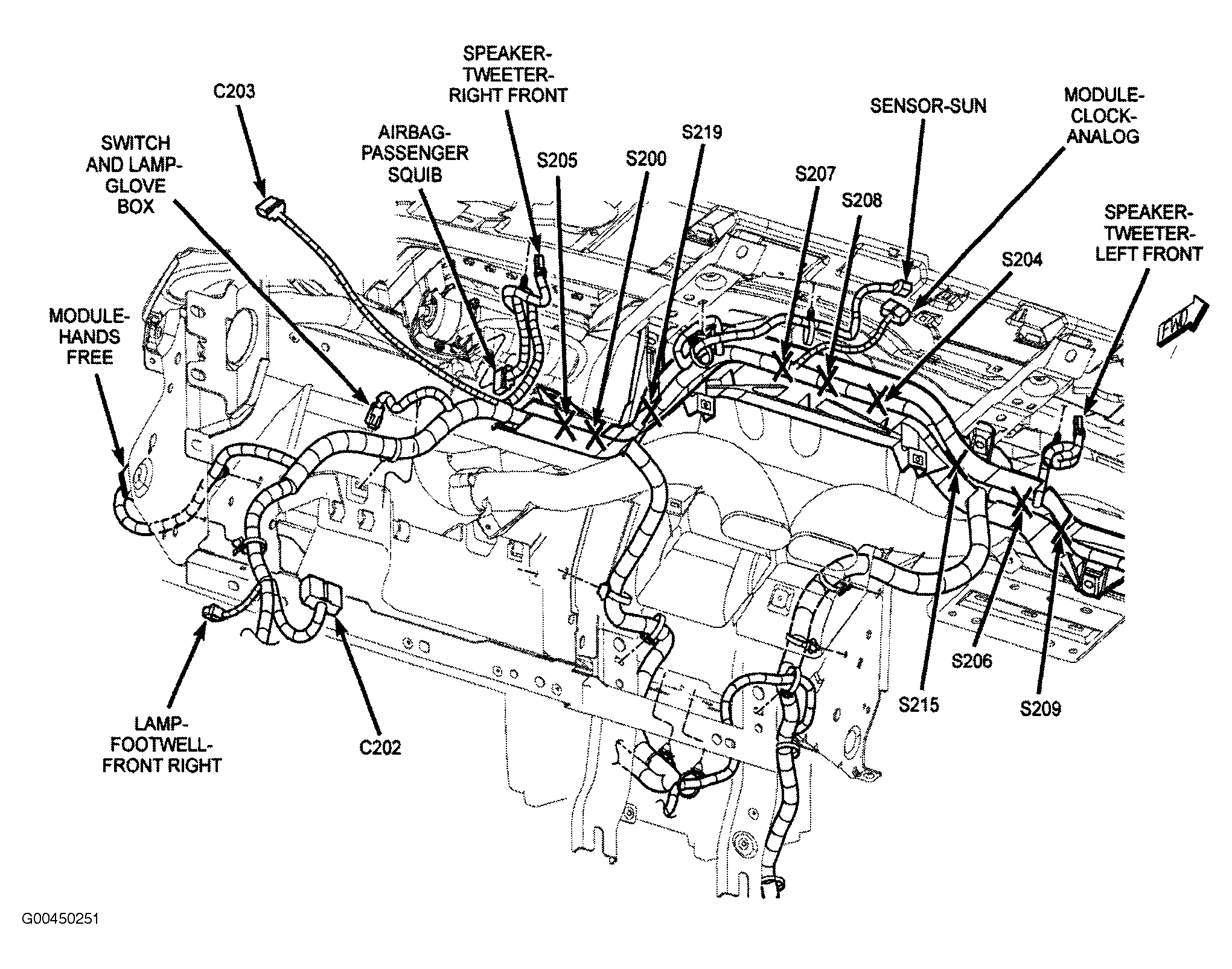

Fig 25: Right Side Of Dash

G00450251

Courtesy of CHRYSLER LLC

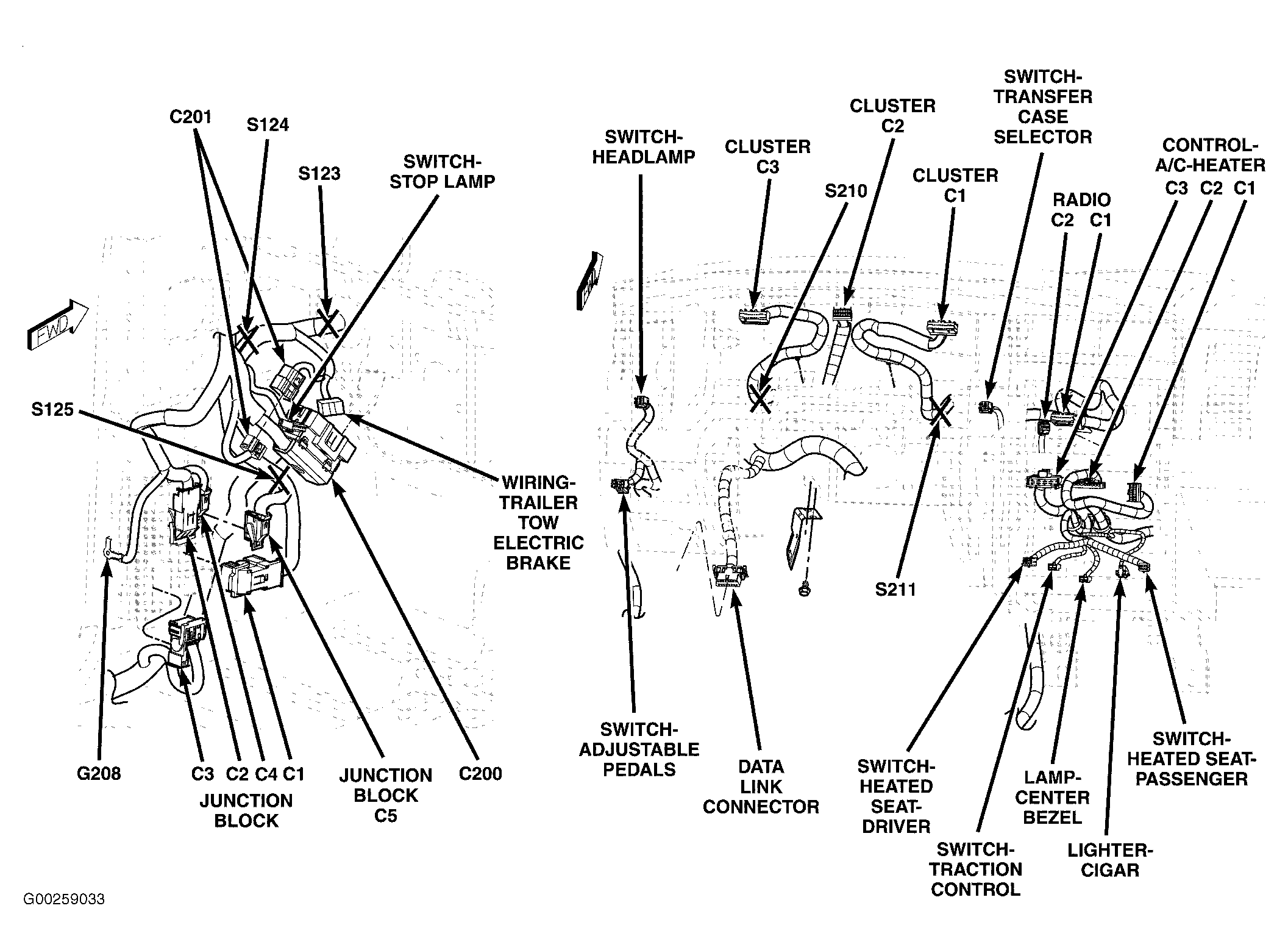

Fig 26: Left Kick Panel & Left Center Of Dash

G00259033

Courtesy of CHRYSLER LLC

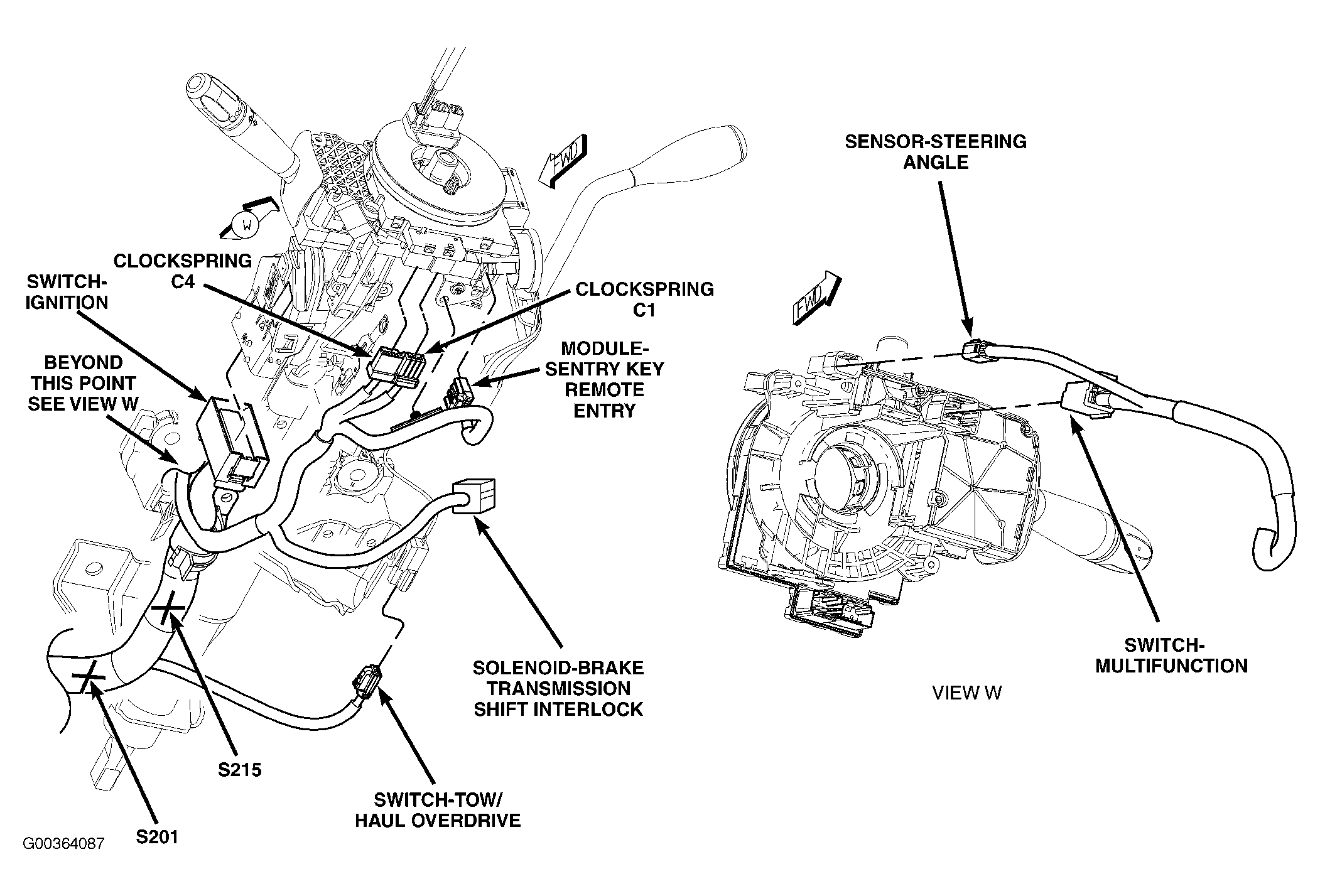

Fig 27: Steering Column

G00364087

Courtesy of CHRYSLER LLC

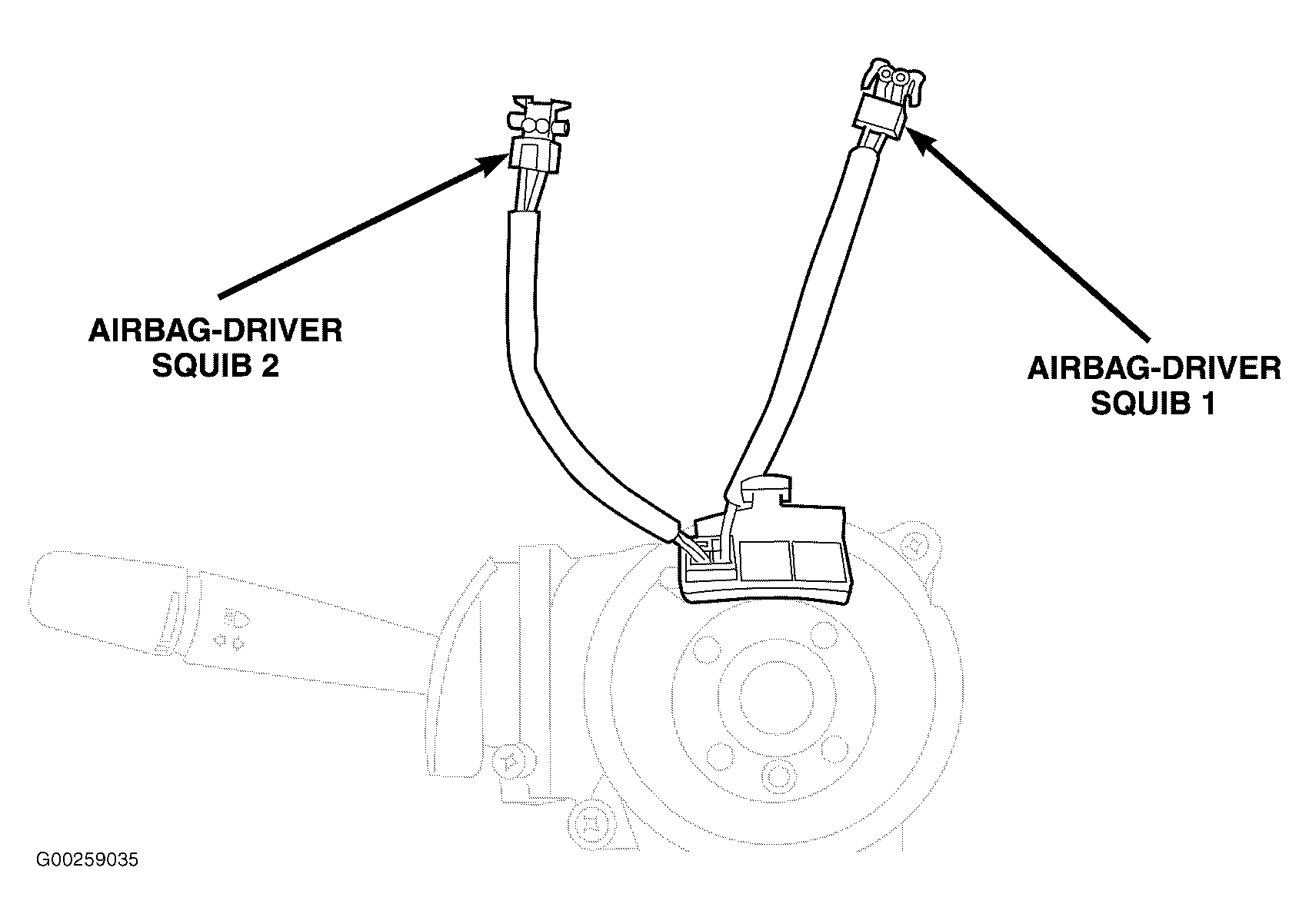

Fig 28: Top Of Steering Column

G00259035

Courtesy of CHRYSLER LLC

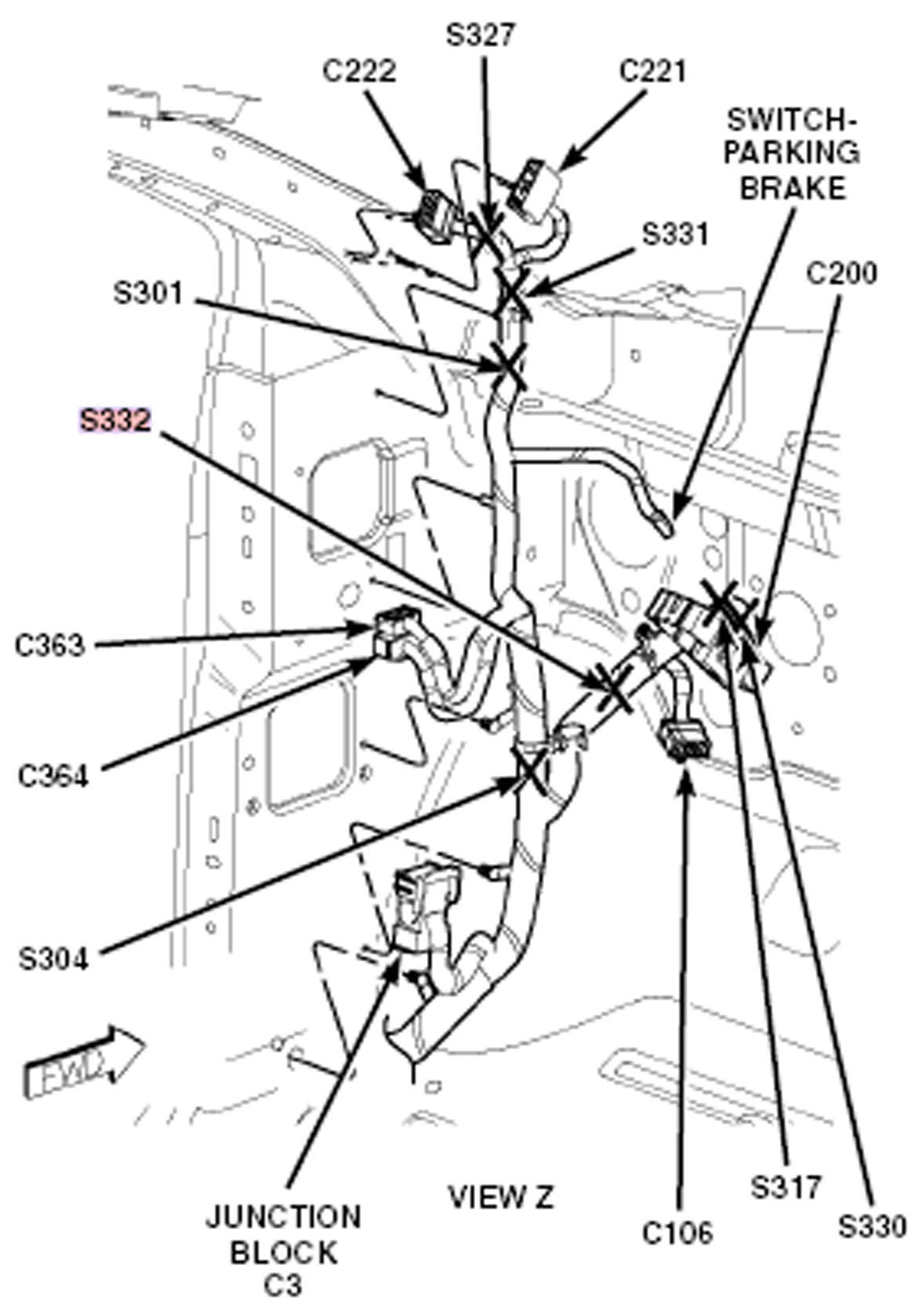

Fig 29: Left Kick Panel

G00466875

Courtesy of CHRYSLER LLC

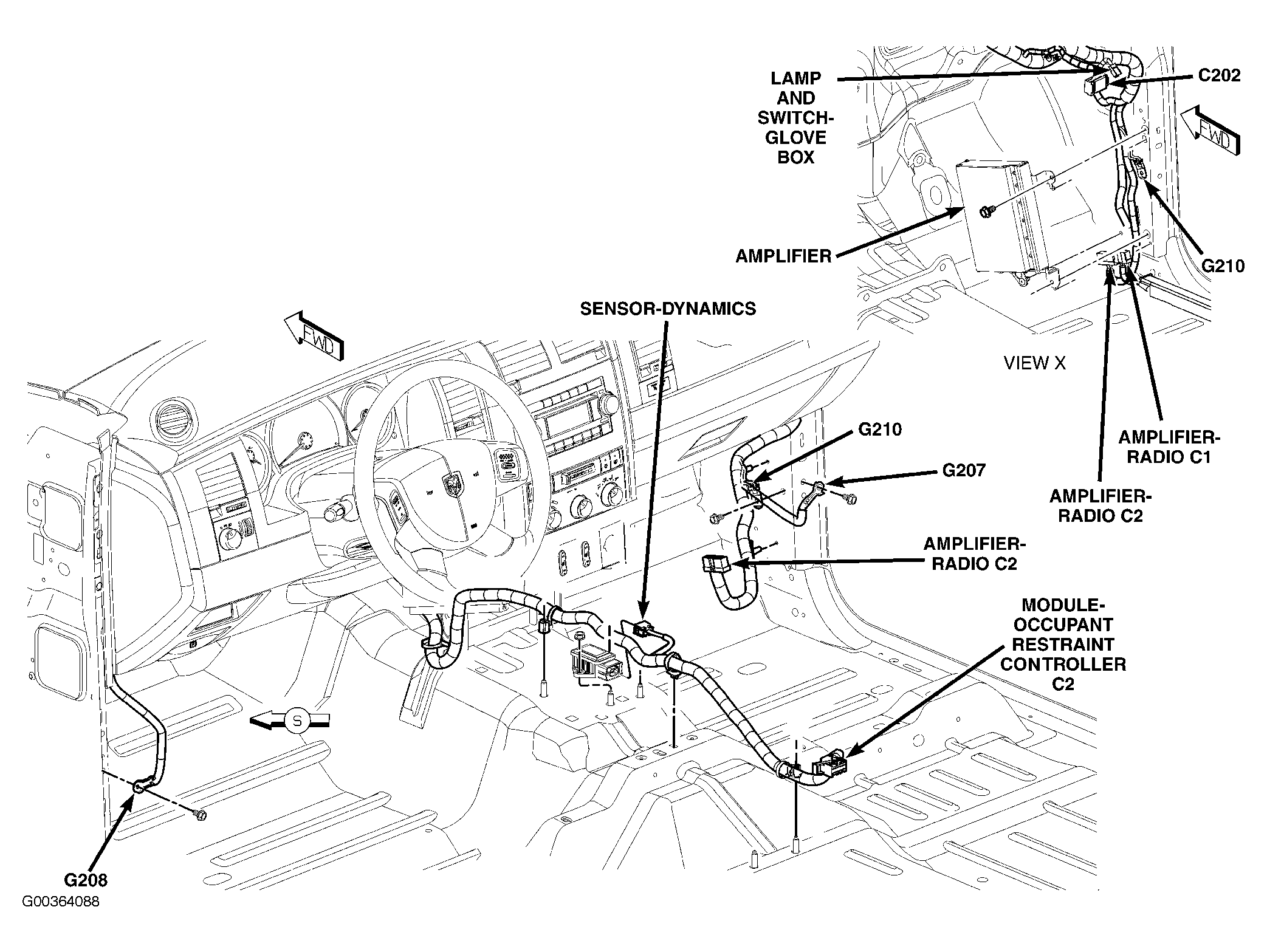

Fig 30: Dash & Right Kick Panel

G00364088

Courtesy of CHRYSLER LLC

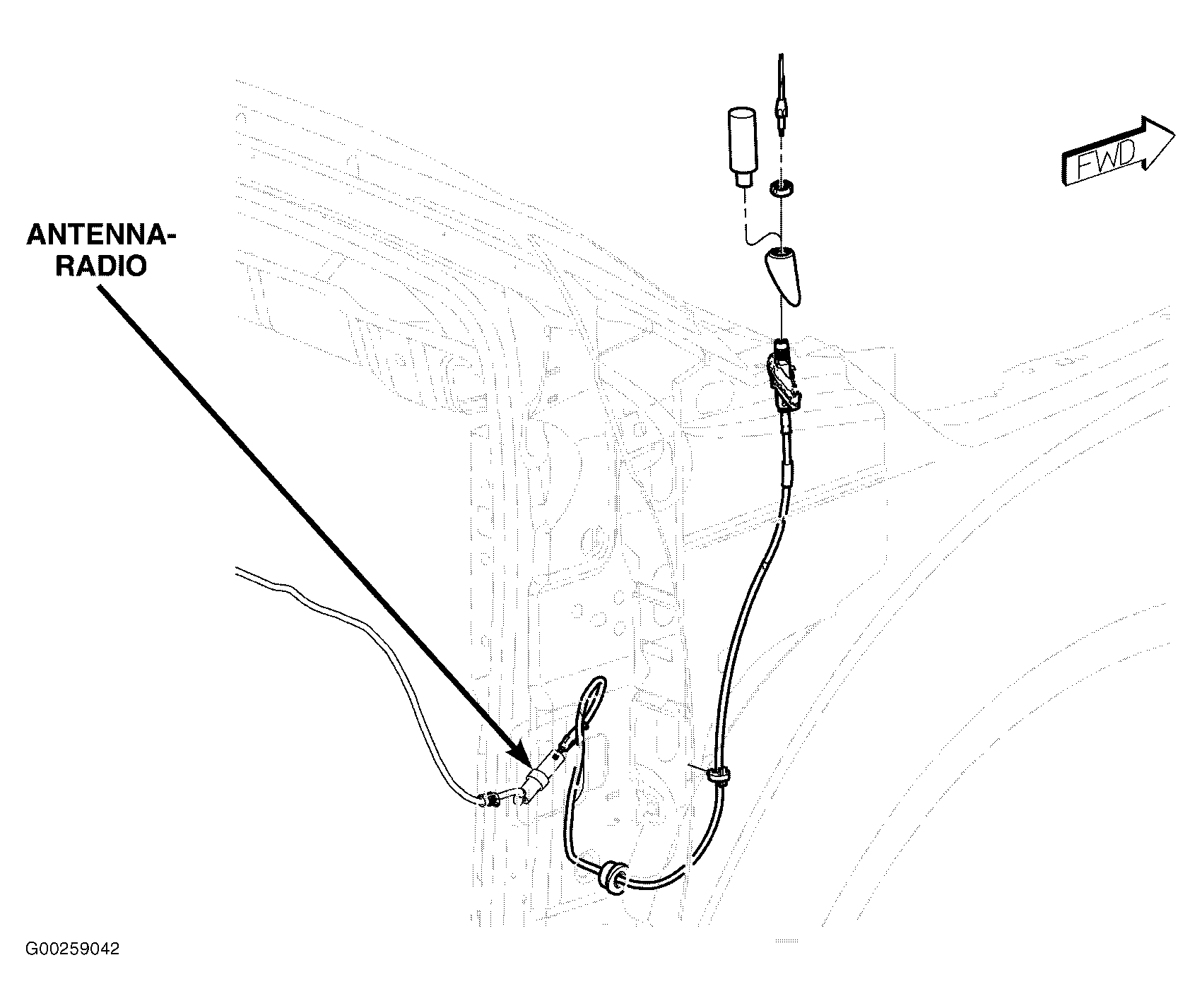

Fig 31: Right Front Fender

G00259042

Courtesy of CHRYSLER LLC

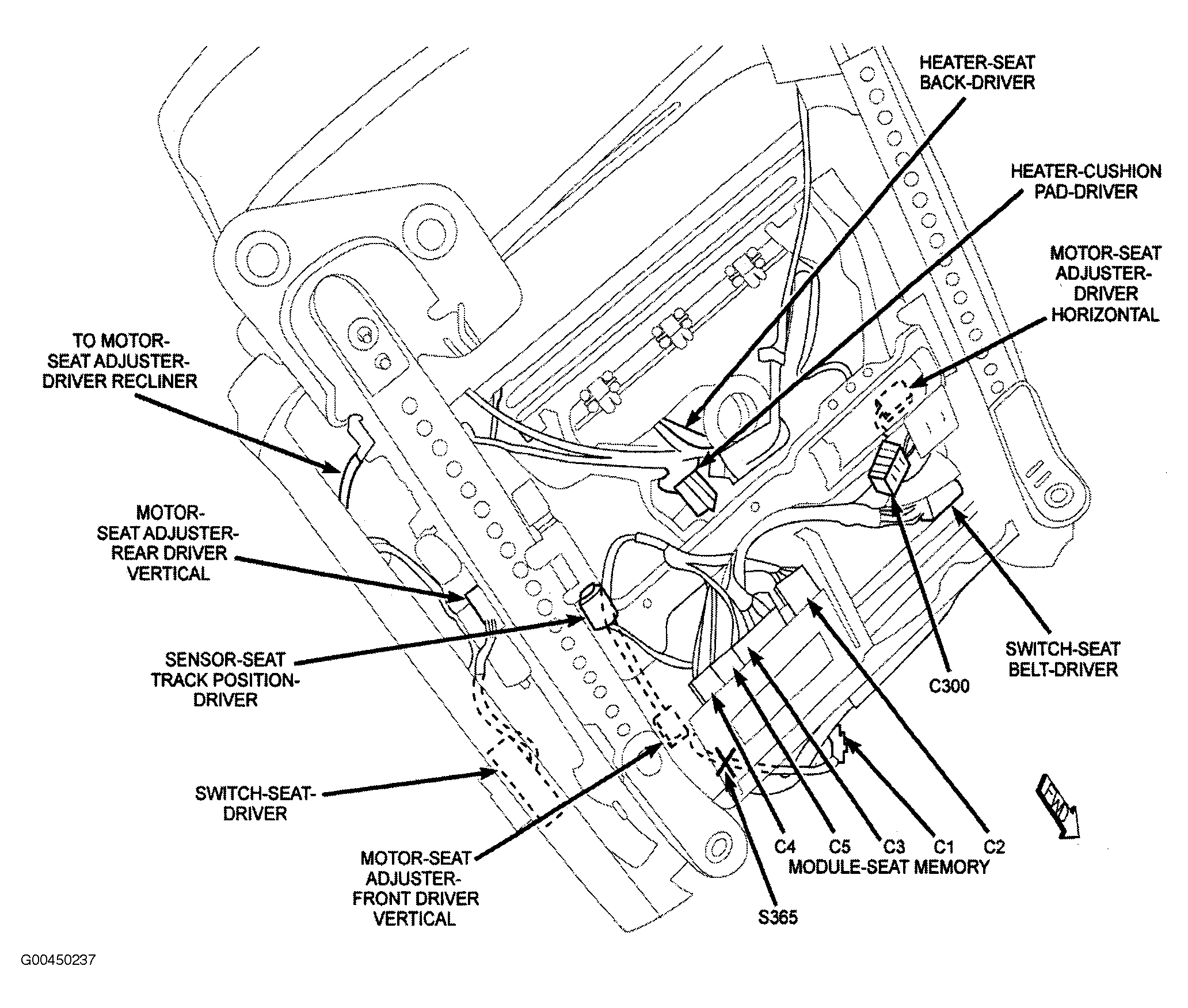

Fig 32: Bottom Of Driver Seat

G00450237

Courtesy of CHRYSLER LLC

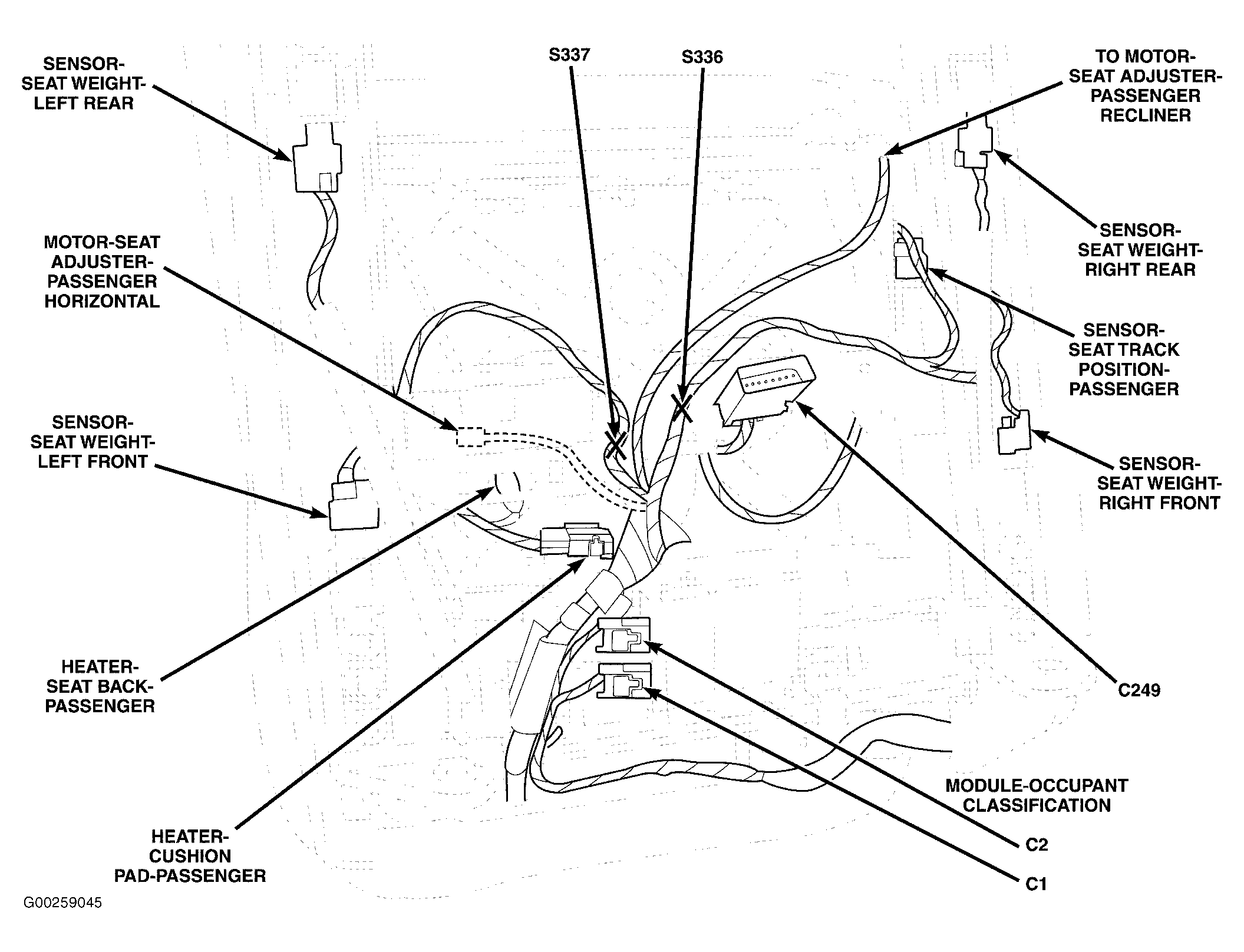

Fig 33: Bottom Of Passenger Seat

G00259045

Courtesy of CHRYSLER LLC

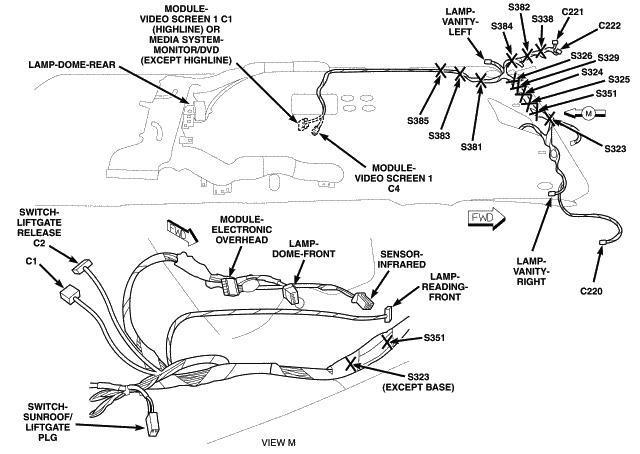

Fig 34: Front Of Roof

G00457913

Courtesy of CHRYSLER LLC

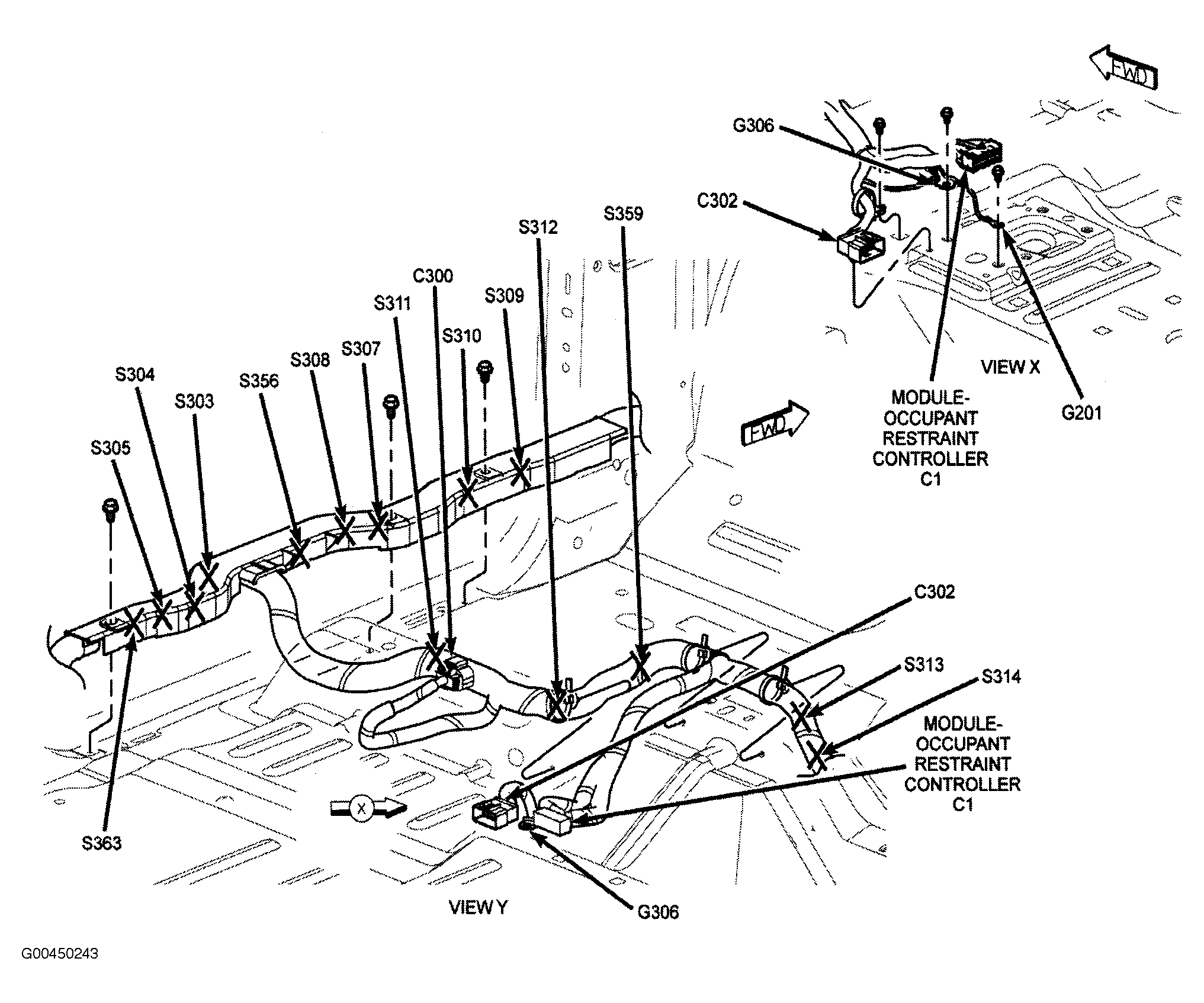

Fig 35: Left Front Of Vehicle Floor

G00450243

Courtesy of CHRYSLER LLC

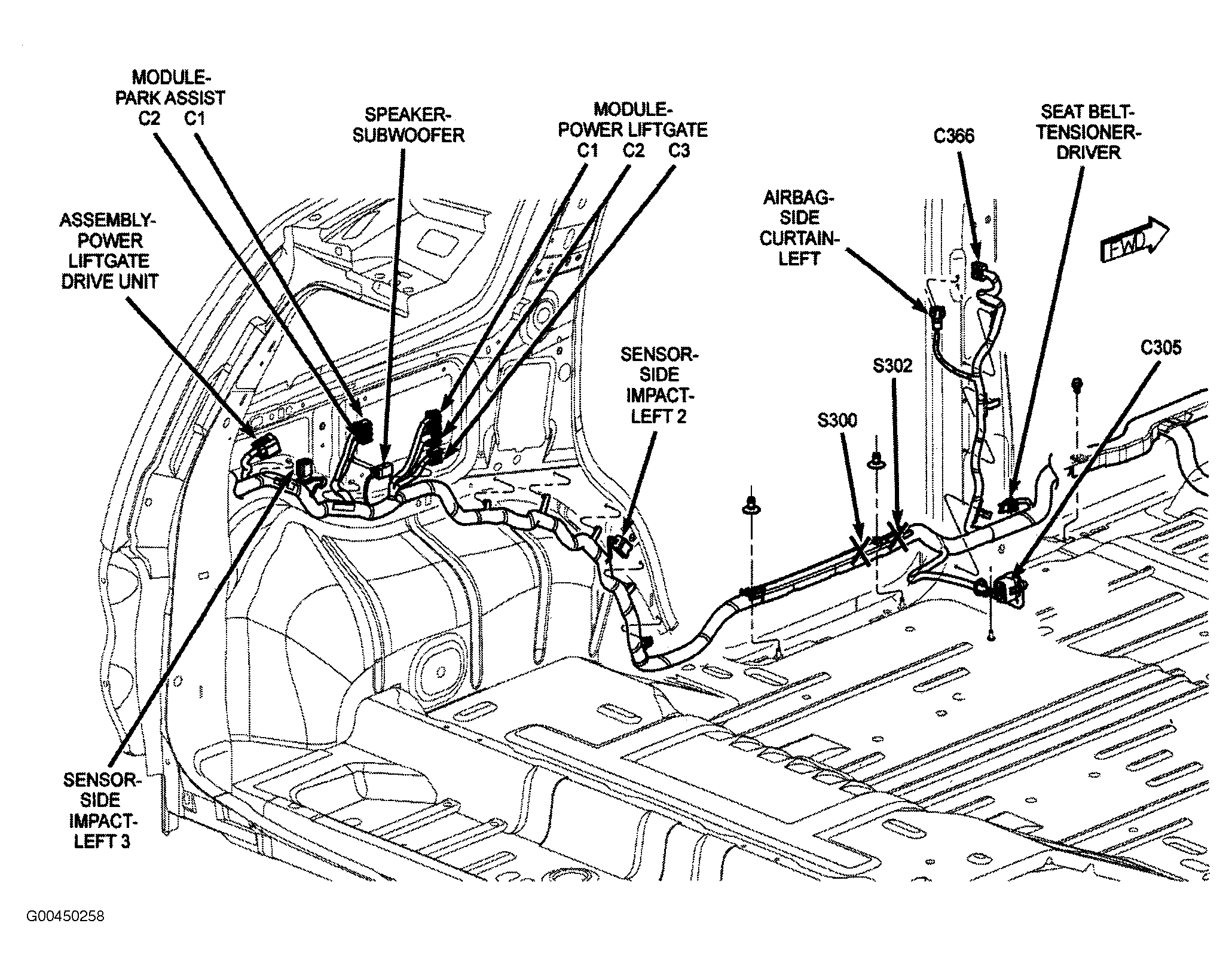

Fig 36: Left Rear Of Vehicle Floor

G00450258

Courtesy of CHRYSLER LLC

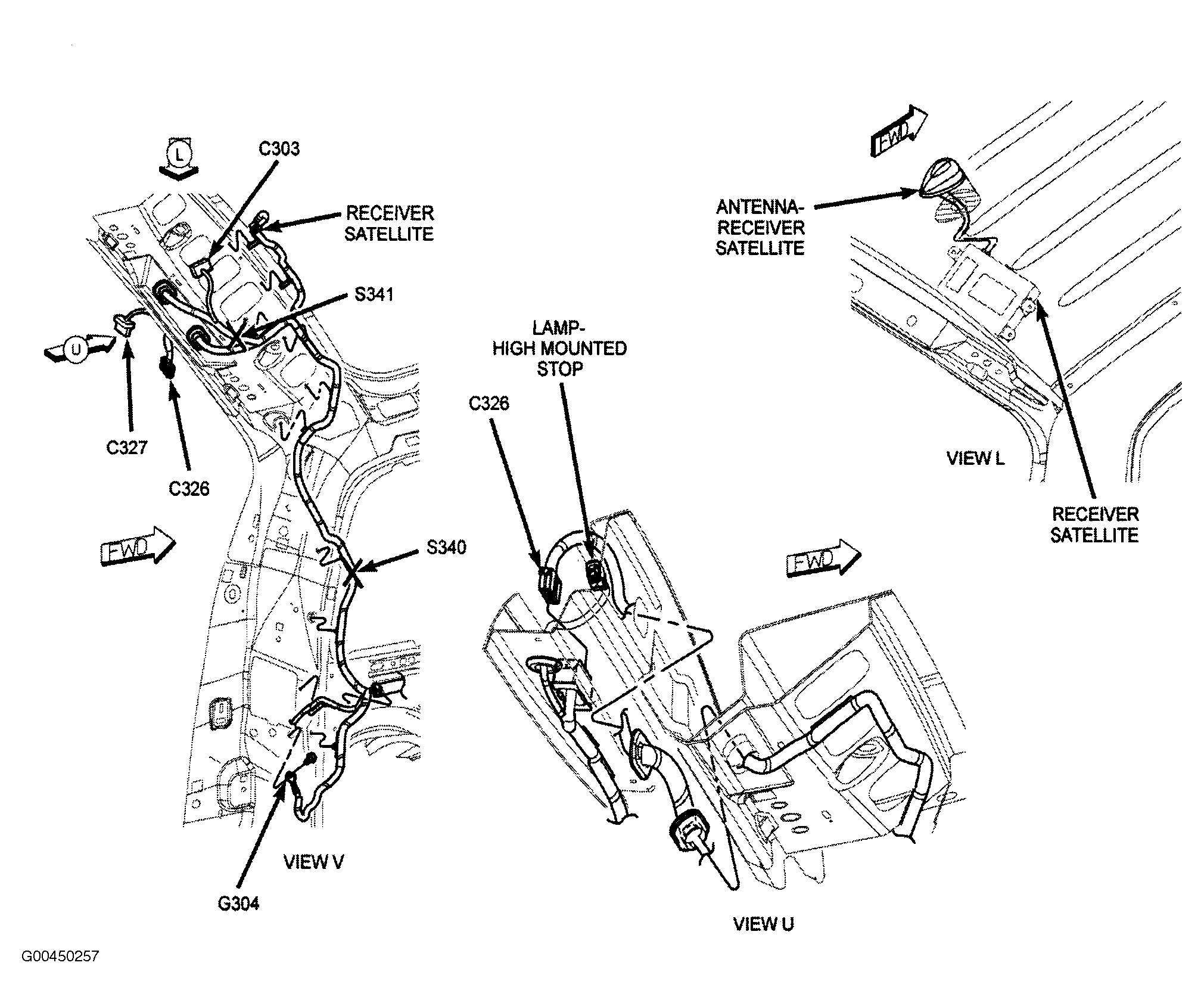

Fig 37: Rear Of Vehicle

G00450257

Courtesy of CHRYSLER LLC

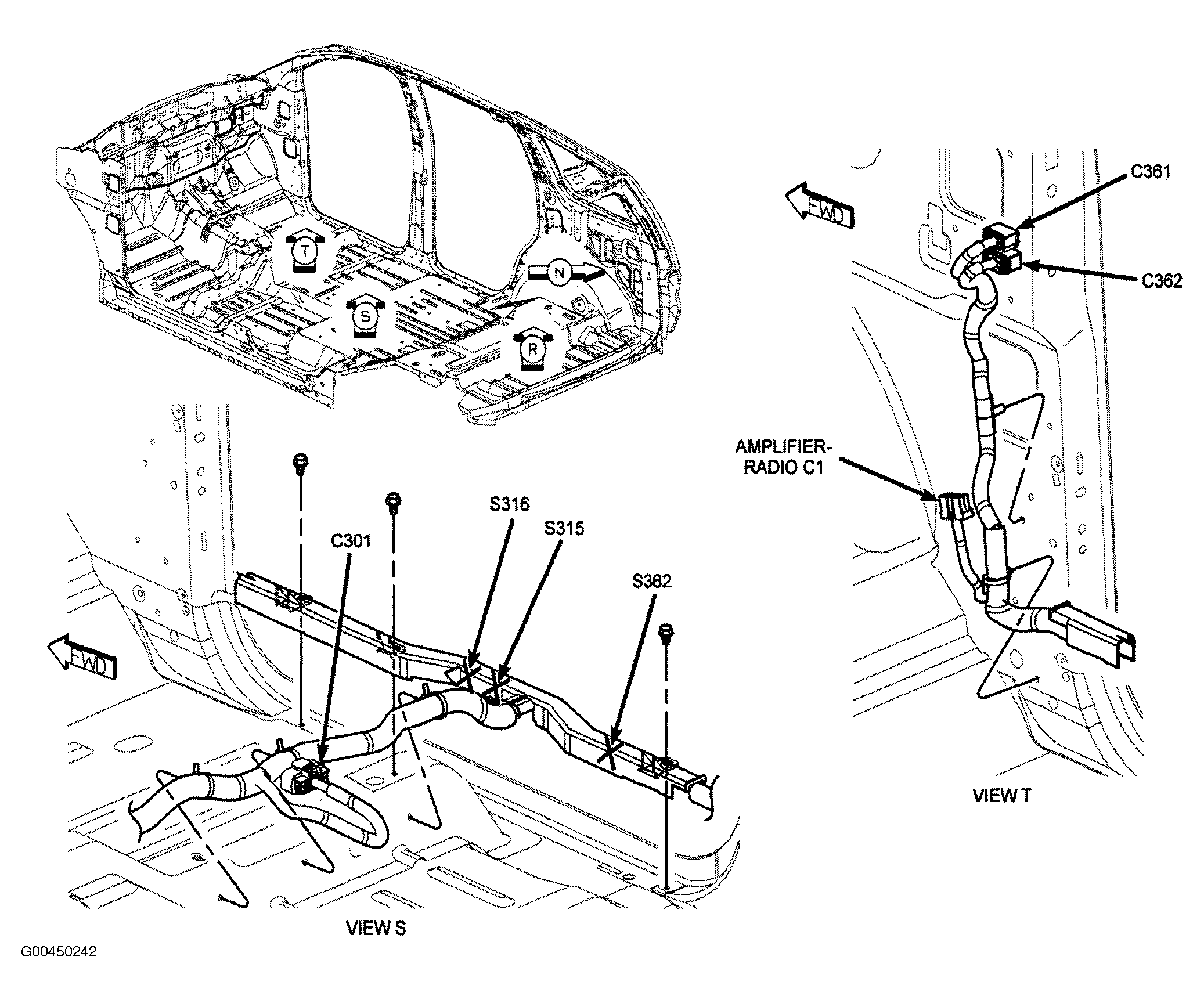

Fig 38: Right Front Of Vehicle Floor

G00450242

Courtesy of CHRYSLER LLC

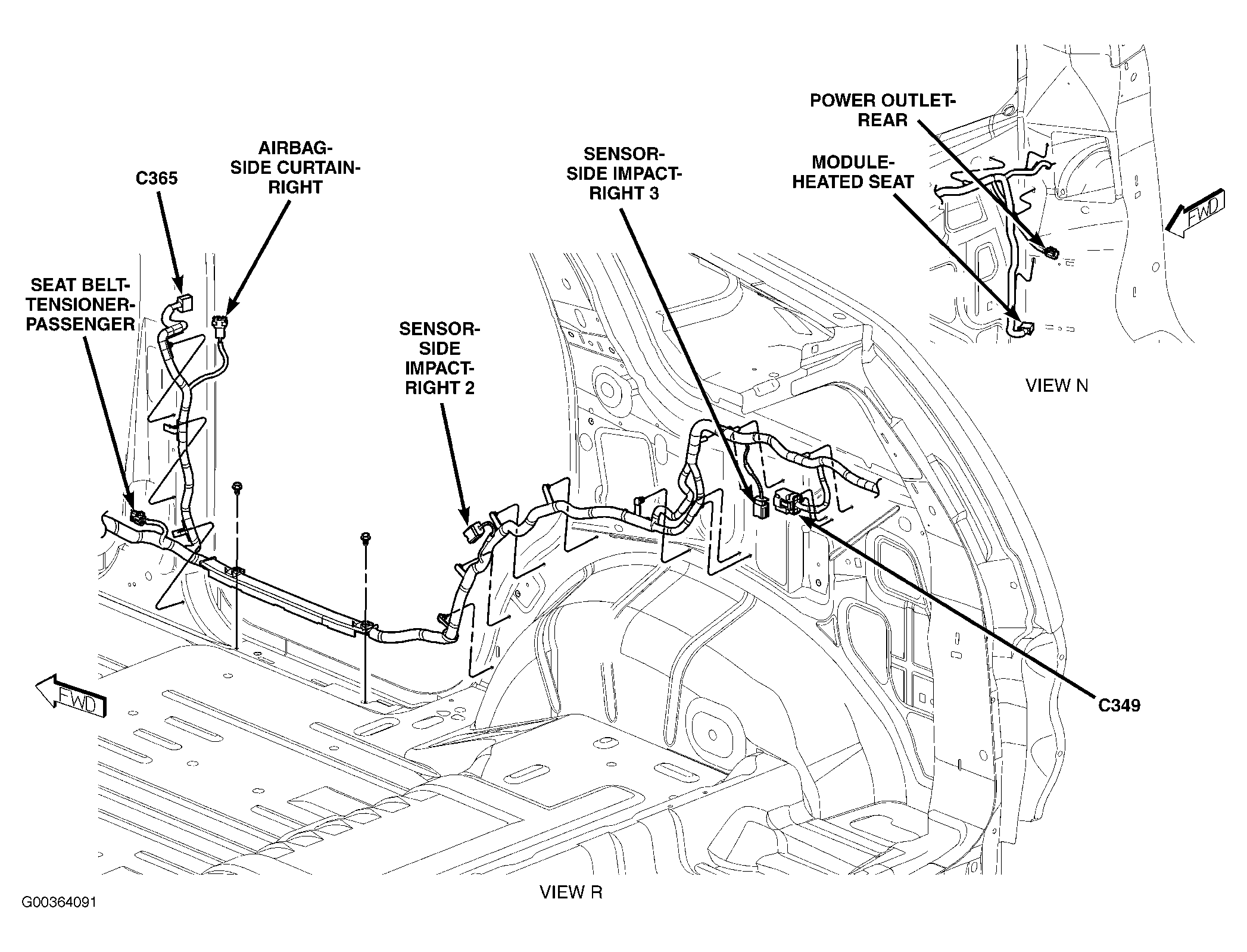

Fig 39: Right Rear Of Vehicle Floor

G00364091

Courtesy of CHRYSLER LLC

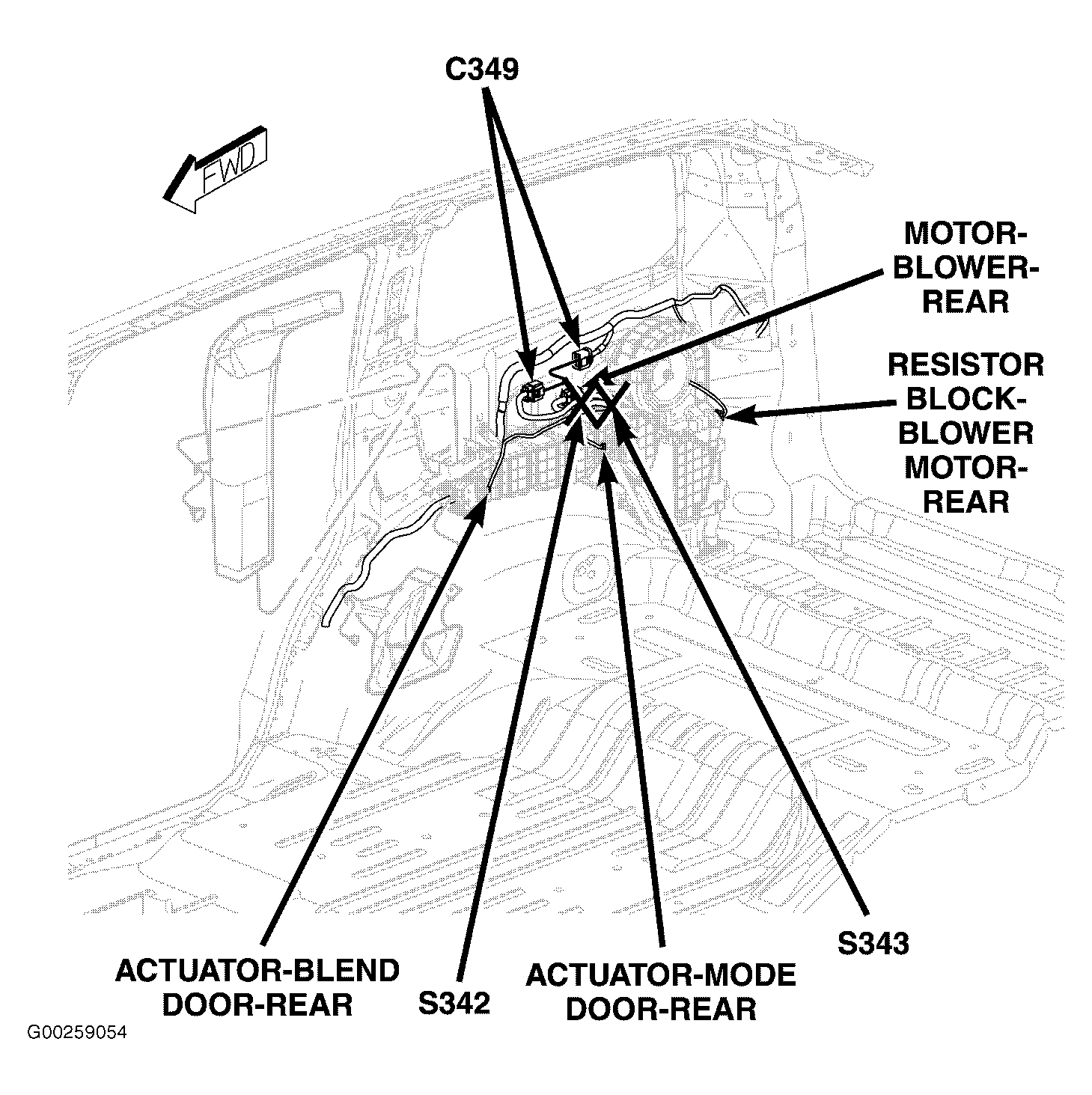

Fig 40: Right Rear Of Vehicle

G00259054

Courtesy of CHRYSLER LLC

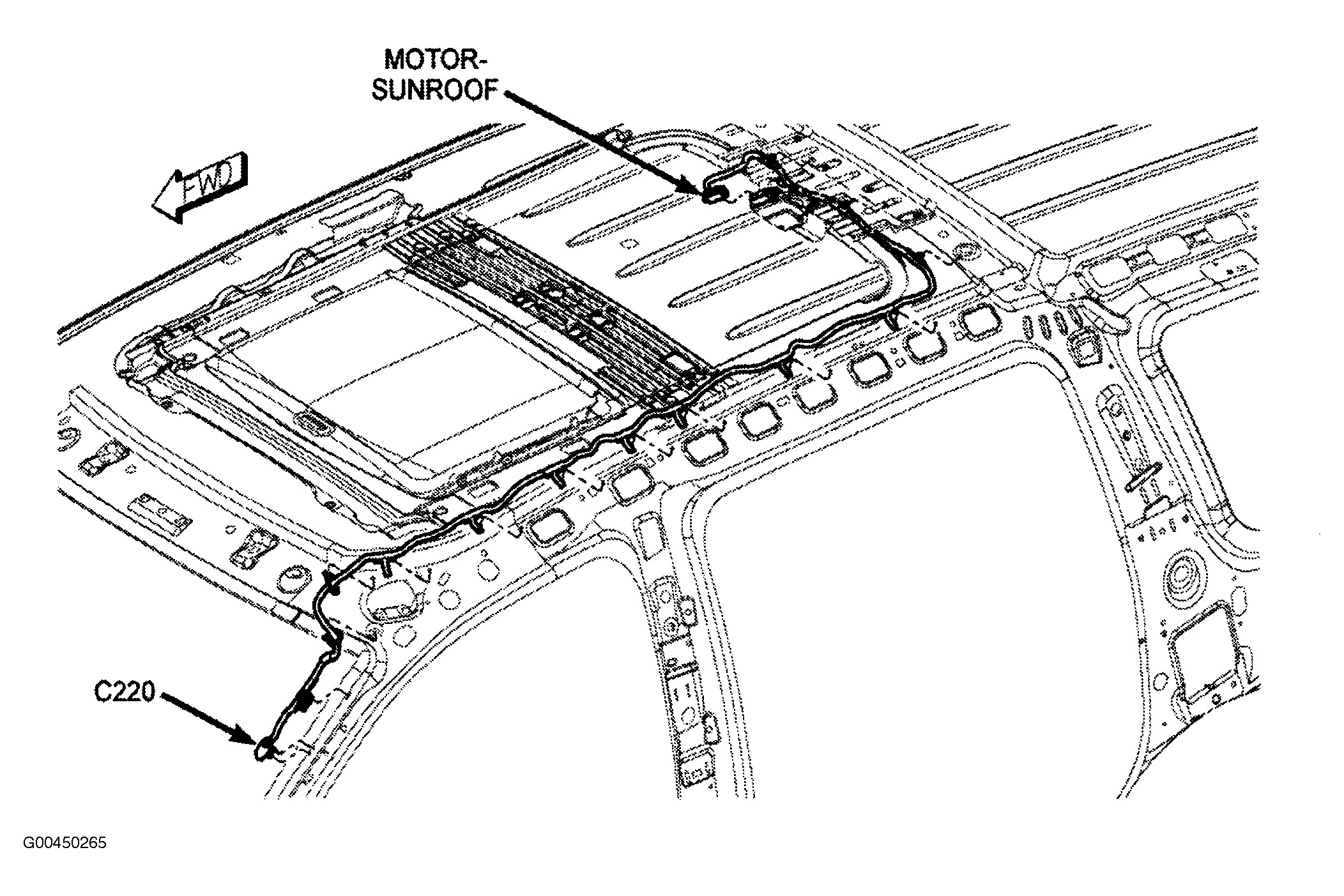

Fig 41: Roof

G00450265

Courtesy of CHRYSLER LLC

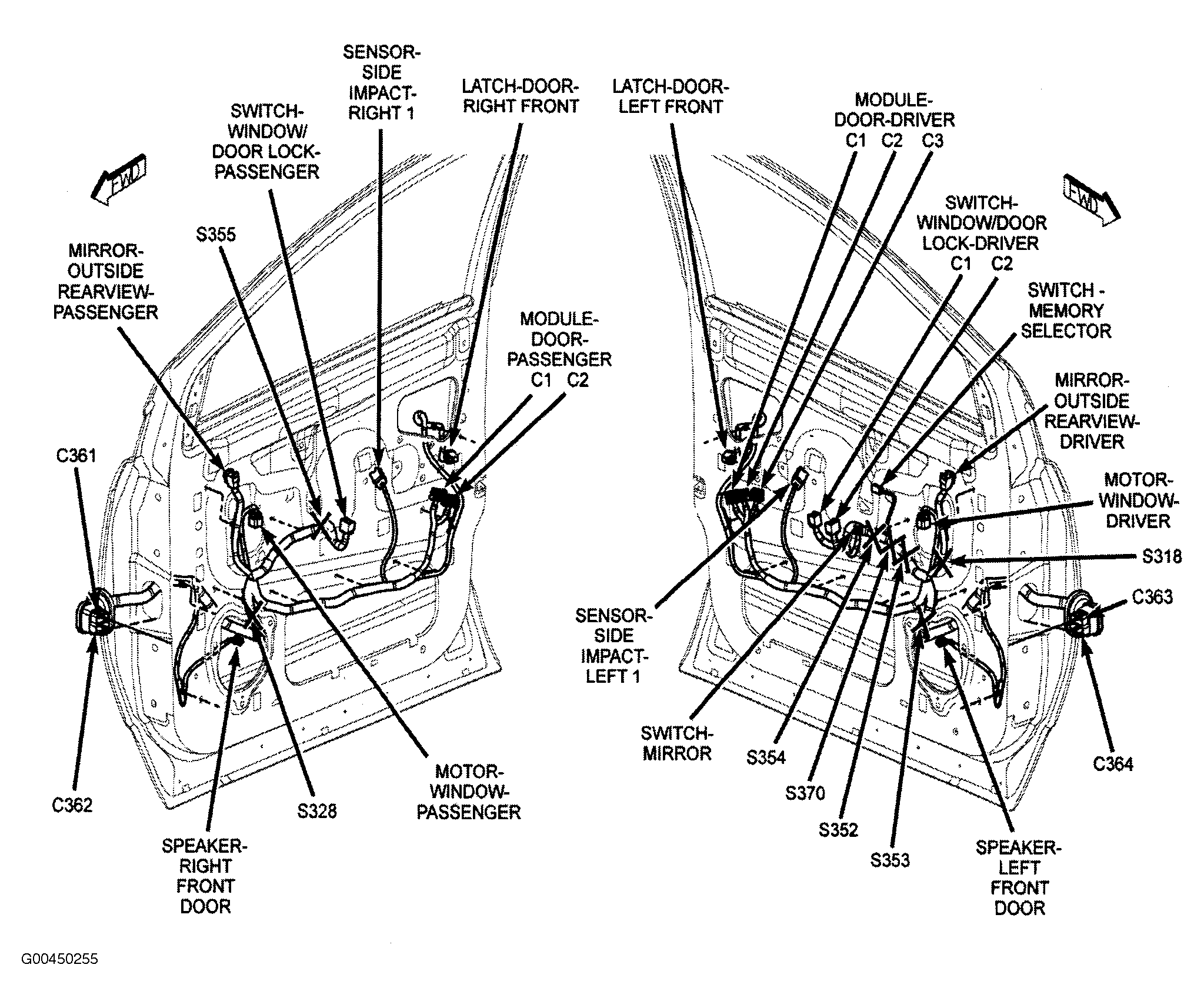

Fig 42: Front Doors

G00450255

Courtesy of CHRYSLER LLC

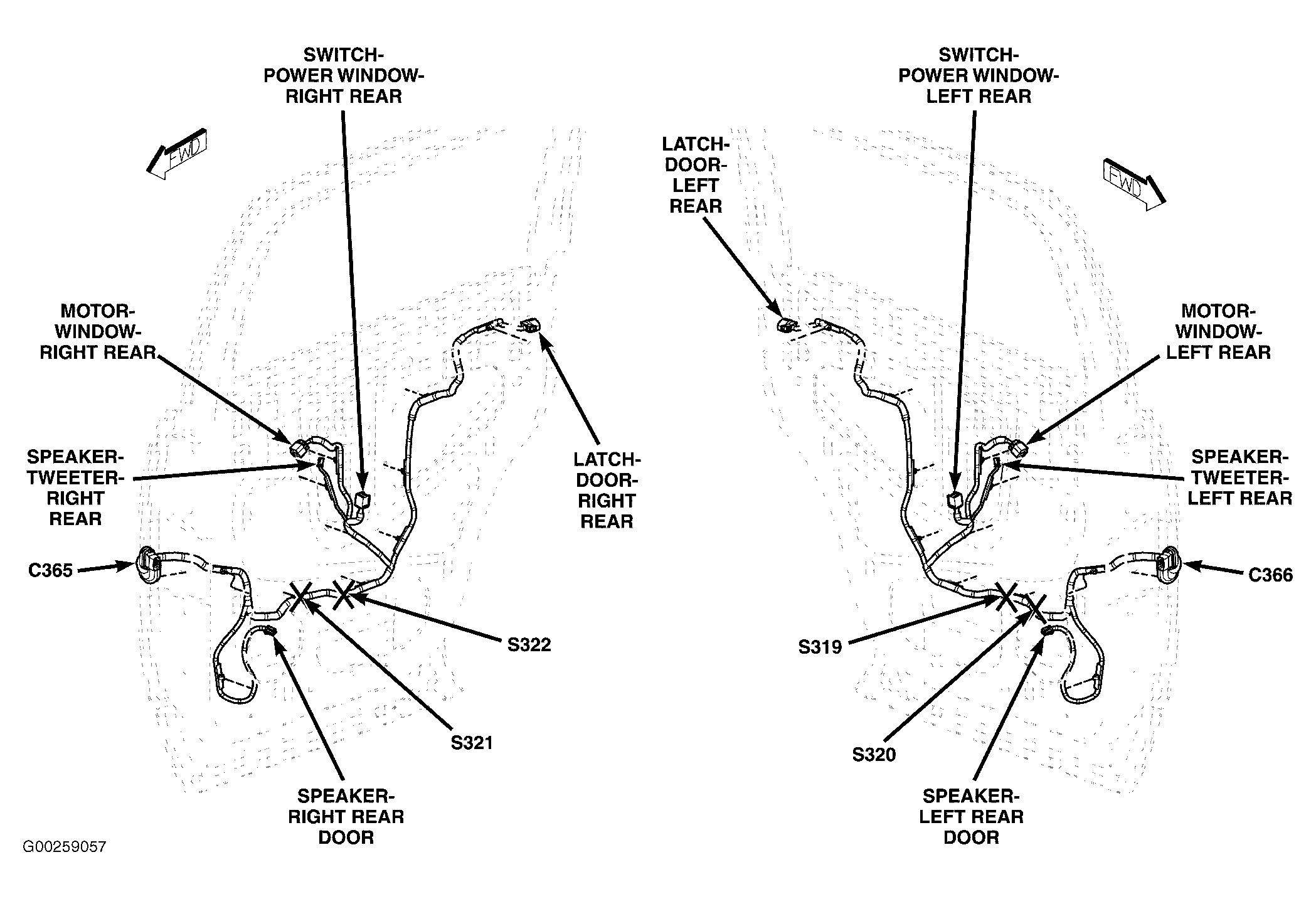

Fig 43: Rear Doors

G00259057

Courtesy of CHRYSLER LLC

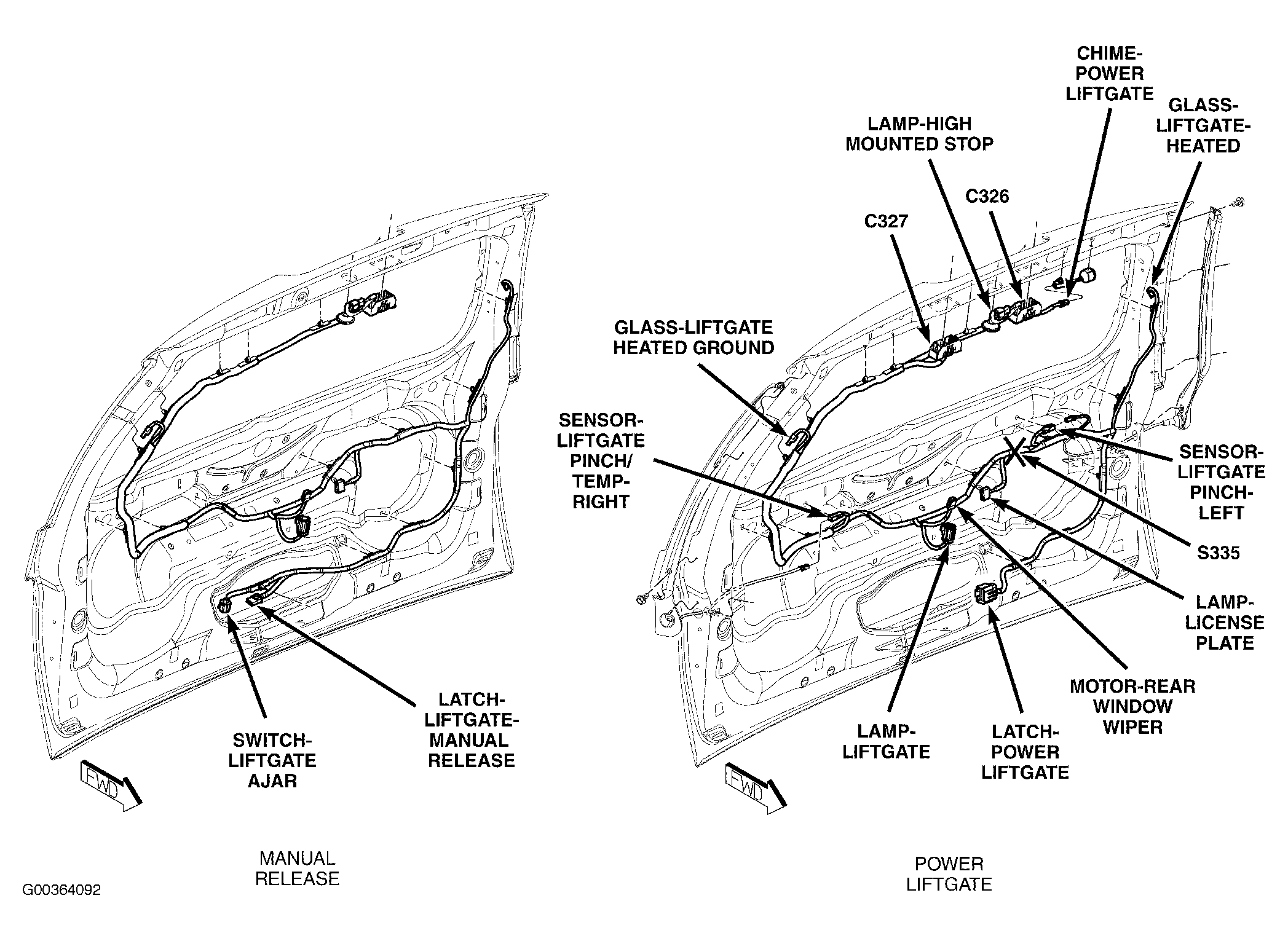

Fig 44: Liftgate

G00364092

Courtesy of CHRYSLER LLC

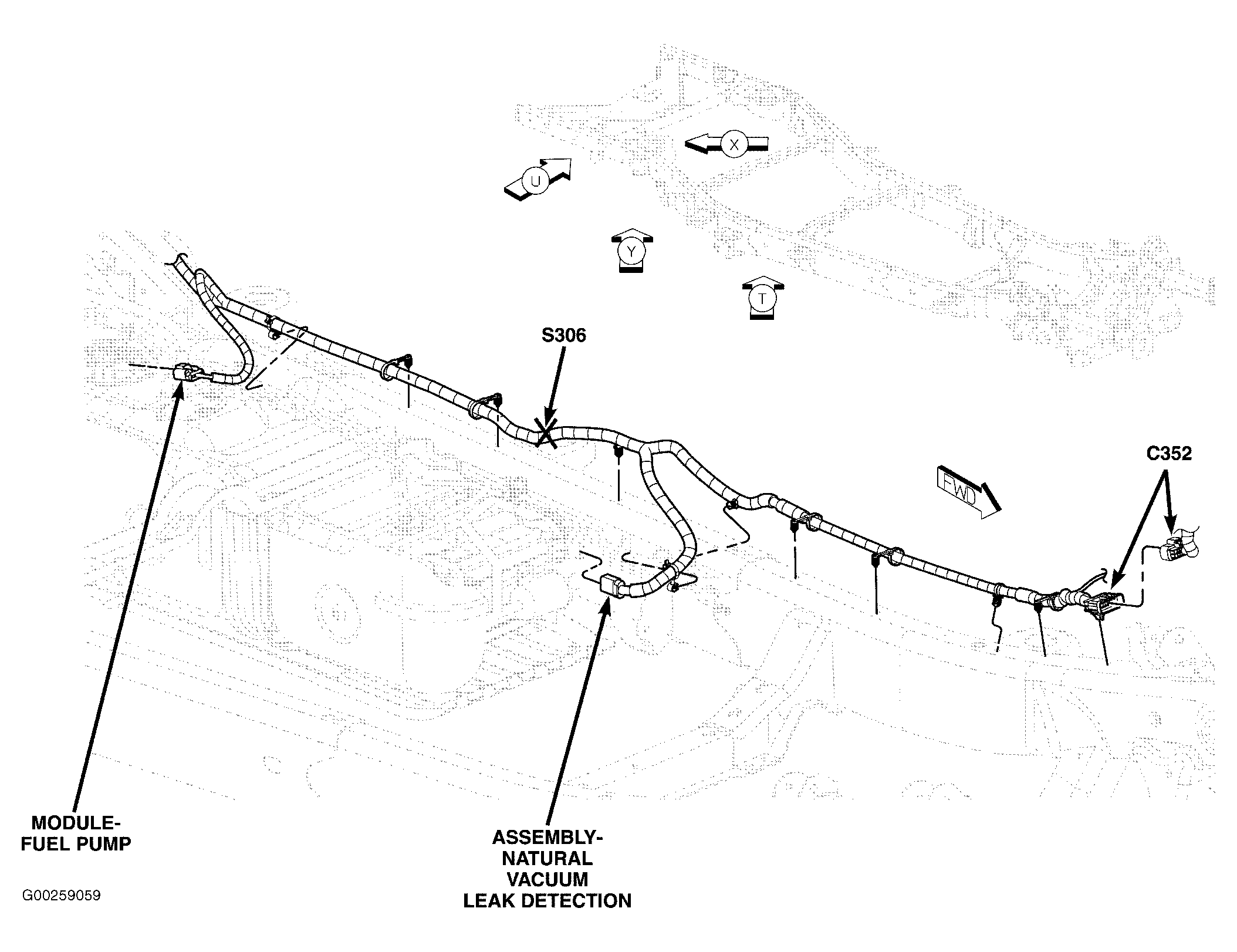

Fig 45: Left Side Of Chassis

G00259059

Courtesy of CHRYSLER LLC

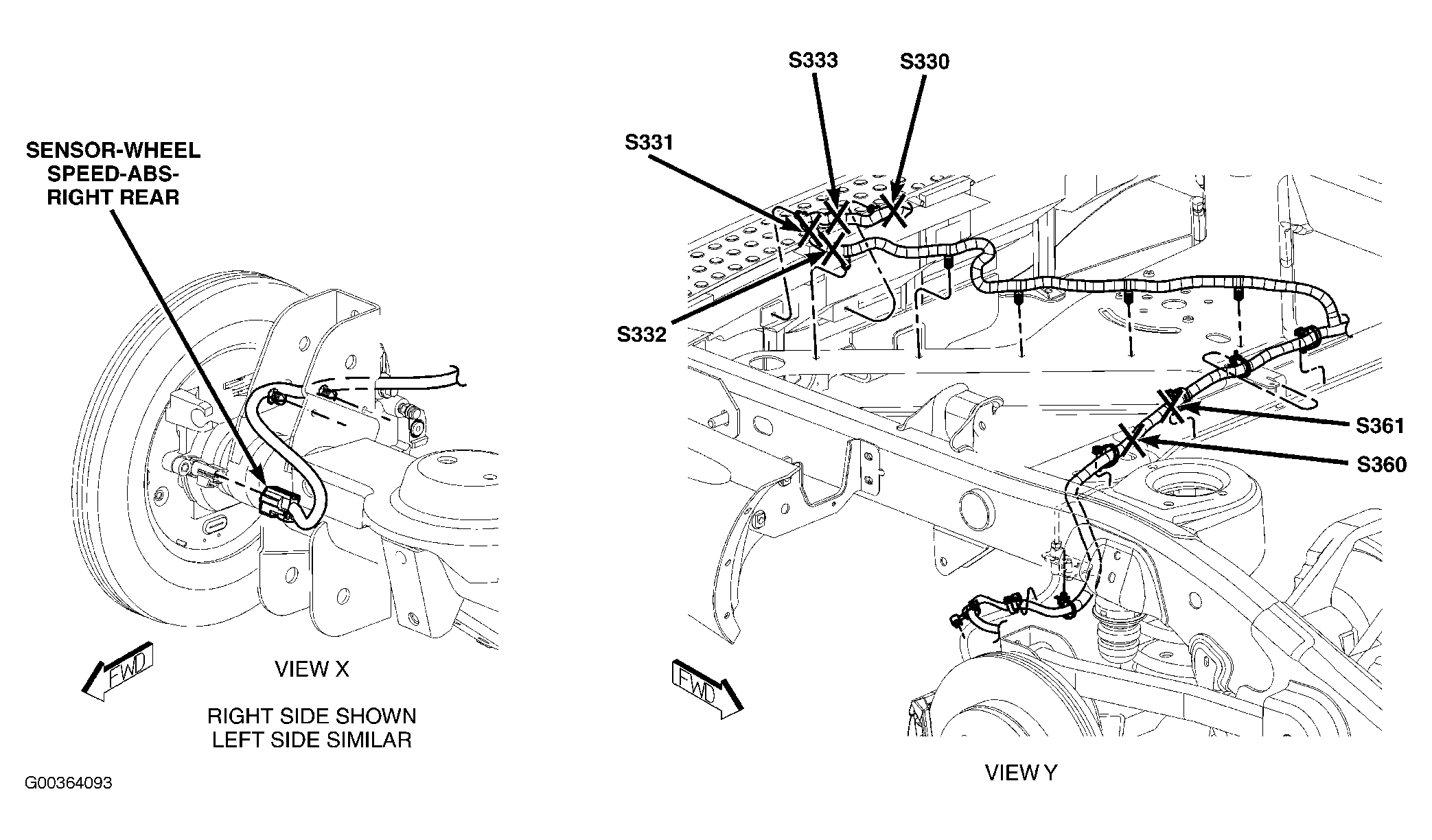

Fig 46: Rear Of Chassis

G00364093

Courtesy of CHRYSLER LLC

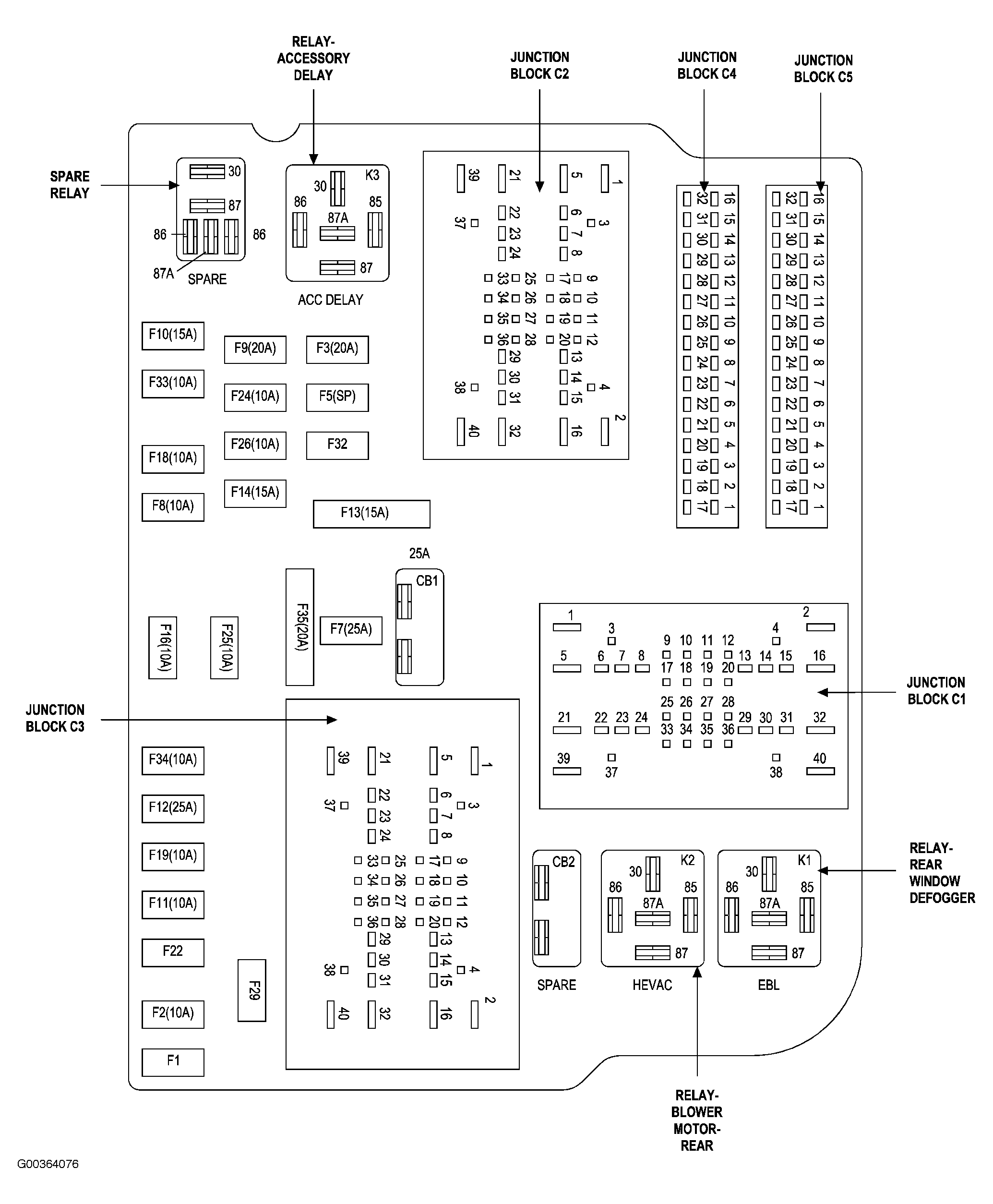

Fig 47: Junction Block

G00364076

Courtesy of CHRYSLER LLC

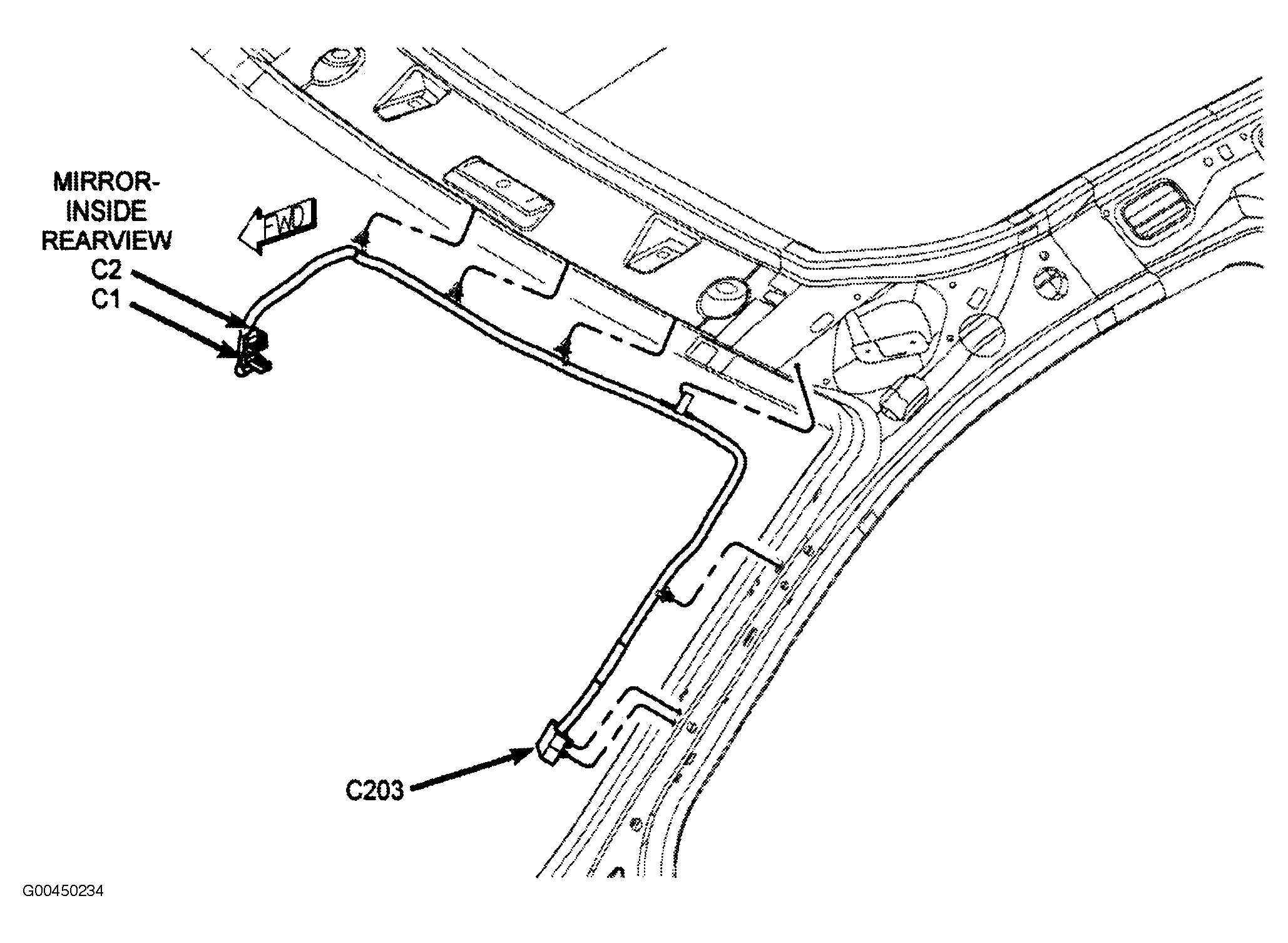

Fig 48: Right "A" Pillar

G00450234

Courtesy of CHRYSLER LLC

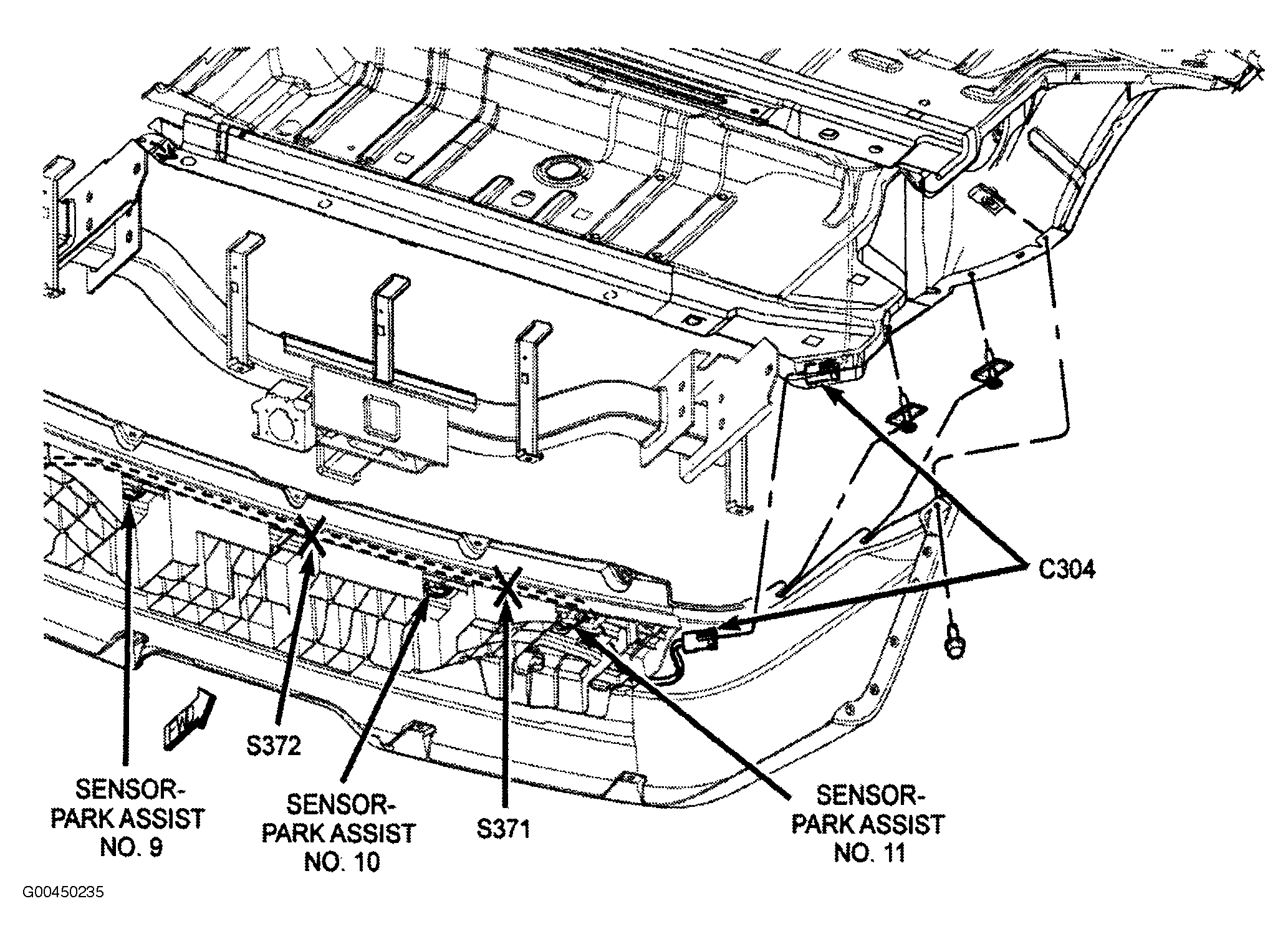

Fig 49: Rear Fascia

G00450235

Courtesy of CHRYSLER LLC

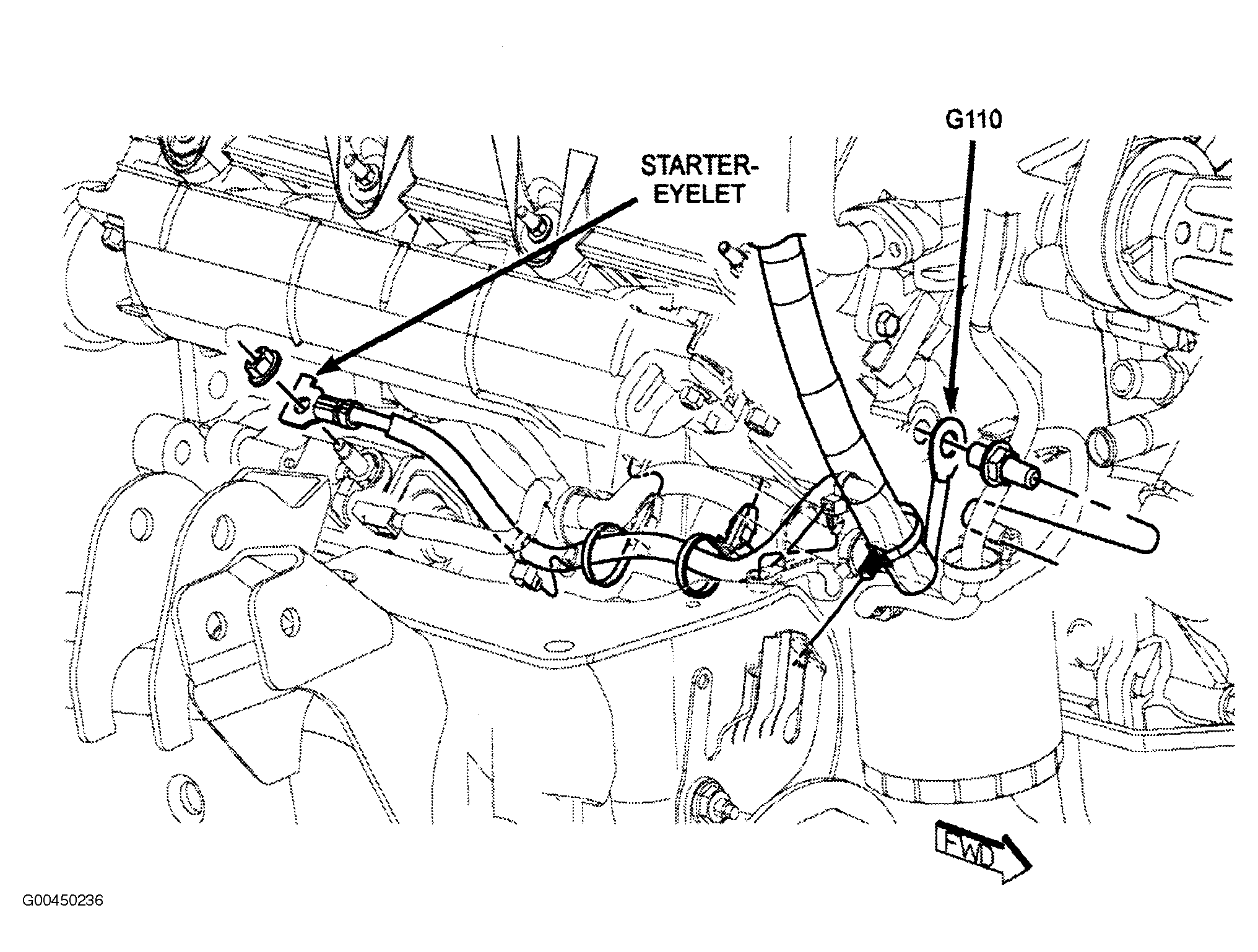

Fig 50: Lower Right Front Of Engine (5.7L)

G00450236

Courtesy of CHRYSLER LLC

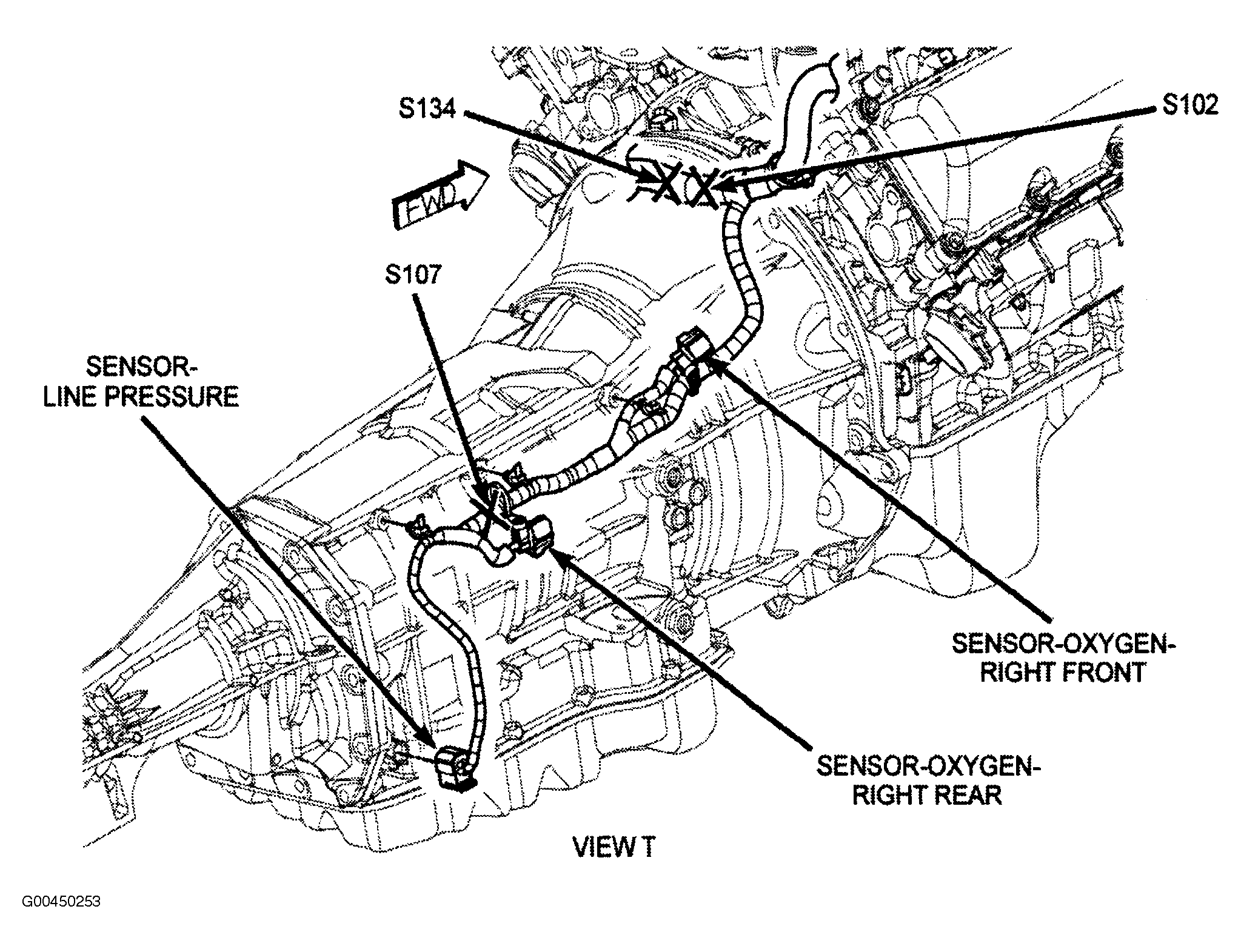

Fig 51: Right Side Of Transmission (4.7L)

G00450253

Courtesy of CHRYSLER LLC

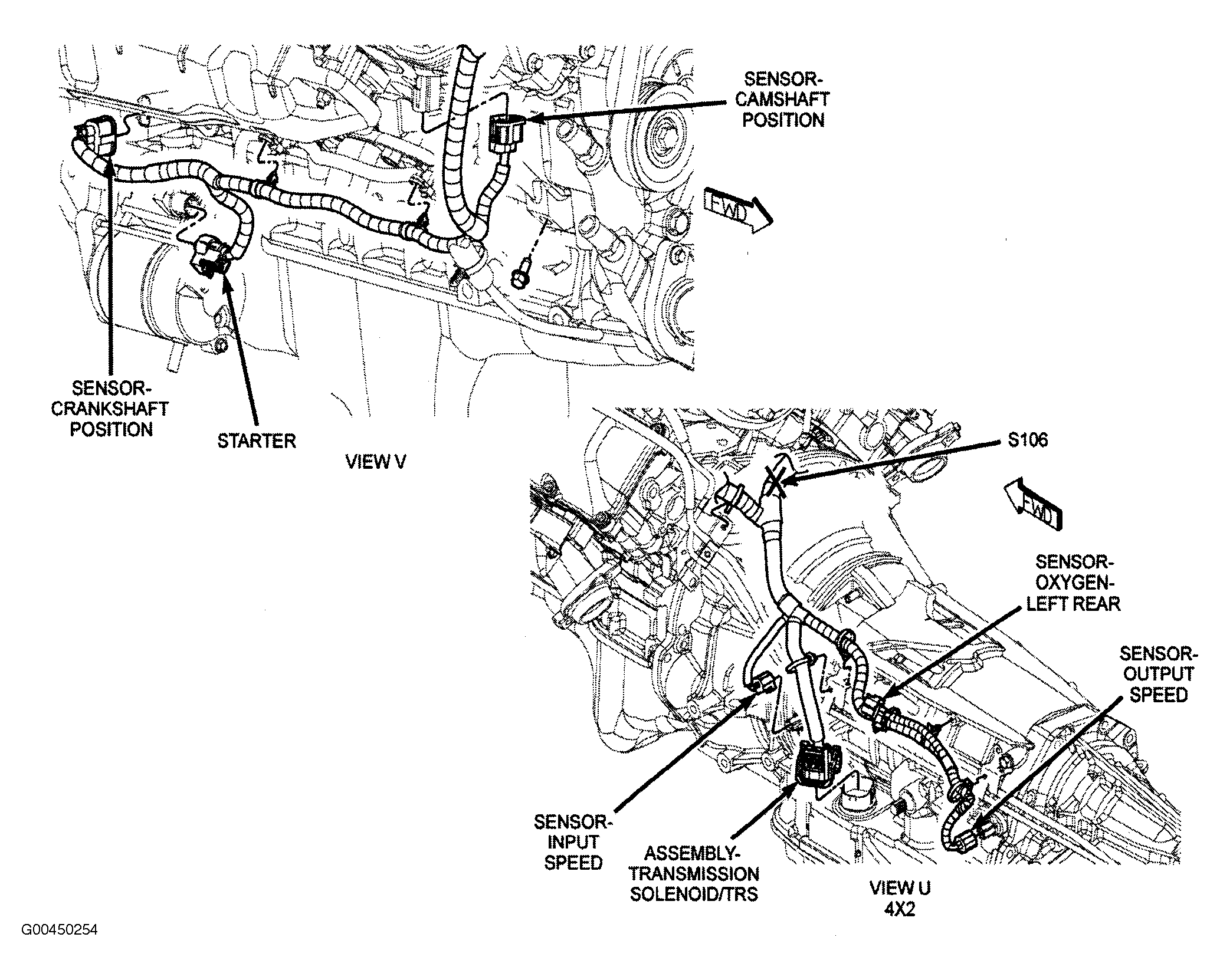

Fig 52: Engine & Transmission (4.7L)

G00450254

Courtesy of CHRYSLER LLC

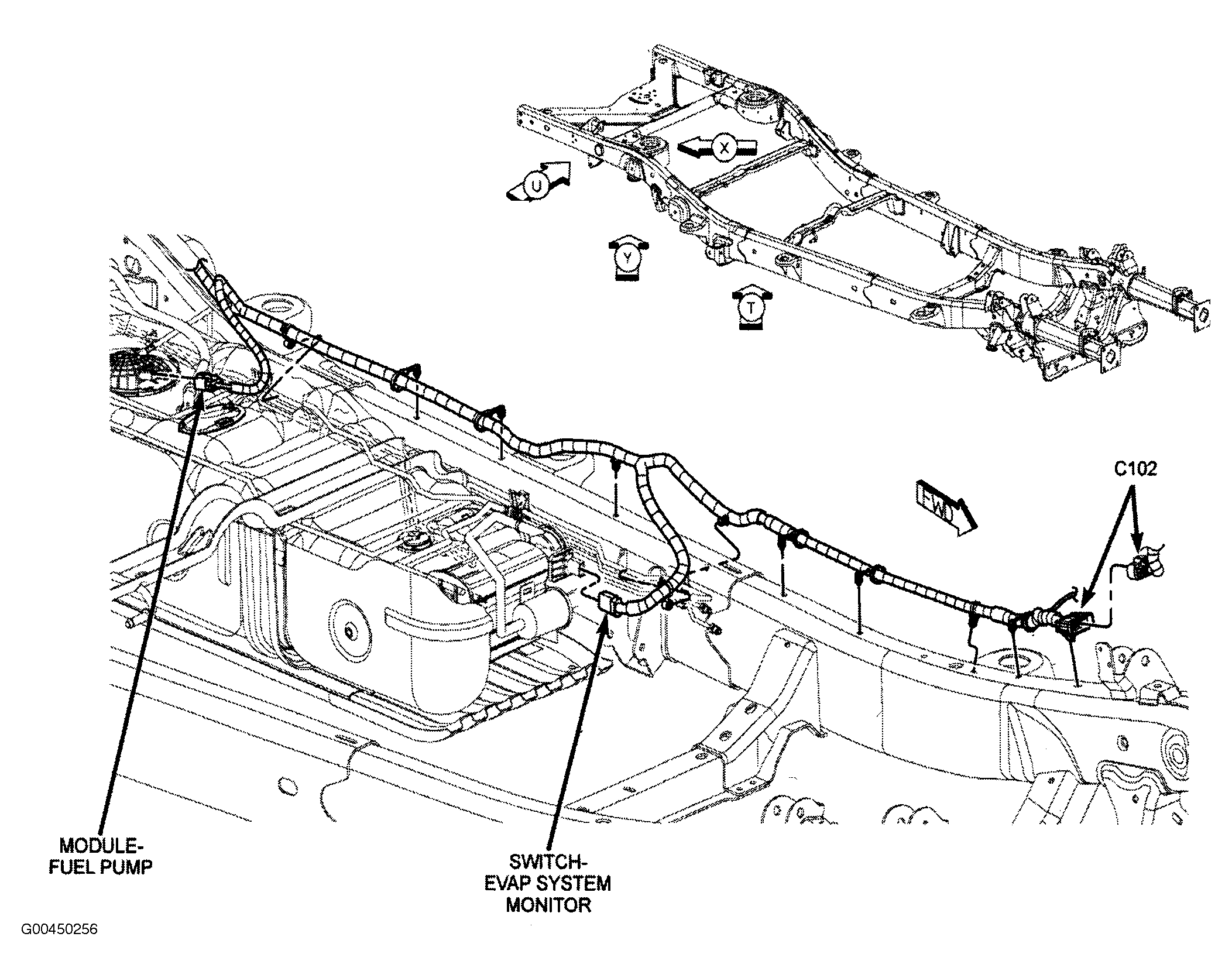

Fig 53: Left Rear Of Chassis

G00450256

Courtesy of CHRYSLER LLC

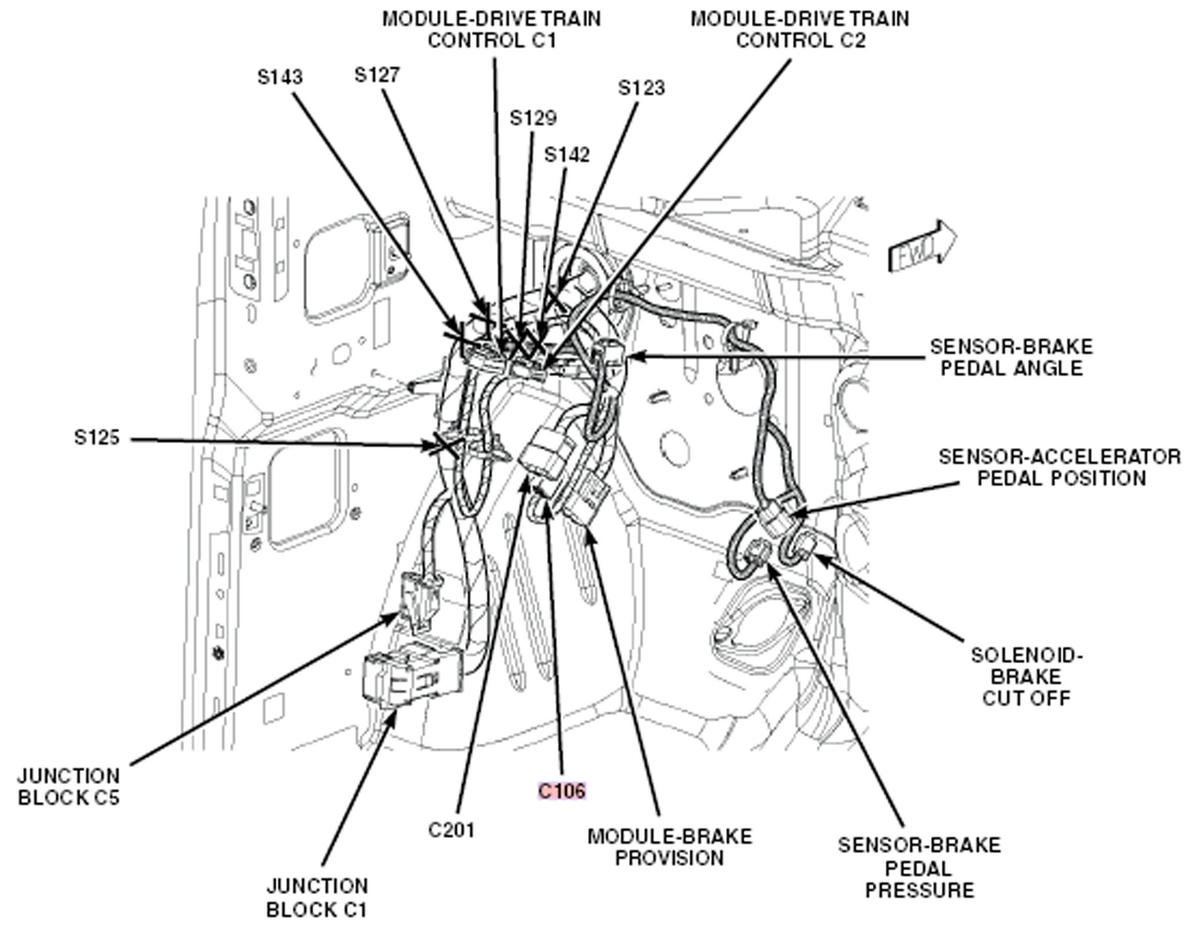

Fig 54: Left Kick Panel

G00466863

Courtesy of CHRYSLER LLC

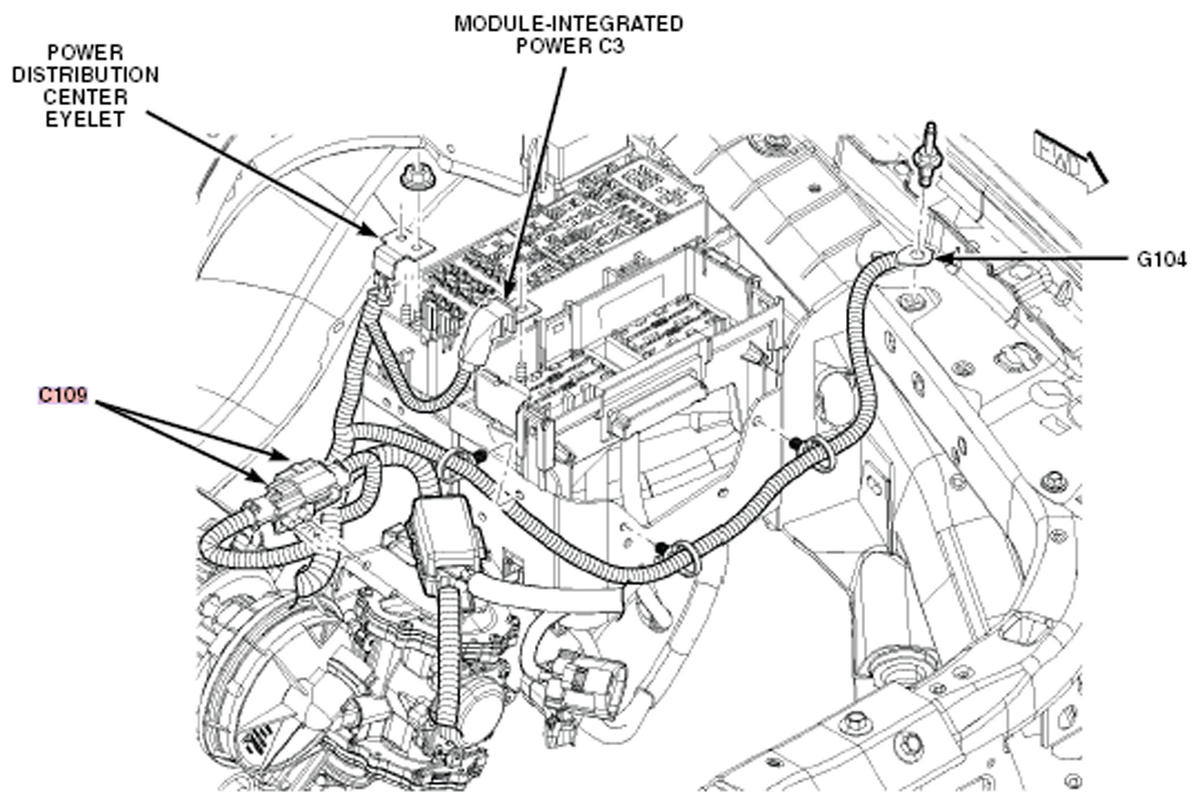

Fig 55: Left Front Of Engine Compartment

G00466864

Courtesy of CHRYSLER LLC

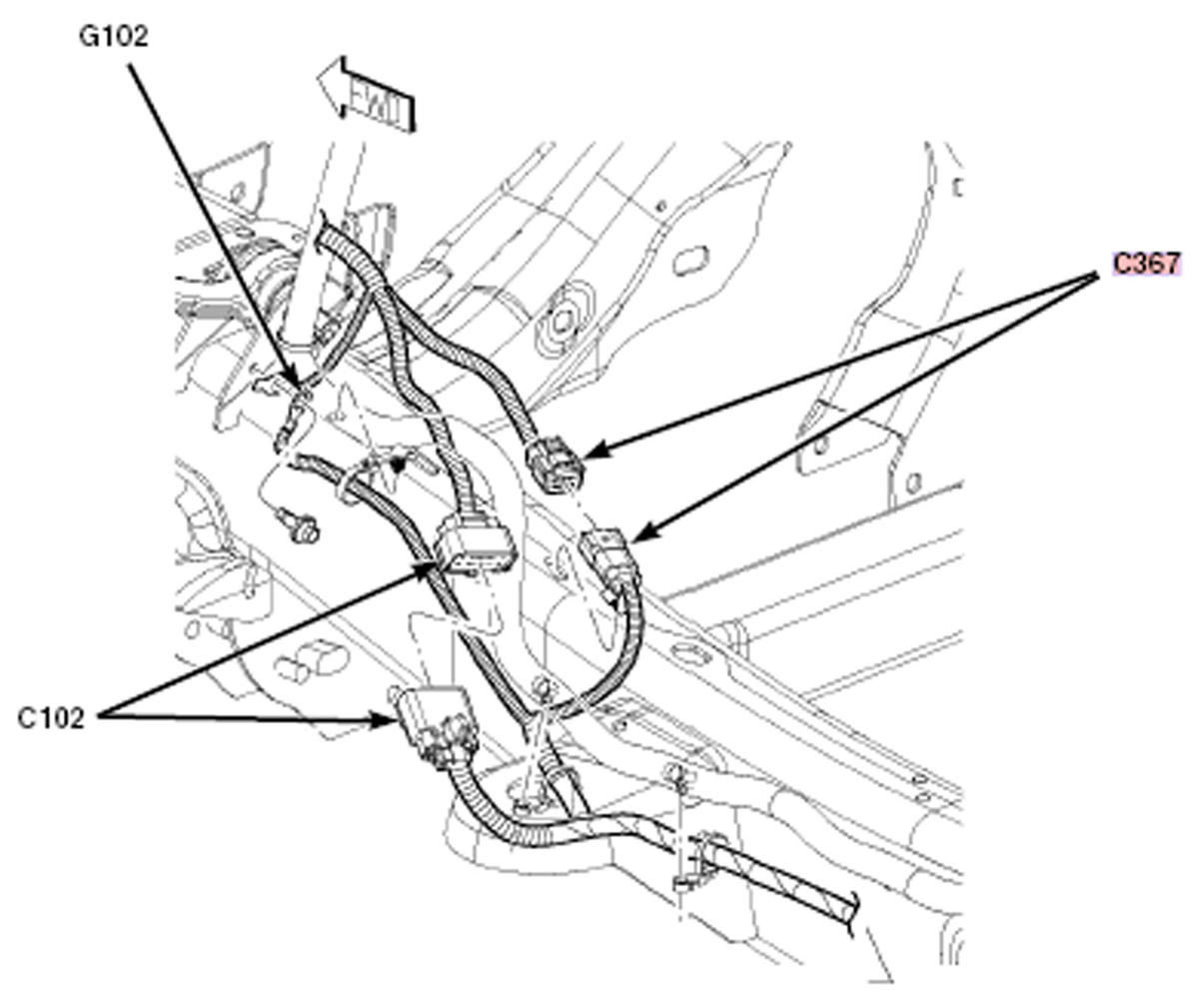

Fig 56: Left Front Chassis

G00466865

Courtesy of CHRYSLER LLC

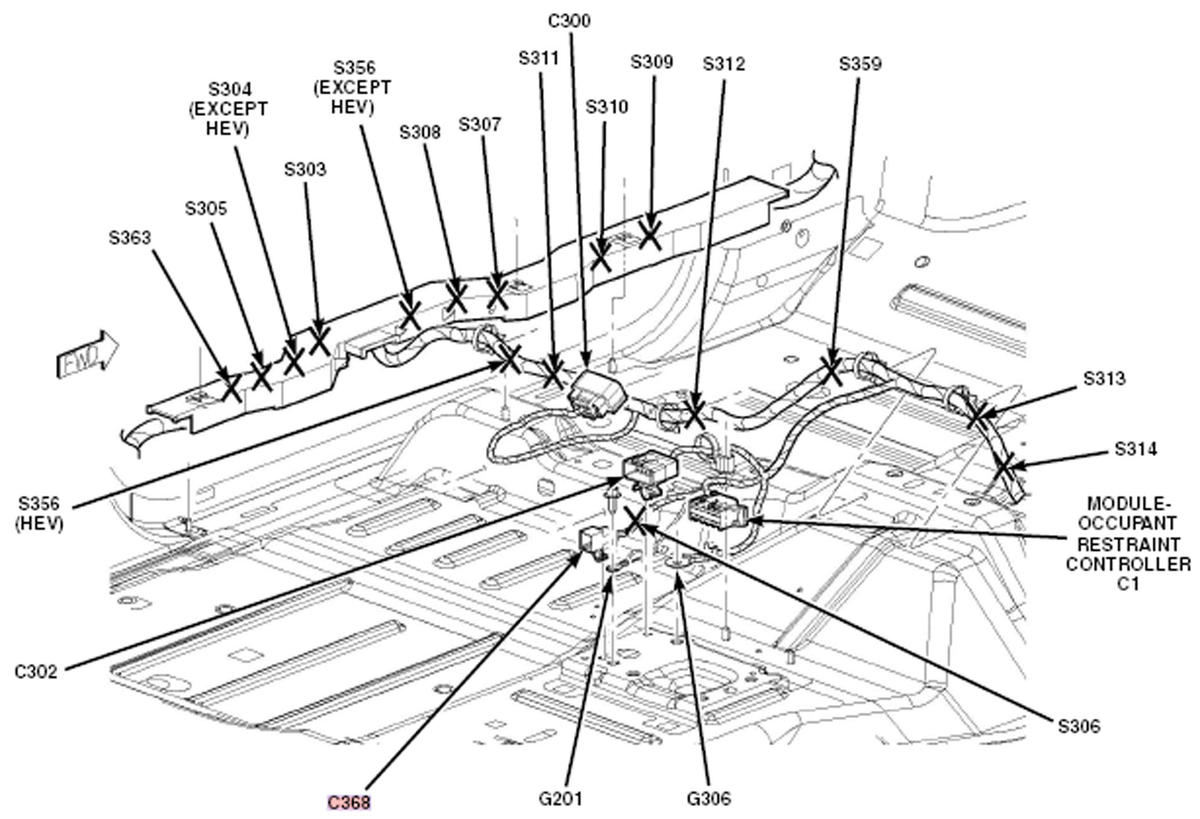

Fig 57: Left Side Of Body

G00466866

Courtesy of CHRYSLER LLC

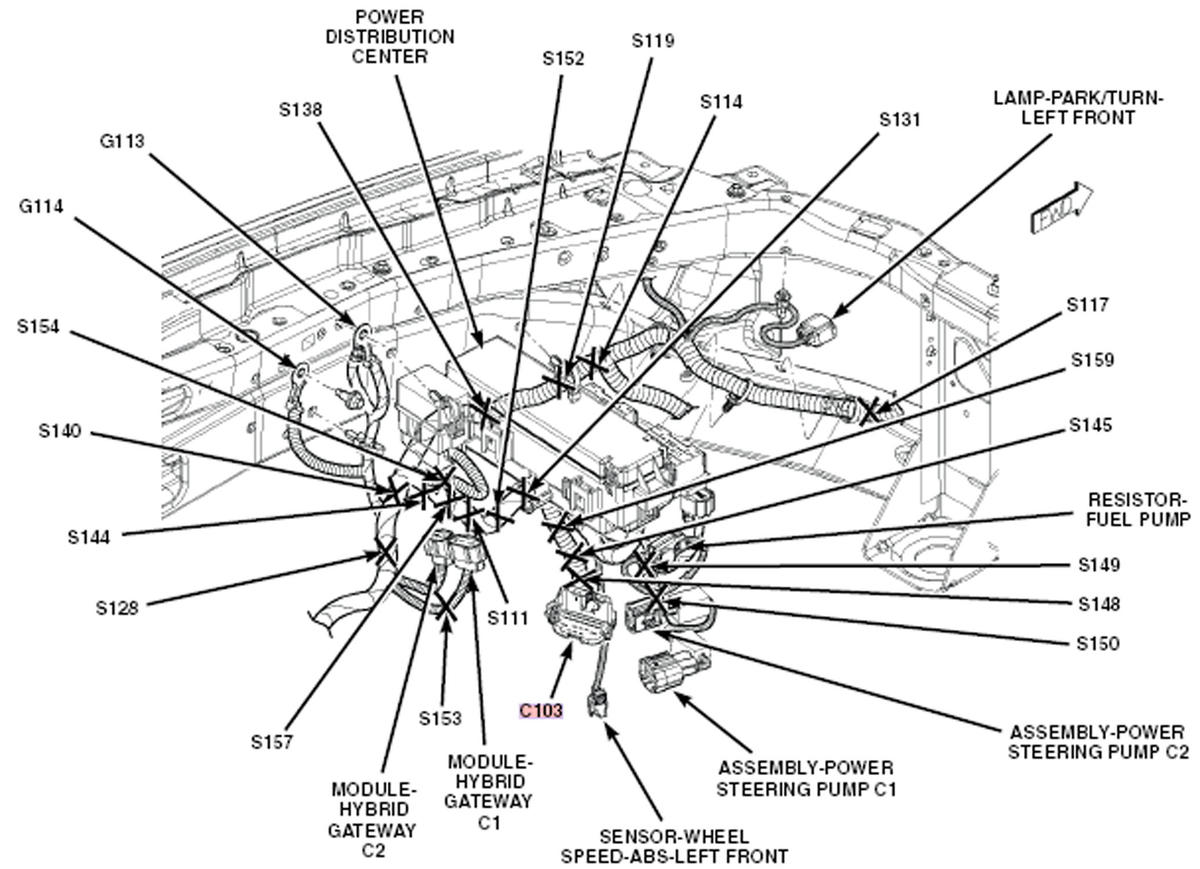

Fig 58: Left Side Of Engine Compartment

G00466867

Courtesy of CHRYSLER LLC

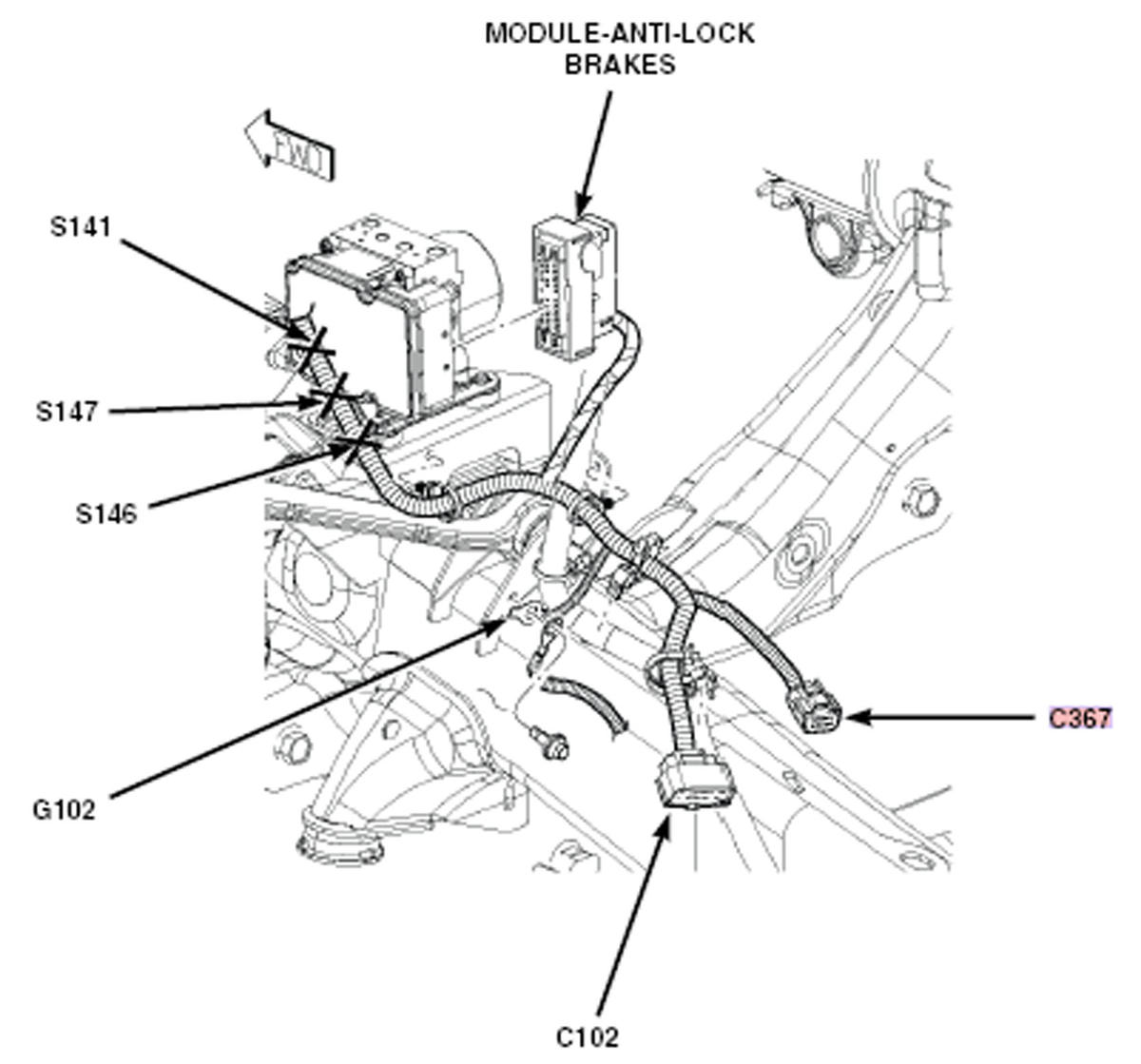

Fig 59: Lower Left Side Of Engine Compartment

G00466868

Courtesy of CHRYSLER LLC

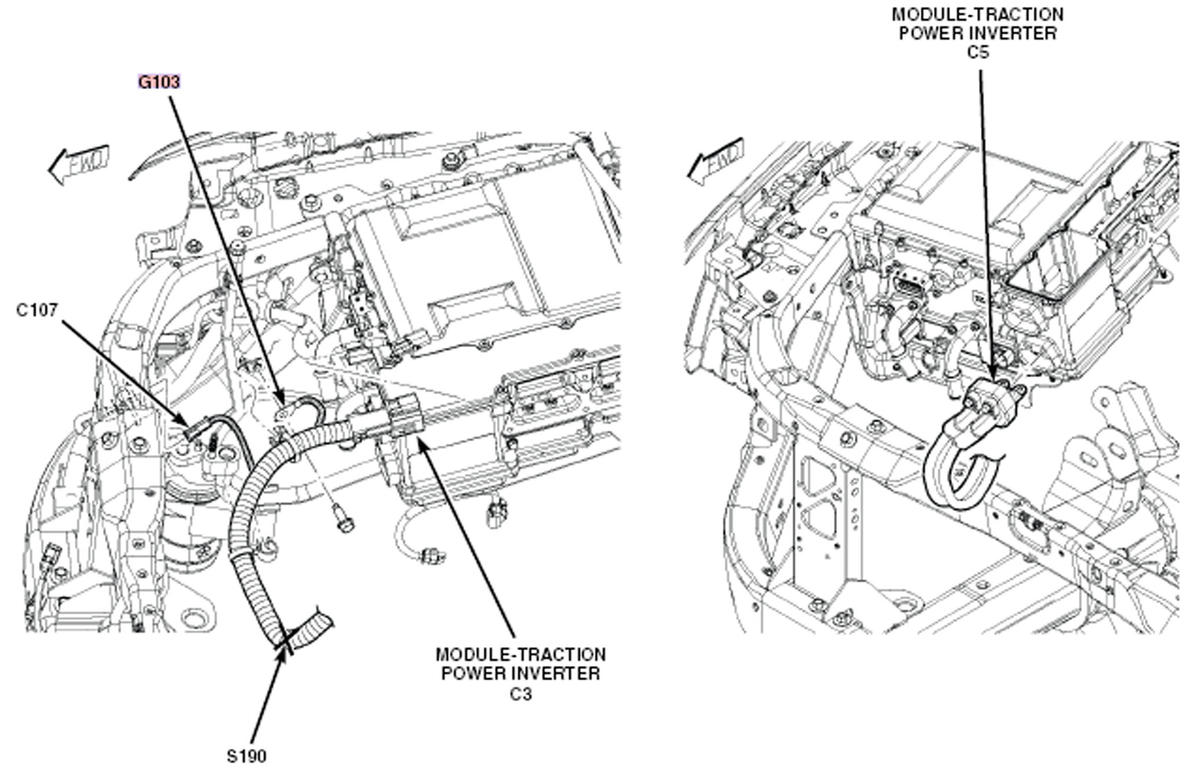

Fig 60: Right Front Of Engine Compartment

G00466869

Courtesy of CHRYSLER LLC

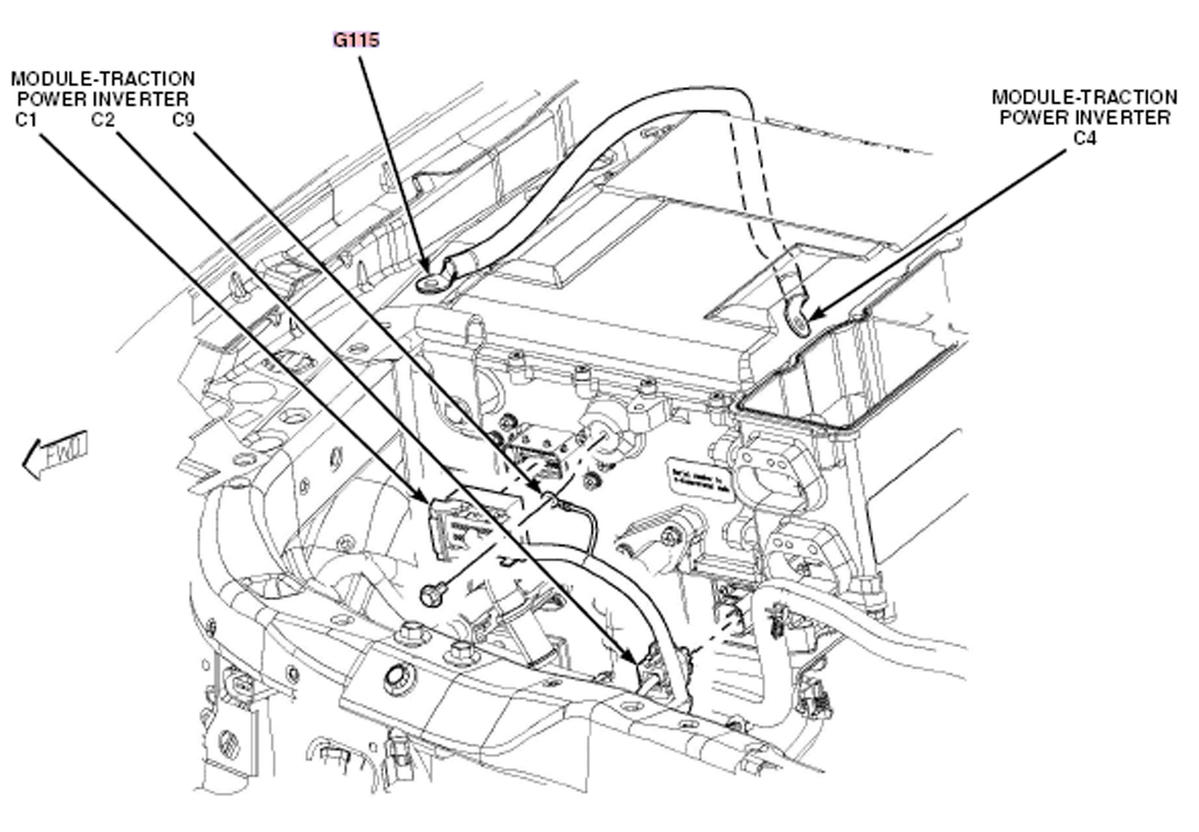

Fig 61: Right Side Of Engine Compartment (HEV)

G00466870

Courtesy of CHRYSLER LLC

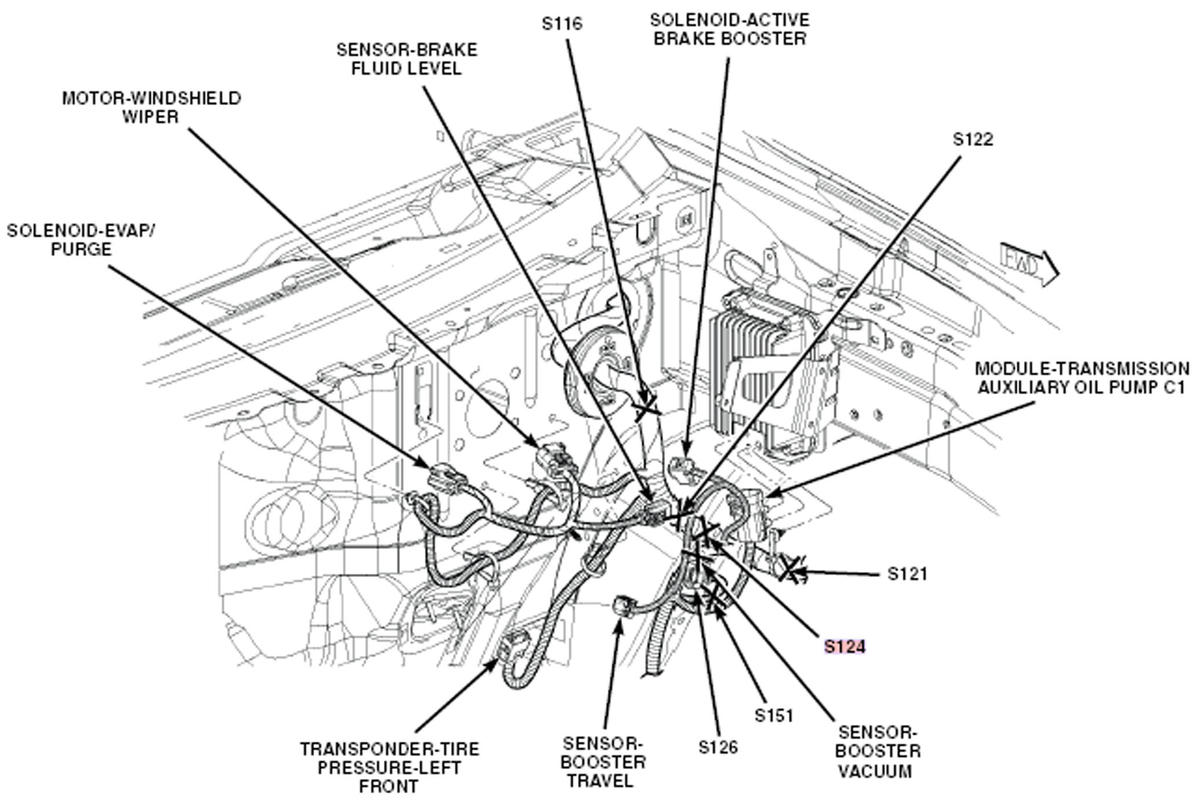

Fig 62: Left Rear Of Engine Compartment

G00466871

Courtesy of CHRYSLER LLC

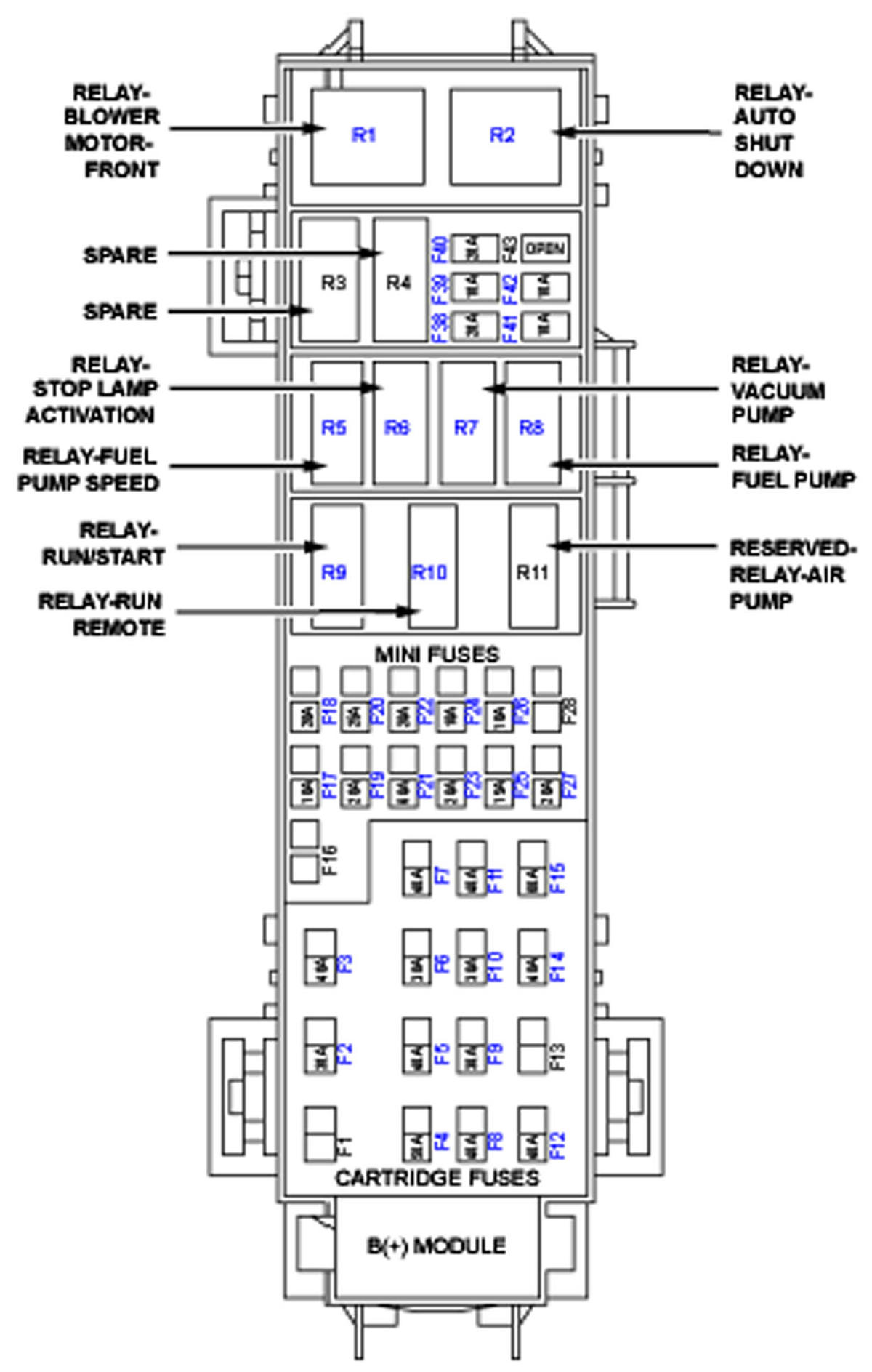

Fig 63: Power Distribution Center

G00466872

Courtesy of CHRYSLER LLC

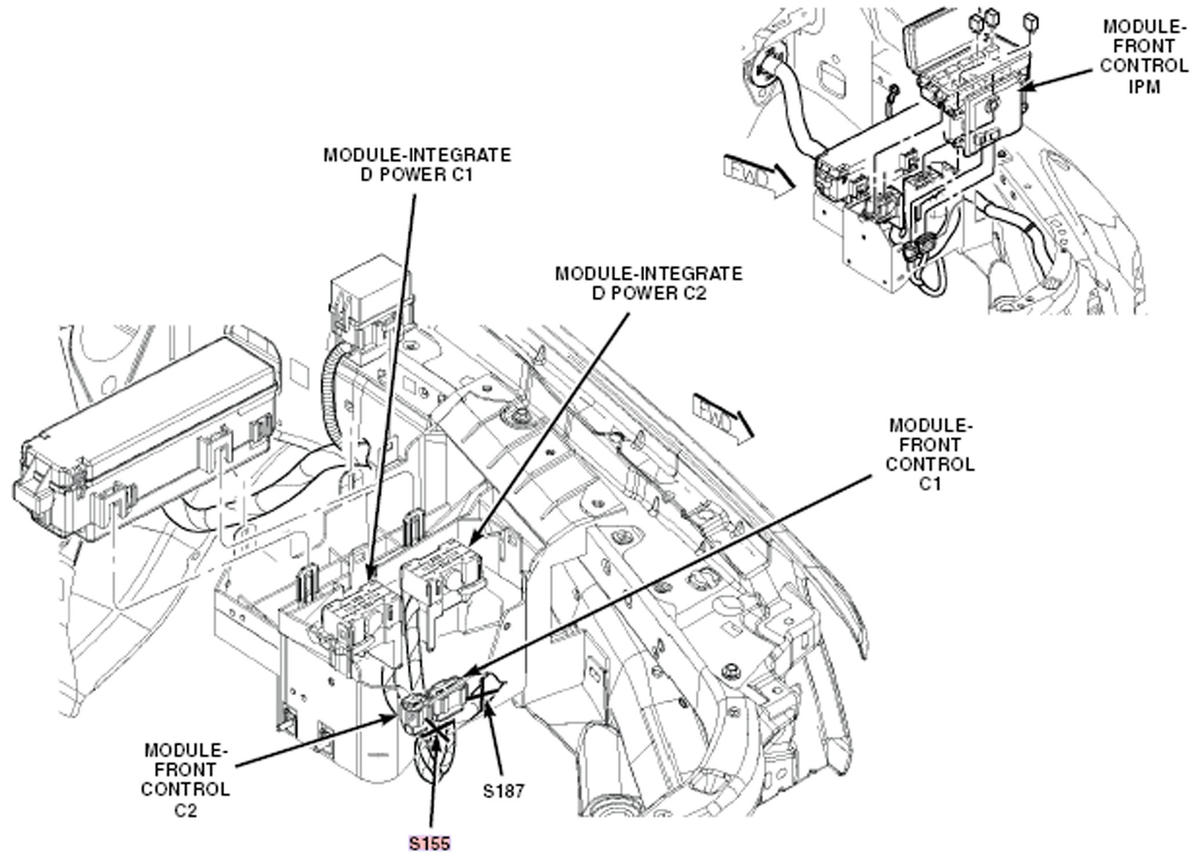

Fig 64: Left Front Of Engine Compartment

G00466873

Courtesy of CHRYSLER LLC
