Home >> Dodge and Ram >> 2009 >> Caliber SXT, 2.0 A >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0171 To P0298 >> P0268-Fuel Injector 3 Circuit High >> Notes

P0268-Fuel Injector 3 Circuit High: Notes

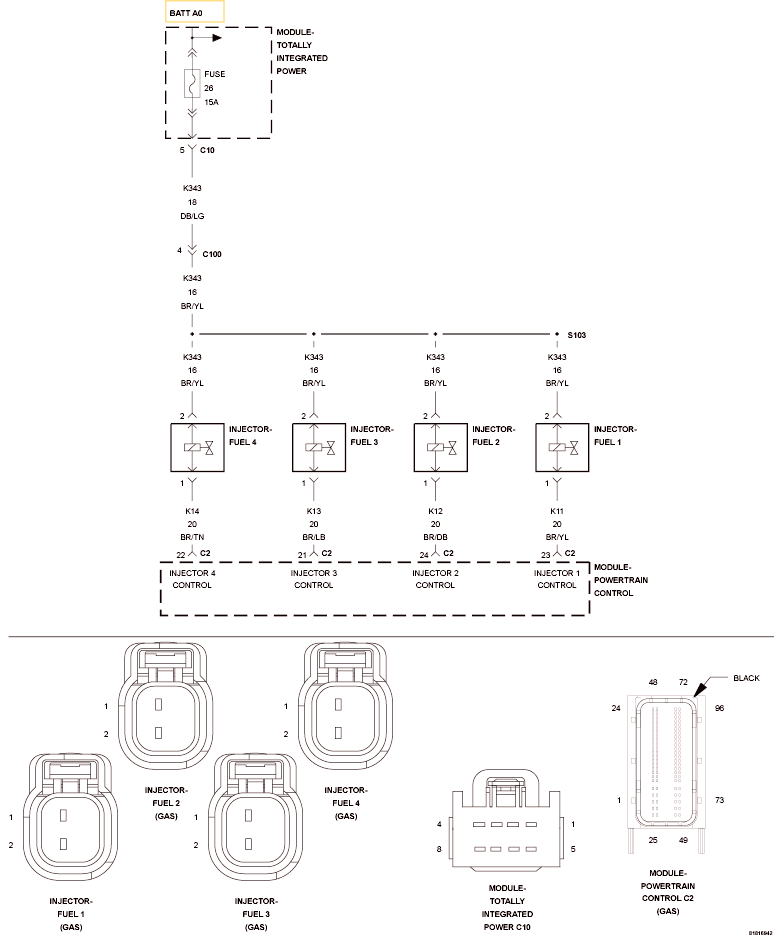

Fig 1: Fuel Injector Circuit

GC0099808

Courtesy of CHRYSLER LLC
