Turbo Position Sensor Connector End View

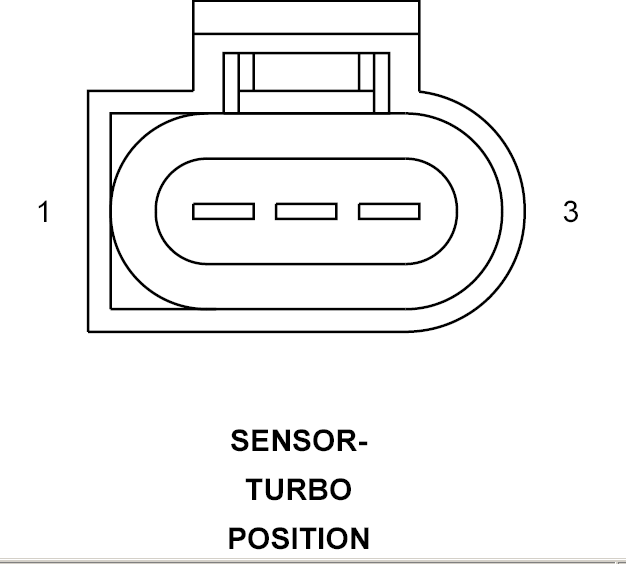

Turbo Position Sensor Connector End View
SENSOR-TURBO POSITION - 3-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K552 20GY/BK
SENSOR GROUND
2
K553 20GY/LB
TURBO POSITION SIGNAL
3
K551 20GY/BR
5 VOLT SUPPLY
Courtesy of CHRYSLER CORP.
