P0646-A/C Control Circuit Low: Notes

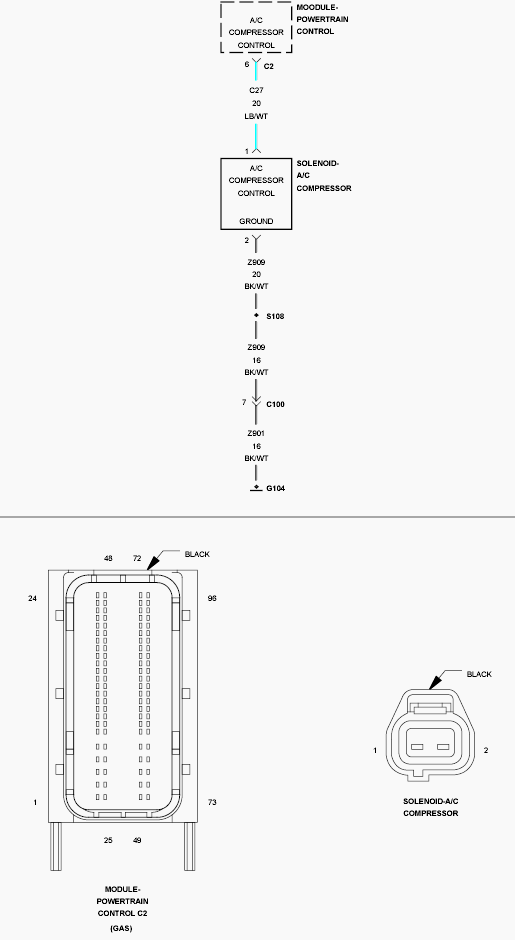

Fig 1: A/C Control Circuit

GC0099997

Courtesy of CHRYSLER LLC
