P0625-Generator Field Control Circuit Low: Notes

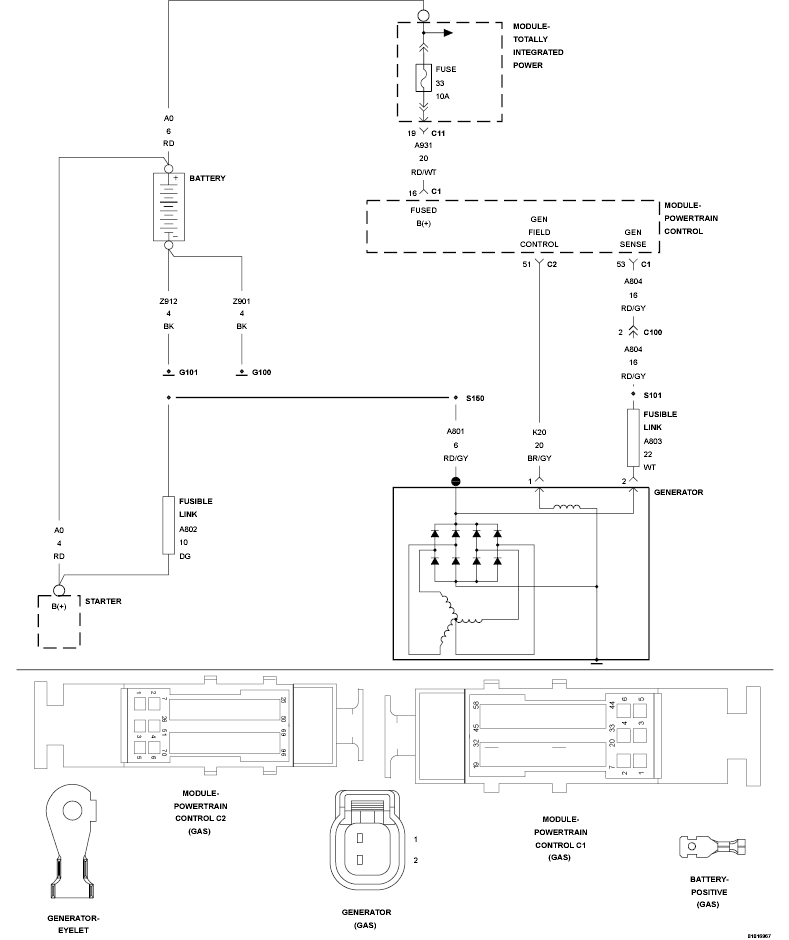

Fig 1: Charging System Circuit

GC0099960

Courtesy of CHRYSLER LLC
