Home >> Dodge and Ram >> 2009 >> Caliber R/T, EDG >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0562 To P0625 >> P0616-Starter Control Circuit Low >> Notes

P0616-Starter Control Circuit Low: Notes

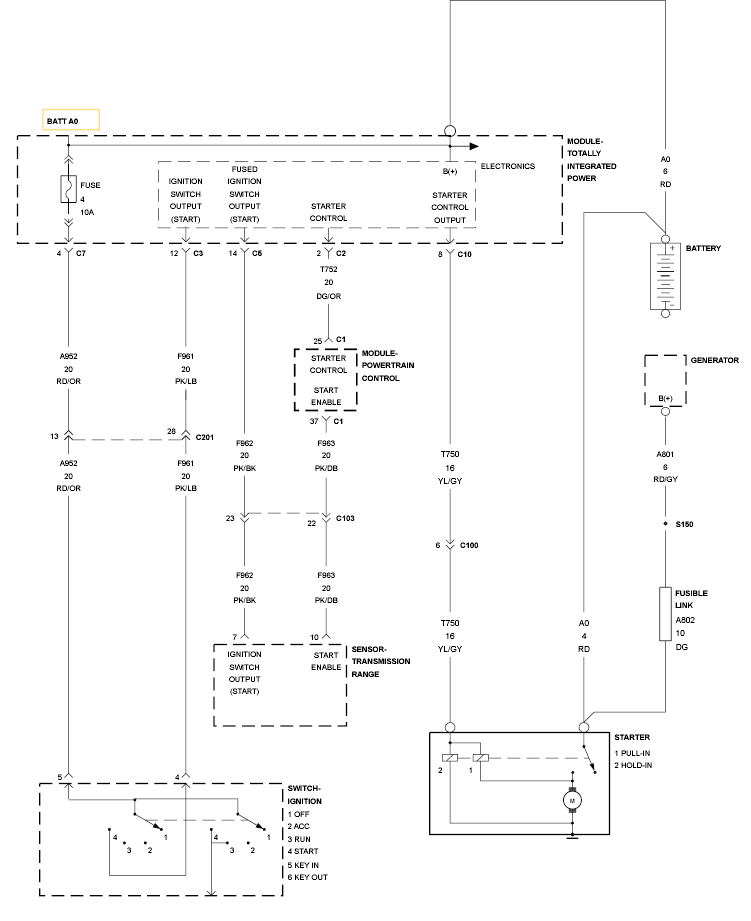

Fig 1: Starter Control Circuit 2

GC0099978

Courtesy of CHRYSLER LLC
