P0571-Brake Switch 1 Performance: Notes

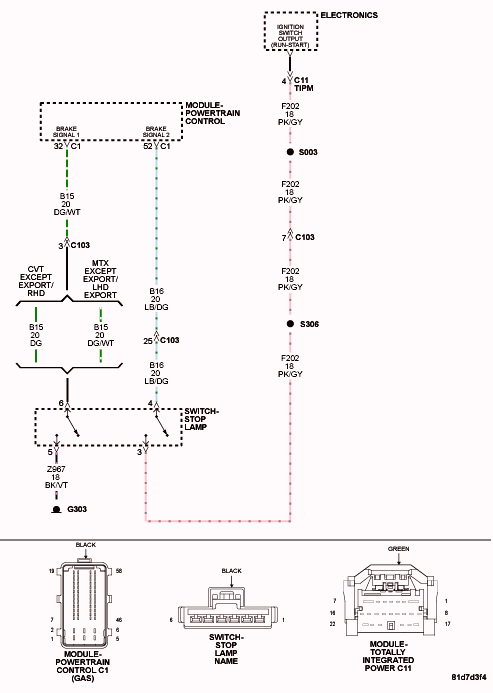

Fig 1: Brake Signal Circuit

GC0103590

Courtesy of CHRYSLER LLC
