P0440-General EVAP System Failure: Notes

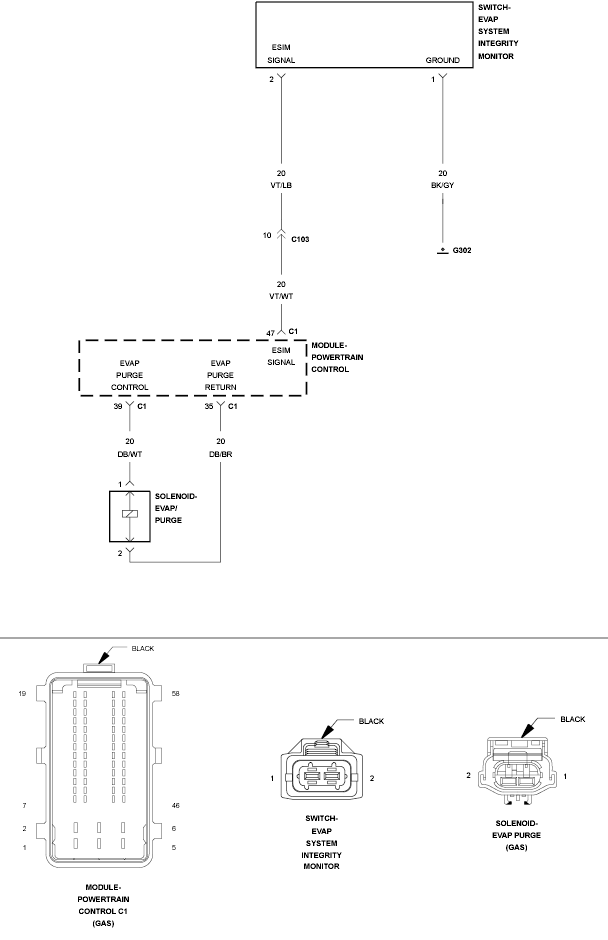

Fig 1: EVAP System Circuit

GC0099897

Courtesy of CHRYSLER LLC
