90D5-Right Side Impact Sensor 2 Configuration Error: Notes

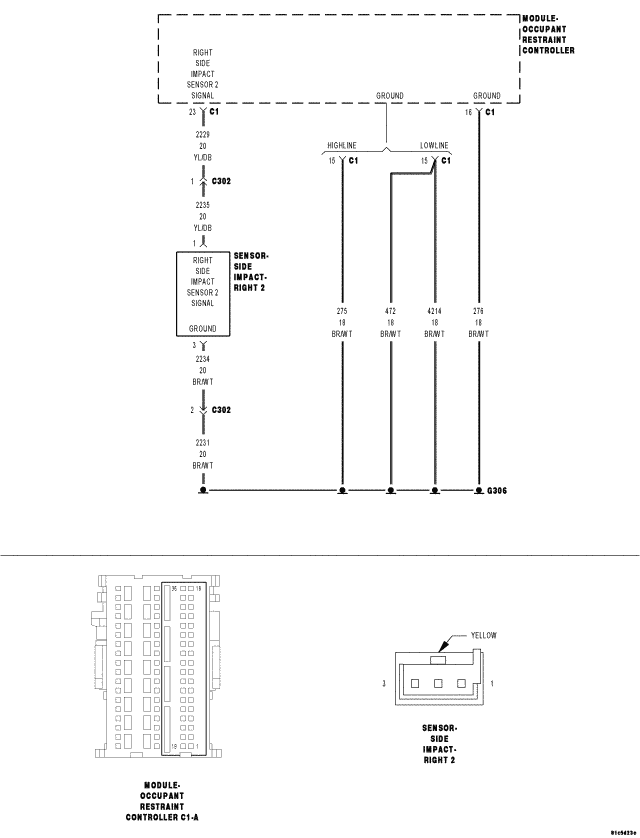

Fig 1: Right Side Impact Sensor 2 Circuit Schematic

Courtesy of CHRYSLER LLC

When powered, the Occupant Restraint Controller (ORC) compares the vehicle component configuration to the vehicle equipment. The ORC cannot be re-configured and must be replaced if this DTC is active.

1. When Monitored:

   With the ignition ON.

2. Set Condition:

   The Occupant Restraint Controller (ORC) on board diagnostics compares the vehicle component configuration to the vehicle equipment.

Always perform the *RESTRAINT SYSTEM PRE-DIAGNOSTIC PROCEDURE before proceeding.
