Fuse/Relay Block #1

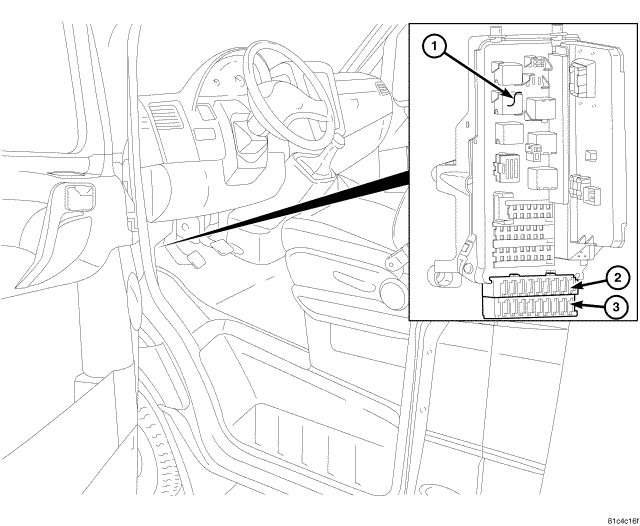

The Fuse/Relay Block #1 (also known as the SRB) (1) is located beneath the driver side end of the instrument panel in the passenger compartment. The SRB is the location for all standard fuses and relays and acts as the junction block for several of the vehicles wiring harnesses. Fuse Block #1 (3) and Fuse Block #2 (2) are both attached to the bottom of the SRB by a bracket. The Body Control Module (BCM) (also known as the Signal Acquisition and Actuation Module/SAM), is directly plugged into the right side of the SRB. Refer to DESCRIPTION for additional information on the BCM.
