2.8L Diesel

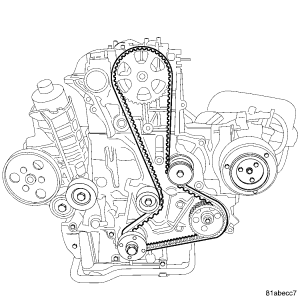

Fig 1: Identifying Water Pump

Courtesy of CHRYSLER LLC

Clean mating surfaces of water pump housing and engine block as necessary.
Place new O-ring in groove in water pump housing. Install water pump and retaining bolts. Torque bolts to 24 N.m (212 in. lbs.).
Install the water pump torque the water pump bolts to 32 Nm (23 ft. lbs.)

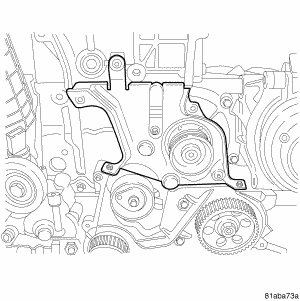

Fig 2: Removing/Installing Inner Front Cover
Courtesy of CHRYSLER LLC

Install the inner front cover.

Fig 3: Removing/Installing Timing Belt
Courtesy of CHRYSLER LLC

Install the timing belt.

Fig 4: Identifying Outer Front Cover & Crankshaft Damper
Courtesy of CHRYSLER LLC

Install the outer front cover (2).
Install the crankshaft damper (1).

Fig 5: Identifying Upper Front Cover & Lifting Bracket
Courtesy of CHRYSLER LLC
Install the upper front cover.
Install the lifting bracket.
Install the fan. See INSTALLATION .
Refill cooling system. See STANDARD PROCEDURE .
Connect negative battery cable.
