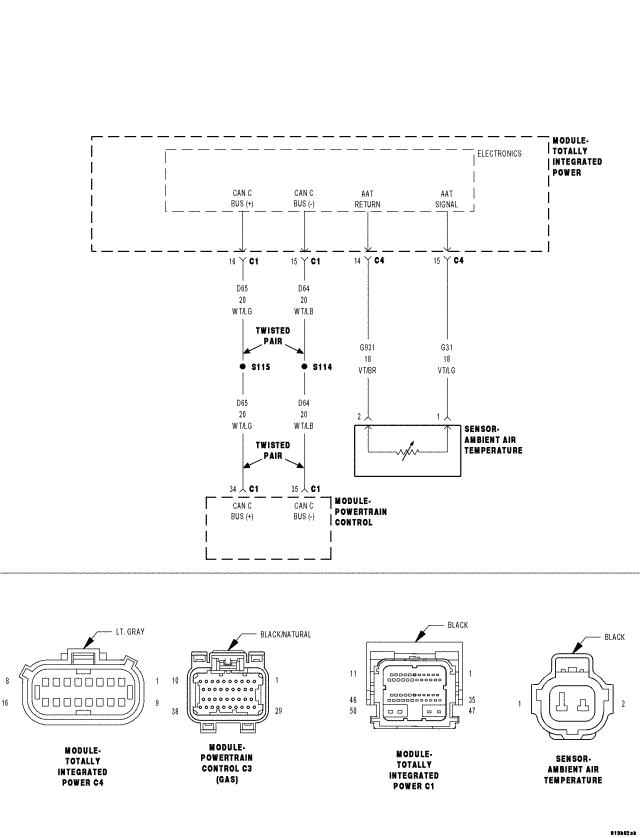

Home >> Dodge and Ram >> 2008 >> Nitro SLT, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2314 To U1418, System Checks, O2 Sensor Check, Checking Pcm Power And Ground Circuits, Engine Cranks But No Start >> U110E-Lost Ambient Temperature Message >> Circuit Schematic
