Sensor-Fuel Level Sending Unit: Installation

  1. Install the fuel level sending unit to the module.
  2. Install the fuel pump module in the tank. See INSTALLATION .

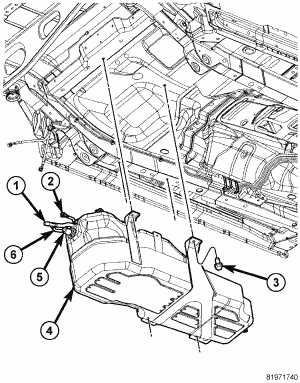

    Fig 1: Removing/Installing Fuel Tank
    GC0062723Courtesy of CHRYSLER LLC
  3. Install fuel tank (4). See INSTALLATION .
