Home >> Dodge and Ram >> 2008 >> Durango 3.7 K >> Repair and Diagnosis >> External Pages >> Different car >> Section 84 (Power Liftgate Module (PLGM) - Electrical Diagnostics) >> DTC Troubleshooting >> B1982-Power Liftgate Latch Control 1 Circuit Open >> Circuit Schematic

Circuit Schematic

WARNING: This page is about a different car, the 2009 Dodge Durango and 2009 Chrysler Aspen. However, it is still accessible from the selected car via links, so may be relevant.

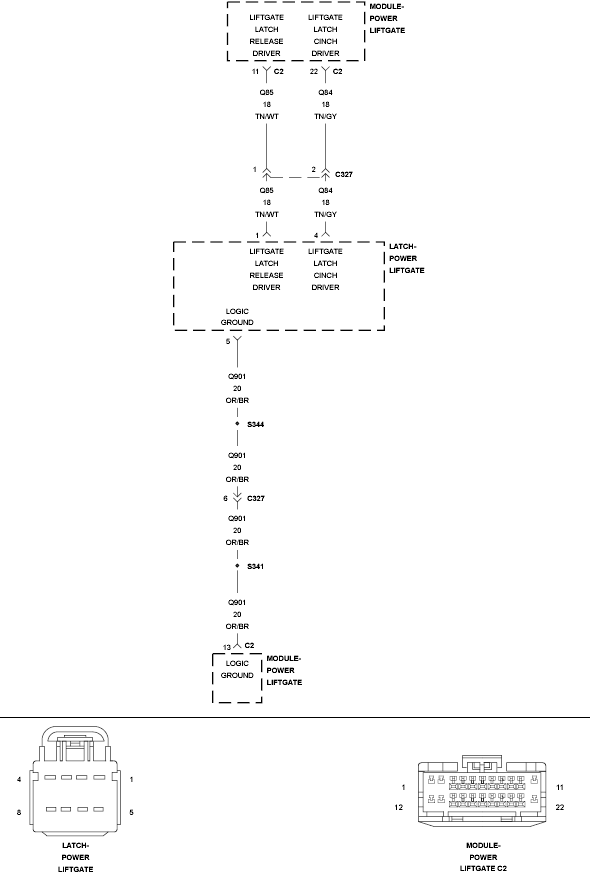

Fig 1: Power Liftgate Latch Control 1 Circuit Schematic
GC0106640Courtesy of CHRYSLER LLC
