Circuit Schematic

WARNING: This page is about a different car, the 2009 Dodge Durango and 2009 Chrysler Aspen. However, it is still accessible from the selected car via links, so may be relevant.

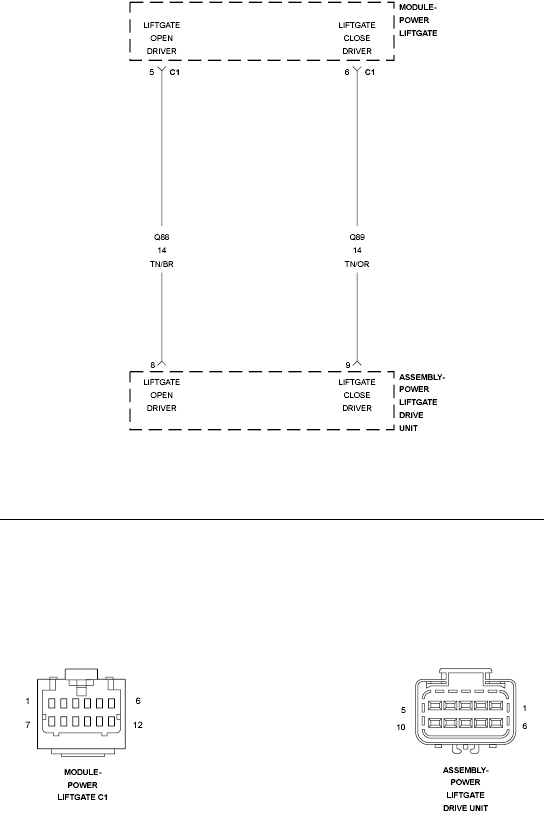

Fig 1: Power Liftgate Control Circuit 1 Schematic
GC0106554Courtesy of CHRYSLER LLC
