MODULE, Door: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Durango and 2009 Chrysler Aspen. However, it is still accessible from the selected car via links, so may be relevant.

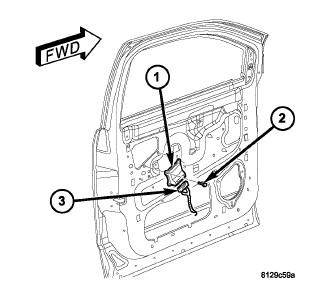

Fig 1: Door Module
GC0104139Courtesy of CHRYSLER LLC
  1. Position module on door and install fasteners.
    Fig 2: Electrical Connectors
    GC0104140Courtesy of CHRYSLER LLC
  2. If applicable, first connect the black 12-way electrical connector (3), then connect the brown 20-way electrical connector (2). Then connect the black 10-way electrical connector to the module (1).
  3. Install the door trim panel. Refer to Body/Door - Front/PANEL, Door Trim - Installation .
  4. Connect the battery negative cable.
  5. Verify system and vehicle operation.
