TRAY, Battery: Installation: Installation
WARNING: This page is about a different car, the 2009 Dodge Durango and 2009 Chrysler Aspen. However, it is still accessible from the selected car via links, so may be relevant.

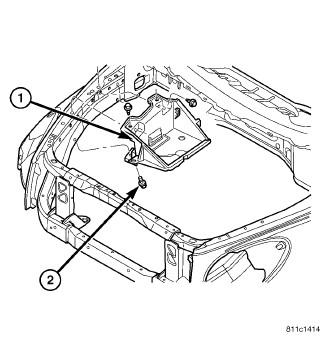

- Clean and inspect the battery tray (1). See Electrical - Engine Systems/Battery System - Cleaning .
- Position the battery tray (1) into the vehicle.
- Install and tighten the lower bolts (2) that secure the battery tray (1). Tighten the screws to 12.4 N.m (110 in. lbs.).
- Install the right front wheelhouse splash shield. Refer to Body/Exterior/SHIELD, Splash - Description
- Install the right front tire and wheel assembly. Refer to Tires and Wheels/Wheels - Standard Procedure .
- Install and tighten upper bolts that secure the battery tray to fender frame. Tighten the screws to 12.4 N.m (110 in. lbs.).
- Install the battery onto the battery tray. See Electrical - Engine Systems/Battery System/BATTERY - Installation .
