Fuel Tank
- If fuel tank is to be replaced, install fuel pump module into tank. See INSTALLATION .
Courtesy of CHRYSLER LLC
- Position fuel tank to hydraulic jack.
- Raise tank until fuel lines can be connected.

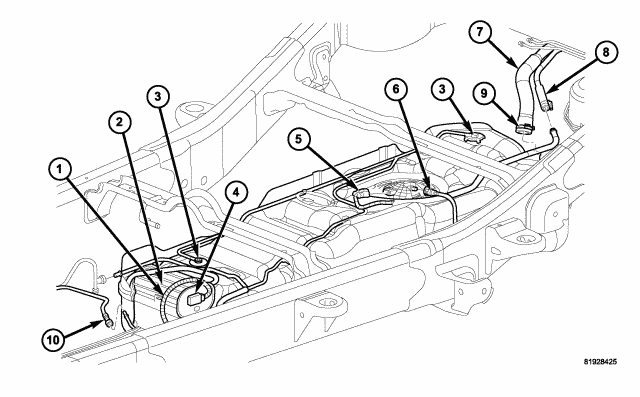

- Connect fuel line (6) to fuel pump module.
- Connect fuel pump module electrical connector (5) at pump module.
- Continue raising tank until positioned snug to body.
Courtesy of CHRYSLER LLC

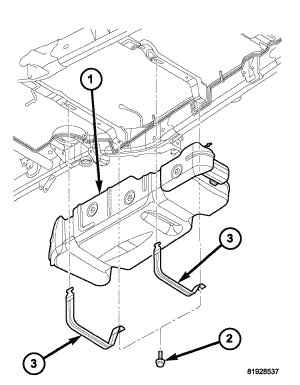

- Install and position both tank support straps (3). Install two fuel tank strap bolts (2) and tighten to 30 ft. lbs. (40 N.m).
Courtesy of CHRYSLER LLC
- Connect rubber fill hose (7) at rear of tank. Tighten clamp (9).
- Connect fitting (8) at rear of tank.
- Connect fittings at front of tank.
- Connect electrical connector to ESIM switch (4).
- If equipped, install fuel tank skid plate.
- Lower vehicle.
- Fill fuel tank with fuel.
- Start engine and check for fuel leaks near top of module.
