Overhead Console Liftgate Switch

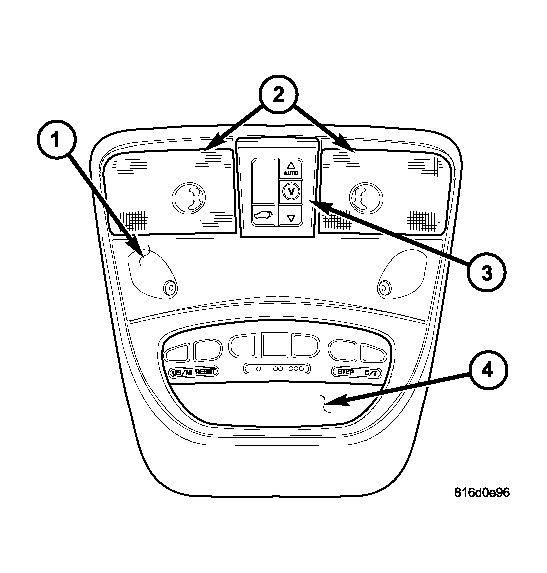

Fig 1: View Of Overhead Console

Courtesy of CHRYSLER LLC

NOTE: The overhead console shown in illustration contains a combination power liftgate/power sunroof switch. Vehicles equipped with the power liftgate and no sunroof contain a single power liftgate switch only.

NOTE: On vehicles equipped with both a power sunroof and power liftgate the overhead console switches are serviced together as one assembly.

NOTE: Durango overhead console with Electronic Vehicle Information Center (EVIC) shown in illustration. Aspen overhead console similar.

The power liftgate switch (3) is mounted in the overhead console assembly (1) between the reading lamps (2). The switch is snapped into mounting slots in the overhead console assembly. The momentary, push button-type power liftgate switch, provides a hardwired signal to the Power Liftgate Control Module.

If the switch is inoperative or damaged the power liftgate/power sunroof switch assembly must be replaced. See REMOVAL for the appropriate procedure.
