WARNING: This page is about a different car, the 2012 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.

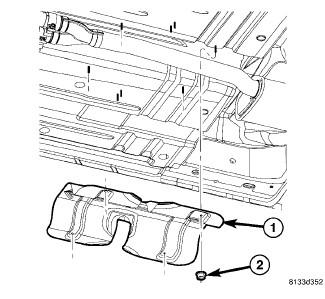

Fig 1: Heat Shield & Nut
Courtesy of CHRYSLER GROUP, LLC
1 - HEAT SHIELD
2 - NUT
Position the heat shields (1).
Install the nuts (2). Tighten the nuts to 10 N.m (98 in. lbs.).
