Diagnostic Test

  1. ACTIVE DTC
    NOTE:

    Diagnose any Misfire DTCs before continuing.

    1. Ignition on, engine not running.
    2. With a scan tool, read the DTCs.

      Is the DTC active at this time?

      Yes

      • Go To  2.

      No

  2. (K454) MDS SOLENOID NO. 7 CONTROL CIRCUIT SHORTED TO VOLTAGE

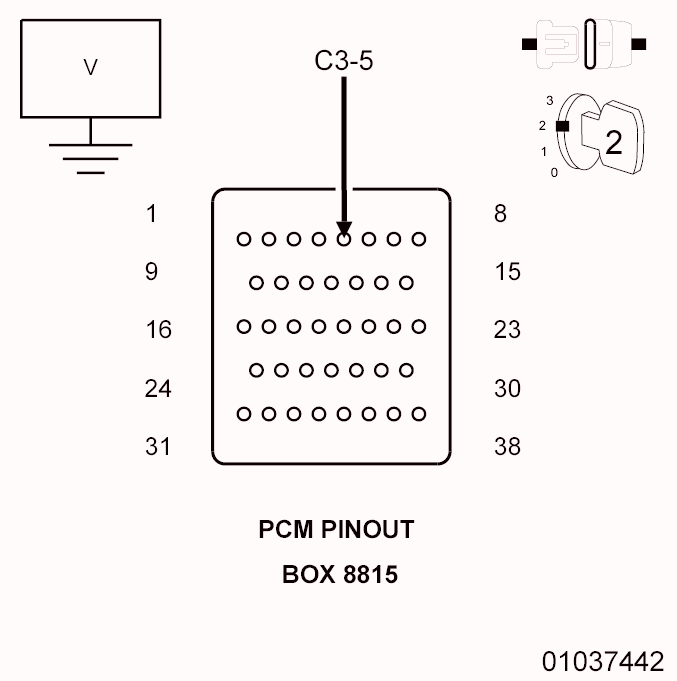

    Fig 1: Checking MDS Solenoid No. 7 Control Circuit For Short To Voltage
    GC0097621Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C3 harness connector.
    3. Disconnect the C101 harness connector.
      CAUTION:

      Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position) to perform diagnosis.

    4. Turn the ignition on.
    5. Measure the voltage on (K454) MDS Solenoid No. 7 Control circuit in the appropriate terminal of PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position).

      Is voltage present?

      Yes

      • Repair the short to voltage in the (K454) MDS Solenoid No. 7 Control circuit.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Go To  3.
  3. MDS SOLENOID RESISTANCE

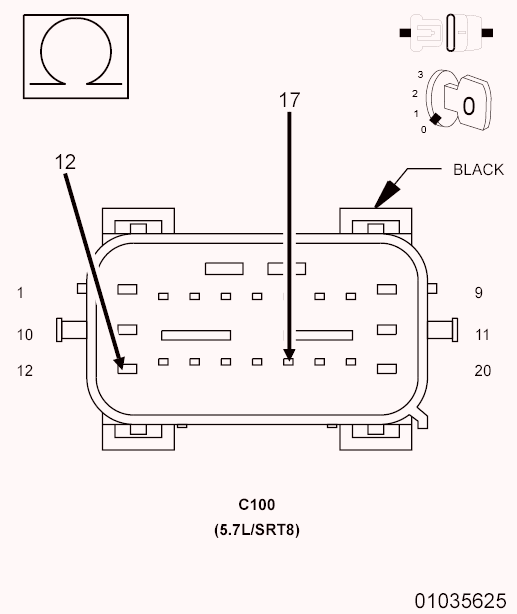

    Fig 2: Checking MDS Solenoid Resistance
    GC0097622Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Measure the resistance between the (Z904) Ground Circuit and the (K454) MDS Solenoid No. 7 Control Circuit in the C101 harness connector (MDS Side).
      NOTE:

      It is important to follow the below temp/resistance values to ensure an accurate reading.

      MDS SOLENOID RESISTANCE
      TEMPERATURE VALUE ± 20° F  RESISTANCE (OHMS) ±.25 Ohms
      0° F 8.8 Ohms
      32° F 9.5 Ohms
      68° F 10.3 Ohms
      100° F 11 Ohms
      150° F 12.2 Ohms
      200° F 13.4 Ohms
      250° F 14.4 Ohms
      300° F 15.6 Ohms

      Is the resistance within an acceptable range?

      Yes

      • Go To  4.

      No

      • Visually and Physically inspect the wiring harness between the C101 connector and the MDS Solenoid connector. Repair as necessary. If OK, replace the MDS Solenoid in accordance with the Service Information.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  4. POWERTRAIN CONTROL MODULE (PCM) CONTROL

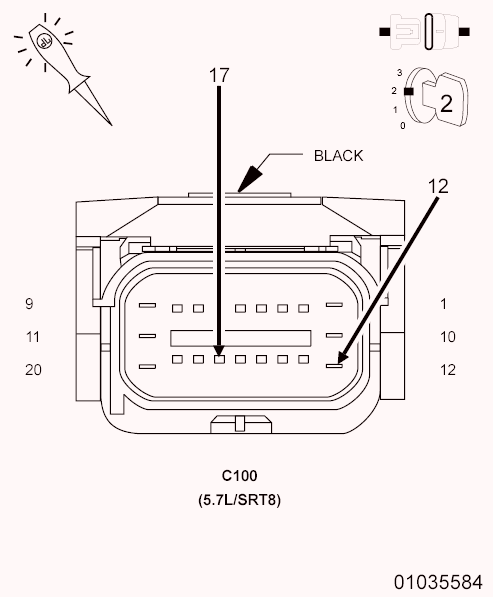

    Fig 3: Checking PCM Control Circuit
    GC0097623Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The DTC must not be active for the actuator test to operate properly, clear all DTC before continuing.

    1. Turn the ignition off.
    2. Reconnect the PCM C3 harness connector.
    3. Disconnect the C100 harness connector.
    4. Ignition on, engine not running.
    5. Using a 12-volt test light connected to the (Z904) Ground circuit, probe the (K454) MDS Solenoid No. 7 Control circuit in the C100 harness connector.
    6. With a scan tool, actuate the MDS Solenoid.

      Does the 12-volt test light flash on and off?

      Yes

      • Go To  5.

      No

      • Replace and program the Powertrain Control Module in accordance with the Service Information.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  5. MDS SOLENOID 7
    Fig 4: Identifying MDS Solenoids
    GC0094374Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Remove the Intake Manifold per Service Information.
    3. Turn the ignition on.
    4. With the scan tool actuate the MDS Solenoid 1.

      Can you feel and hear the Solenoid Actuating?

      Yes

      • Go To  6.

      No

      • Remove the Solenoid (1) and check for any debris that may be blocking the oil passages (3) to the Solenoid. If the passages are clogged, clean the passages and replace the MDS Solenoid 7. If the passages are not clogged with debris, replace the MDS Solenoid 7.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  6. OIL PASSAGES RESTRICTED
    1. Turn the ignition off.
    2. Remove both Solenoids on Bank 1 of the engine block.
    3. Remove the Bank 7 Cylinder Head per Service Information.
    4. Remove the Lifters from the right engine bank.
    5. Inspect the oil passages to the Solenoids and from the Solenoids to the lifters.

      Are the passages blocked?

      Yes

      • Clean the oil passages as necessary. If the entire engine is restricted disassembly of the entire engine block may be necessary.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Replace both sets of lifters if no other possible causes remain.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
