Sensor, Crankshaft Position: Installation: Installation

Fig 1: Crankshaft Position Sensor

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Before installing the Crankshaft Position (CKP) sensor, check the condition of the sensor O-ring (1) and replace if necessary.

Clean the machined hole in the engine block.
Apply a small amount of engine oil to the CKP sensor O-ring (1).
Install the CKP sensor into the engine block with a slight twisting motion.

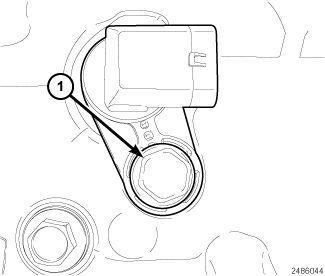

Fig 2: Crankshaft Position Sensor Mounting Bolt
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Before tightening the CKP sensor mounting bolt (1), be sure the sensor is completely flush to the cylinder block. If sensor is not flush, damage to the sensor mounting tang may result.
Install the CKP sensor mounting bolt (1) and tighten to 12 N.m (9 ft. lbs.).

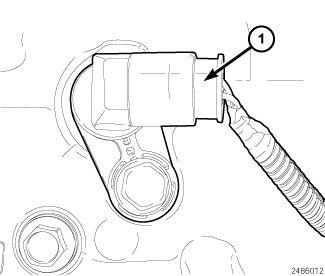

Fig 3: Crankshaft Position Sensor Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the CKP sensor electrical connector (1).
Install the starter motor. Refer to STARTER, INSTALLATION .
Lower the vehicle.
Install the negative battery cable.
