Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| All Wheel Drive (AWD) Control Module | Behind left kick panel. See Figure. |

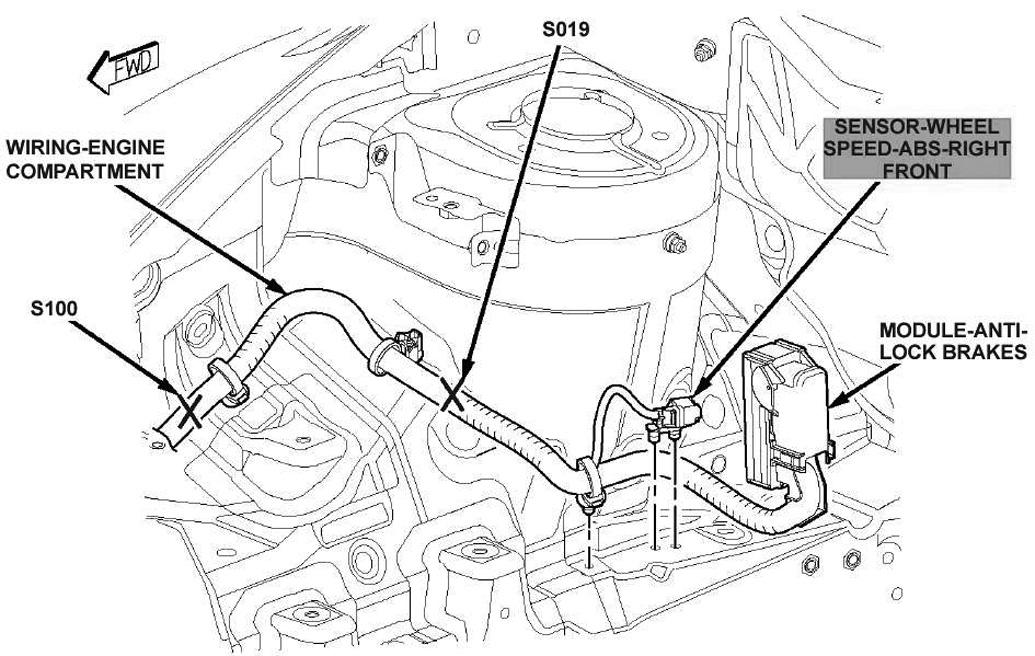

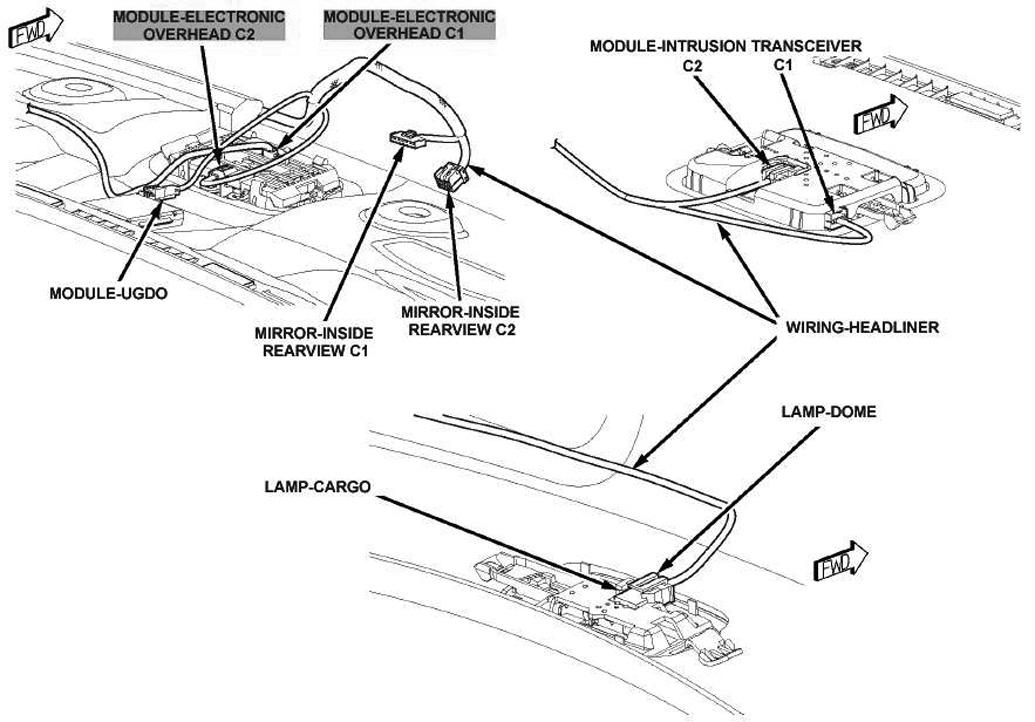

| Anti-Lock Brakes Module (Left) | Left rear of engine compartment. See Figure. |
| Anti-Lock Brakes Module (Right) | Right rear of engine compartment. See Figure. |
| Electronic Overhead Module | In overhead console. See Figure. |

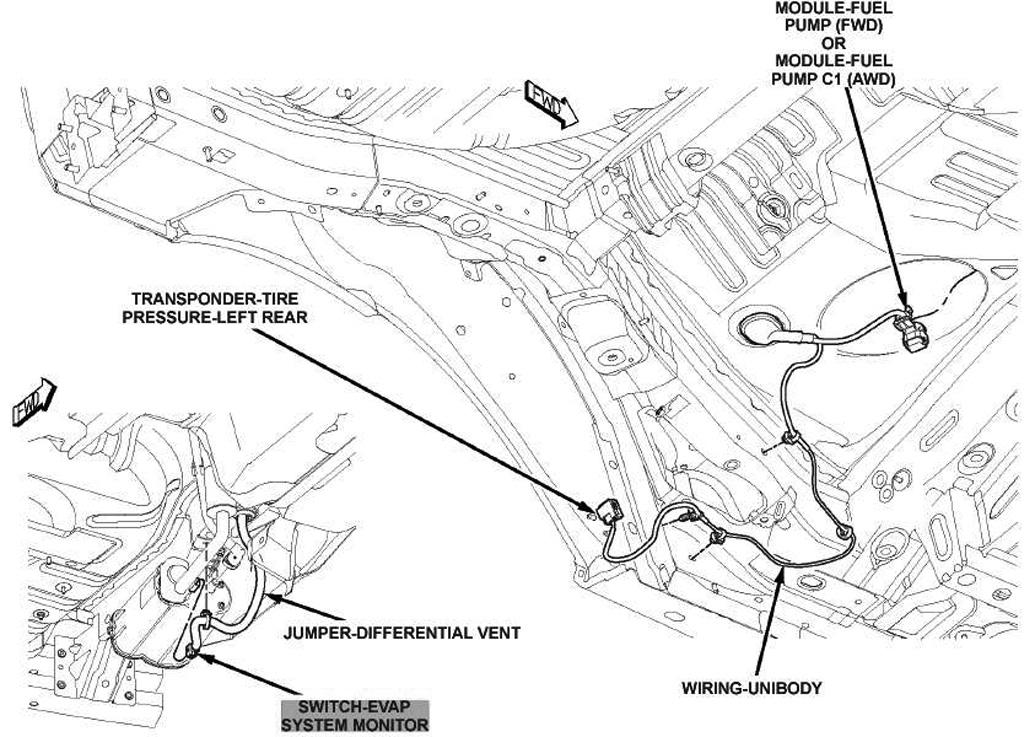

| Fuel Pump Module (AWD) | Top left side of fuel tank. See Figure. |
| Fuel Pump Module (FWD) | Top left side of fuel tank. See Figure. |

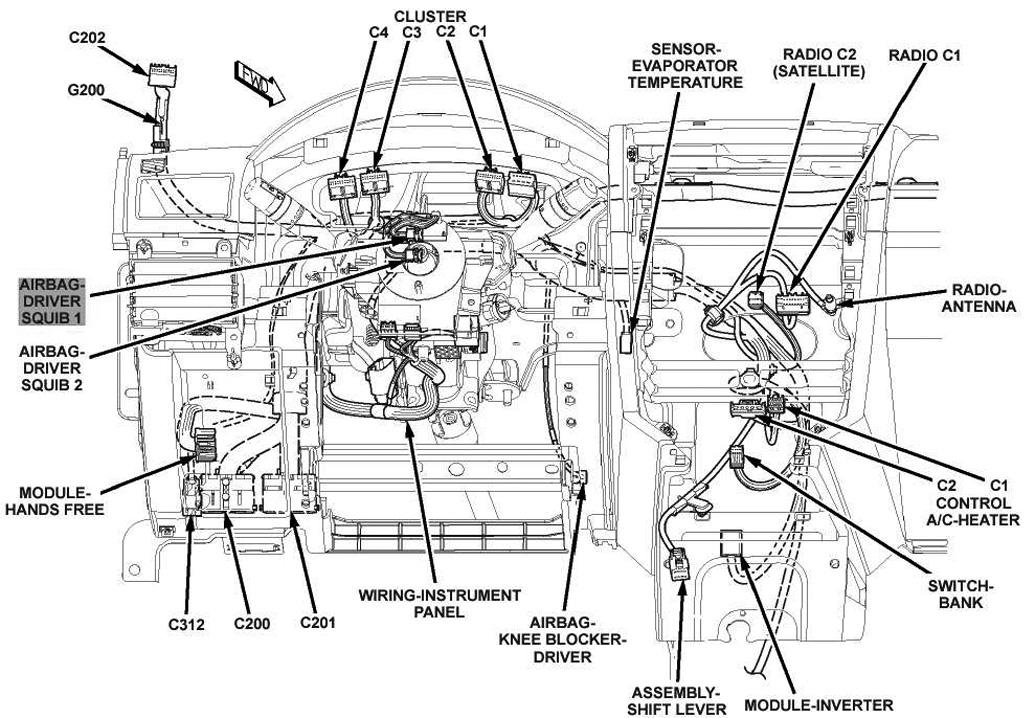

| Hands Free Module | Under left end of dash. See Figure. |

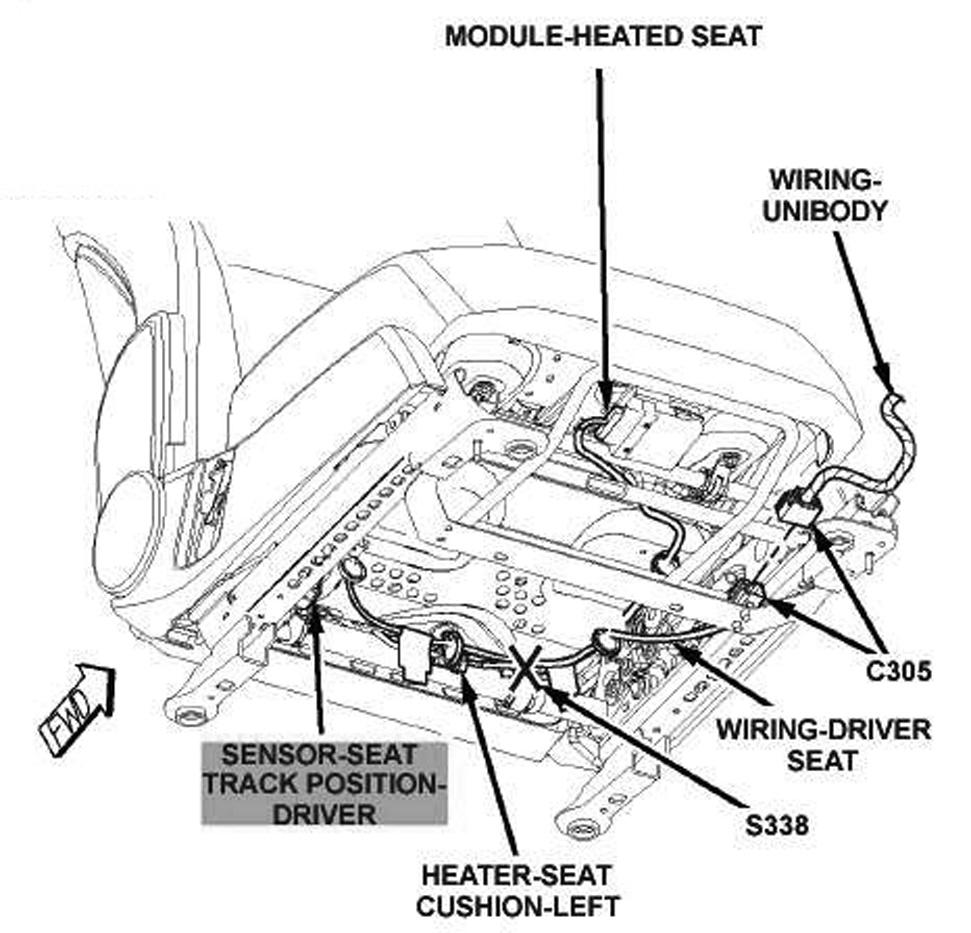

| Heated Seat Module | Under driver's seat. See Figure. |
| Intrusion Transceiver Module | In overhead console. See Figure. |
| Inverter Module | Behind lower center of dash. See Figure. |

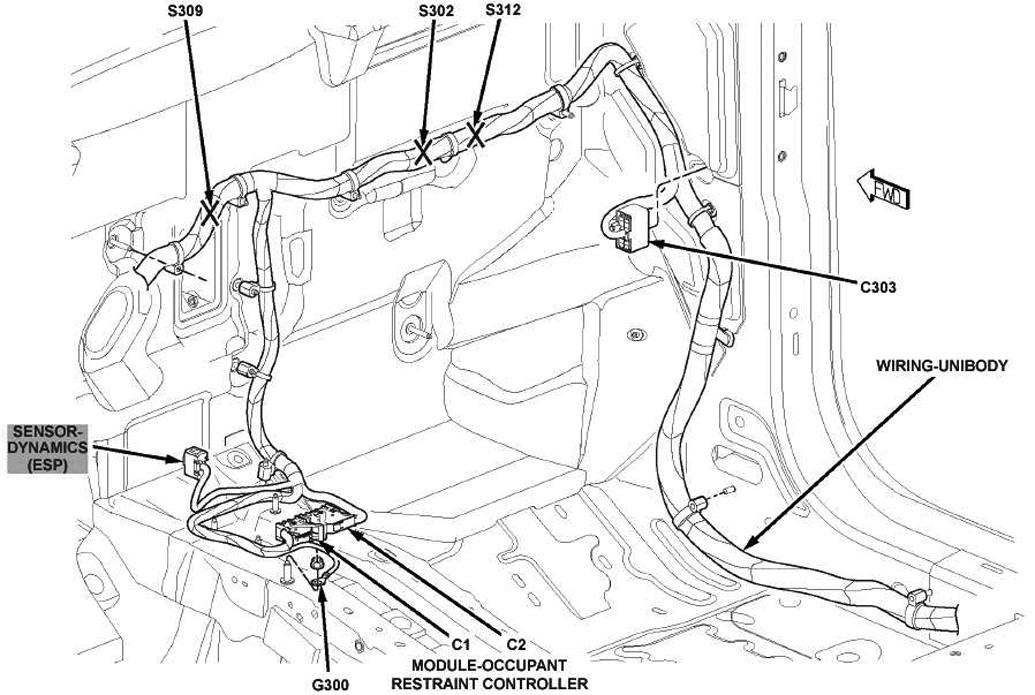

| Occupant Restraint Controller Module | Under front of center console. See Figure. |

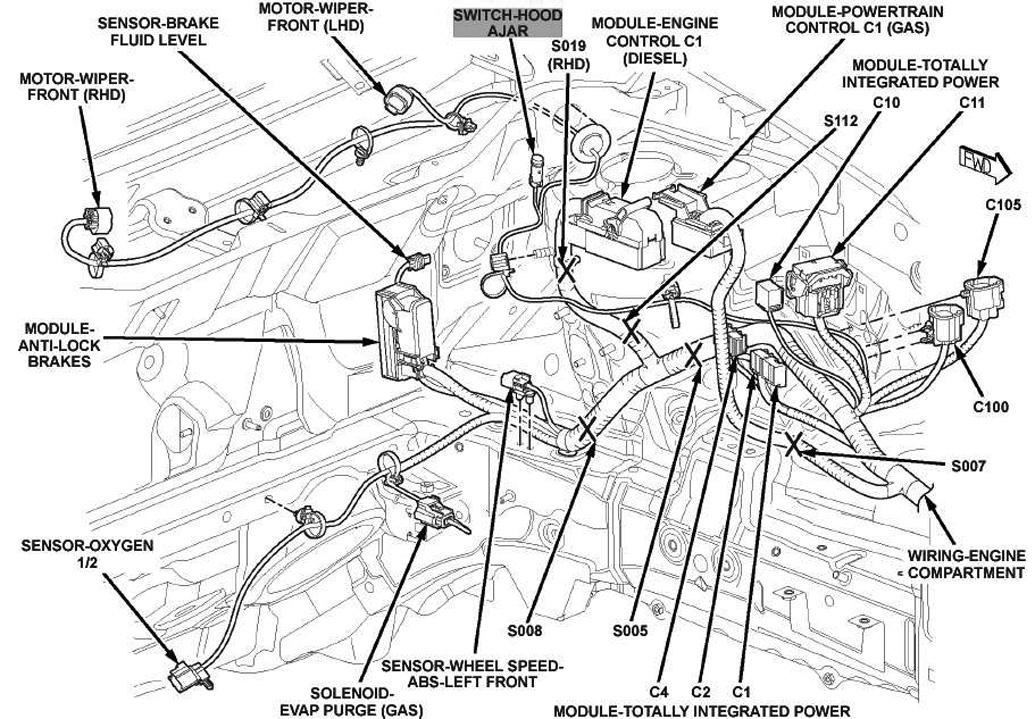

| Powertrain Control Module | Left rear of engine compartment. See Figure. |

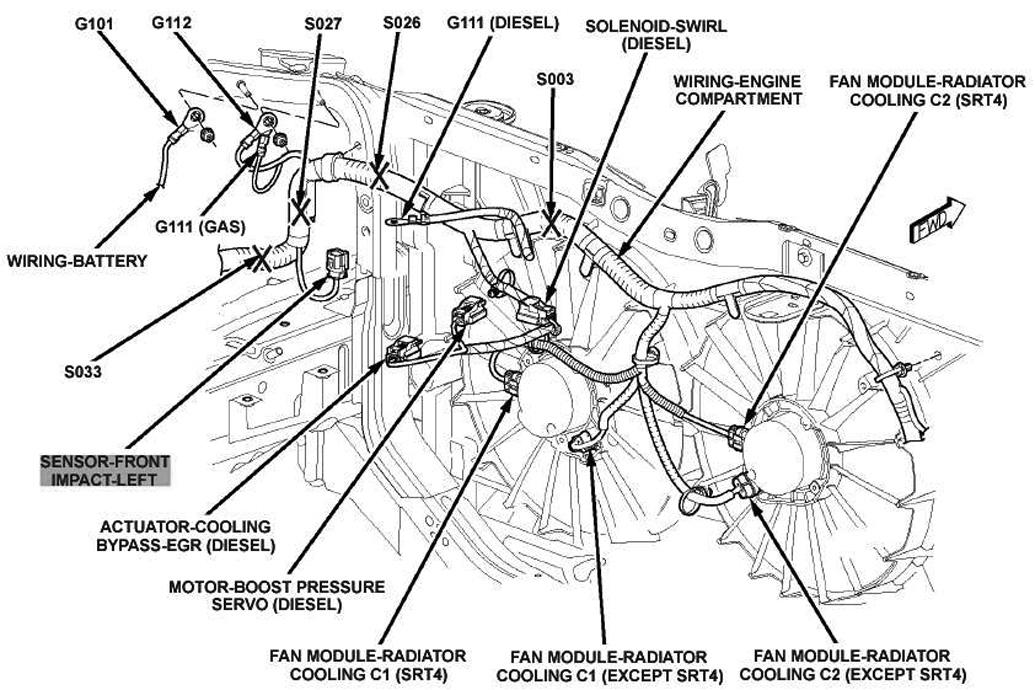

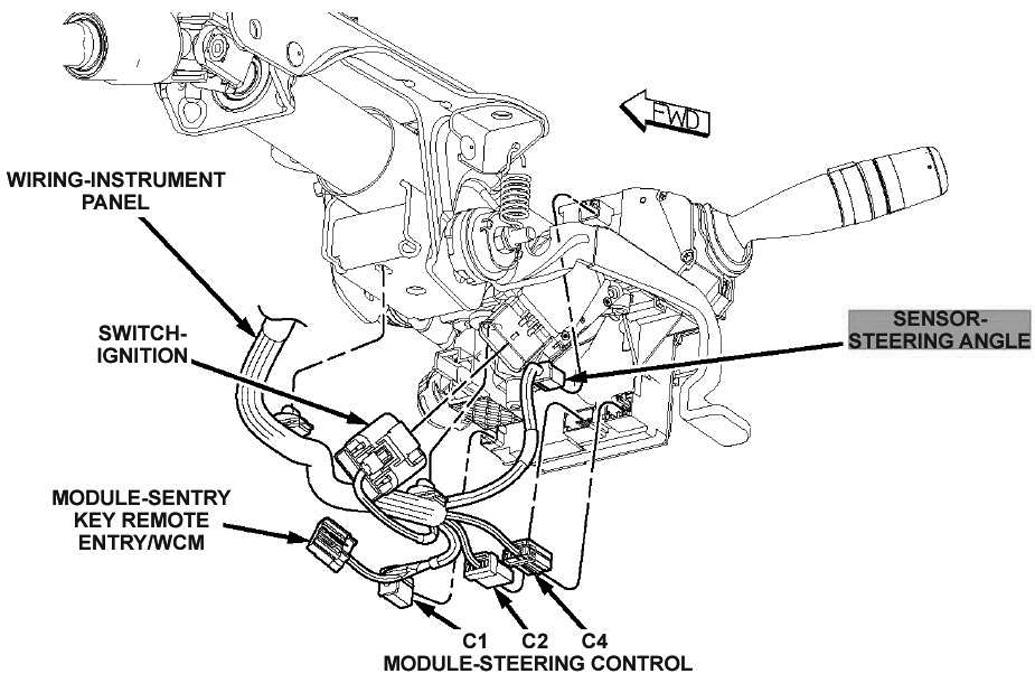

| Radiator Cooling Fan Module (2) | On left/right cooling fan motor. See Figure. |
| Remote Entry/WCM Sentry Key Module | Under steering column. See Figure. |
| Steering Control Module | On steering column. See Figure. |
| Totally Integrated Power Module | Left side of engine compartment. See Figure. |

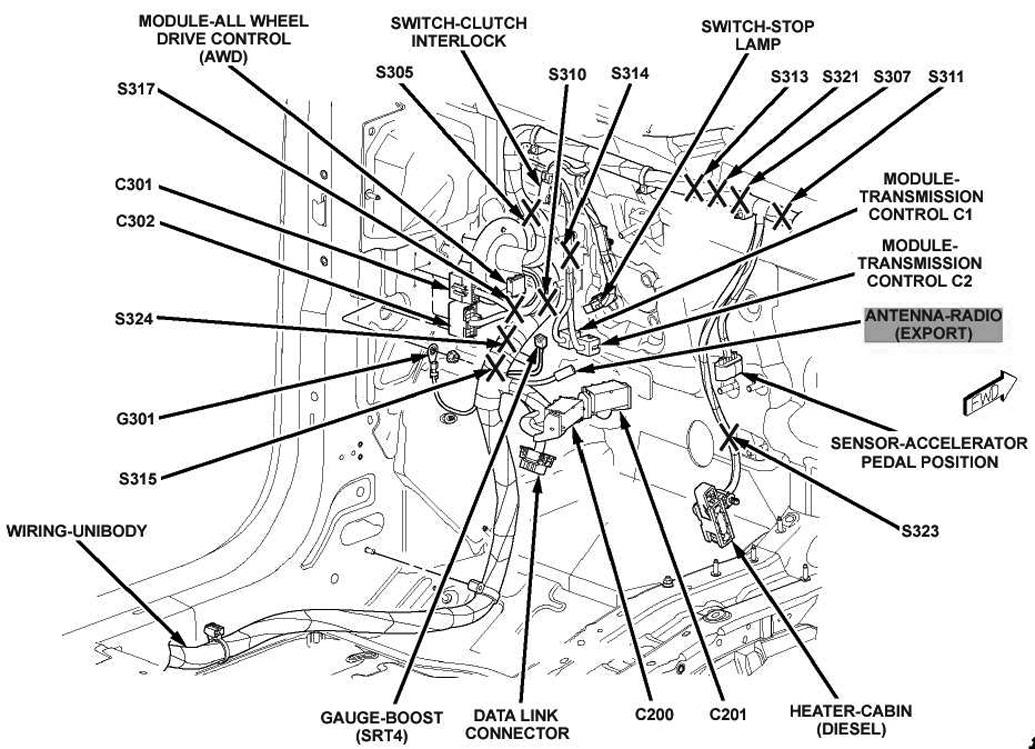

| Transmission Control Module | Behind left side of dash. See Figure. |
| UGDO Module | Front center of roof. See Figure. |
